THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2019 Insignia
With this Class A motorhome, you’ll step your travel experience up to the next level. One of the most comfortable large coaches to drive on the market today, Insignia can make a day on the road as enjoyable as a day at the resort. Discover a kind of freedom only this kind of luxury Class A diesel motorhome can provide.
Brochure
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2019 Insignia|37MB
Specs
| Gross Vehicle Weight Rating (lbs) | 40000 |
| Gross Combined Weight Rating (lbs) | 50000 |
| Front Gross Axle Weight Rating (lbs) | 16000 |
| Rear Gross Axle Weight Rating (lbs) | 24000 |
| Wheel Base | 228 |
| Exterior Length | 38' 2" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 100 |
| Furnace (BTU Output) | 40,000 Aqua-Hot |
2019 Insignia|40B2
Specs
| Gross Vehicle Weight Rating (lbs) | 40000 |
| Gross Combined Weight Rating (lbs) | 50000 |
| Front Gross Axle Weight Rating (lbs) | 16000 |
| Rear Gross Axle Weight Rating (lbs) | 24000 |
| Wheel Base | 261 |
| Exterior Length | 40' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 100 |
| Furnace (BTU Output) | 40,000 Aqua-Hot |
2019 Insignia|44B
Specs
| Gross Vehicle Weight Rating (lbs) | 48000 |
| Gross Combined Weight Rating (lbs) | 63000 |
| Front Gross Axle Weight Rating (lbs) | 16000 |
| Rear Gross Axle Weight Rating (lbs) | 20000 |
| Tag Axle Gross Weight Rating (lbs) | 12000 |
| Wheel Base | 320 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 100 |
| Furnace (BTU Output) | 65,600 Aqua-Hot |
2019 Insignia|44R
Specs
| Gross Vehicle Weight Rating (lbs) | 48000 |
| Gross Combined Weight Rating (lbs) | 63000 |
| Front Gross Axle Weight Rating (lbs) | 16000 |
| Rear Gross Axle Weight Rating (lbs) | 20000 |
| Tag Axle Gross Weight Rating (lbs) | 12000 |
| Wheel Base | 320 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 100 |
| Furnace (BTU Output) | 65,600 Aqua-Hot |

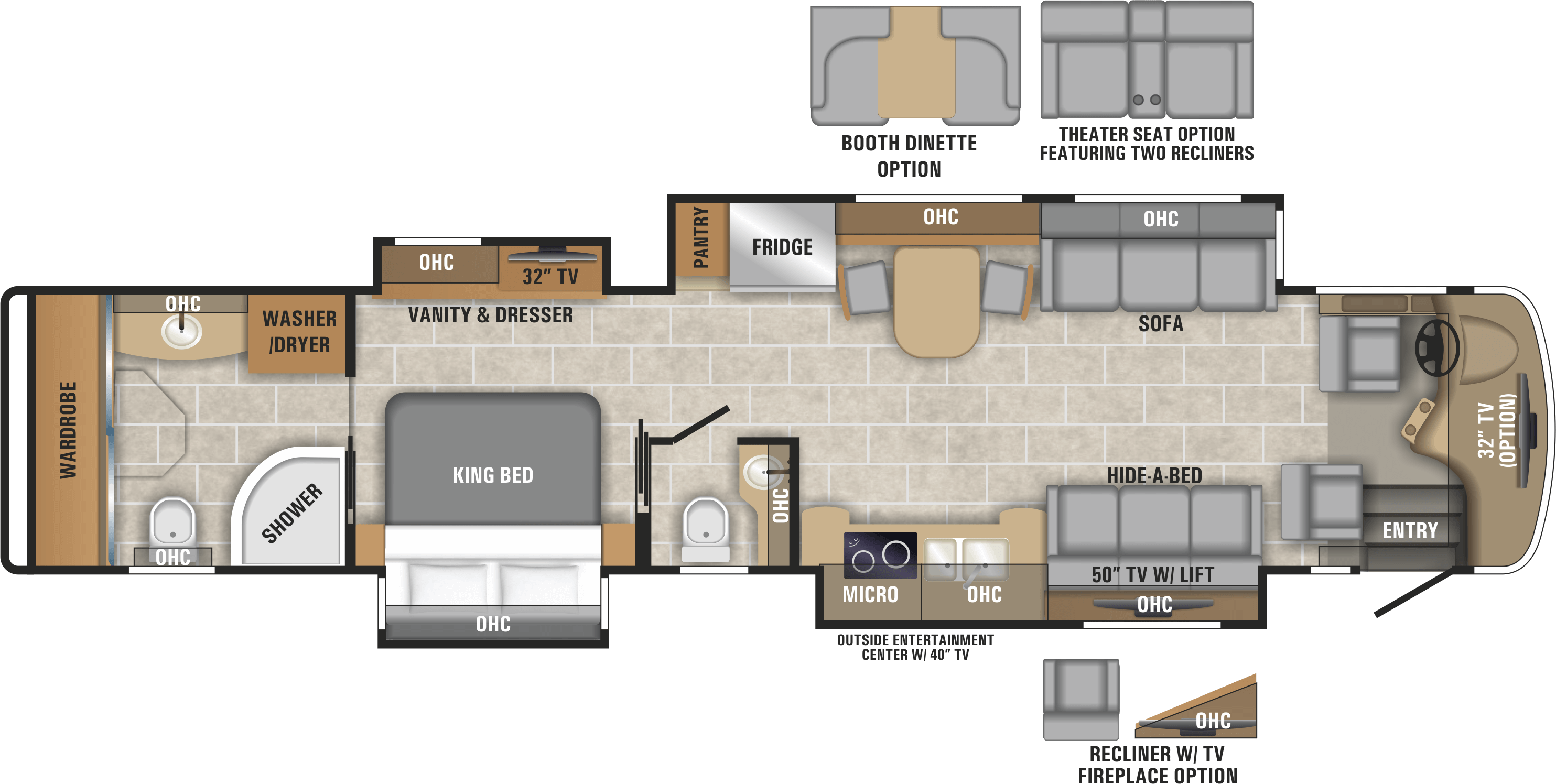

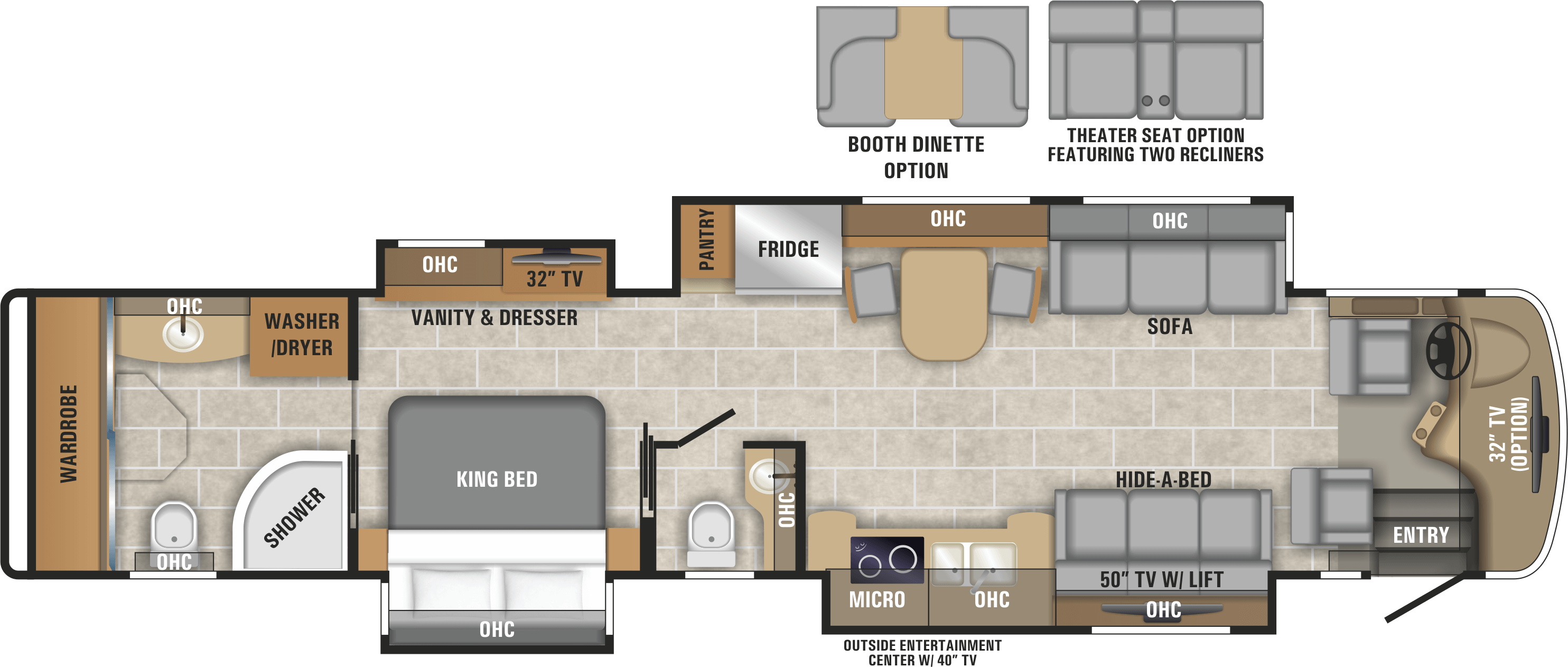

2019 Insignia|44W
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 48000 |
| Gross Combined Weight Rating (lbs) | 63000 |
| Front Gross Axle Weight Rating (lbs) | 16000 |
| Rear Gross Axle Weight Rating (lbs) | 20000 |
| Tag Axle Gross Weight Rating (lbs) | 12000 |
| Wheel Base | 320 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 100 |
| Furnace (BTU Output) | 65,600 Aqua-Hot |
All Floorplans
2019 Insignia | 37MB
2019 Insignia | 40B2
2019 Insignia | 44B
2019 Insignia | 44R
2019 Insignia | 44W
360°
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Exterior Graphics
Standards & Options
Chassis
| Chassis | Spartan K2 raised rail chassis |
| Engine | Cummins® L9 turbocharged 450 HP engine 1,250-lb. ft. torque at 1,400 RPM (Larger than 40') / Cummins® L turbocharged 380 HP engine 1,150-lb. ft. torque at 1,400 RPM (40' and under) |
| Transmission | Allison 3000 MH 6-speed transmission |
| Engine Block Heater | 1,000 watt engine block heater |
| Front Suspension | Reyco Granning front suspension |
| Rear Suspension | Reyco Granning rear suspension |
| Front Axle | Front axle I-beam 16,000-lb. wide track |
| Rear Axle | Rear axle 20,000-lb., tag axle 12,000-lb.(Larger than 40') / Rear axle 24,000-lb. (40' and under) |
| Rear Axle Ratio | 4.88 rear axle ratio(Larger than 40') / 4.78 rear axle ratio (40' and under) |
| Hitch | 15,000-lb. hitch with 7/4-pin plug (Larger than 40') / 10,000-lb. hitch with 7/4-pin plug (40' and under) |
| Tag Axle | Tag axle air dump (Larger than 40') |
| Radiator | Side-mounted radiator |
| Braking System | ABS disc brakes on front axle, drum brakes on drive and tag axle (Larger than 40') / ABS disc brakes on front and rear axle (40' and under) |
| Engine Brake | Two-stage engine brake |
| Shocks | Bilstein 46mm shocks |
| Fuel Tank | 100-gal. fuel tank (dual fill) |
| DEF Tank | 15 gallon DEF tank (dual fill 44B & 44W) / 15 gallon DEF tank (passenger side fille) (Less than 40') |
| Tires | Michelin 295/80R 22.5" Tires (Front) 275/80 R 22.5" Tires (Rear) |
| Turning Radius | 52-degree turning radius |
| Chassis Battery | Chassis batteries (2) 12 volt |
| Alternator | 170-amp alternator |
| Air Connection | Remote air connection |
| Tow Air Brake System | Safehaul tow air brake system |
Construction
| Frame | X-Bridge frames welded into chassis frame |
| Underbelly | Insulated, enclosed, thermostat controlled storage area with heated floor |
| Insulation | Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22) |
| Floor | 2" x 4" floor truss construction |
| Floor Decking | 3/4" 7-ply plywood main floor decking |
| Walls | Aluma-Tru Superstructure construction on 12"-16" centers |
| Slideouts | Flush-mounted electric-powered slideout rooms with remote control |
| Roof | One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss |
Heat, AC, Water & Power
| Propane | 50-gal. propane gas tank |
| Heating System | Aqua-Hot® 400-LP hydronic water and heating system with in-floor heat throughout (Larger than 40') / Aqua-Hot 250-LP (40' and under) |
| Air Conditioning | 15,000 BTU low profile A/Cs with heat pump, digital thermostat, and roof to ground condensation drain system (3 units in coaches over 40' and 2 units in coaches under 40') |
| Electrical Hookup | 50-amp power cord with electric reel |
| Generator | Onan 10,000-watt diesel generator with auto gen start on slide-out tray |
| Inverter | 3,000-watt pure sine wave inverter |
| Batteries | L16 AGM batteries (2), (6v/390 amp hrs. ea.) |
| Power Management | Surge protector transfer switch |
| Tank Flush | Black holding tank sprayer |
| Black Tank Management | Macerator holding tank dump system with manual gate valves |
| Water Monitoring | SeeLevel tank monitoring system |
| Water Filtration | City and tank water filtration system |
| Winterization Drain System | Winterizing drain system |
Exterior
| Exterior Walls | 2-1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass |
| Front/Rear Cap | Steel-reinforced front cap and windshield frame |
| Headlights | Halogen high and low beam headlights |
| Fog Lights | Halogen fog lights |
| Daytime Running Lights | Daytime running lights |
| LED Lights | LED marker lights, turn lights and license plate light |
| Docking Lights | LED docking lights |
| Accent Lights | LED accent lights on underside of slideout rooms - Passenger side |
| Third Brake Light | Third brake light |
| Keypad | Lighted grab handle with keypad system |
| Entrance Door | Aire-Secure travel locks for all pocket doors |
| Door Awning | Girard power entrance door awning with LED lights |
| Window Awnings | Carefree window shade and slide-out awnings |
| Patio Awnings | Girard Ultra power patio awning with LED lights |
| Mirrors | Heated, remote control, Ramco side-view mirrors with integrated cameras |
| Windows | Frameless, dual-pane, tinted, Hehr safety-glass windows |
| Entertainment | Exterior 39" Insignia LED HDTV and Insignia sound bar on TV bracket with extend, tilt and swivel arm |

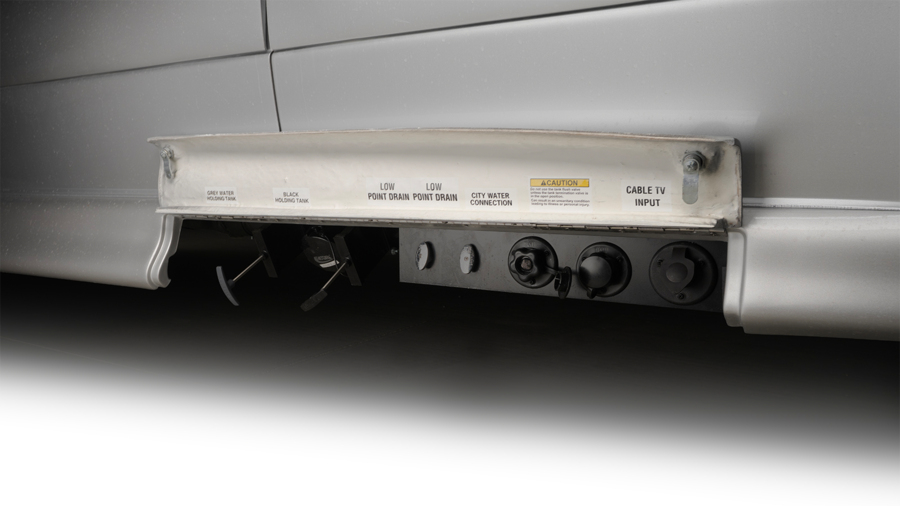

| Utility Center | Exterior utility center, heated and enclosed with system monitor panel |
| Satellite Dish | Winegard in-motion satellite dome with prep for Trav'ler satellite dish |
| TV Antenna | Winegard® In-Motion satellite dome with prep for Trav'ler satellite dish |
| Engine Door | Manual engine door |
| Rear Mudflap | Full-width rear mudflap, with chrome "Insignia" nameplate |
| Lights | Porch light and security lights |
| Exterior | 3M front protective film mask |
Cockpit
| Flooring | Powered flush stepwell cover |
| Visors & Privacy Shade | Powered front sun visors and privacy shade |
| Windshield | Ultra-Vision one-piece wrap-around tinted windshield |
| Driver / Passenger Seats | Power adjustable driver and passenger seats with integrated 3-point lap and shoulder safety belts |
| Start | Push button start |
| Steering Wheel | Tilt and telescoping steering wheel with integrated controls for cruise and wipers |
| Side Consoles | Molded side consoles (Larger than 40') |
| Monitoring System(s) | Spartan Message Center with LCD display |
| Infotainment System(s) | 9" touchscreen in-dash infotainment center with Rand McNally RV navigation, Bluetooth, Sirius XM, AM/FM tuner, integrated camera control |
| Sound System | JBL premium audio sound system (Larger than 40') / JBL speakers (40' and under) |
| Leveling System | Equalizer Hydraulic automatic leveling |
| Power Features | Battery boost system |
| Pedals | Powered adjustable foot pedals |
| Cameras | Side and rear view cameras |
| Additional Amenities | Two dual USB ports |
Interior
| Lighting System | Multiplex controlled lighting system |
| Lighting | Dimmable LED recessed 12V lighting |
| Flooring | Hand laid high gloss 12" x 24" porcelain tile floor |
| Flooring - Slides | Carpet on living area slides |
| Window Treatments | Manual solar day and black out night shades |
| Television - Living Room | Insignia 50" LED HDTV |
| Sound - Living Room | Insignia 50" LED HDTV (Larger than 40') / Insignia 50" LED HDTV with extend and swivel bracket (40' and under) |
| DVD Systems | Blu-ray player in living area |
| Furniture | Ultraleather hide-a-bed sofa(s) |
| Washer/Dryer | Stacked washer and dryer |
Kitchen
| Countertops | Solid surface countertops with stainless steel sink and LED accent lighting |
| Waste Basket | Large deep drawer for waste basket with easy access trash chute (Trash chute N/A in 37MB, 40B2, 40BH & 44R) |
| Cooktop | Induction cooktop with cover |
| Microwave | Whirlpool Gold 1.9 cu. ft. convection microwave oven |
| Refrigerator | Whirlpool residential refrigerator with ice maker and water dispenser |
| Vent | Maxxair power vent |
Bedroom
| Television | Insignia 32" LED HDTV in bedroom, Insignia 39" LED HDTV in bedroom (37MB) |
| Ceiling Fan | Ceiling fan |
| Wardrobe | Spacious wardrobe with automatic light(s) |
| Nightstands | Nightstands with USB ports and solid surface tops |
Bathroom
| Countertop(s) | Solid surface countertop(s) with integrated sink and LED accent lighting |
| Toilet | Thetford Tecma® china toilets (Larger than 40')/Thetford Aqua-Magic® china toilet with foot flush (40' and under) |
| Shower | One-piece fiberglass shower with skylight |
| Vent | Maxxair Standard power vent |
Safety
| Smoke Alarm | Smoke alarm |
| Carbon Monoxide Detector | Carbon monoxide detector |
| Propane Alarm | Propane alarm |
Options
| Canadian Standards | Optional |
| Fireplace | LED lit fireplace (37MB & 44B) |
| Dinette | Dinette Booth (40B2, 40BH, 44B & 44W) |
| Freestanding Table | Theater Seating w/Power Recliners & Fixed Center Console |
| Satellite Dish - US | Winegard Trav'ler satellite dish - DIRECTV |
| Satellite Dish - CA | Winegard Trav'ler satellite dish - Shaw Direct |
| Slideout Storage Tray | Slideout Storage Tray |
| Front Overhead TV | Optional |
| Central Vacuum System | Optional |
| WiFi Extender Antenna | Optional Winegard WIFI Extender with 4G/LTE |
| Batteries | Batteries - 2 additional AGM, 4 total (N/A on 40B2) |
| Theater Seating | Theater Seating w/ Manual Recliners & Fixed Center Console |
Décor Options
Entegra Coach peace of mind
2-year warranty and 3-year roadside assistance
At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year warranty and 3-year roadside assistance.
Detail
With this Class A motorhome, you’ll step your travel experience up to the next level. One of the most comfortable large coaches to drive on the market today, Insignia can make a day on the road as enjoyable as a day at the resort. Discover a kind of freedom only this kind of luxury Class A diesel motorhome can provide.
Auburn
Opal
Slate
