THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.

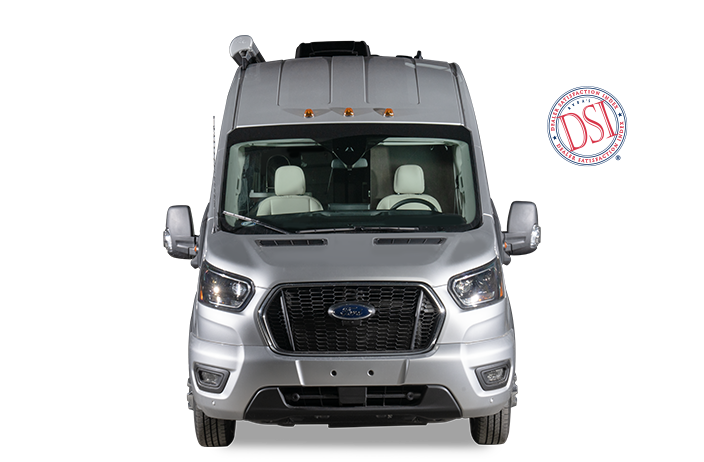

2025 Expanse

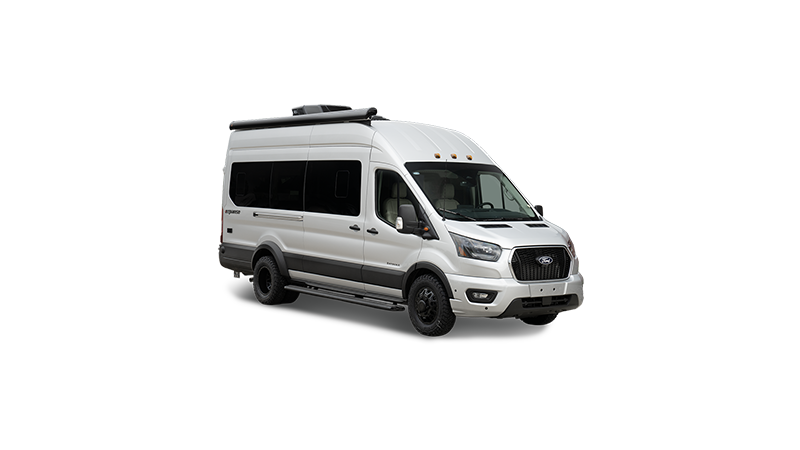

The Entegra Coach Expanse Class B offers upscale interior amenities that mirror what you’ll find in larger Entegra Coach motorhomes, but in a small and powerful package. Power starts with the chassis. The Expanse is built on the Ford® Transit AWD 350HD van, which boasts powerful all-wheel drive and many safety features you’re used to finding on your daily driver. Safety features include a 360° camera, intelligent adaptive cruise control, lane-keeping assist, front, side and reverse sensing systems, forward collision warning, post-collision braking, side wind stabilization, hill start assist, tire pressure monitoring, and more. Driving the Expanse isn’t only safe, it’s also enjoyable with the E-Z Drive® ride and handling package featuring Hellwig® Helper Springs. These springs maintain proper ride... Read More
Brochure
Gallery

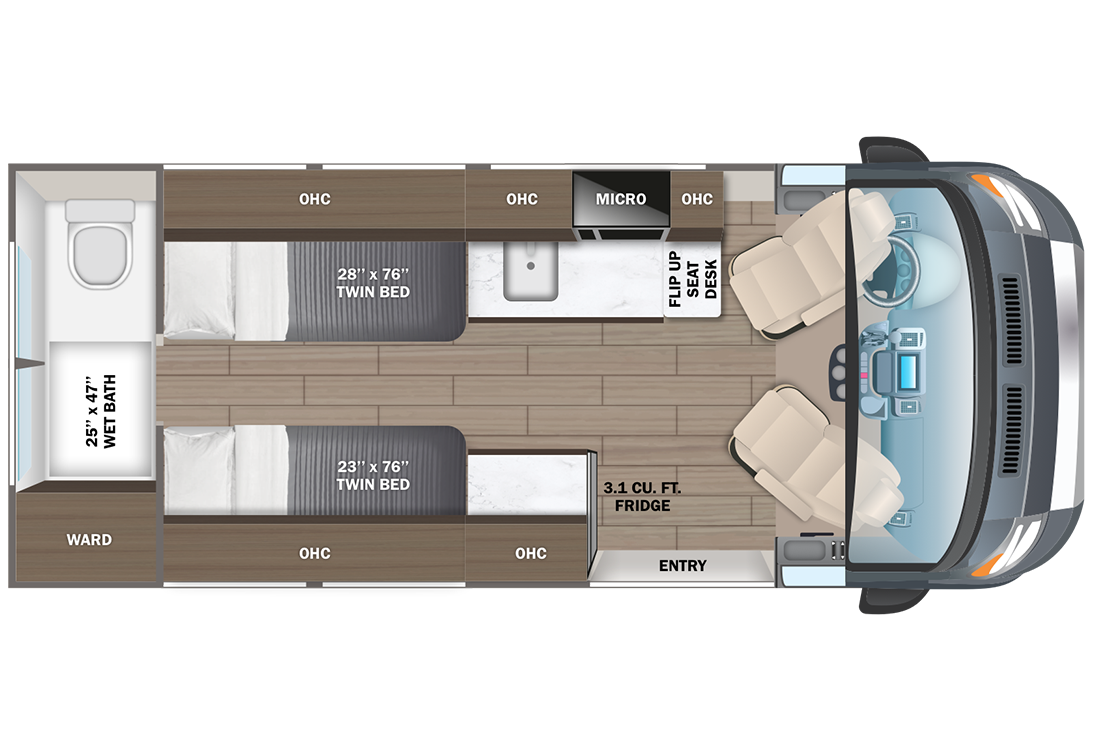

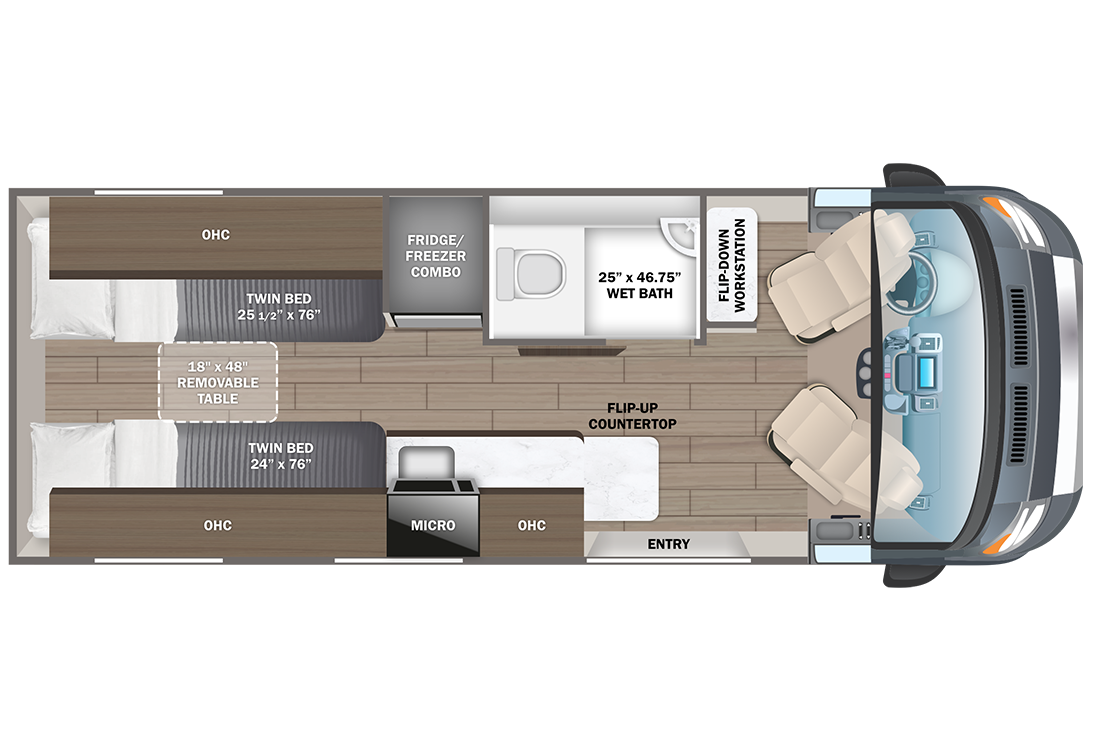

Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave

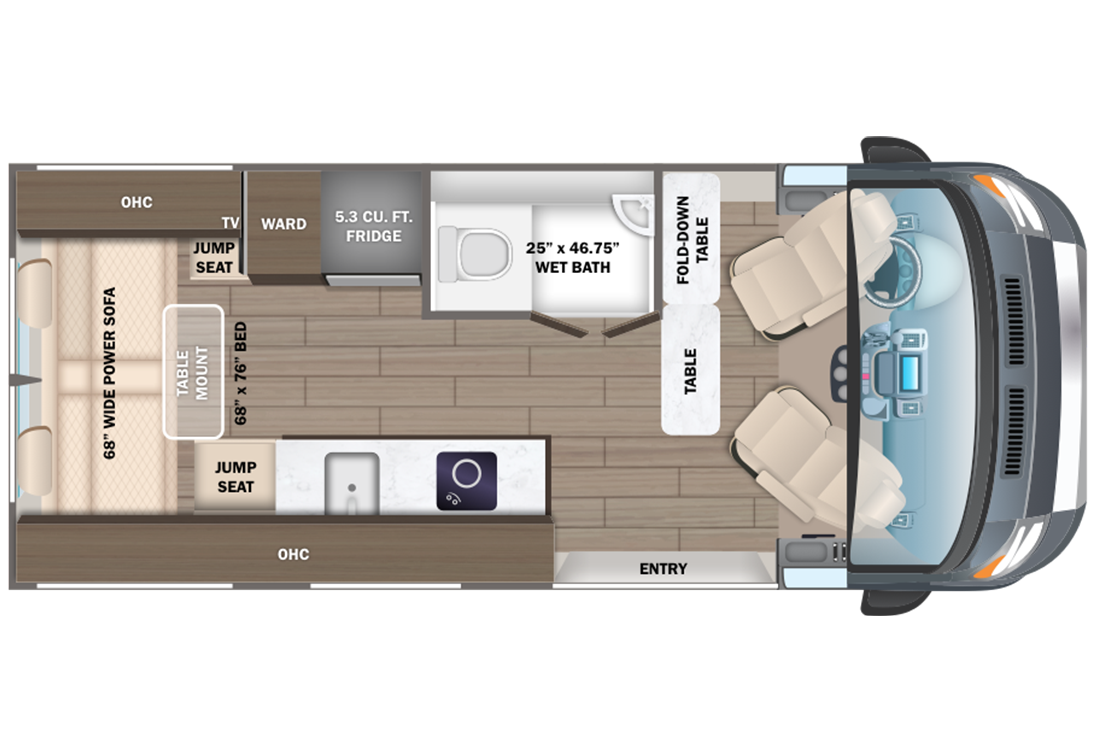

2025 Expanse|21B
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 11,000 |
| Gross Combined Weight Rating (lbs) | 13,000 |
| Front Gross Axle Weight Rating (lbs) | 4,630 |
| Rear Gross Axle Weight Rating (lbs) | 7,700 |
| Exterior Length | 22' |
| Exterior Width | 86" |
| Exterior Height with A/C and Satellite | 10' |
| Interior Height | 78" |
| Fresh Water Capacity (gals) | 24 |
| Grey Waste Water Capacity (gals) | 14 |
| Black Waste Water (gals) | 16 |
| Fuel Tank Capacity (gals) | 25 |
| Furnace (BTU Output) | 17,000 |
| Wheel Base | 148 |

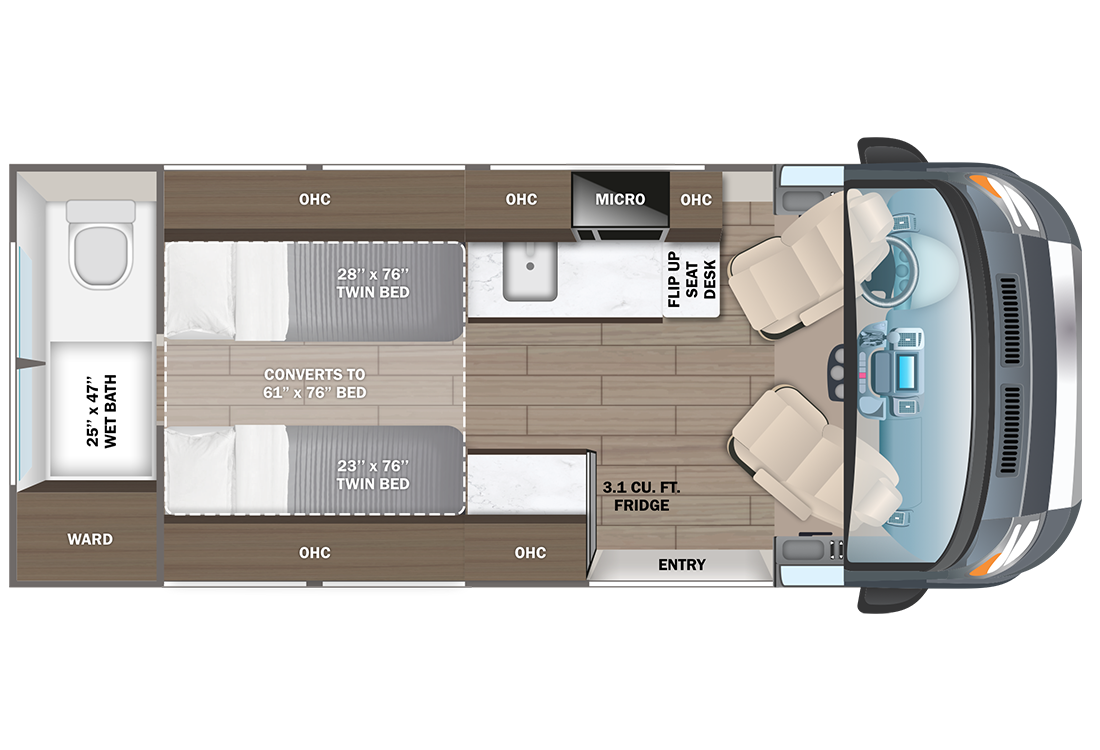

All Floorplans
2025 Expanse | 21B
360°
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice

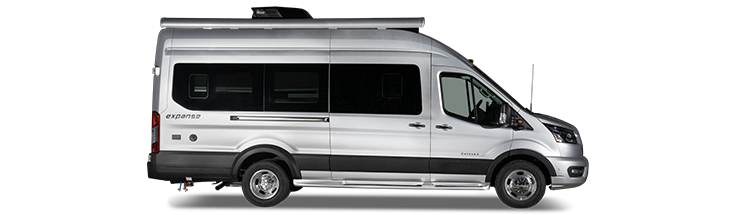

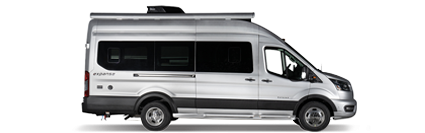

Exterior Graphics
Standards & Options
Chassis
| E-Z Drive | E-Z Drive™: Hellwig® helper springs, rear Koni® shocks |
| Chassis | Ford® Transit AWD 350HD with 148 in. wheelbase |
| Engine | 3.5L EcoBoost V6 310 HP engine with 400 ft-lb. torque |
| Transmission | 10-speed transmission |
| Alternator | 250-amp alternator |
| Tires | 205/75R16C BSW all-season tires with aluminum wheels |
| Hitch | Heavy-duty trailer tow package with dual 4/7 pin connector |
| Chassis Battery | (2) 12V AGM chassis batteries (70 amp-hr) |
| Fuel Tank | 25 gal. fuel tank (gas) |
| Tire Pressure Monitoring | Tire pressure monitoring system (TPMS) |
Construction
| Walls | Custom-molded ABS interior wall panels |
Heat, AC, Water & Power

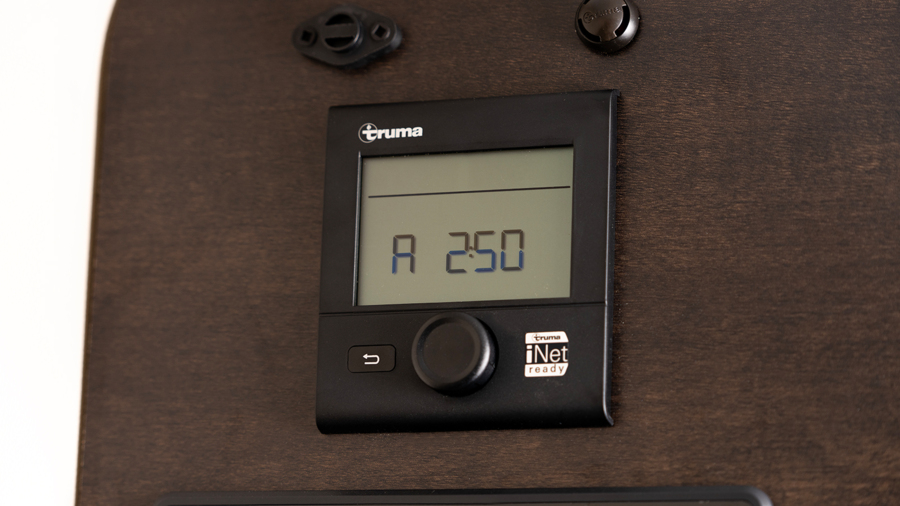

| Water Heater | Truma Combi Eco Plus water heater and furnace |
| Heating System | Truma Combi Eco Plus water heater and furnace |
| Generator | Onan® 2,800W generator with auto-gen start |
| Solar | 200W roof-mounted GoPower® solar panel with integrated control panel |
| Inverter | 1,000W inverter |
| Batteries | (2) 12V AGM house batteries with house battery disconnect switch |
| Electrical Hookup | 30-amp electrical service with detachable power cord |
| Propane | 6 gal. propane tank (20 lb.) with LP quick-connect hookup |
| Heated Tanks | Heated grey holding tank (12V pad); LED-lit holding tank valves |
| Tank Flush | Black tank flush |
| Winterization Drain System | Winterization drain system |
| Water Pump | 12V demand water pump |
| Water Filtration | Water filtration system |
| Air Conditioning | 120V Coleman®-Mach® 10 13,500 BTU air conditioner |
Exterior
| Patio Awnings | Carefree® armless motion sensing patio awning with LED light strip |

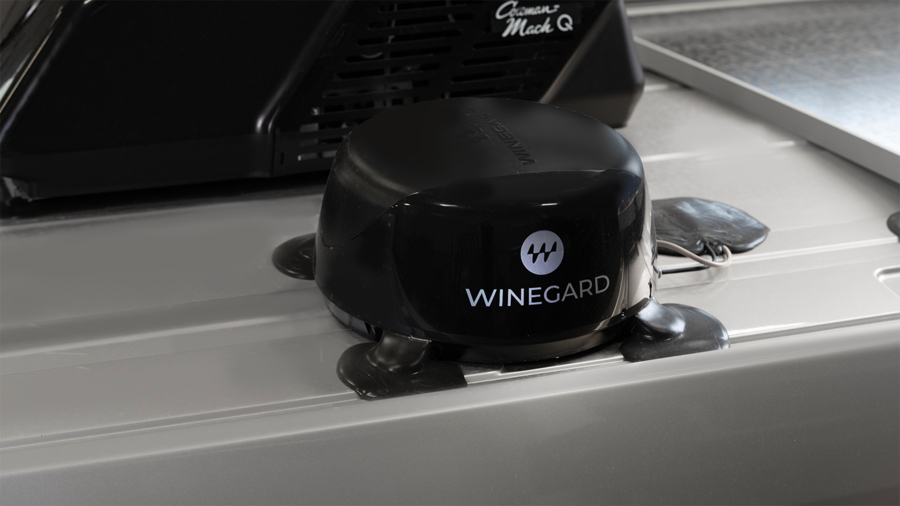

| Wi-Fi | Winegard® Connect 2.0 4G/Wi-Fi/digital TV antenna |
| Running Boards | Fiberglass running boards for cab and entry doors |
| Keypad | Keyless entry pad |
| Daytime Running Lights | Daytime running headlamps |
| Outlet | (2) 120V exterior outlets |
| Outside Shower | Outside shower |
| Mirrors | Power-adjusting side-view mirrors |
| Keyless Fob | Remote keyless entry |
| Headlights | Automatic high-beam headlights; Wiper-activated headlights |
| Entrance Door | Side screen door with magnetic and zipper close offs |
| Windows | Sliding vented windows |
Cockpit
| Driver / Passenger Seats | 4-way swivel driver and passenger seats |

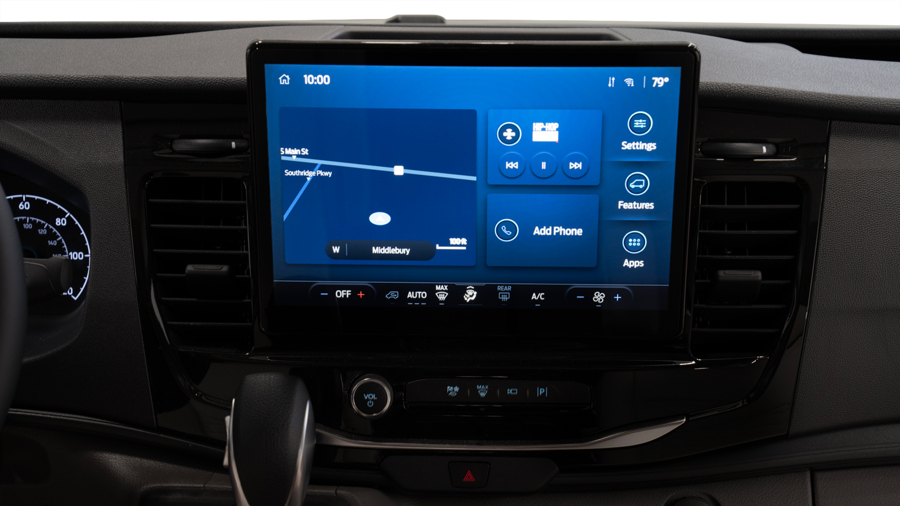

| Infotainment System(s) | 12 in. SYNC 4 HD/NAV/IACC multi-function display |
| Cameras | 360° camera with split view and front camera washer; Rear-view camera with trailer hitch assist; Backup camera displayed in rear-view mirror |
| Blind Spot Monitoring | Blind spot assist 1.0 with trailer coverage and cross-traffic alert |
| Additional Amenities | Intelligent adaptive cruise control; Lane-keeping system; Front, side and reverse sensing systems; SOS Post Crash Alert System™; Driver and passenger airbags; Safety Canopy® side-curtain airbags; Ford® AdvanceTrac® with RSC® (roll stability control); Side wind stabilization; Hill start assist; SecuriLock® passive anti-theft system with engine immobilizer; Autolocking drive away with crash unlocking; FordPass™ Connect |
| Collision Mitigation | Forward collision warning; Pre-collision assist with automatic emergency braking (AEB); Post-collision braking |
| Windshield | Rain-sensing wiper system |
| Power Features | Power windows and door locks |
| Visors & Privacy Shade | Privacy shades for cab windows |
Interior
| Cable hookup | Cable TV hookup with RG-6 coax |
| Ceiling | Soft-touch vinyl ceiling |
| Lighting | High-intensity LED ceiling lights |
| Cabinetry | Tecnoform® European-style, high-gloss cabinetry |
| Flooring | Residential vinyl flooring |

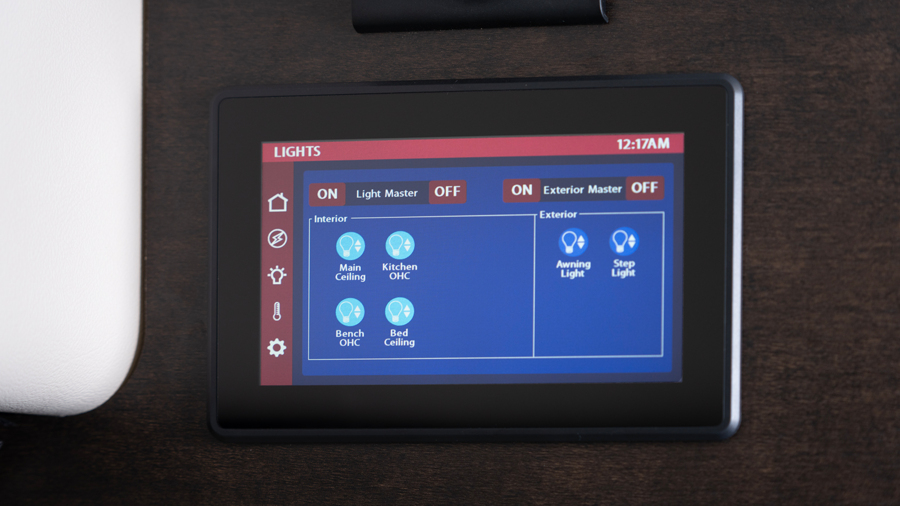

| Command Center | Firefly Multiplex system - wall-mounted touchscreen and mobile app for total coach control |
| Vent | Powered roof vent in living area |
| Privacy shades | Rear screen door with roll-up and black-out capabilities; Removable privacy shade for sliding door window |
| Television - Living Room | 24 in. LED HD TV |
| Sound - Living Room | JBL® Flip 6 removable wireless Bluetooth speaker |
| Table | Adjustable table with multiple mounts and fold-down work station |
Kitchen
| Drawer Guides | Ball-bearing drawer guides |
| Refrigerator | 5.3 cu. ft. 12V refrigerator |
| Cooktop | 2-burner gas cooktop |
| Microwave | Convection microwave |
| Sink | Stainless steel sink |
| Countertops | Solid-surface kitchen countertop |
Bedroom
| Bed | Power sofa converts to 68 in. x 76 in. bed |
Bathroom
| Shower | Shower with magnetic curtain surround |
| Water Saving System | Aqua View® SHOWERMI$ER™ water management system |
| Toilet | Toilet with foot flush |
| Storage | Medicine cabinet with mirror |
| Vent | Powered roof vent in bathroom |
Safety
| Seat Belts | Seatbelts for driver/passenger seats and select cab locations |
| Smoke Alarm | Smoke alarm |
| Carbon Monoxide Detector | Carbon monoxide detector |
| Safety | Fire extinguisher |
Options
| Customer Value Package (Mandatory) | E-Z Drive™, Carefree® armless motion sensing patio awning with LED light strip, Truma Combi Eco Plus water heater and furnace; 4-way swivel driver and passenger seats, Winegard® Connect 2.0 4G/Wi-Fi/digital TV antenna |
Décor Options
Rear Koni® Shocks
Rear Koni shocks enhance stability and control, minimizing bounce and sway while driving over uneven surfaces, resulting in a more comfortable and secure ride for passengers and reducing wear and tear on the vehicle's suspension system.
Hellwig® Helper Springs
Hellwig Helper Springs provide additional support to the existing suspension system, improving stability and handling while towing or carrying heavy loads. By reducing sagging and enhancing weight distribution, Hellwig Helper Springs help maintain proper ride height, increase overall safety, and minimize body roll, ensuring a smoother and more controlled driving experience.
Entegra Coach peace of mind
2-year warranty
At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year warranty.
Detail
The Entegra Coach Expanse Class B offers upscale interior amenities that mirror what you’ll find in larger Entegra Coach motorhomes, but in a small and powerful package. Power starts with the chassis. The Expanse is built on the Ford® Transit AWD 350HD van, which boasts powerful all-wheel drive and many safety features you’re used to finding on your daily driver. Safety features include a 360° camera, intelligent adaptive cruise control, lane-keeping assist, front, side and reverse sensing systems, forward collision warning, post-collision braking, side wind stabilization, hill start assist, tire pressure monitoring, and more. Driving the Expanse isn’t only safe, it’s also enjoyable with the E-Z Drive® ride and handling package featuring Hellwig® Helper Springs. These springs maintain proper ride height, increase overall safety, and minimize body roll, ensuring a smoother and more controlled driving experience. For power, the Expanse has the Onan® 2,800W generator that pulls from the fuel tank, providing enough power to keep you fully functional on the road without the need to monitor an additional fuel source. Inside, you’ll see just as much power in your hot water heater with the Truma Combi Eco Plus 2-in-1 water heater and furnace, which can be powered by propane, electricity, or both. It’s perfect for those who want to go off-grid and save LP, and it’s also small and lightweight, taking up less space than two appliances. The best part? It’s quieter than a conversation, so there’s no extra noise in your coach. The interior of the Expanse is thoughtfully designed for versatility and comfort. The power sofa converts to a 68- by 76-inch bed with the touch of a button. Need more workspace? An adjustable table with multiple mounts, a fold-down table, and swivel seats allow for multiple configurations. Swivel your driver’s seat and put down the fold-down table to create a desk on the road. Need a second desk? Install the easy-to-use adjustable table in the rear for two to work simultaneously. Swivel both seats and add the adjustable table for a family dinner or game night. For those who prefer a quieter and more eco-friendly option, the optional Li package with Timberline hydronic heating system replaces the noisy generator with lithium power. This option is ideal for those who need quiet, want to go off-grid for longer periods, or wish to be eco-friendly. Expand your vision of what camping means with the Expanse.
