THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2025 Esteem XL
Go where others can’t in the Entegra Coach Esteem XL Super Class C. This motorhome offers a combination of luxury and capability, perfect for your adventures. Its one-piece seamless front cap with an automotive-bonded panoramic window significantly reduces the risk of leaks. Built on the Ford® F-550 with a 6.7L Power Stroke V8 Turbo diesel engine, the Esteem XL is designed for reliability and performance. At the campground, level quicker and start enjoying your time sooner thanks to automatic hydraulic leveling jacks. These jacks allow for less set-up time by automatically leveling the coach with the touch of a button. Be the envy of the campground with Esteem XL’s frameless windows, which give a clean, automotive look while protecting the... Read More
Brochure
Gallery
Product Videos
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave

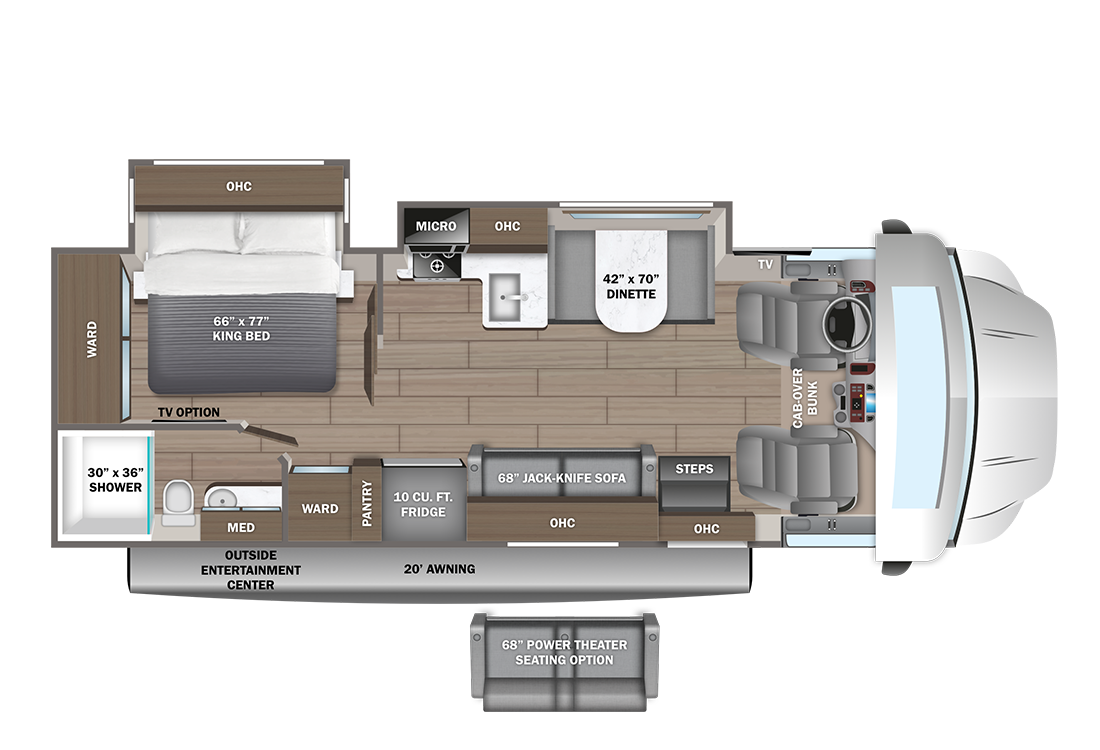

2025 Esteem XL|32U
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 19,500 |
| Gross Combined Weight Rating (lbs) | 31,500 |
| Front Gross Axle Weight Rating (lbs) | 7,000 |
| Rear Gross Axle Weight Rating (lbs) | 14,706 |
| Exterior Length | 33' 5" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 6" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 42.5 |
| Grey Waste Water Capacity (gals) | 31 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 67 |
| Furnace (BTU Output) | 30,000 BTU auto-ignition furnace |
| Wheel Base | 227" |

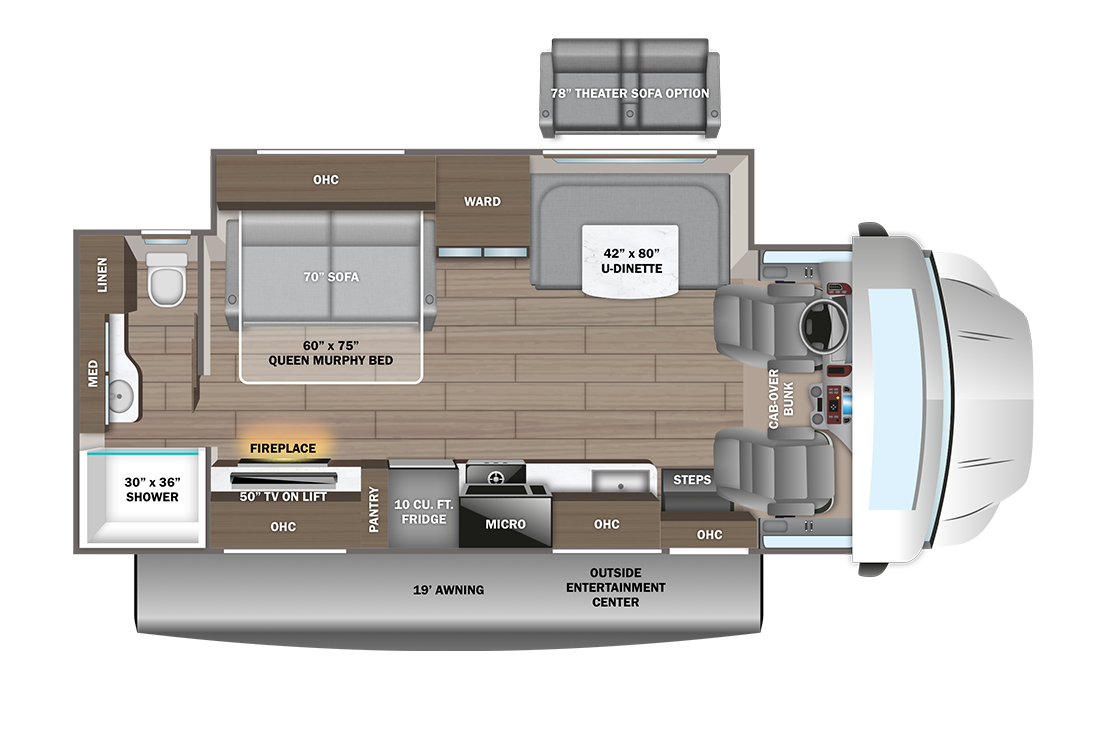

2025 Esteem XL|30M|NEW
Specs
| Gross Vehicle Weight Rating (lbs) | 19,500 |
| Gross Combined Weight Rating (lbs) | 31,500 |
| Front Gross Axle Weight Rating (lbs) | 7,000 |
| Rear Gross Axle Weight Rating (lbs) | 14,706 |
| Exterior Length | 31' 4" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 12' 6" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 53.00 |
| Grey Waste Water Capacity (gals) | 31.00 |
| Black Waste Water (gals) | 31.00 |
| Fuel Tank Capacity (gals) | 67.00 |
| Furnace (BTU Output) | 30,000 BTU auto-ignition furnace |
| Wheel Base | 212" |

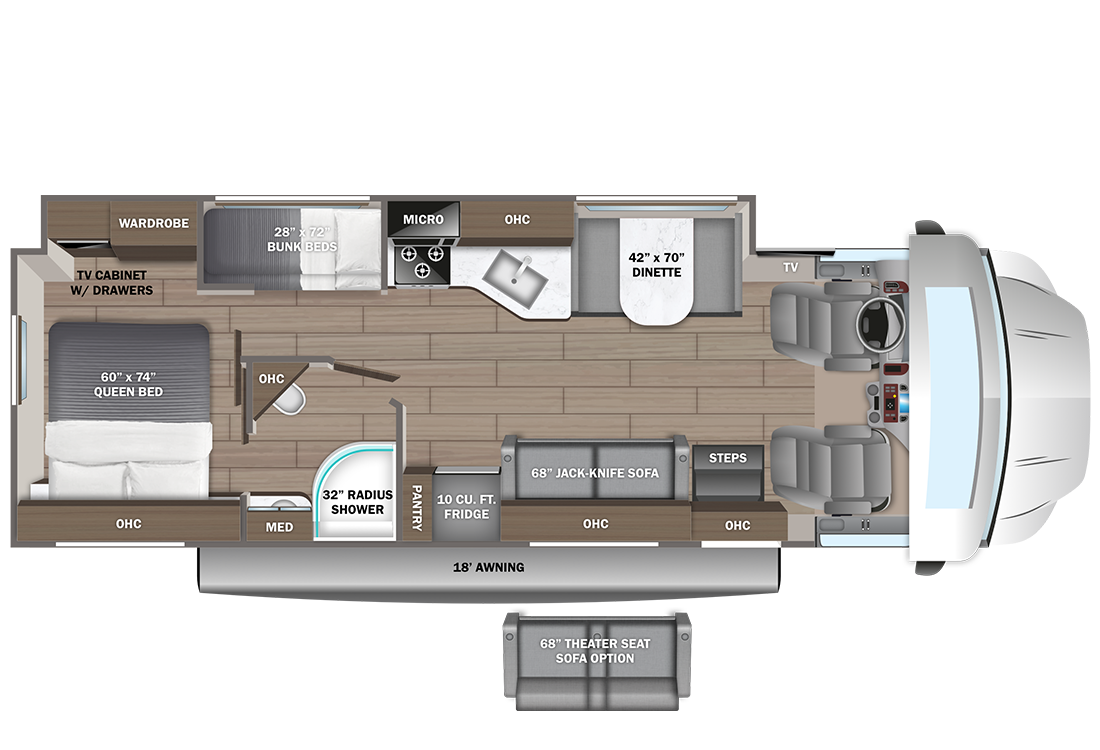

2025 Esteem XL|33F|NEW
Specs
| Gross Vehicle Weight Rating (lbs) | 22,000 |
| Gross Combined Weight Rating (lbs) | 34,000 |
| Front Gross Axle Weight Rating (lbs) | 7,500 |
| Rear Gross Axle Weight Rating (lbs) | 15,500 |
| Exterior Length | 34' 11" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 12' 6" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 53.00 |
| Grey Waste Water Capacity (gals) | 31.00 |
| Black Waste Water (gals) | 32.00 |
| Fuel Tank Capacity (gals) | 67.00 |
| Furnace (BTU Output) | 30,000 BTU auto-ignition furnace |
| Wheel Base | 248" |
All Floorplans
2025 Esteem XL | 32U
2025 Esteem XL | 30M
NEW
2025 Esteem XL | 33F
NEW
360°
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice

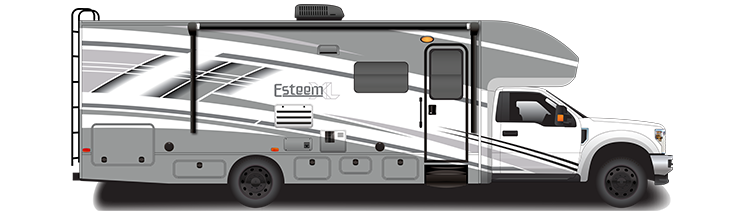

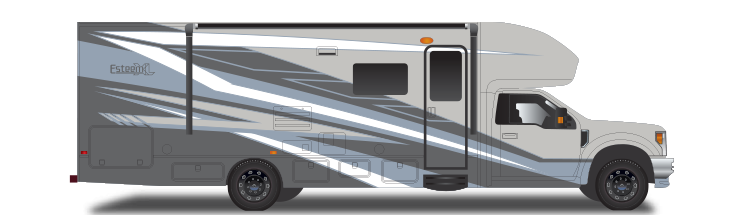

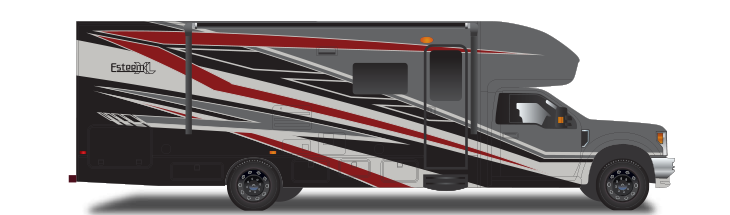

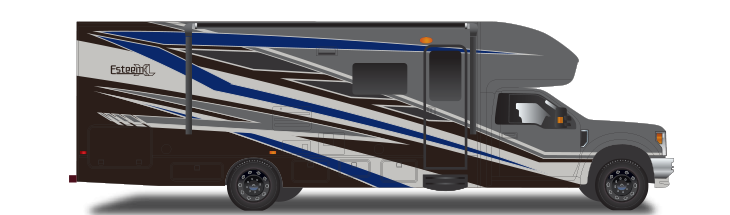

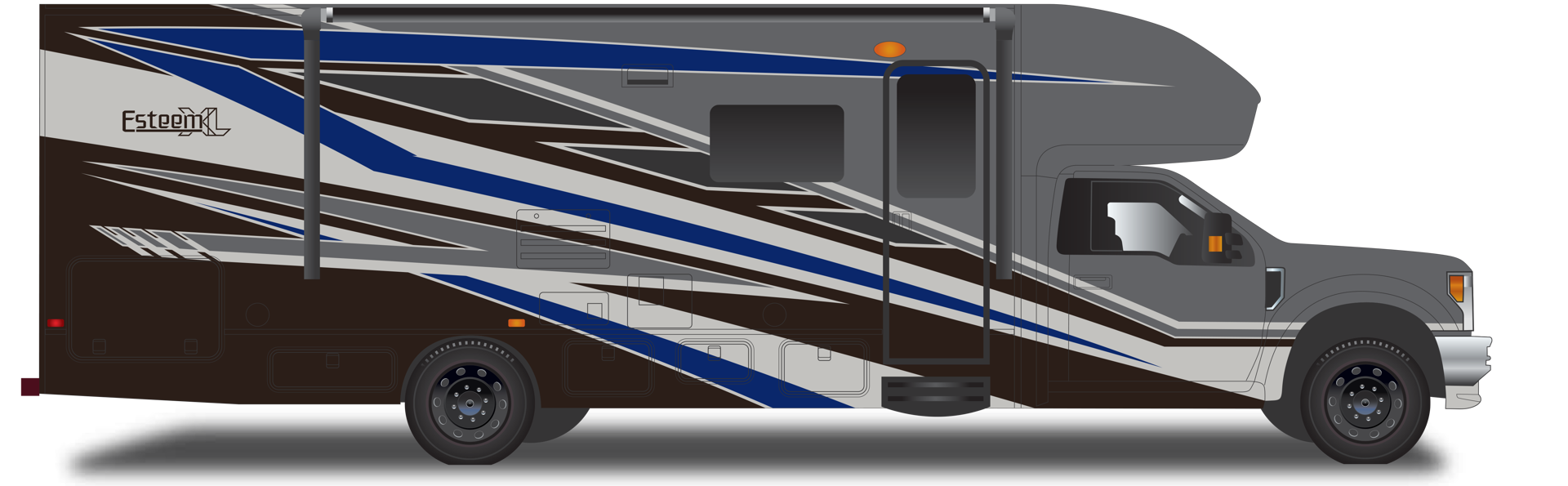

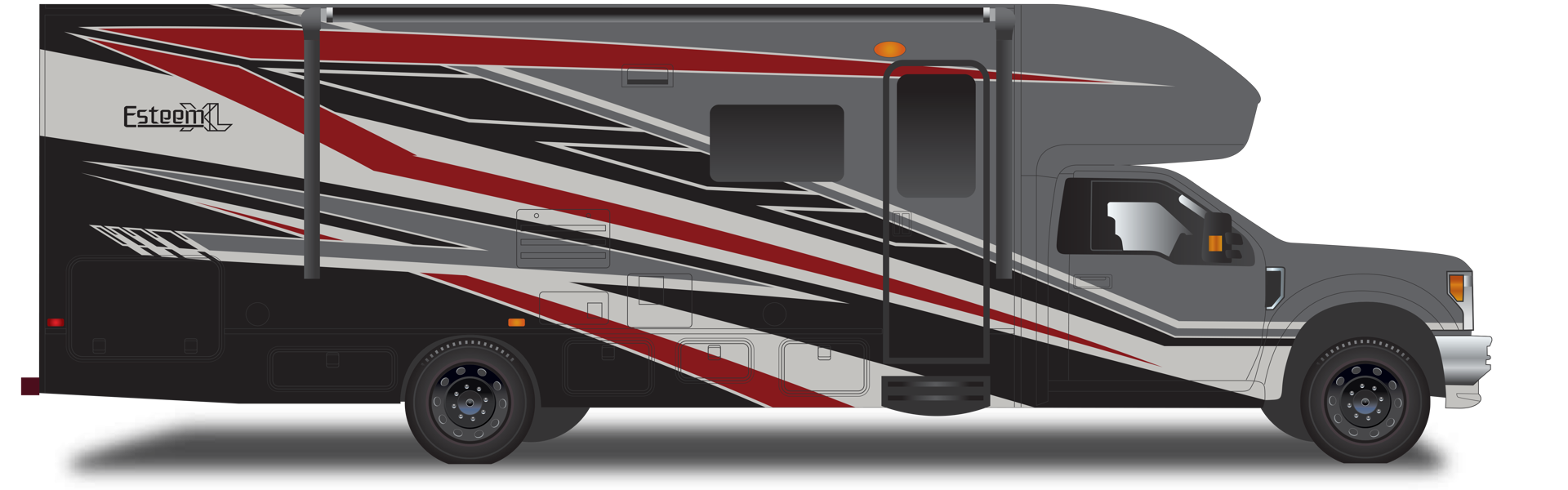

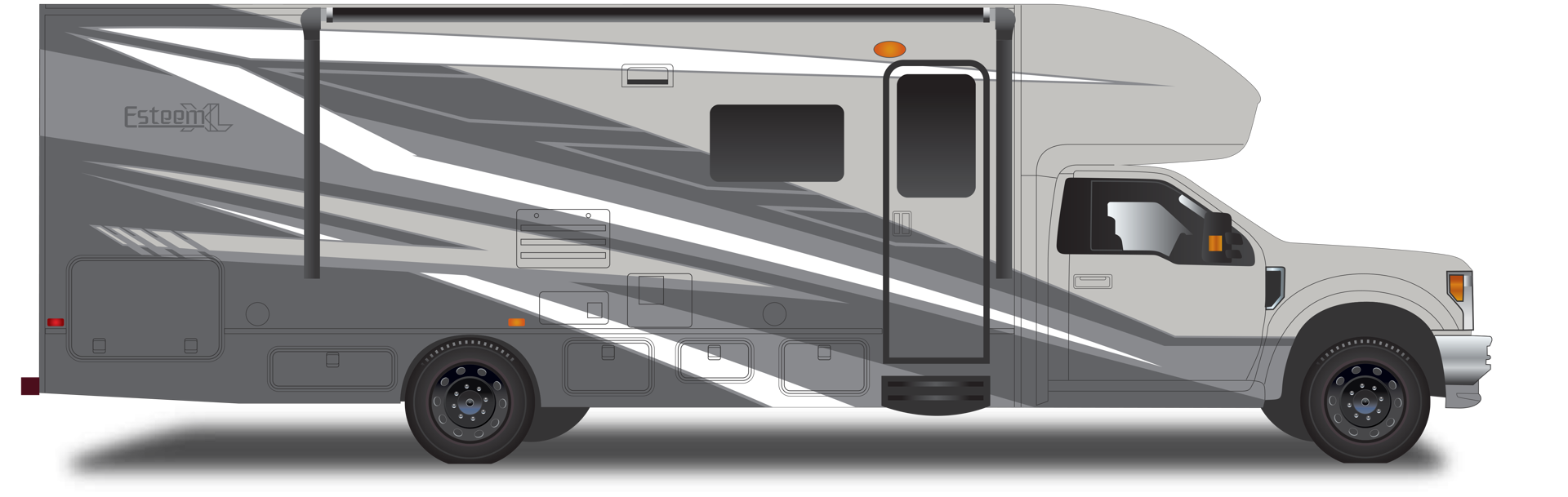

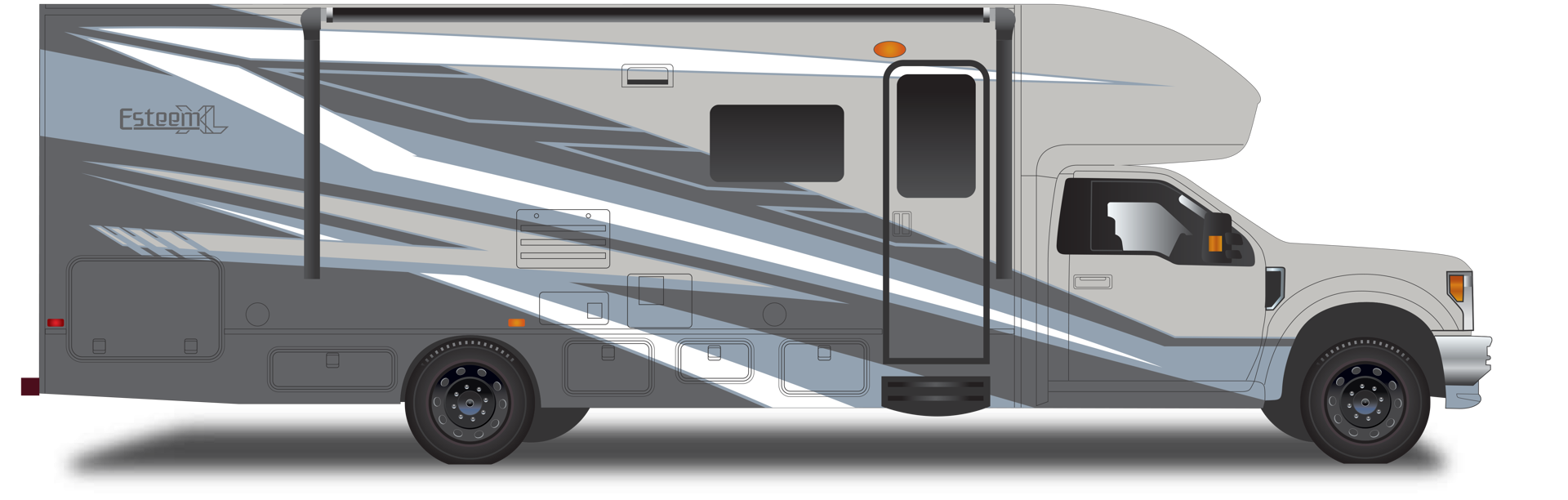

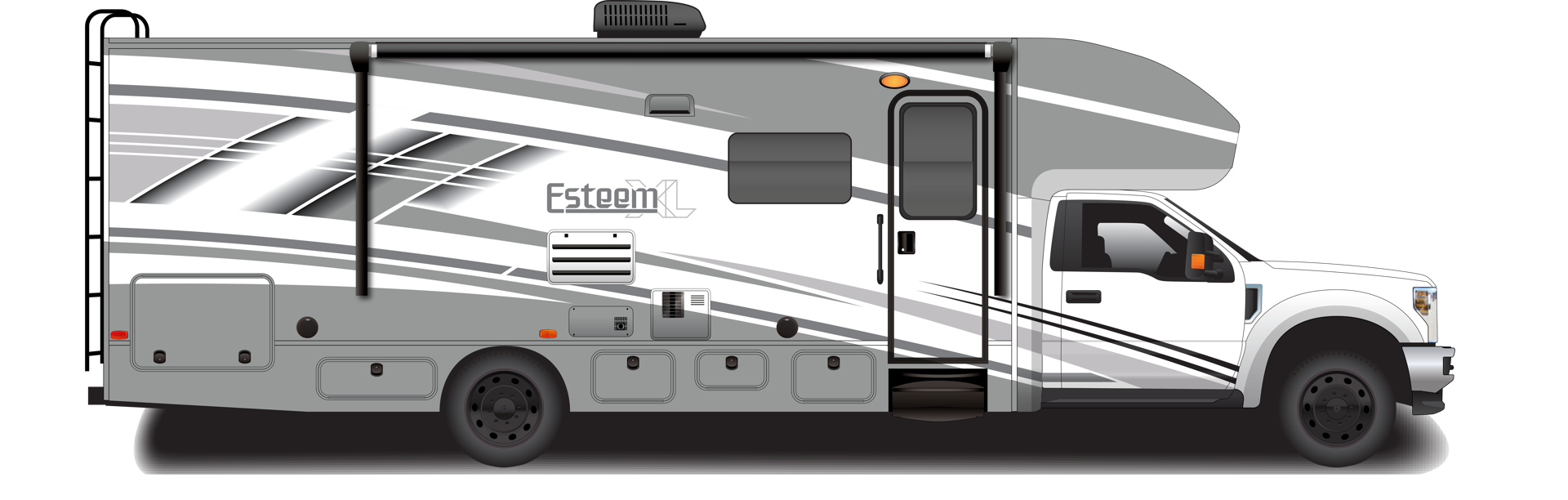

Exterior Graphics
.png)
Standards & Options
Chassis
| E-Z Drive | E-Z Drive™ Elite: Computer-balanced driveshaft, heavy-duty rear stabilizer bar, standard front stabilizer bar |
| Leveling System | Automatic hydraulic leveling jacks |
| Chassis | Ford® F550 4X4 chassis (30M, 32U); Ford® F600 4X4 chassis (33F) |
| Engine | 6.7L Power Stroke V8 Turbo diesel engine with block heater - 330 HP at 2,200 RPM and 950 ft. lb. torque at 1,800 RPM |
| Transmission | 10-speed automatic transmission |
| Alternator | 332-amp alternator |
| Tires | G-rated tires- 225/70R19.5 (30M, 32U); All-terrain tires - 245/70R19.5 (33F); Steel wheels with matte black liners |
| Hitch | 12,000 lb. rear hitch receiver with 7-pin plug |
| Chassis Battery | Single chassis battery (750 CCA 78 AH) |
| Fuel Tank | Dual fuel tanks (26.5 gal. and 40 gal.) |
| Suspension Lift | 2 in. rear lift |
| Front Suspension | Hellwig® helper springs (30M, 32U) |
Construction
| Floor | TuffShell™ vacuum-bond laminated floor |
| Walls | TuffShell™ vacuum-bond laminated sidewalls |
| Roof | One-piece, seamless fiberglass TuffShell™ vacuum-bond laminated roof |
| Insulation | Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls) |
Heat, AC, Water & Power
| Generator | 6,000W generator with auto-gen start |
| Inverter | 2,000W inverter |
| Air Conditioning | 15,000 BTU A/C with heat pump |
| Solar | 200W solar panel with dual controller and second house battery |
| Batteries | (2) 6V AGM house batteries |
| Transfer Switch | Transfer switch with reverse polarity protection |
| Electrical Hookup | 50-amp electrical service |
| Propane | 16.5 gal. propane tank (56 lb.) with LP quick-connect hookup |
| Heated Tanks | Heated holding tanks (12V pads) |
| Winterization Drain System | Winterization drain system |
| Tank Flush | Black tank flush |
| Water Pump | 12V demand water pump |
| Water Filtration | Water filtration system |
| Heating System | 30,000 BTU auto-ignition furnace |
| Water Heater | 10 gal. gas/electric water heater |
Exterior

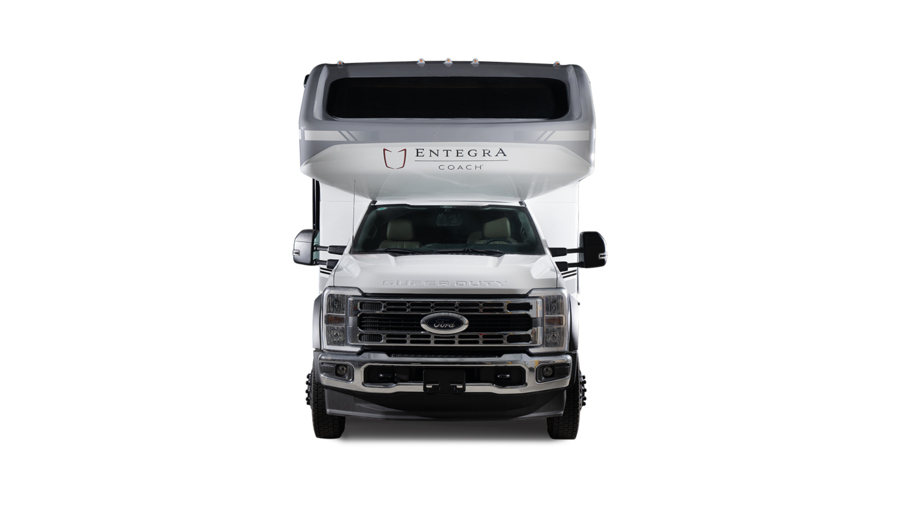

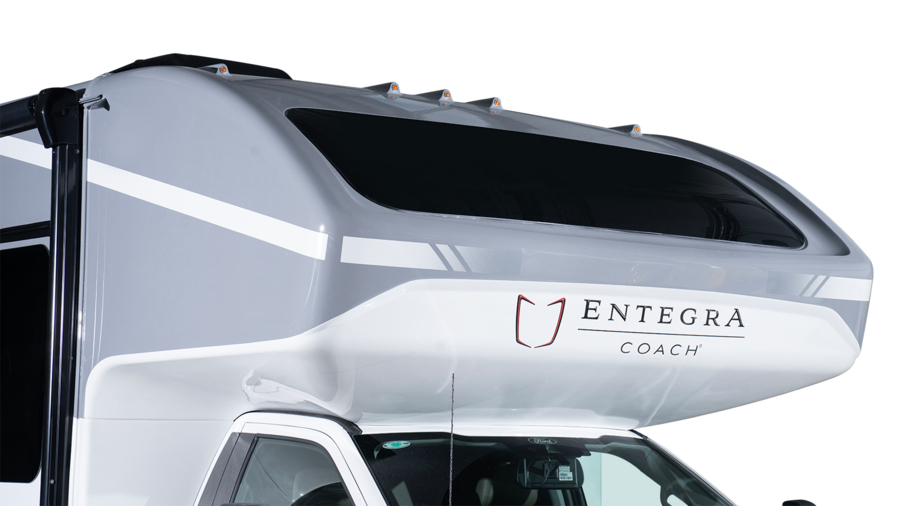

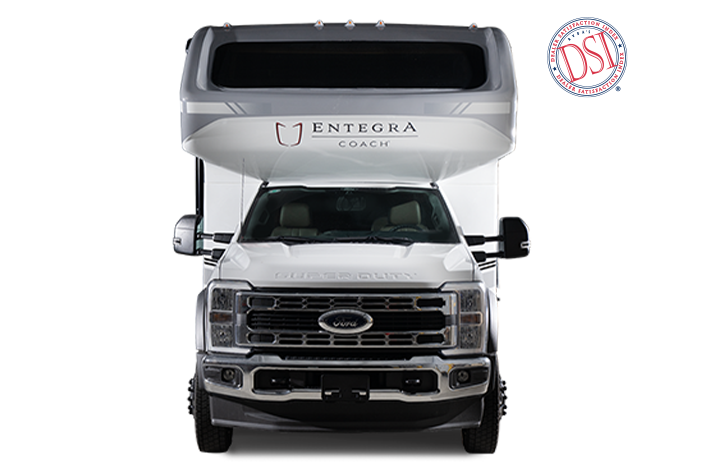

| Front/Rear Cap | One-piece, seamless fiberglass front cap with Automotive-bonded panoramic window in front cap with power shade |
| Windows | Frameless windows |
| Patio Awnings | Electric patio awning with LED lights |
| Exterior | Fiberglass exterior walls with partial paint and vinyl graphics |
| Entrance Door | Entrance door with industry’s largest travel-view window |
| Entrance Steps | Electric-powered entrance step with integrated house battery compartment |
| Slideout Awnings | Slideout awning(s) |

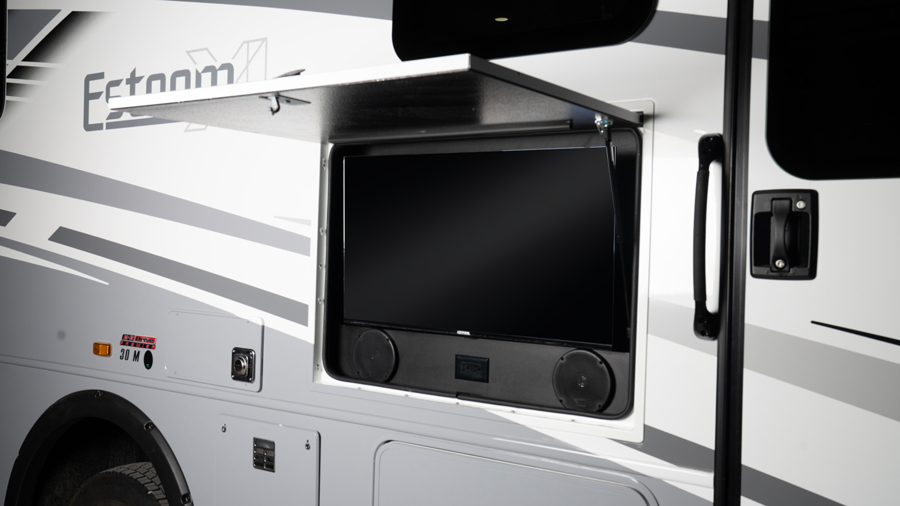

| Entertainment | Exterior LED HD Smart TV with (2) high-output, marine-grade exterior speakers |
| Cargo Features | Lockable storage compartments with slam latches |
| Third Brake Light | Third brake light |
| Ladder | Roof ladder |
| Satellite Dish | Prep for satellite dish |
| Wi-Fi | Winegard 2.0 Wi-Fi/4G antenna |
| Power Cord | Detachable power cord |
| Utility Center | Exterior utility center |
| Outside Shower | Outside shower |
| Keyless Fob | Remote keyless entry and perimeter anti-theft alarm |
| Headlights | Quad dual-beam halogen headlights; Rainlamp wiper activated headlights |

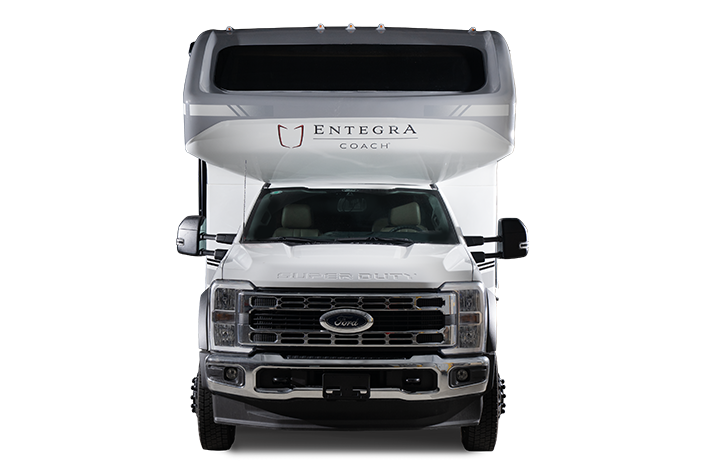

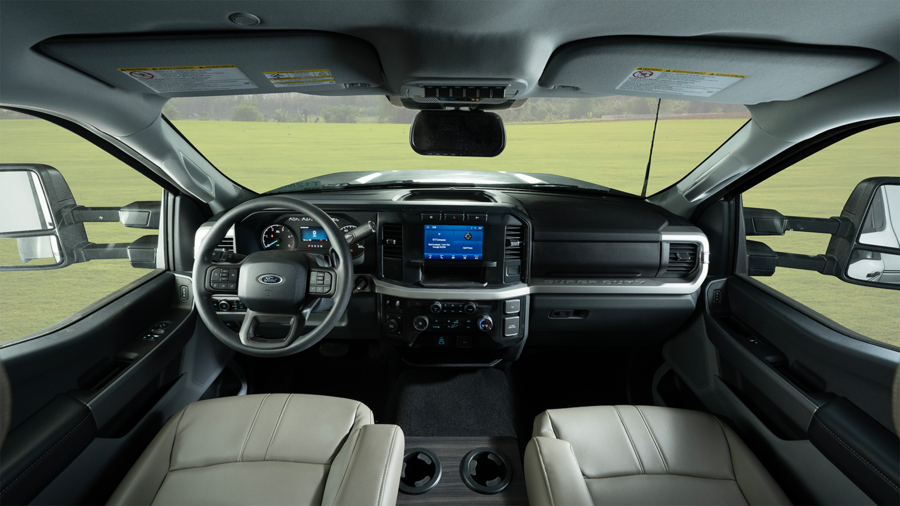

Cockpit
| Additional Amenities | Ford® AdvanceTrac® with RSC® (roll stability control) and trailer sway control; Integrated trailer brake controller; SOS Post Crash Alert System™; Audible lane departure warning; Driver and passenger airbags; Safety Canopy® system with roll-fold side-curtain airbags; SecuriLock® anti-theft ignition; Cruise control |
| Infotainment System(s) | Ford® SYNC® 4 infotainment center with Apple® CarPlay™ and Android Auto™ |
| Start | Remote start; Auxiliary start switch |
| Driver / Passenger Seats | 8-way power driver seat |
| Pedals | Adjustable gas/brake pedals |
| Power Features | Power windows and door locks |
| Steering Wheel | Tilt steering wheel |
| Visors & Privacy Shade | Privacy curtain for cab area |
| Collision Mitigation | Pre-Collision Assist® with automatic emergency braking (AEB) |
Interior

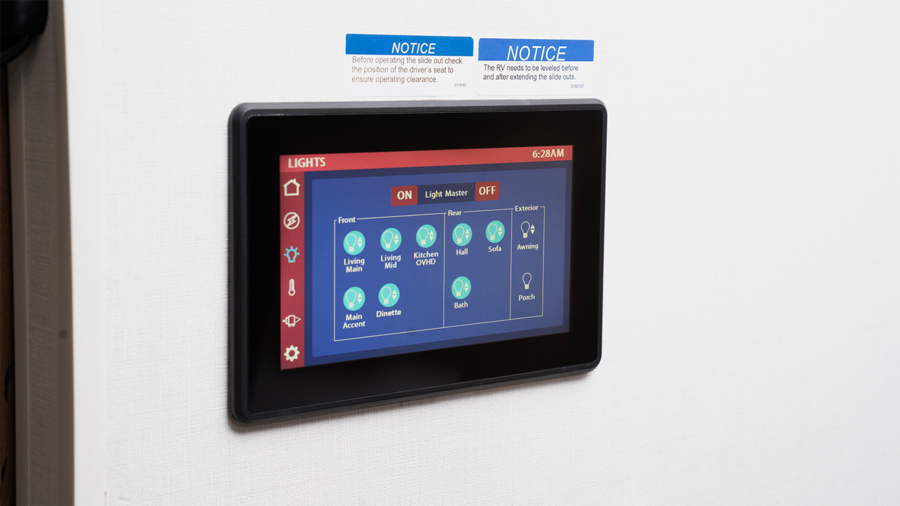

| Command Center | Firefly Multiplex system - wall-mounted touchscreen and mobile app for total coach control |
| Television - Living Room | LED HD Smart TV in living area |
| Cable hookup | Cable TV hookup with RG-6 coax |
| Cab-Over Bunks | Custom-molded ABS surround in cab-over area with overhead bunk with 750 lb. capacity and safety net |
| Ceiling | 84 in. interior ceiling height with padded vinyl ceiling |
| Lighting | High-intensity recessed LED ceiling lights |
| Fascia | LED-lit fascia |
| Cabinetry | Hardwood cabinet doors and drawer fronts; Deluxe hidden cabinet hinges |
| Window Treatments | Blackout night roller shades |

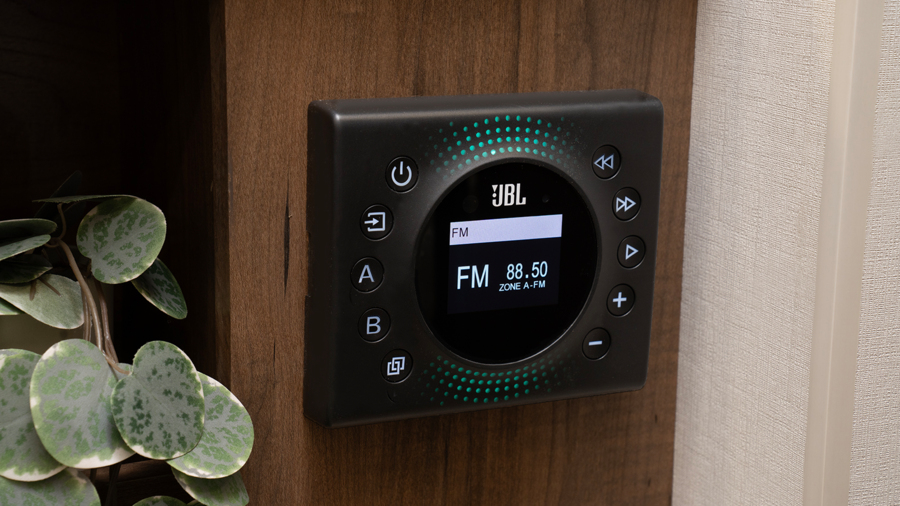

| Sound - Living Room | JBL® audio system |

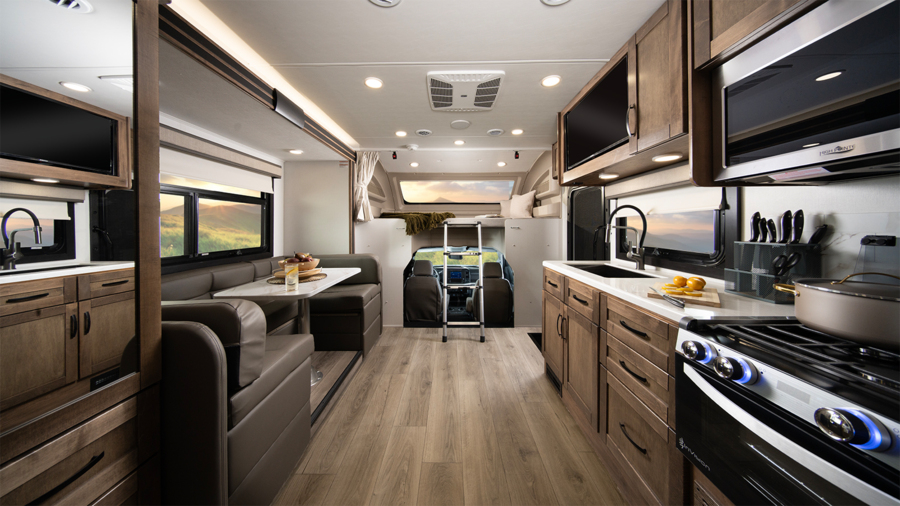

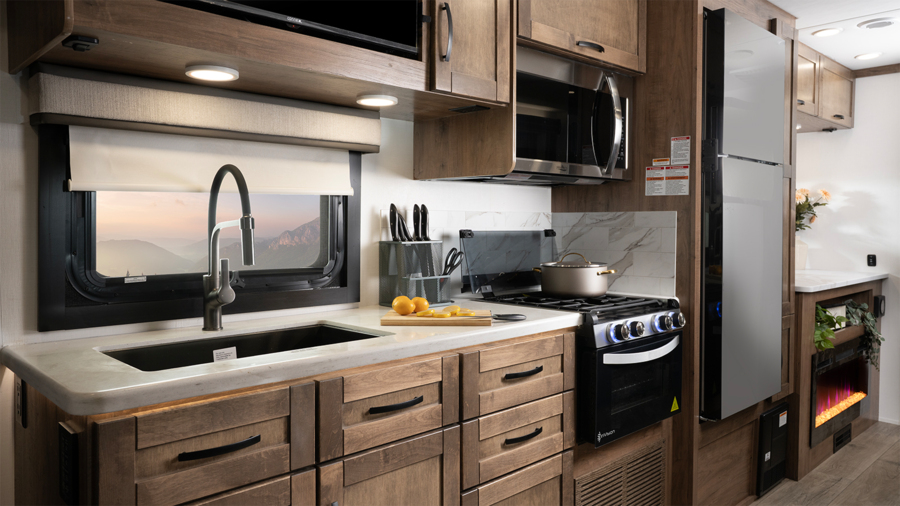

Kitchen
| Drawer Guides | Ball-bearing drawer guides |

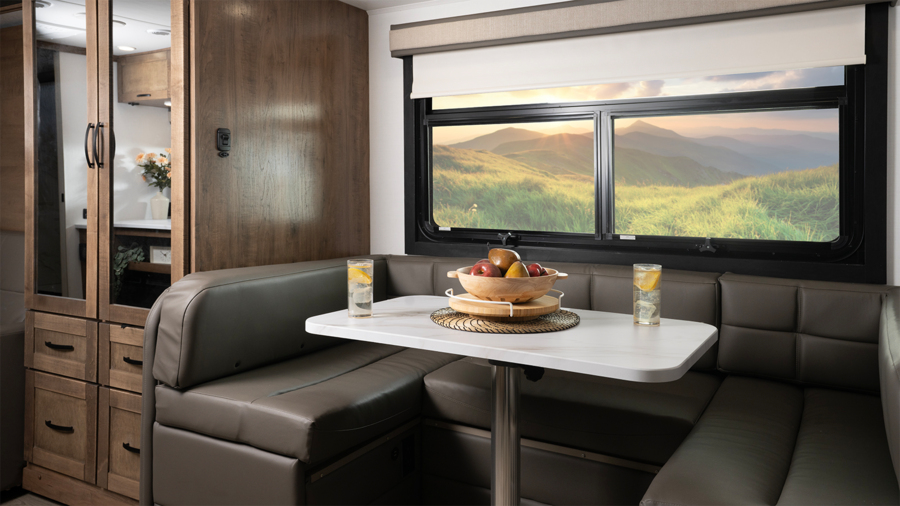

| Dinette | Entegra-exclusive, easy-operation legless dinette table (32U, 33F); U-shaped dinette (30M); Car seat tethers (select floorplans) |

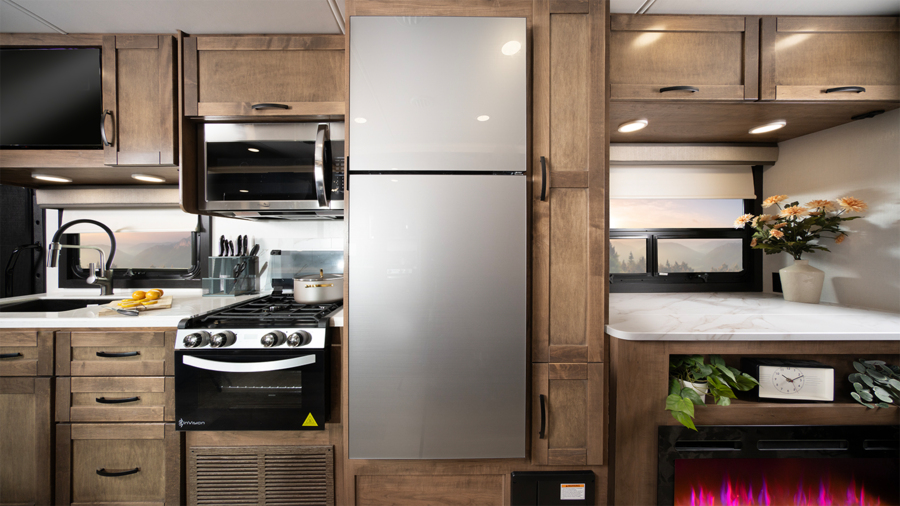

| Refrigerator | 10 cu. ft. 12V refrigerator |
| Cooktop | Furrion® all-in-one cooktop and oven |
| Microwave | Residential-size microwave |
| Sink | Recessed stainless steel kitchen sink with sink covers |
| Countertops | Solid-surface kitchen countertops |
| Backsplash | Decorative kitchen backsplash |
| Charging Station | Pop-up charging station in kitchen with 120V outlets and USB ports |
Bedroom

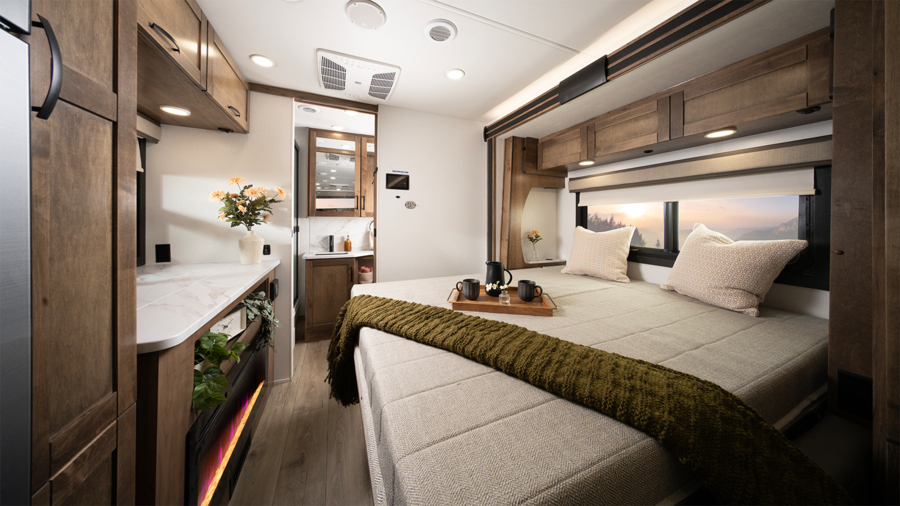

| Bed | Walk-around, king-size bed with bedspread and nightstands (32U); Queen-size power Murphy Bed (30M); Queen-size bed with bedspread and nightstands (33F); Bunks with industry-exclusive 300 Ib. capacity each (33F); Wall-mounted tablet holder in each bunk (33F) |
| Nightstands | USB port and wireless charging in nightstands |
| Wardrobe | Large wardrobes |

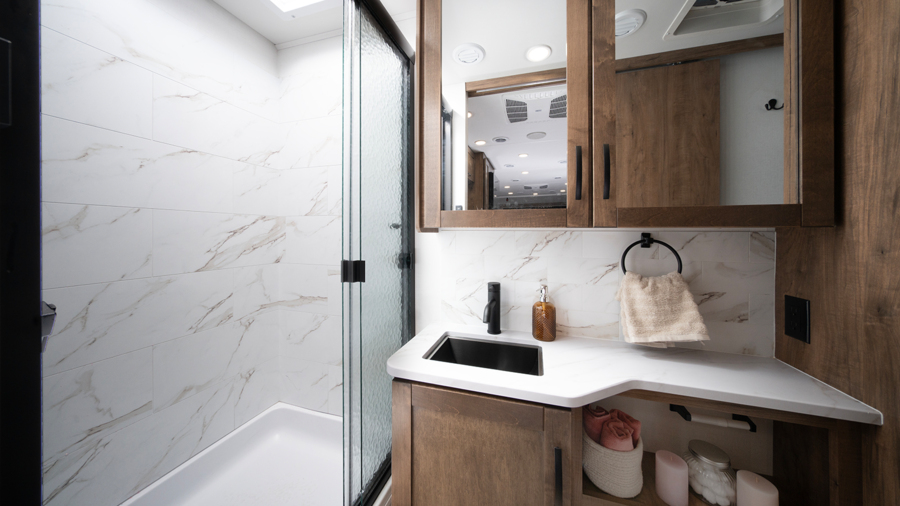

Bathroom
| Shower | Shower with decorative surround, glass door, skylight and light |
| Sink | Recessed stainless steel bathroom sink |
| Toilet | Porcelain toilet with foot flush |
| Vent | Powered roof vent in bathroom with wall switch |
Safety
| Safety | Fire extinguisher |
| Smoke Alarm | Smoke alarm |
| Carbon Monoxide Detector | Carbon monoxide detector |
| Seat Belts | 2-point lap safety belts in all designated seating locations |
Options
| Theater Seating | Power theater seating |
| Bedroom TV | LED HD Smart TV in bedroom |
| Refrigerator | 15 cu. ft. 12V refrigerator |
| Air Conditioning | Dual A/C units (15,000 and 13,500 BTU) with power management system |
| Rims | Aluminum rims |
| Shade | Folding windshield sun shade |
| Customer Value Package (Mandatory) | E-Z Drive Elite; one-piece seamless fiberglass front cap with automotive-bonded panoramic window and power shade; 6KW Onan diesel generator with auto-gen start; automotive hydraulic leveling jacks; frameless windows; electric patio awning with LED lights; 15KW BTU A/C with heat pump; 2KW pure sine wave inverter; 200W solar panel with dual controller; Firefly multiplex system; LED HD Smart TV in living area |
Décor Options
.jpg)
Computer-Balanced Driveshaft
By carefully measuring and adjusting the weight distribution along the driveshaft, a computer-balanced driveshaft reduces vibration and improves overall driveline performance by ensuring smooth and efficient power transfer to the wheels. This leads to a smoother and more comfortable ride, enhanced durability of drivetrain components, and reduced stress on the vehicle's transmission and rear axle.
Heavy-Duty Rear Stabilizer Bar and Standard Front Stabilizer Bar
A larger stabilizer bar in the rear, with polyurethane bushings instead of rubber, transfers power faster for extra support, improved durability, reduced body roll, enhanced stability and a more controlled and enjoyable driving experience.
Hellwig® Helper Springs
Hellwig Helper Springs provide additional support to the existing suspension system, improving stability and handling while towing or carrying heavy loads. By reducing sagging and enhancing weight distribution, Hellwig Helper Springs help maintain proper ride height, increase overall safety, and minimize body roll, ensuring a smoother and more controlled driving experience.
Rubber Isolation Body Mounts
Rubber isolation body mounts effectively reduce vibrations and noise transmission from the chassis to the interior of the vehicle, resulting in a smoother and quieter ride. Secondly, these mounts provide enhanced comfort by absorbing road shocks and impacts, reducing fatigue and improving the overall driving experience for occupants.
Detail
Go where others can’t in the Entegra Coach Esteem XL Super Class C. This motorhome offers a combination of luxury and capability, perfect for your adventures. Its one-piece seamless front cap with an automotive-bonded panoramic window significantly reduces the risk of leaks. Built on the Ford® F-550 with a 6.7L Power Stroke V8 Turbo diesel engine, the Esteem XL is designed for reliability and performance. At the campground, level quicker and start enjoying your time sooner thanks to automatic hydraulic leveling jacks. These jacks allow for less set-up time by automatically leveling the coach with the touch of a button. Be the envy of the campground with Esteem XL’s frameless windows, which give a clean, automotive look while protecting the window seals for longevity. The Esteem XL's durable fiberglass roof ensures you don’t have to worry about catching a low-hanging branch; a common worry for those with rubber roofs.
Inside the Esteem XL, enjoy a consistently comfortable climate with the 15,000 BTU ducted A/C with heat pump and the 30,000 BTU auto-ignition furnace. The 10-gallon gas/electric water heater is more reliable than tankless heaters and replenishes three times per hour, providing consistently hot water for long showers. The Esteem XL is also equipped with an Onan® 6,000W generator with auto-gen start and a 2,000W inverter to provide power during your travels. The 200W solar panel with dual controller and second house battery support your off-grid adventures. Enjoy the convenience and safety of modern features, including a Ford® SYNC® 4 infotainment center with Apple CarPlay® and Android Auto™, backup and side-view cameras and heated, remote-controlled, chrome side-view mirrors. The Firefly total coach control system with wall-mounted touchscreen and mobile app integration provides remote access to control your coach’s functions, ensuring your travels are as smooth and enjoyable as possible.
