2025 Condor

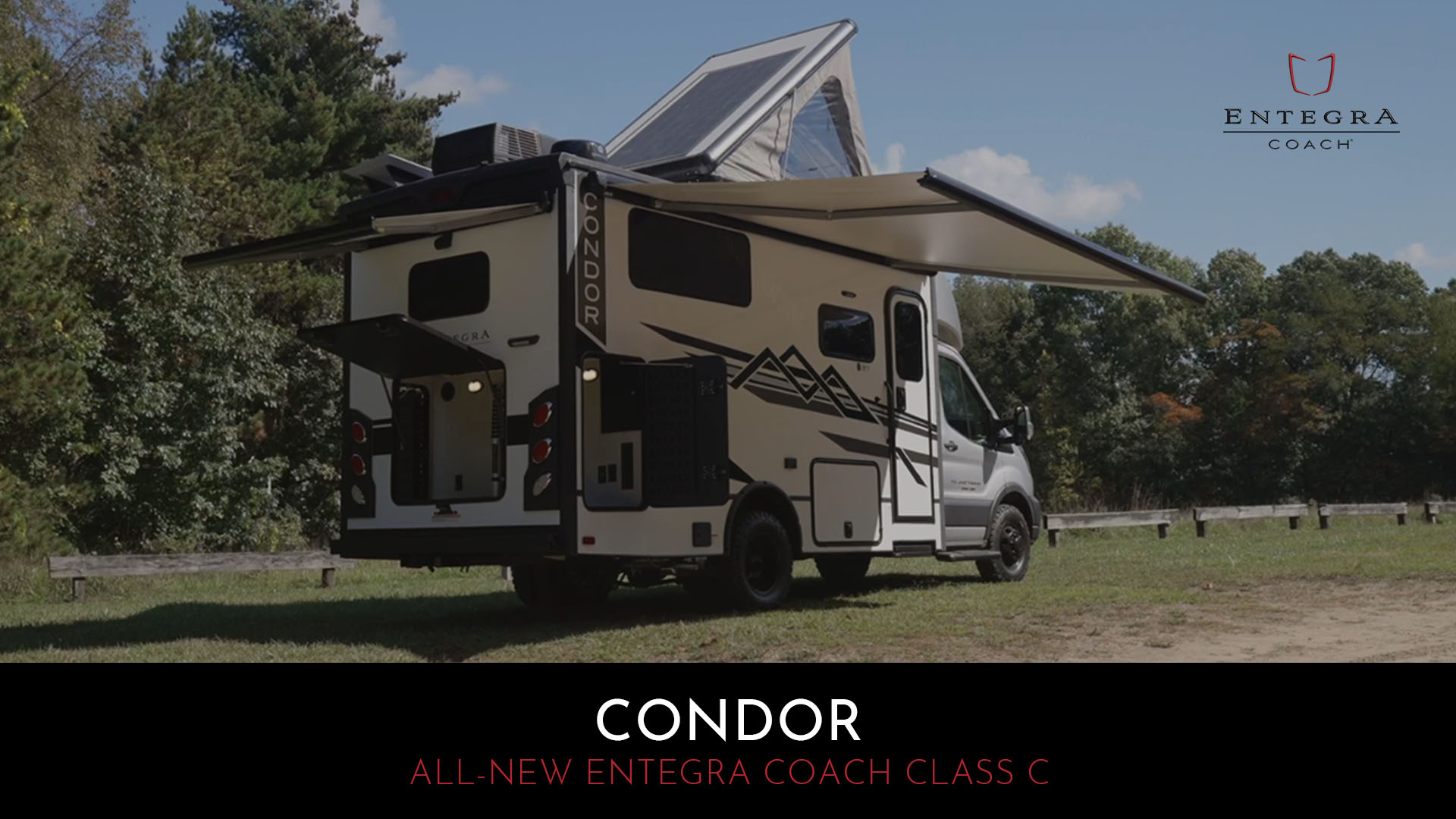

The Entegra Coach Class C Condor is built for adventure. From the exterior design to the interior configuration, the Condor is ready to get off-grid and into nature. The Condor is built on the Ford® Transit 350HD AWD chassis with a 3.5L EcoBoost V6 310 HP engine that produces 400-ft-pounds of torque and includes tons of safety features to get you where you’re going safely. These features include intelligent adaptive cruise control, lane-keeping assist, forward collision warning, post-collision braking, driver/passenger airbags, tire pressure monitoring and more. To maximize space, the Condor’s roof rack safely and securely stores your gear on top of the coach. You can access the roof easily with the collapsible roof ladder, which stores away seamlessly when... Read More
Brochure
Gallery
Product Video
2025 Condor Class C Motorhome - Full Product Walkthrough - Entegra Coach
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave

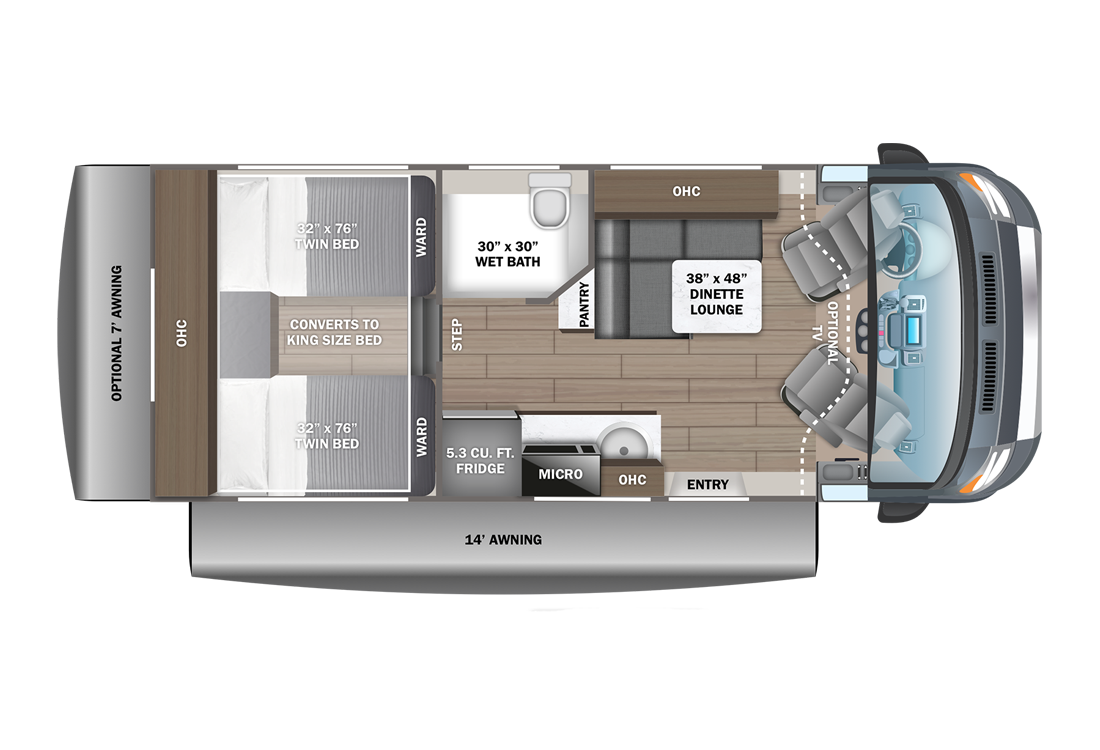

2025 Condor|22T
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 11,000 |
| Gross Combined Weight Rating (lbs) | 15,000 |
| Front Gross Axle Weight Rating (lbs) | 4,630 |
| Rear Gross Axle Weight Rating (lbs) | 7,275 |
| Exterior Length | 23' 5" |
| Exterior Width | 85" |
| Exterior Height with A/C and Satellite | 11' 1" |
| Interior Height | 80" |
| Fresh Water Capacity (gals) | 53 |
| Grey Waste Water Capacity (gals) | 51 |
| Black Waste Water (gals) | 4.75 |
| Fuel Tank Capacity (gals) | 31 |
| Furnace (BTU Output) | 17,000 Timberline Binar 5 |
| Wheel Base | 156" |

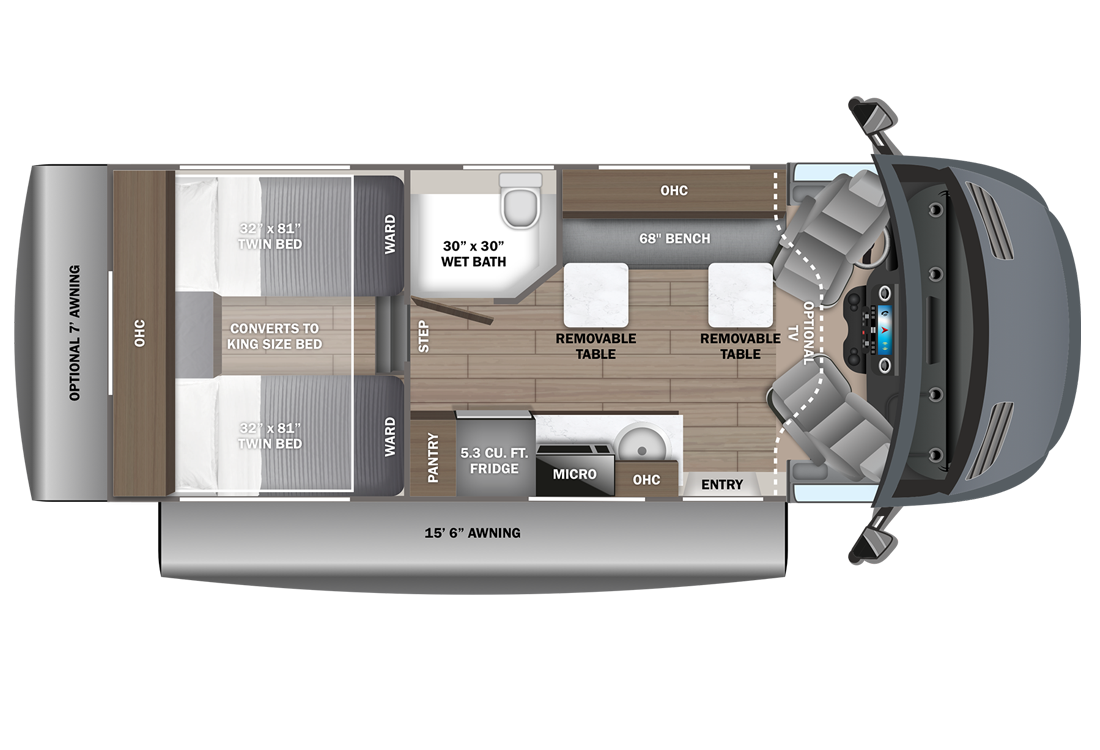

2025 Condor|23S|NEW
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 11,030 |
| Gross Combined Weight Rating (lbs) | 15,250 |
| Front Gross Axle Weight Rating (lbs) | 4,410 |
| Rear Gross Axle Weight Rating (lbs) | 7,720 |
| Exterior Length | 24' 8" |
| Exterior Width | 85" |
| Exterior Height with A/C and Satellite | 11'3" |
| Interior Height | 80" |
| Fresh Water Capacity (gals) | 53.00 |
| Grey Waste Water Capacity (gals) | 51.00 |
| Black Waste Water (gals) | 4.75 |
| Fuel Tank Capacity (gals) | 31.00 |
| Furnace (BTU Output) | 17,000 BTU Timberline Binar 5D |
| Wheel Base | 170" |
All Floorplans
2025 Condor | 22T
2025 Condor | 23S
NEW
360°

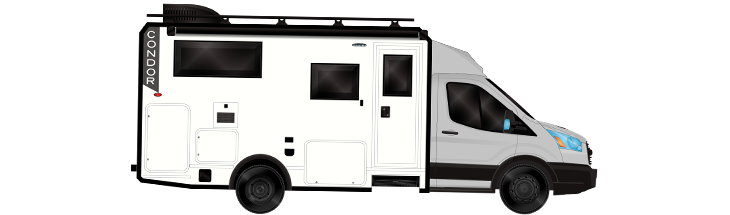

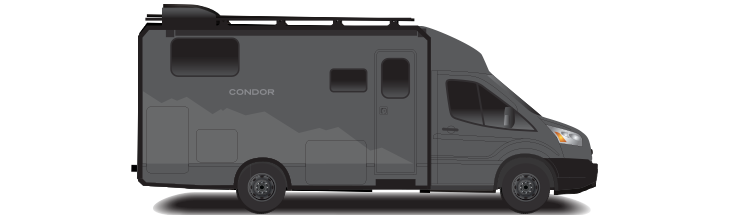

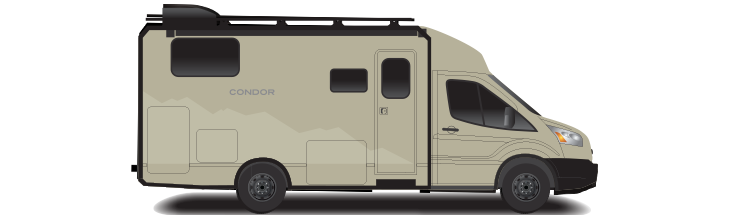

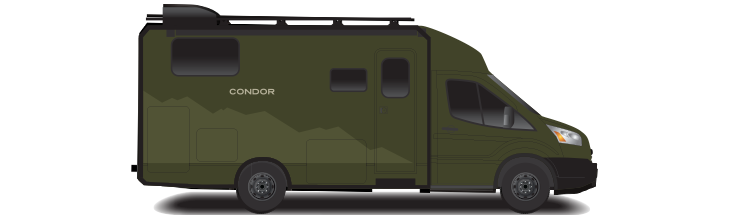

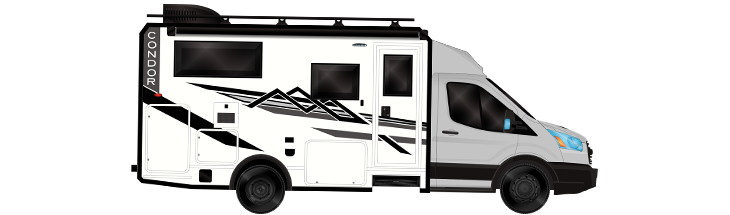

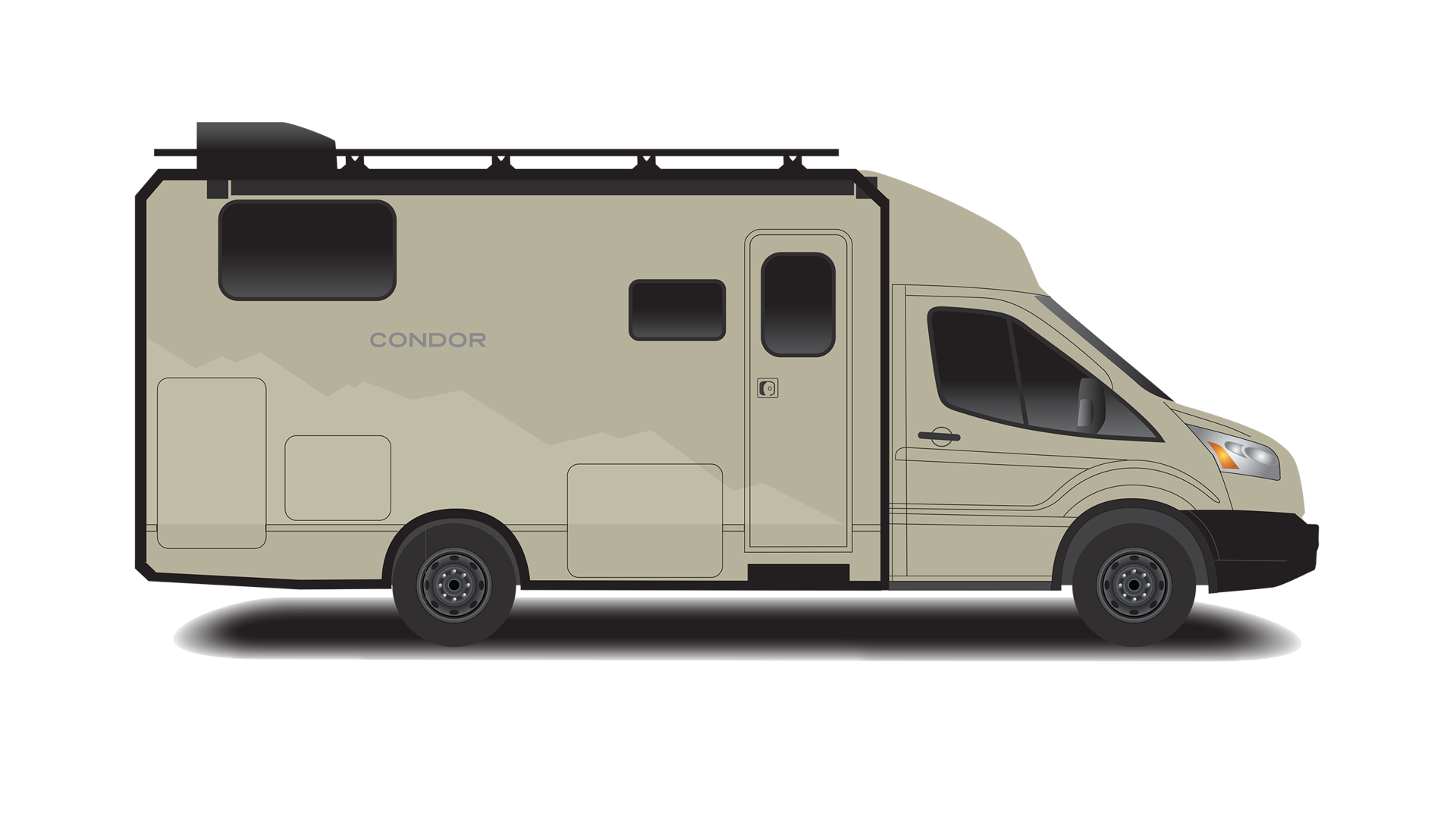

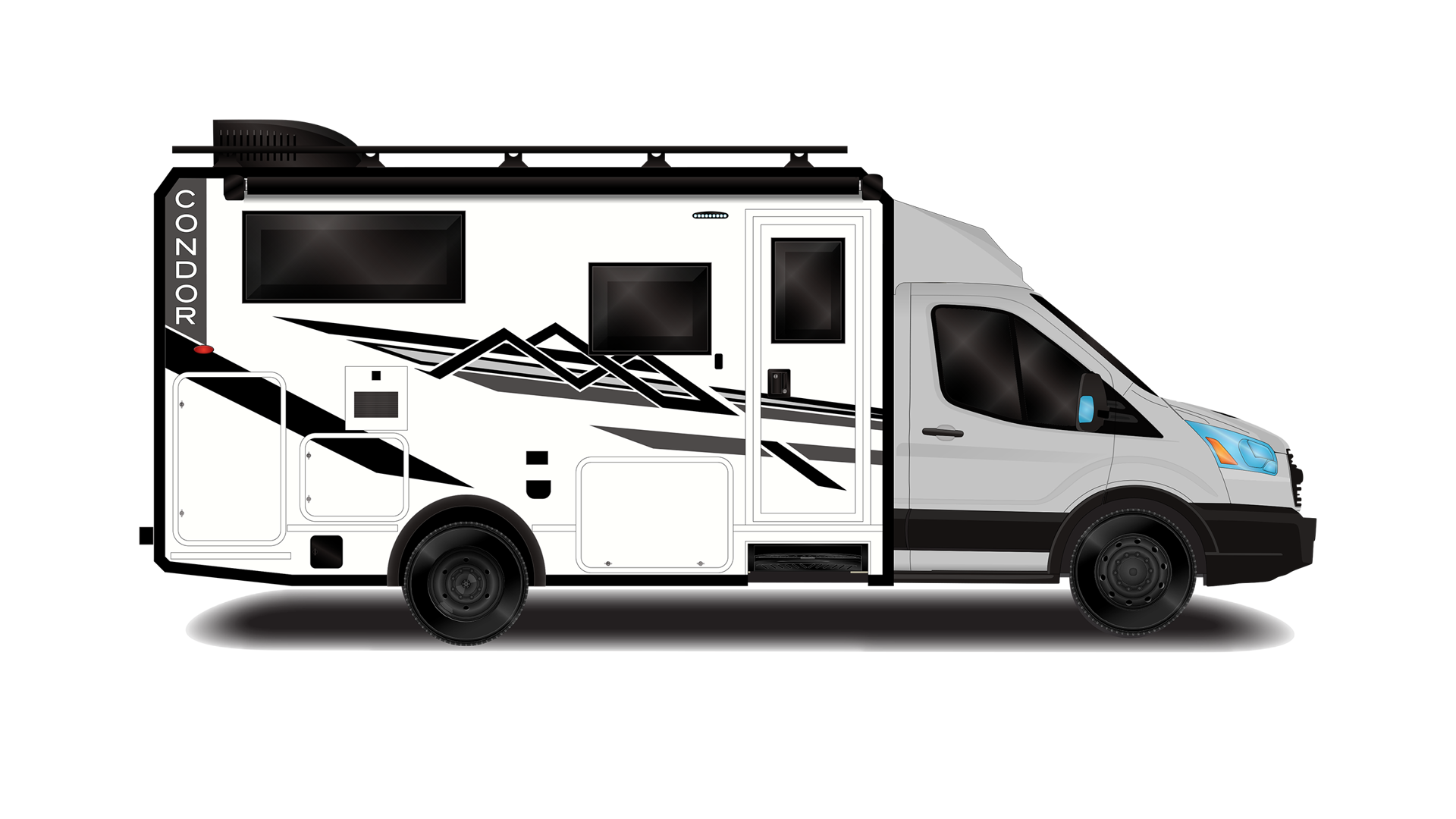

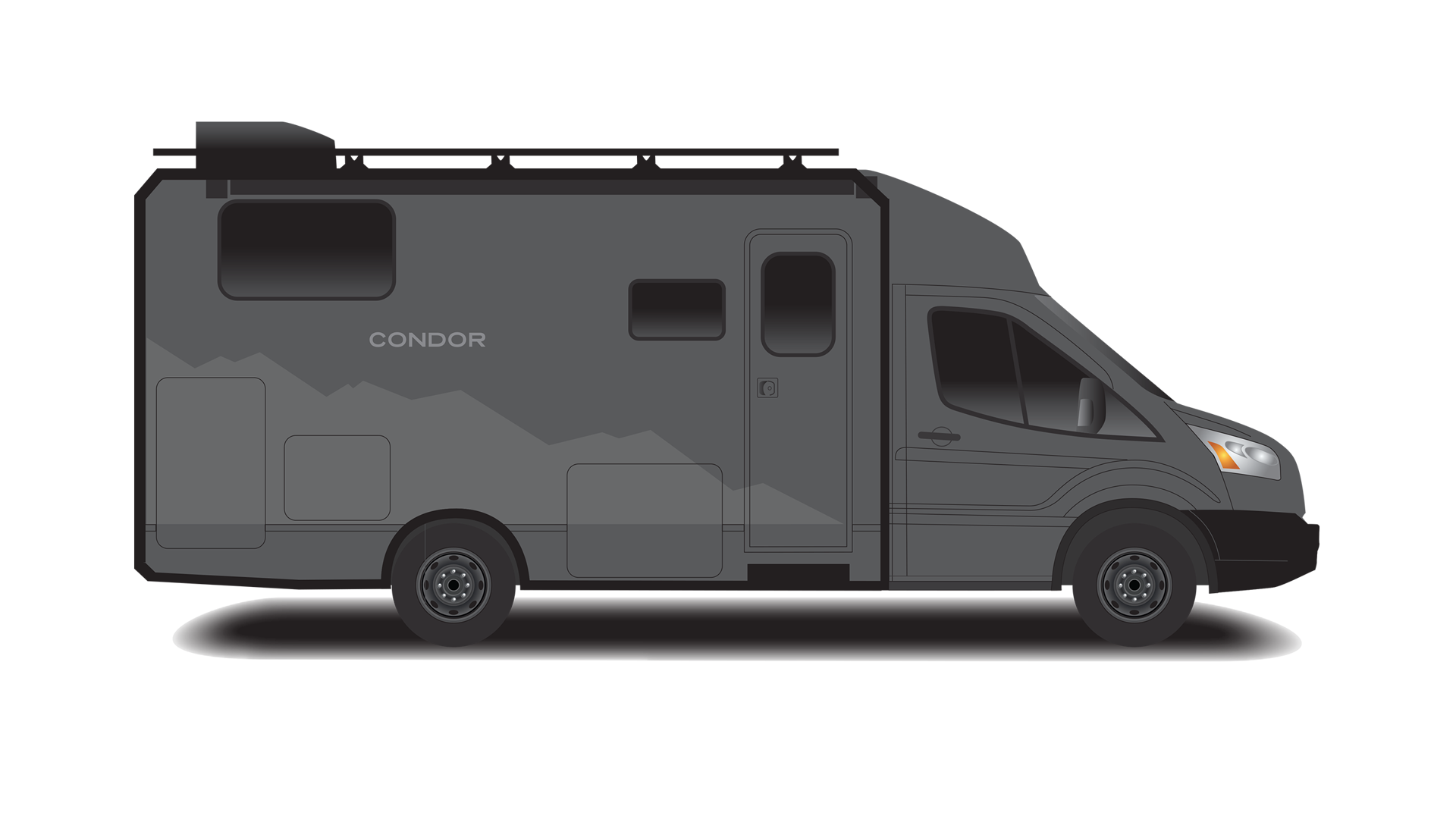

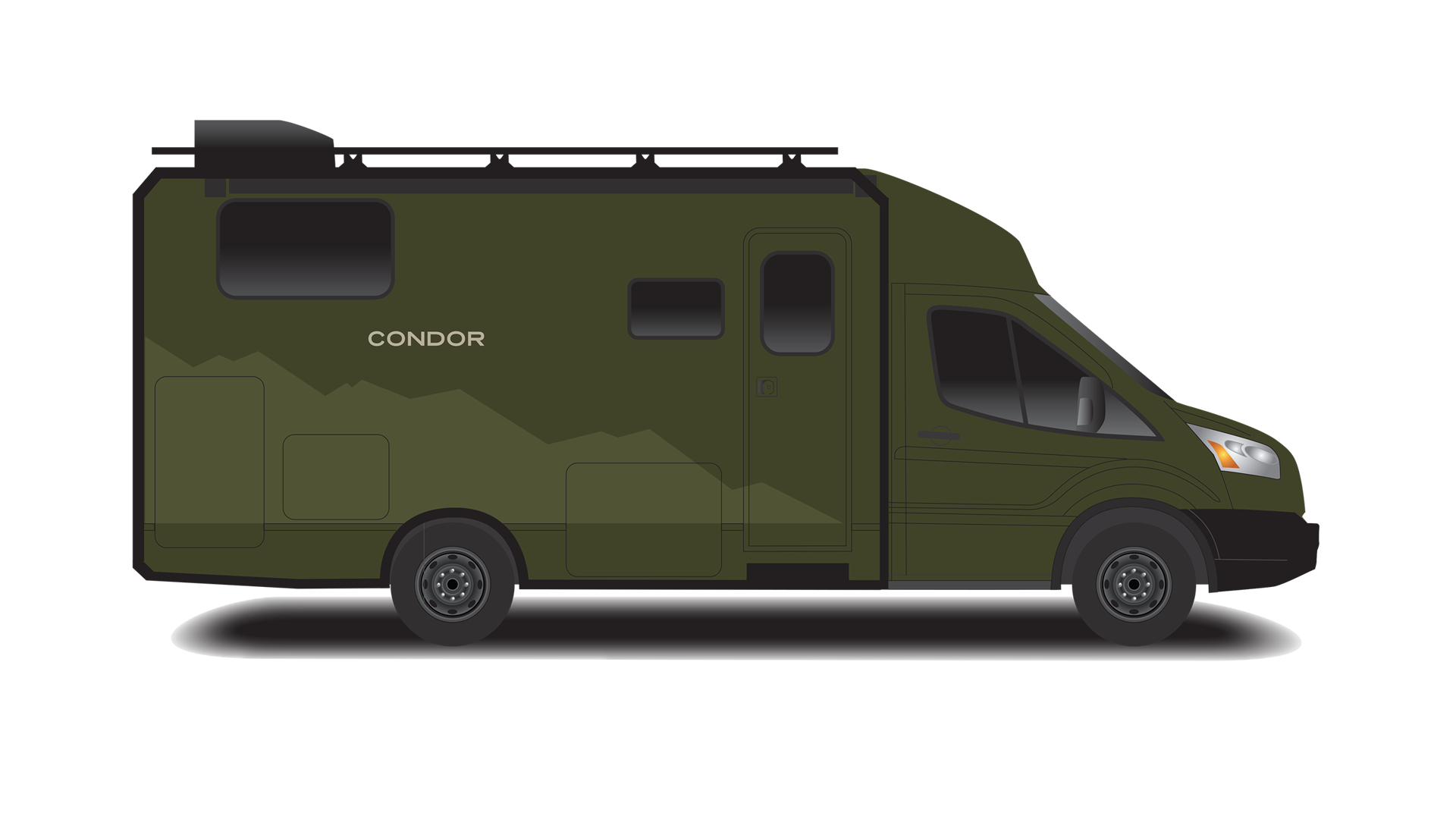

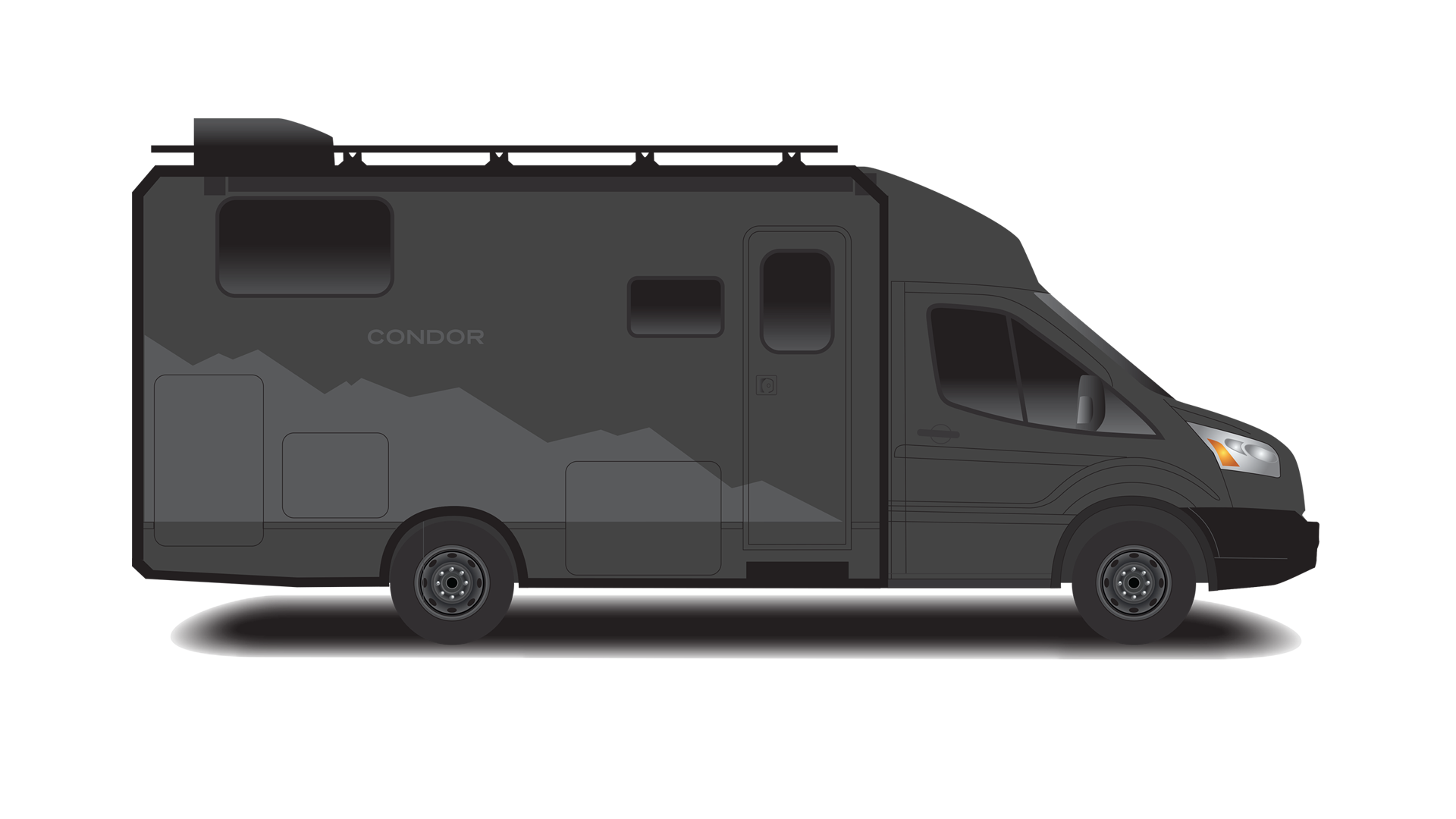

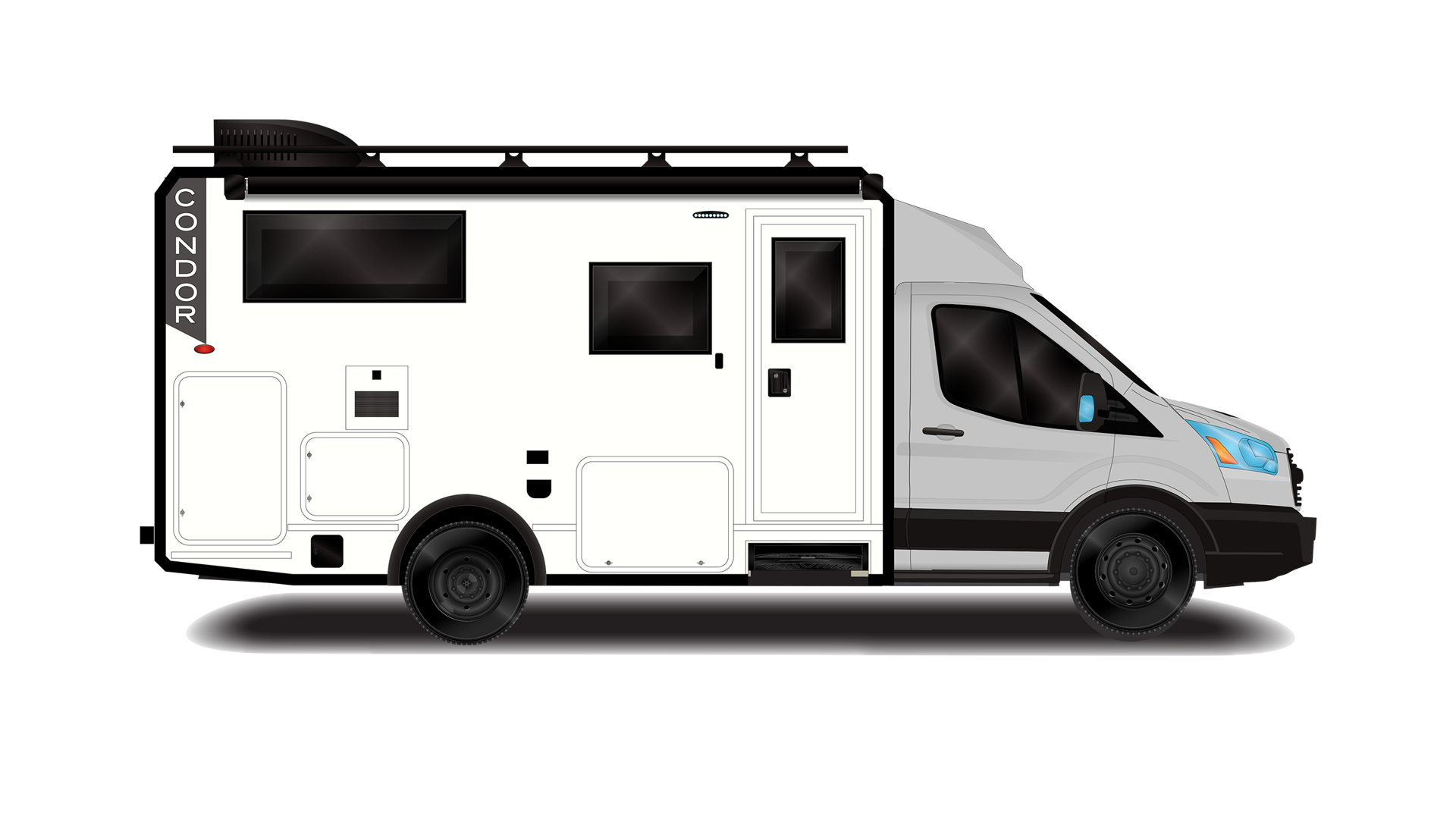

Exterior Graphics
.png)
.png)
Standards & Options
Chassis
| E-Z Drive | E-Z Drive™: Computer-balanced driveshaft, heavy-duty rear stabilizer bar, standard front stabilizer bar, and Hellwig® helper springs (22T) |
| Suspension Lift | Van Compass™ front and rear lift kit (22T) |
| Tires | All-terrain tires with matte black aluminum wheels |

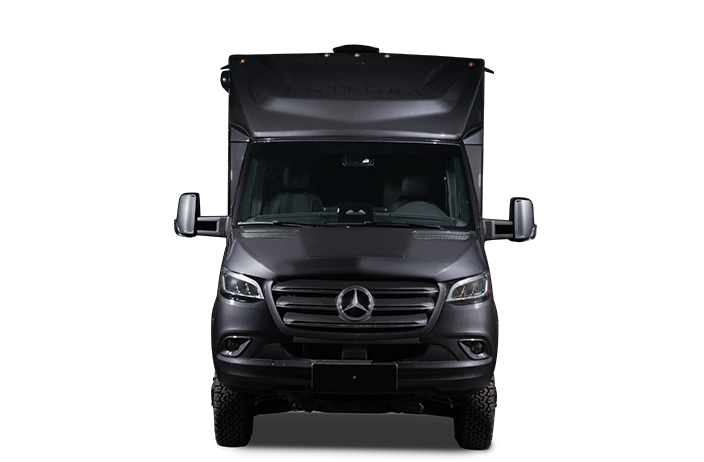

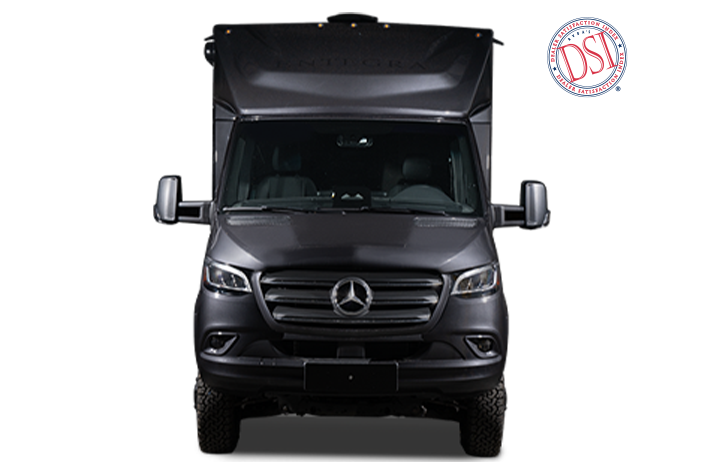

| Chassis | Ford® Transit 350HD AWD chassis (22T); Premium Mercedes-Benz® 3500 AWD chassis (23S) |
| Engine | 3.5L EcoBoost V6 310 HP engine with 400 ft-lb. torque (22T); 2L V4 Twin Turbo 211HP diesel engine with electronic fuel injection with 332 ft.-lb. torque (23S) |
| Transmission | 10-speed transmission (22T); 9-speed transmission (23S) |
| Front Axle | 3.73 limited slip axle |
| Alternator | 250-amp alternator |
| Braking System | Power anti-lock brakes with power steering |
| Chassis Battery | (2) 12V AGM chassis batteries (22T); (1) 12V AGM chassis batteries (23S) |
| Fuel Tank | 31 gal. gas fuel tank (22T); 26.4 gal. diesel fuel tank (23S) |
| Tire Pressure Monitoring | Tire pressure monitoring system (TPMS) |
| DEF Tank | 5.8 gal. DEF tank (23S) |
Construction
| Floor | TuffShell™ vacuum-bond laminated floor |
| Roof | TuffShell™ vacuum-bond laminated roof |
| Insulation | Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls) |
| Walls | TuffShell™ vacuum-bond laminated sidewalls |
Heat, AC, Water & Power
| Batteries | 3.9kWh 12V lithium battery |
| Inverter | 2,000W inverter |
| Solar | 360W roof mounted solar panel with dual controller; Expandable side port with second dual bank controller for solar; Portable solar plug |
| Heated Tanks | Internal holding tanks; LED-lit holding tank valves |
| Generator | 2,800W gas generator with auto-gen start (22T); 2,500W LP generator with auto-gen start (23S) |
| Electrical Hookup | 30-amp electrical service with detachable power cord |
| Propane | 6 gal. propane tank (20 lb.) and LP quick-connect hookup (22T); 2,800W LP generator with auto-gen start (23S) |
| Winterization Drain System | Winterization drain system |
| Water Pump | 12V demand water pump |
| Water Filtration | Water filtration system |
| Air Conditioning | 13,500 BTU air conditioner |
| Heating System | 17,000 BTU Timberline Binar 5D hydronic heating system with LED touchscreen control |
Exterior
| Front/Rear Cap | One-piece, seamless, fiberglass front cap |
| Exterior | Fiberglass exterior walls with partial paint and vinyl graphics |
| Windows | Dual-pane acrylic windows |
| Cargo Features | Heated garage with L-track and (2) 120V charging ports |

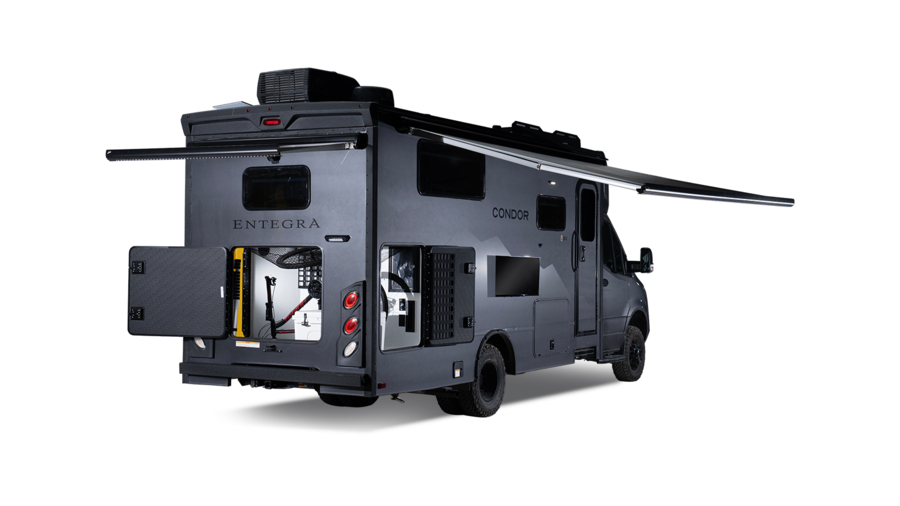

| Patio Awnings | Electric patio awning with auto-retract and LED lights |
| Roof rack | Roof rack (N/A with pop-top option) |
| Ladder | Collapsible exterior ladder |
| Daytime Running Lights | Daytime running headlamps |
| Wi-Fi | Winegard® Connect 2.0 4G/Wi-Fi/digital TV antenna |
| Outlet | 120V exterior outlet |
| Outside Shower | Outside shower |
| Mirrors | Power-adjusting, heated side-view mirrors |
| Keyless Fob | Remote keyless entry |
| Headlights | Automatic high-beam headlights; Wiper-activated headlights |
| Satellite Internet | Starlink satellite internet system |
Cockpit
| Cameras | Backup camera |
| Infotainment System(s) | 12 in. SYNC 4 HD/NAV/IACC multi-function display (22T); 10.25 in. integrated Mercedes-Benz® MBUX infotainment center (23S) |
| Driver / Passenger Seats | 4-way swivel driver and passenger seats (22T); Heated power swivel driver/passenger seats (23S) |
| Steering Wheel | Tilt and telescoping steering wheel (22T); Leather-wrapped tilt steering wheel with integrated controls (23S) |
| Additional Amenities | Intelligent adaptive cruise control; Lane-keeping system; SOS Post Crash Alert System™; Driver and passenger airbags; Safety Canopy® side-curtain airbags; Ford® AdvanceTrac® with RSC® (roll stability control); Side wind stabilization; Hill start assist; SecuriLock® passive anti-theft system with engine immobilizer; Autolocking drive away with crash unlocking; FordPass™ Connect (22T) Active lane keeping assist, Crosswind assist, Active brake assist, Traffic sign assist, Attention assist (23S) |
| Collision Mitigation | Forward collision warning; Pre-collision assist with automatic emergency braking (AEB); Post-collision braking (22T); Active Distance Assist DISTRONIC® (23S) |
| Windshield | Rain-sensing wiper system |
| Power Features | Power windows and door locks |
| Visors & Privacy Shade | Privacy shades for cab windows |
Interior
| Cable hookup | Cable TV hookup with RG-6 coax |
| Additional Storage | Custom-molded ABS cab-over with storage |
| Ceiling | Soft-touch vinyl ceiling |
| Lighting | High-intensity LED ceiling lights |
| Flooring | Residential vinyl flooring |
| Command Center | Firefly Multiplex system - wall-mounted touchscreen and mobile app for total coach control |
| Window Treatments | Cassette screens and night shades |
| Sound - Living Room | JBL® Flip 6 removable wireless Bluetooth speaker |
| Table | Adjustable table with multiple mounts |

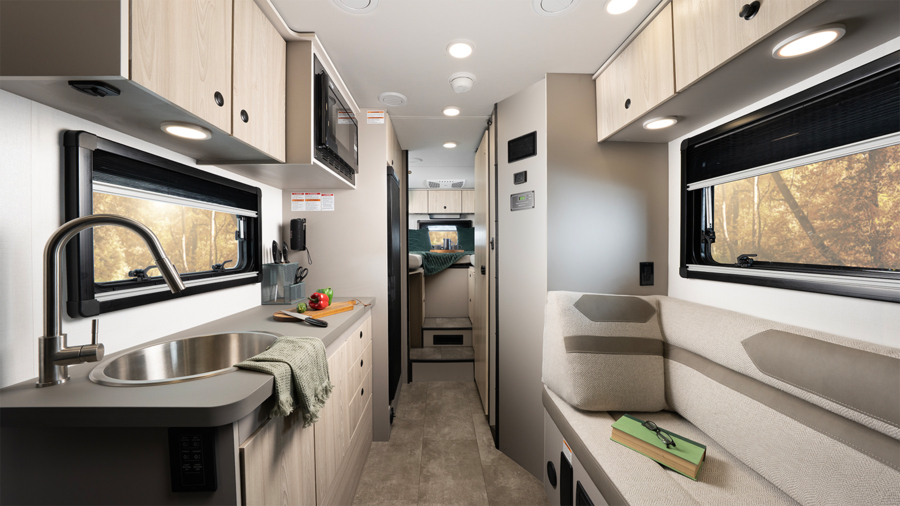

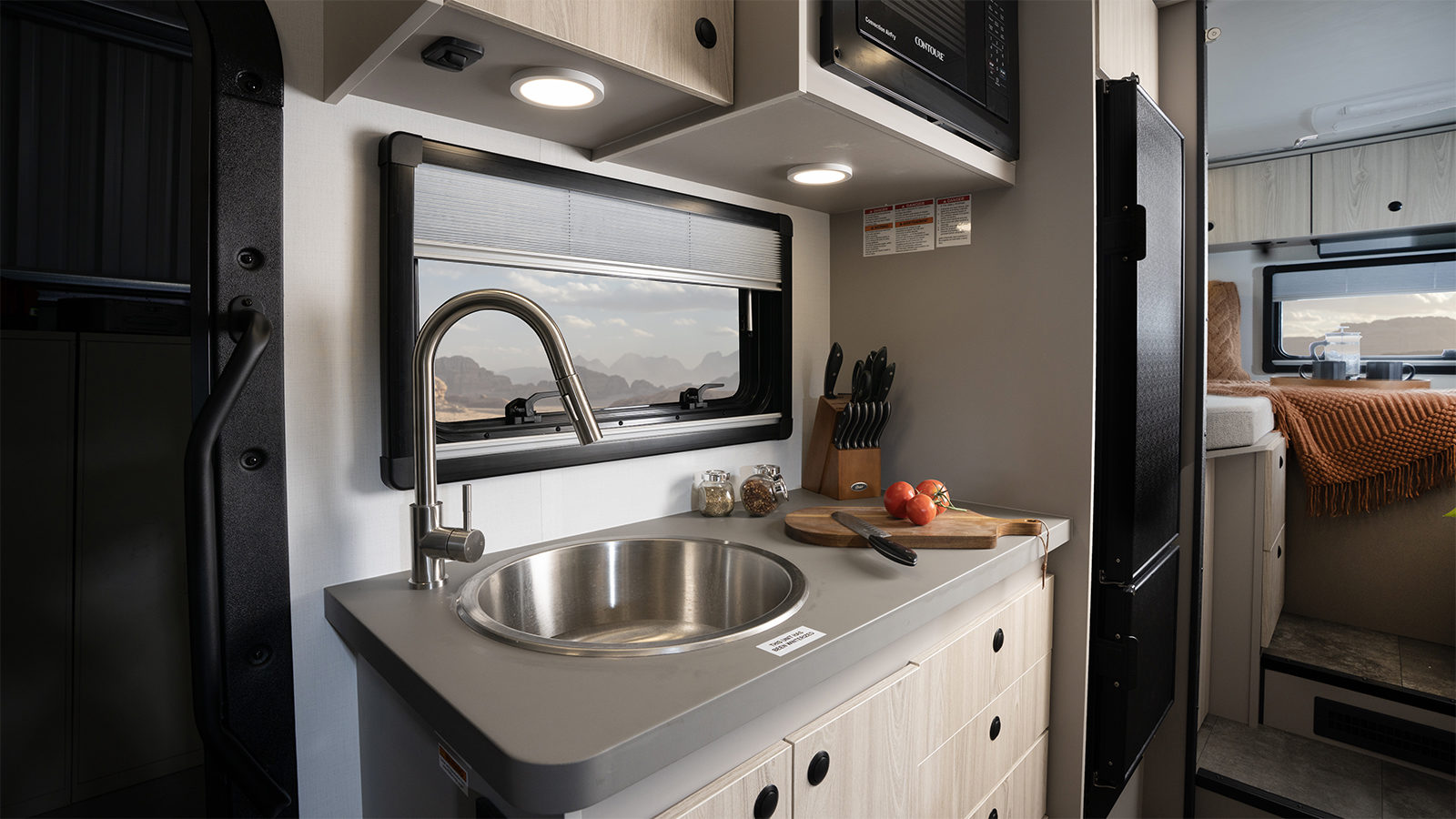

Kitchen
| Refrigerator | 5.3 cu. ft. 12V refrigerator |

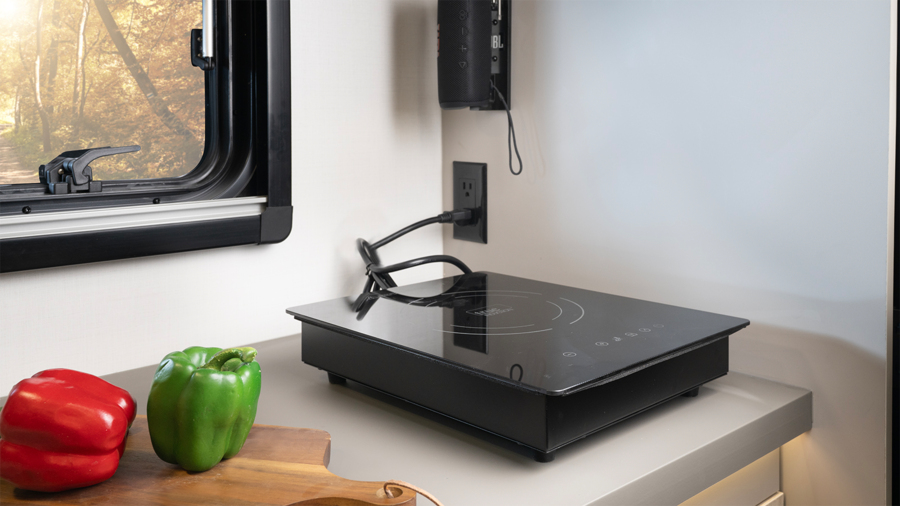

| Cooktop | Induction cooktop |
| Microwave | Convection microwave |
| Sink | Stainless steel sink |
| Countertops | Pressed countertops |

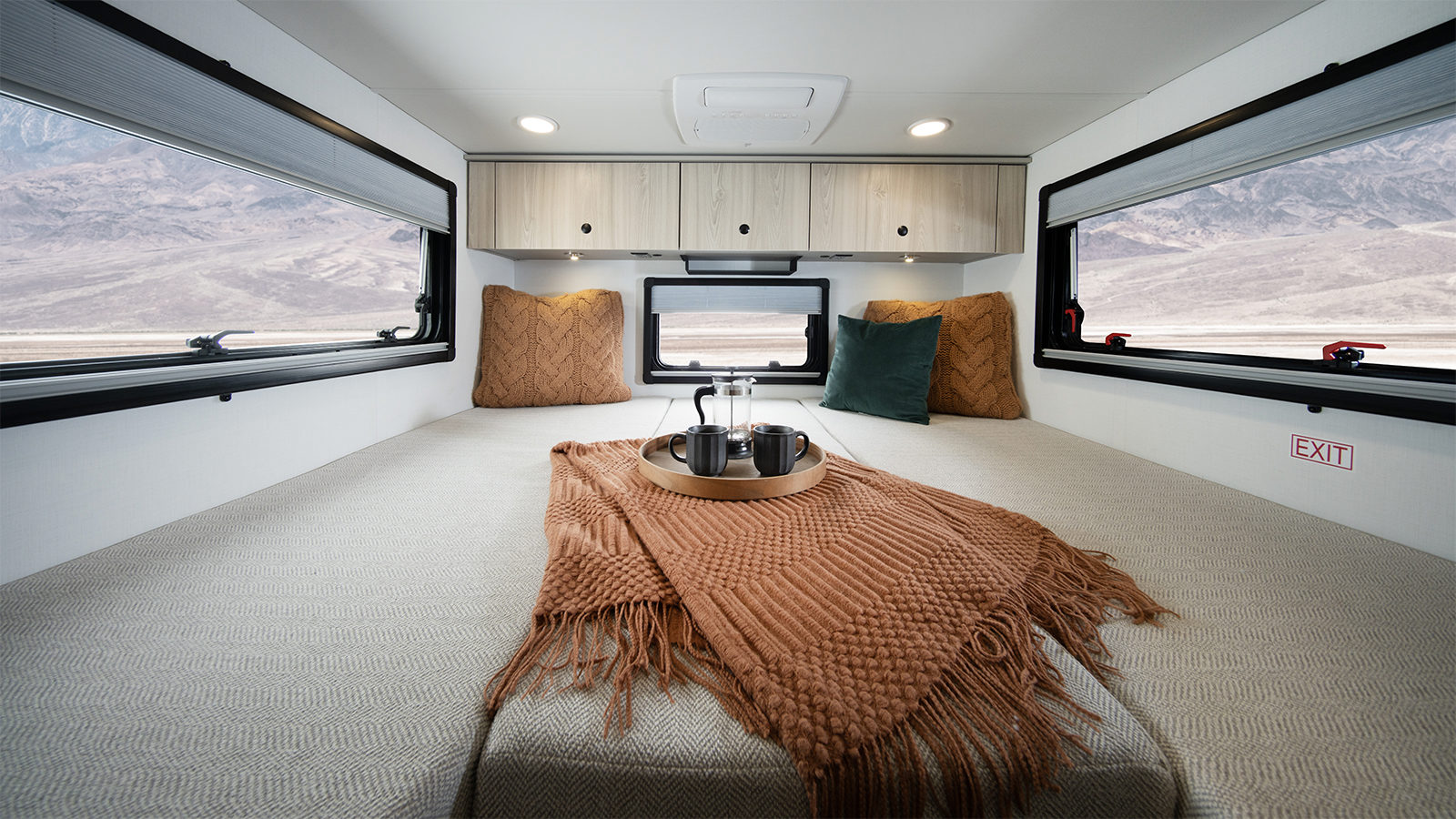

Bedroom

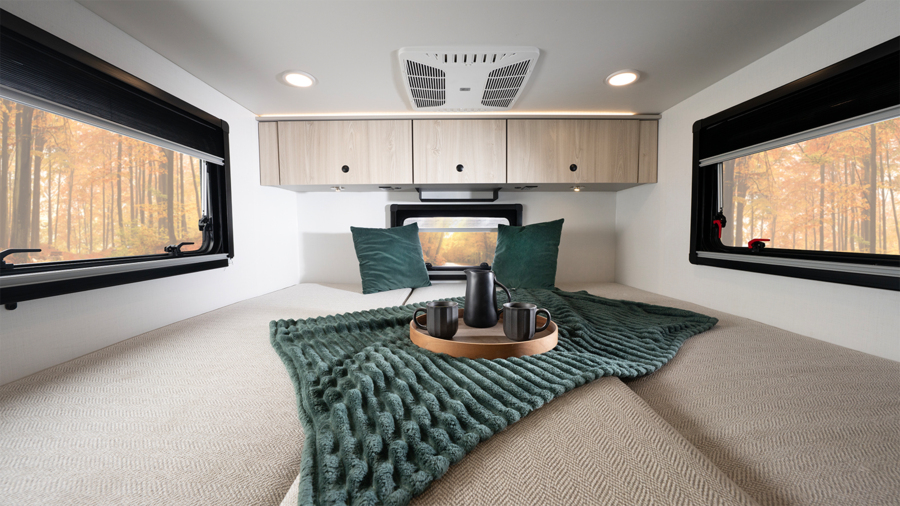

| Bed | (2) twin-size beds with filler cushion converts to king-size bed |

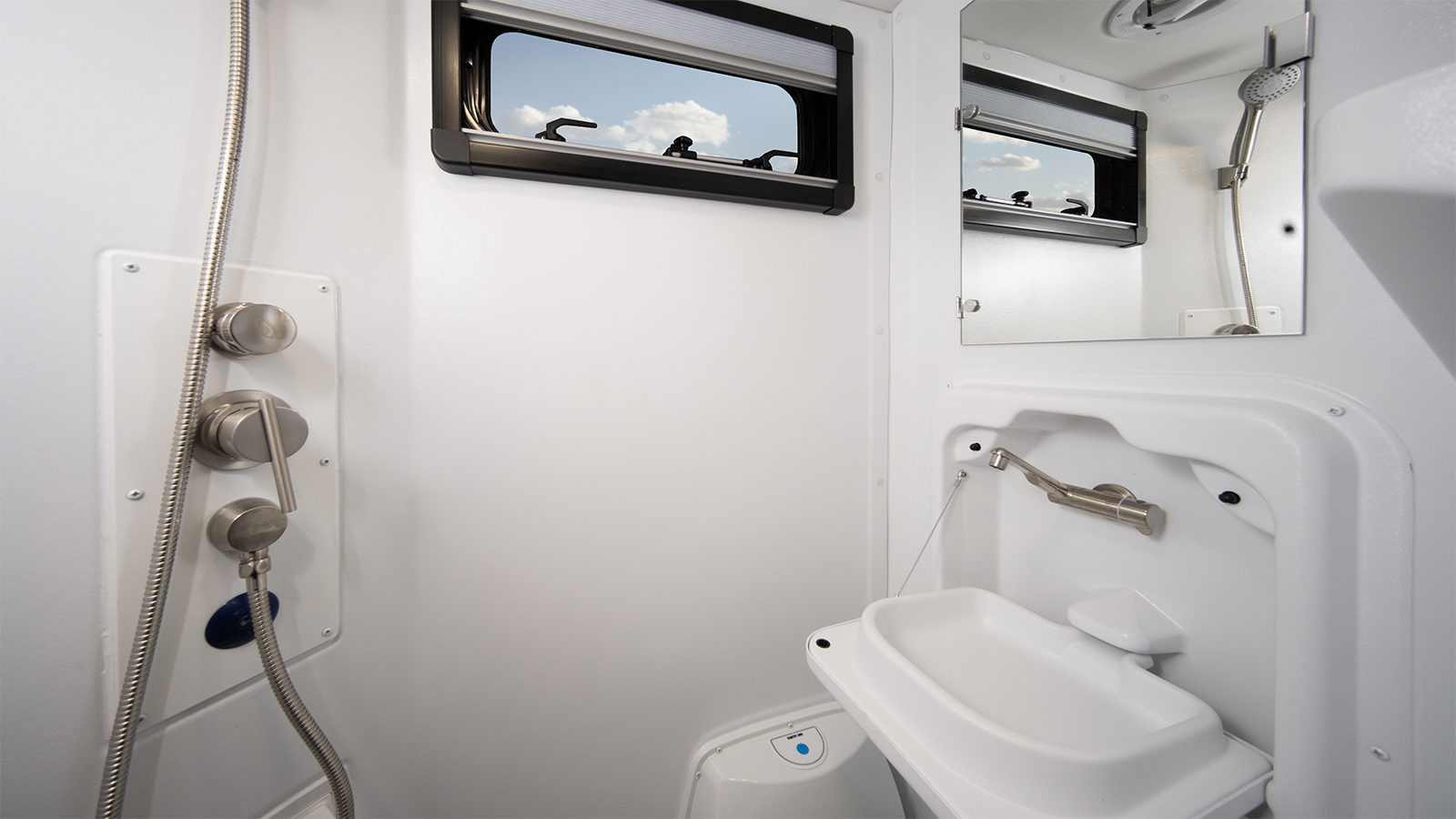

Bathroom
| Water Saving System | Aqua View® SHOWERMI$ER™ water management system |
| Shower | Shower with curtain surround |
| Vent | Powered roof vent in wet bath (N/A with pop-top option) |
| Storage | Medicine cabinet with mirror |
| Toilet | Cassette toilet |
Safety
| Seat Belts | Seatbelts for driver/passenger seats and select cab locations |
| Smoke Alarm | Smoke alarm |
| Carbon Monoxide Detector | Carbon monoxide detector |
| Safety | Fire extinguisher |
Options
| TV | 32 in. Smart LED HD TV with cab and bedroom mounts |
| Rear awning | 7 ft. rear awning |
| Outside Kitchen | Pull-out exterior kitchen |
| Customer Value Package (Mandatory) | E-Z Drive, one-piece seamless fiberglass front cap, Van Compass front and rear lift kit, 3.9Wh 12V lithium battery, 2KW inverter, 360W solar panel with dual controller, expandable side port with second dual bank controller for solar, all-terrain tires, backup camera, Aqua-view SHOWERMISER, internal holding tanks |
Décor Options
Computer-Balanced Driveshaft
By carefully measuring and adjusting the weight distribution along the driveshaft, a computer-balanced driveshaft reduces vibration and improves overall driveline performance by ensuring smooth and efficient power transfer to the wheels. This leads to a smoother and more comfortable ride, enhanced durability of drivetrain components, and reduced stress on the vehicle's transmission and rear axle.
Rubber Isolation Body Mounts
Rubber isolation body mounts effectively reduce vibrations and noise transmission from the chassis to the interior of the vehicle, resulting in a smoother and quieter ride. Secondly, these mounts provide enhanced comfort by absorbing road shocks and impacts, reducing fatigue and improving the overall driving experience for occupants.
Heavy-Duty Rear Stabilizer Bar and Standard Front Stabilizer Bar
A larger stabilizer bar in the rear, with polyurethane bushings instead of rubber, transfers power faster for extra support, improved durability, reduced body roll, enhanced stability and a more controlled and enjoyable driving experience.
Hellwig® Helper Springs
Hellwig Helper Springs provide additional support to the existing suspension system, improving stability and handling while towing or carrying heavy loads. By reducing sagging and enhancing weight distribution, Hellwig Helper Springs help maintain proper ride height, increase overall safety, and minimize body roll, ensuring a smoother and more controlled driving experience.
Detail
The Entegra Coach Class C Condor is built for adventure. From the exterior design to the interior configuration, the Condor is ready to get off-grid and into nature. The Condor is built on the Ford® Transit 350HD AWD chassis with a 3.5L EcoBoost V6 310 HP engine that produces 400-ft-pounds of torque and includes tons of safety features to get you where you’re going safely. These features include intelligent adaptive cruise control, lane-keeping assist, forward collision warning, post-collision braking, driver/passenger airbags, tire pressure monitoring and more. To maximize space, the Condor’s roof rack safely and securely stores your gear on top of the coach. You can access the roof easily with the collapsible roof ladder, which stores away seamlessly when not in use. Adding to the rugged look and functionality is the Van Compass™ 2-inch front and rear lift kit and all-terrain tires with custom matte black wheels for improved ground clearance and the ability to take on rugged terrain most motorhomes can't.
Speaking of things other RVs can’t do…two-inch thick walls, enclosed holding tanks and dual-pane acrylic windows extend your camping season to climates most RVs can’t handle, allowing all your systems to keep operating in colder climates. But just because you’re in a colder climate doesn’t mean you’ll be cold. The 17,000 BTU Timberline Binar 5D hydronic heating system with LED touchscreen control is a 2-in-1 water heater and furnace that delivers even, hot water and moist heat. It’s small and lightweight—taking up less space than two appliances—making it great for those who want to be off-grid and save LP.
When it comes to actually driving the Condor, the ride is as smooth as they come with the E-Z Drive® ride and handling package featuring Hellwig® Helper Springs and a rear stabilizer bar. The package delivers a quiet, comfortable ride so you can travel further without fatigue. Hellwig® Helper Springs maintain proper ride height, increase overall safety and minimize body roll, ensuring a smoother, more controlled driving experience. The rear stabilizer bar transfers power faster for extra support, improved durability and enhanced stability. Once you arrive at your destination, enjoy the 38- by 48-inch dinette lounge with an adjustable table. Swiveling your driver and passenger seats creates even more room inside. Two twin-size beds with filler cushions convert to a king-size bed, allowing two people to sleep separately or easily make a large bed with this easy-to-insert filler cushion.
Inside and out, the Condor is thoughtfully designed for comfort and control. Take the off-the-beaten-path in the Condor Class C.
