THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2025 Arc

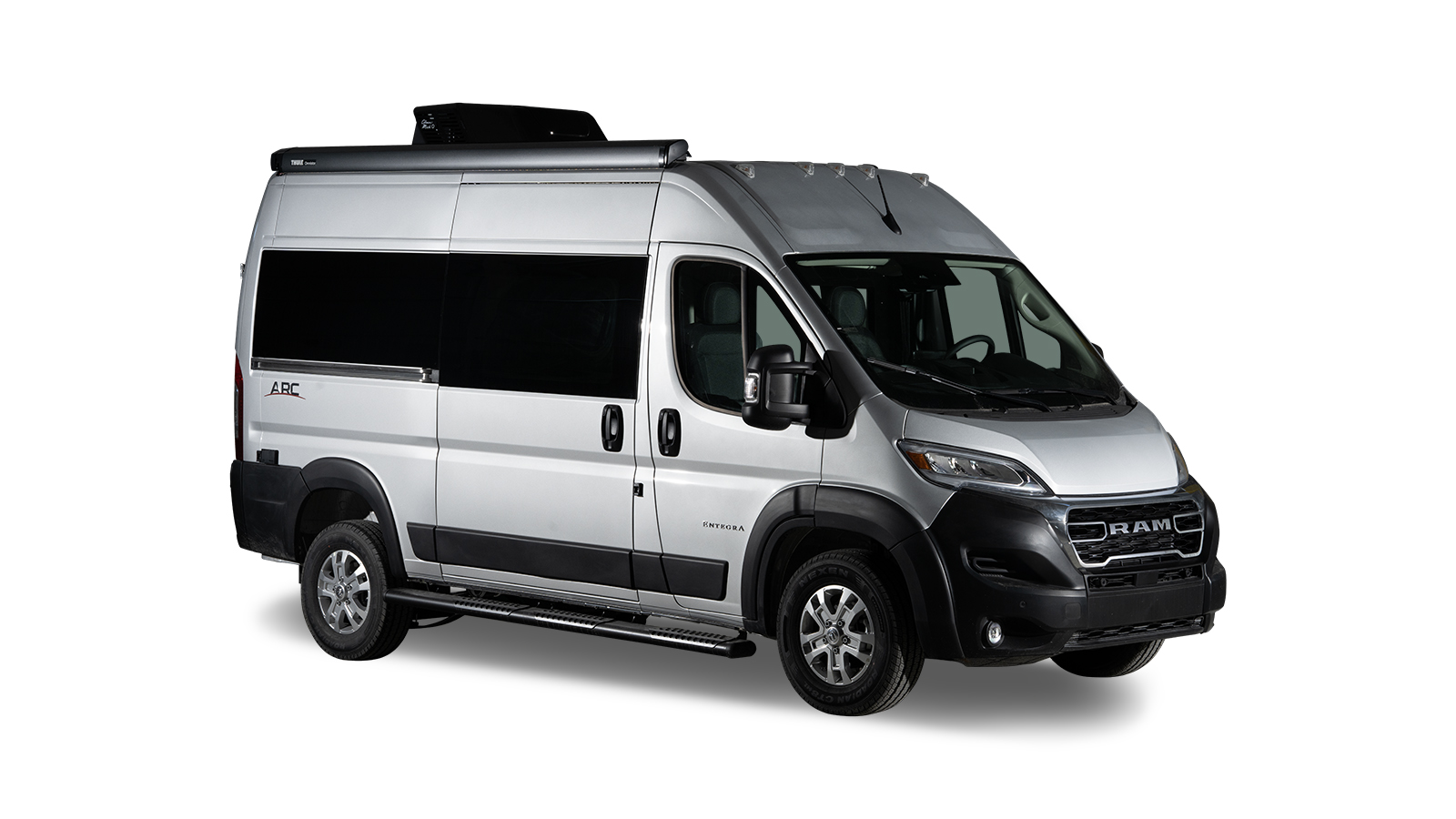

Super tiny and nimble, the Arc is the choice for anyone who wants an RV that feels just like their daily driver. Zip in and out of traffic or take that last camping spot with ease—at 17 feet, 10 inches in overall length, the Arc is easy to navigate in small spaces and busy streets.
Built on the RAM ProMaster 1500 window van, the Arc is loaded with safety features, including the ParkView® rear backup camera, blind spot monitoring with rear cross-path detection, LaneSense® lane departure warning with lane keep assist, forward collision warning with active braking, and more. You’ll feel confident and secure behind the wheel of this Class B van.
Just because the Arc comes in a tiny... Read More
Brochure
Gallery
.jpg)
Product Videos

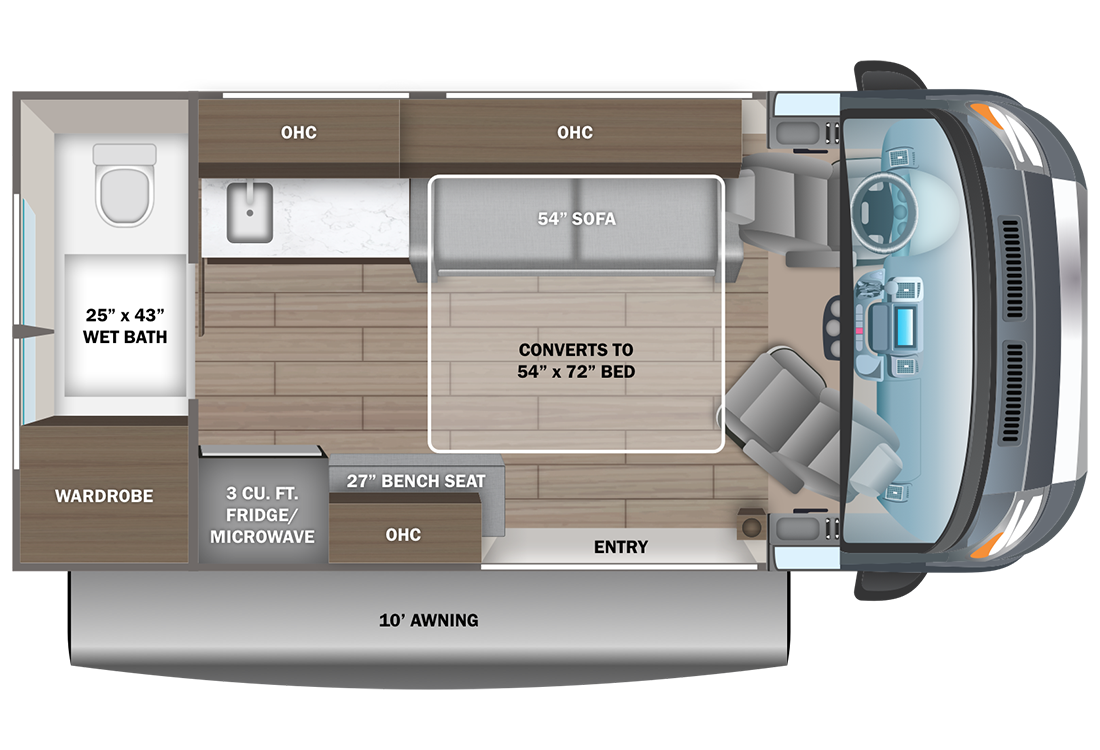

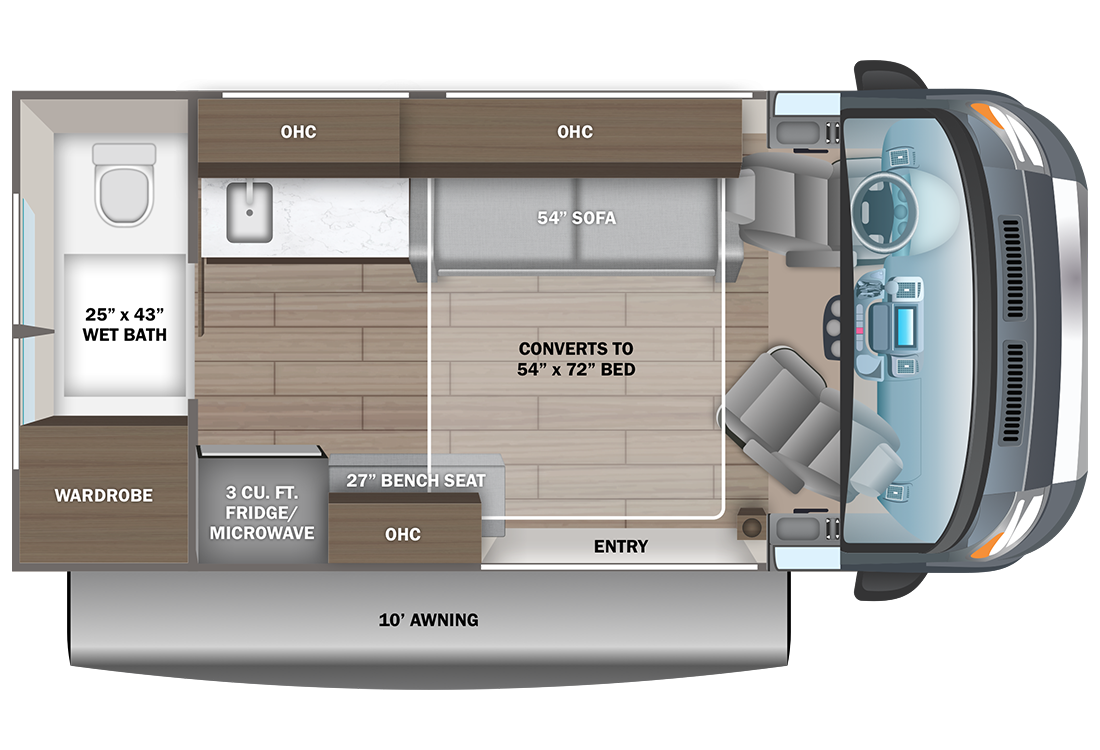

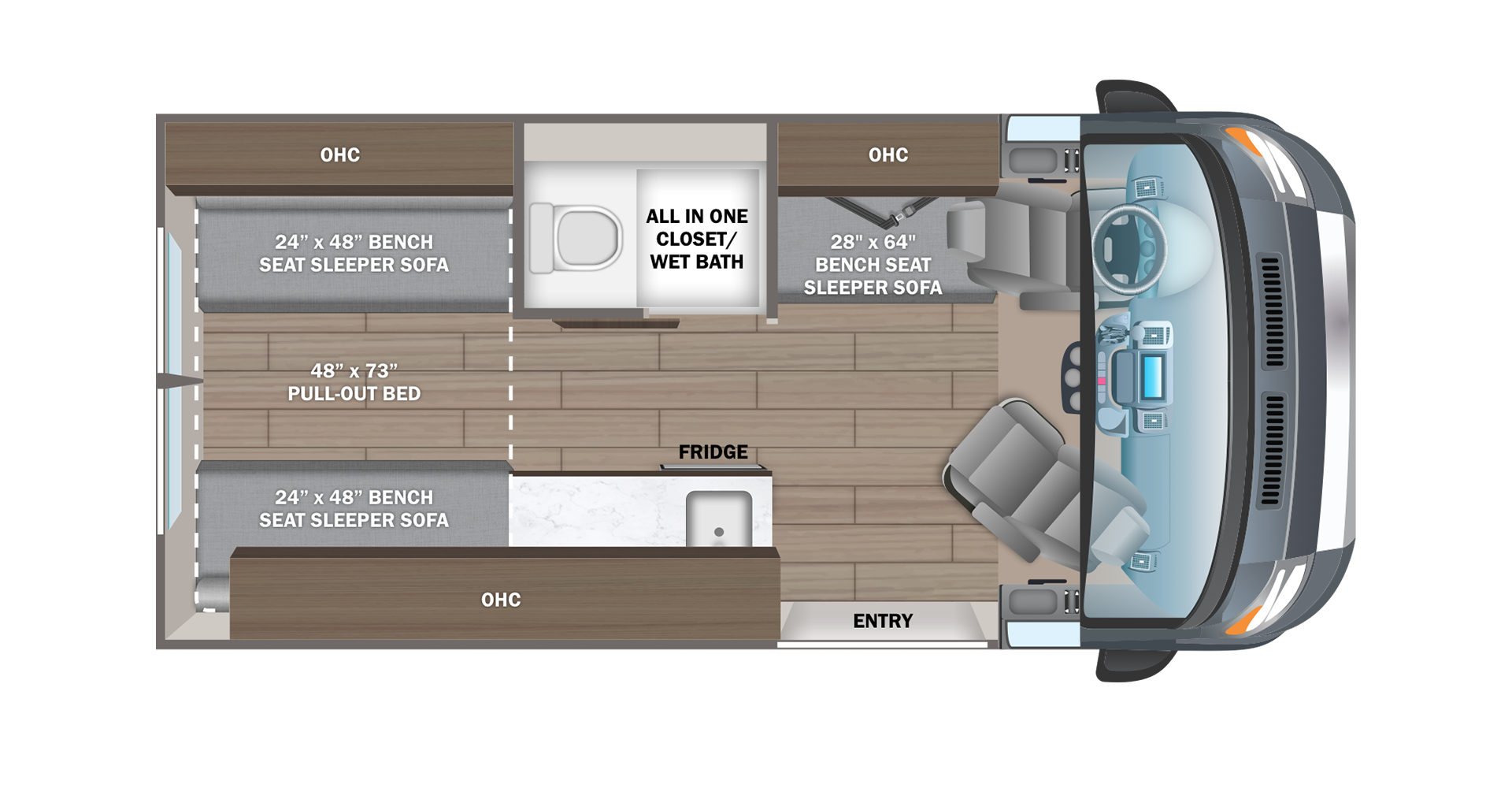

Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2025 Arc|18C
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 8,550 |
| Gross Combined Weight Rating (lbs) | 12,000 |
| Front Gross Axle Weight Rating (lbs) | 4,629 |
| Rear Gross Axle Weight Rating (lbs) | 5,291 |
| Exterior Length | 17' 10" |
| Exterior Width | 83" |
| Exterior Height with A/C and Satellite | 9' 3" |
| Interior Height | 74" |
| Fresh Water Capacity (gals) | 21 |
| Grey Waste Water Capacity (gals) | 24 |
| Black Waste Water (gals) | 4.75 |
| Fuel Tank Capacity (gals) | 24 |
| Furnace (BTU Output) | 13,500 AQUA HOT GEN 1 |
| Wheel Base | 136" |
All Floorplans
2025 Arc | 18C
360°
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice

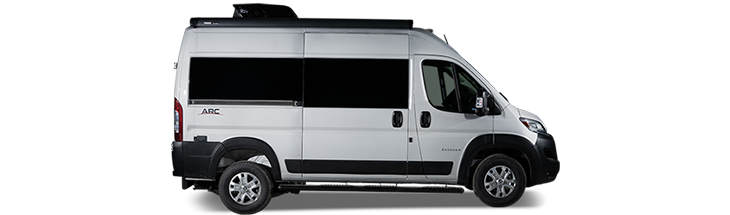

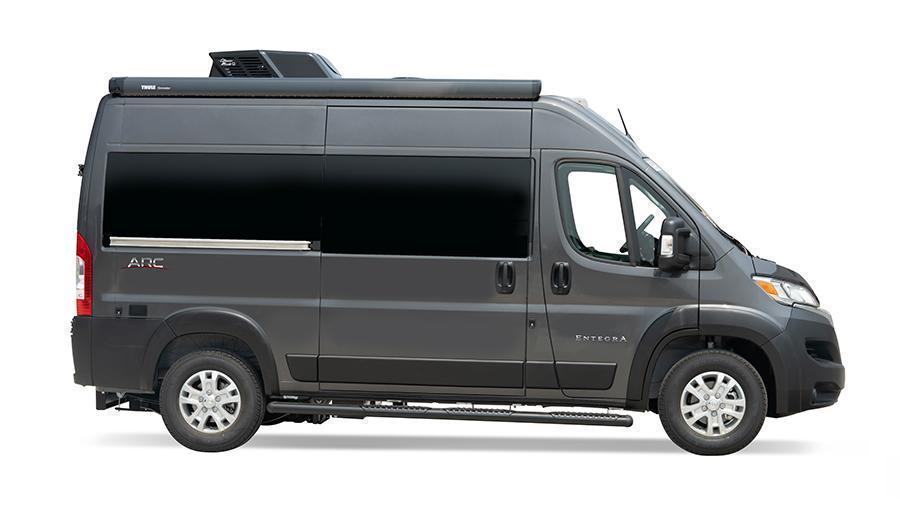

Exterior Graphics
.png)
Standards & Options
Chassis
| Rear Suspension | Hellwig helper spring |
| Chassis | RAM® ProMaster 1500 cargo van with 136 in. wheelbase (2500 cargo van for CSA chassis) |
| Engine | 3.6L V6 24V VVT 276HP engine with 250 ft.-lb. torque |
| Transmission | 9-speed automatic 948TE transmission |
| Alternator | 180-amp alternator |
| Tires | LT225/75R 16E tires with aluminum wheels |
| Hitch | 3,500 lb. rear hitch receiver with dual 4/7 pin connector |
| Chassis Battery | 12V chassis battery |
| Fuel Tank | 24 gal. fuel tank (gas) |
Construction
| Walls | Custom-molded ABS interior wall panels |
Heat, AC, Water & Power
| Heating System | Aqua-Hot® GEN-1 hydronic water and heating system |
| Air Conditioning | 13,500 BTU Coleman®-Mach® 10 air conditioner |
| Generator | Onan® 2,800W generator |
| Inverter | 1,000W inverter |
| Batteries | (2) 12V AGM house batteries with disconnect switch |
| Electrical Hookup | 30-amp electrical service with detachable power cord |
| Solar | Side port solar prep |
| Heated Tanks | Heated holding tanks (12V pads) with LED-lit holding tank valves |
| Gravity Fill | Gravity water fill |
| Winterization Drain System | Winterization drain system |
| Water Pump | 12V demand water pump |
| Water Filtration | Water filtration system |
Exterior

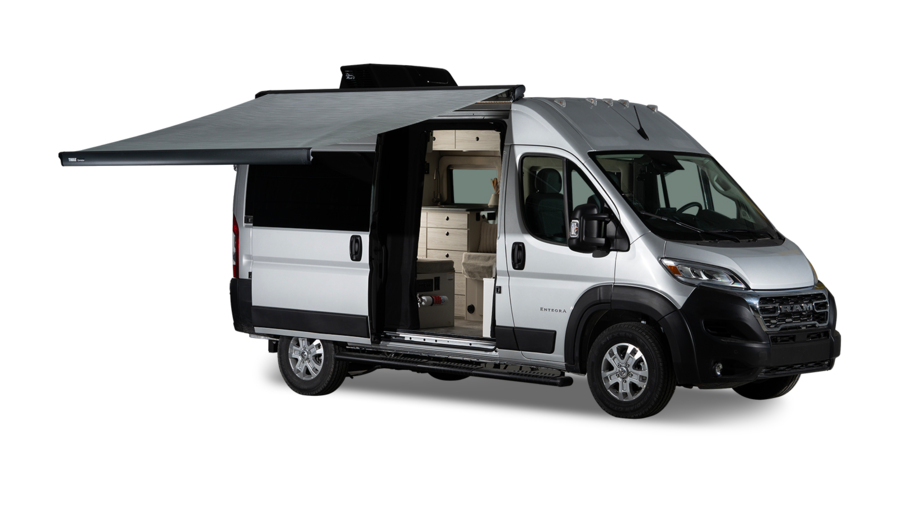

| Patio Awnings | Thule® patio awning with LED light strip |
| Wi-Fi | Winegard® Connect 2.0 4G/Wi-Fi/digital TV antenna |
| Running Boards | LED-lit running boards for cab and entry doors |
| Chrome Accents | Chrome grille package |
| Outlet | (2) 120V exterior outlets |
| Outside Shower | Outside shower |
| Mirrors | Power folding/heated side-view mirrors |
| Headlights | Automatic high-beam headlights |
| Keyless Fob | Remote keyless entry |
| Entrance Door | Side screen door with magnetic and zipper close offs; Removable privacy shade for sliding door window |
| Windows | Sliding vented windows |

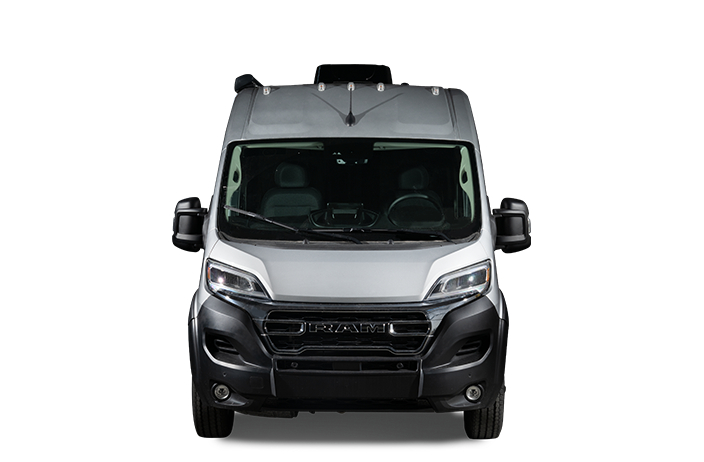

Cockpit
| Driver / Passenger Seats | Swivel passenger seat with 6-way adjustment |

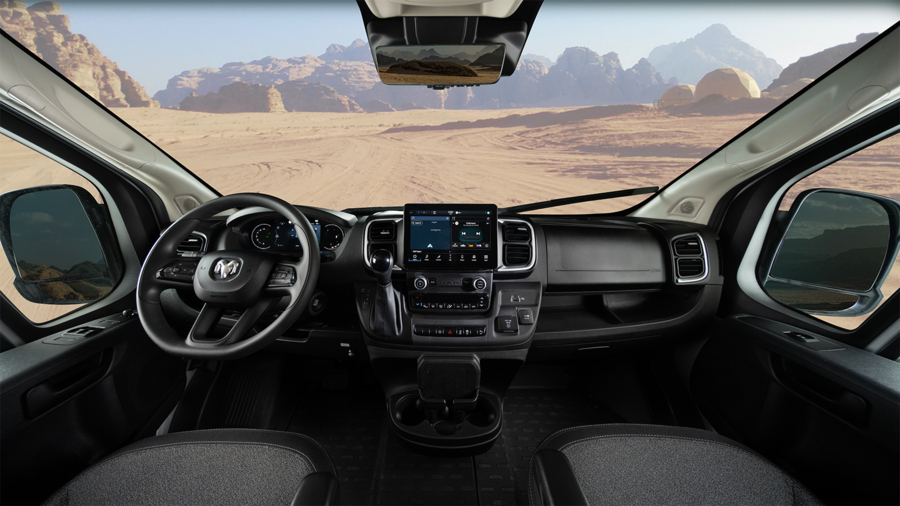

| Infotainment System(s) | 10.1 in. Uconnect® 5 NAV infotainment center with Apple CarPlay® and Android Auto™ |
| Start | Push-button start |
| Cameras | ParkView® rear backup camera with dynamic gridlines |
| Blind Spot Monitoring | Blind spot monitoring with rear cross path detection |
| Collision Mitigation | LaneSense® lane departure warning with lane keep assist; Forward collision warning with active braking |
| Additional Amenities | Crosswind assist; Electronic stability control; Pedestrian/cyclist emergency braking; Traffic sign information; Drowsy driver detection; Cruise control; Wireless charging pad; Driver and passenger airbags |
| Windshield | Rain-sensitive windshield wipers |
| Power Features | Power windows and door locks |
| Visors & Privacy Shade | Privacy shades for cab windows |
Interior
| Ceiling | Soft-touch vinyl ceiling |
| Lighting | High-intensity LED ceiling lights |
| Flooring | Residential vinyl flooring |
| Command Center | Interior command center |
| Window Treatments | Decorative window valances with day/night roller shades; Rear magnetic privacy shades |
| Table | Adjustable table with multiple mounts |
| Television - Living Room | 32 in. Overhead TV |
| Sound - Living Room | JBL® Flip 6 removable wireless Bluetooth speaker |
Kitchen
| Refrigerator | 3 cu. ft. refrigerator/freezer |
| Microwave | Microwave |

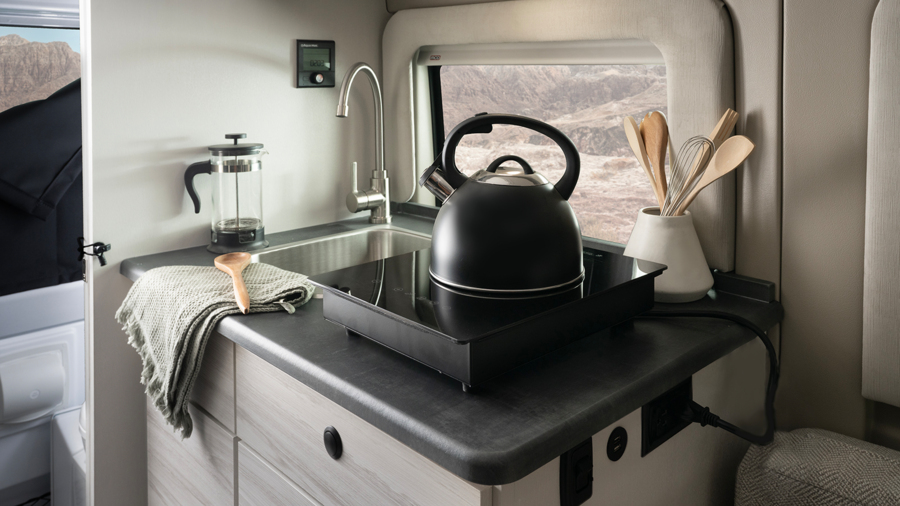

| Cooktop | Portable induction cooktop |
| Sink | Stainless-steel sink with cover |
| Countertops | Pressed countertops |
Bedroom
| Bed | 54 in. sofa converts to 54 in. x 72 in. bed |
Bathroom

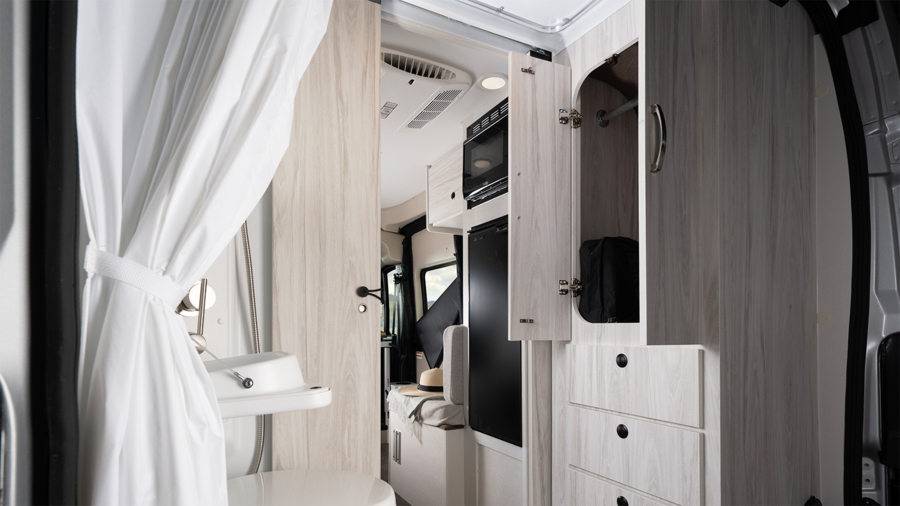

| Wardrobe | Bathroom wardrobe; Medicine cabinet with mirror |

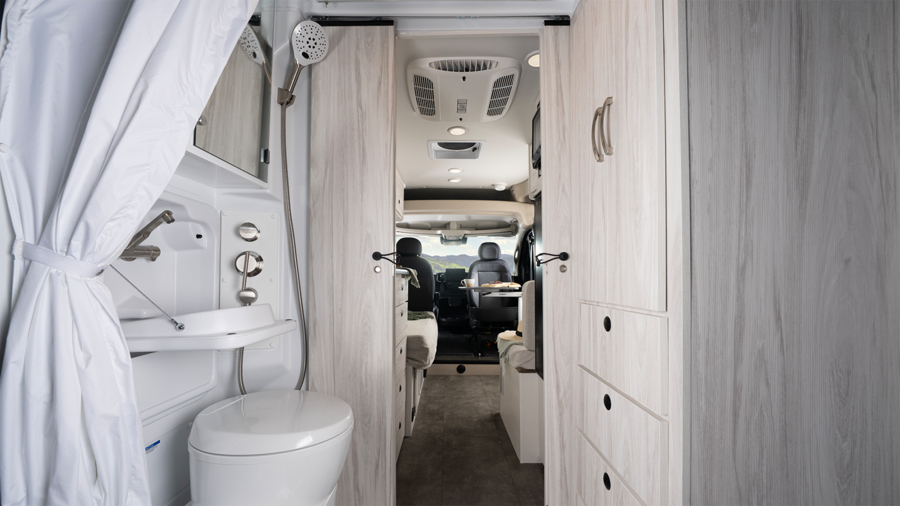

| Shower | Shower with magnetic curtain surround |

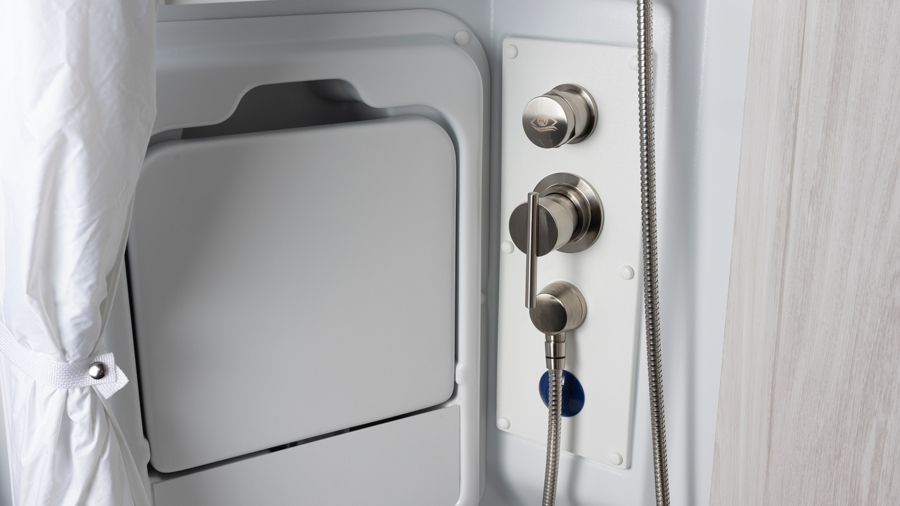

| Water Saving System | Aqua View® SHOWERMI$ER™ water management system |
| Toilet | Cassette toilet |
| Vent | Powered roof vent in bathroom |
Safety
| Seat Belts | Seatbelts for driver/passenger seats and select cab locations |
| Smoke Alarm | Smoke alarm |
| Carbon Monoxide Detector | Carbon monoxide detector |
| Safety | Fire extinguisher |
Options
| Solar | 200W roof-mounted solar panel with dual controller |
| Customer Value Package (Mandatory) | Thule® patio awning with LED light strip, Aqua-Hot GEN-1 hydronic water and heating system, Swivel passenger seat with 6-way adjustment, Winegard Connect 2.0 4G/Wi-Fi/digital TV antenna, 13,500 BTU Coleman-Mach 10 air conditioner |
Décor Options
.jpg)
Detail
Super tiny and nimble, the Arc is the choice for anyone who wants an RV that feels just like their daily driver. Zip in and out of traffic or take that last camping spot with ease—at 17 feet, 10 inches in overall length, the Arc is easy to navigate in small spaces and busy streets.
Built on the RAM ProMaster 1500 window van, the Arc is loaded with safety features, including the ParkView® rear backup camera, blind spot monitoring with rear cross-path detection, LaneSense® lane departure warning with lane keep assist, forward collision warning with active braking, and more. You’ll feel confident and secure behind the wheel of this Class B van.

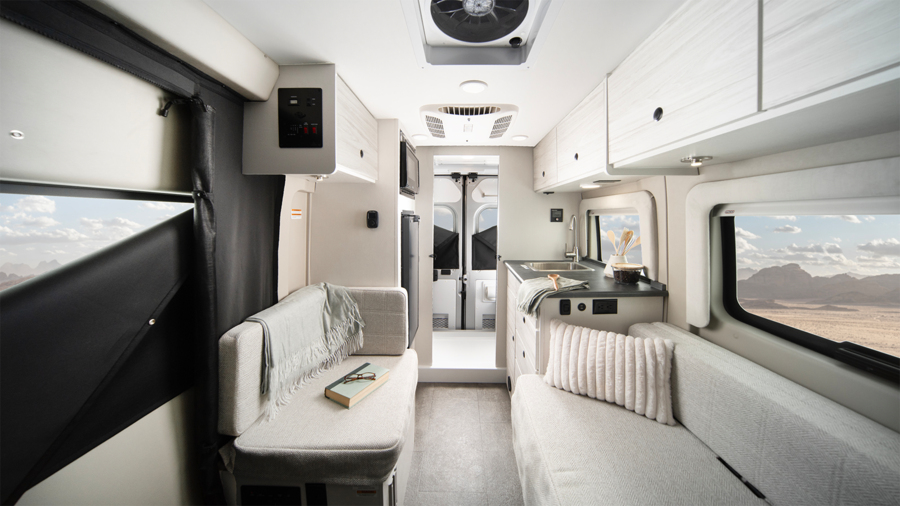

Just because the Arc comes in a tiny package doesn’t mean it skimps on amenities. The large 32-inch Smart TV can stream your favorite programs when you feel like hanging out or be easily tucked away when not in use to save space. The JBL® Flip 6 removable wireless Bluetooth speaker offers great sound quality and can easily be taken out to the campfire or on a hike. In the kitchen, make use of durable and easy-to-clean solid-surface countertops by storing your portable induction cooktop when meal time is over.

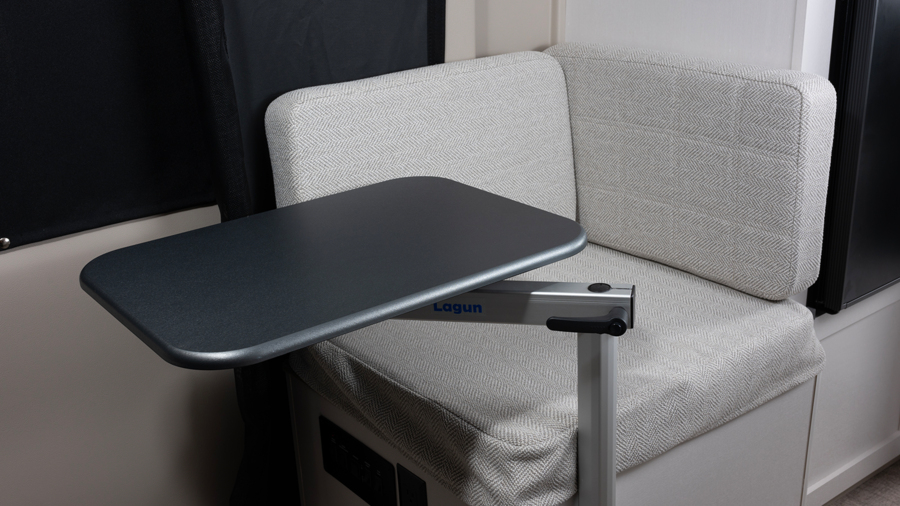

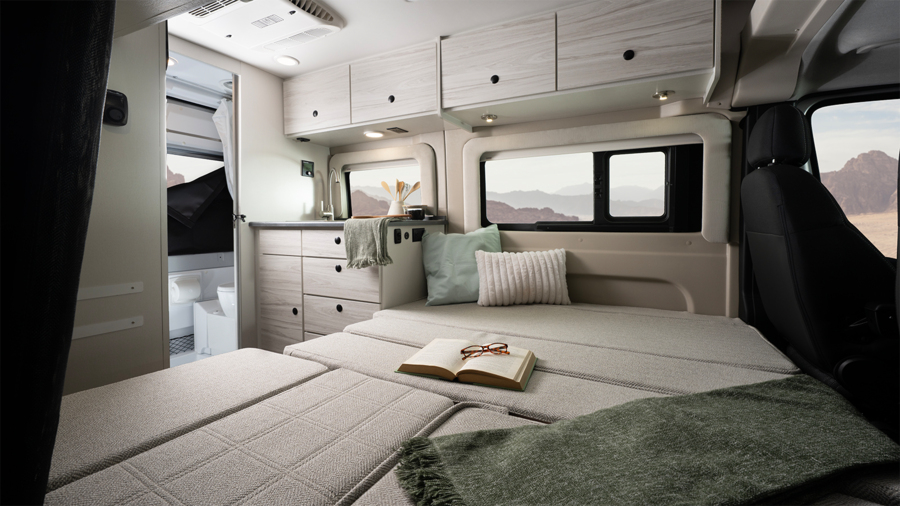

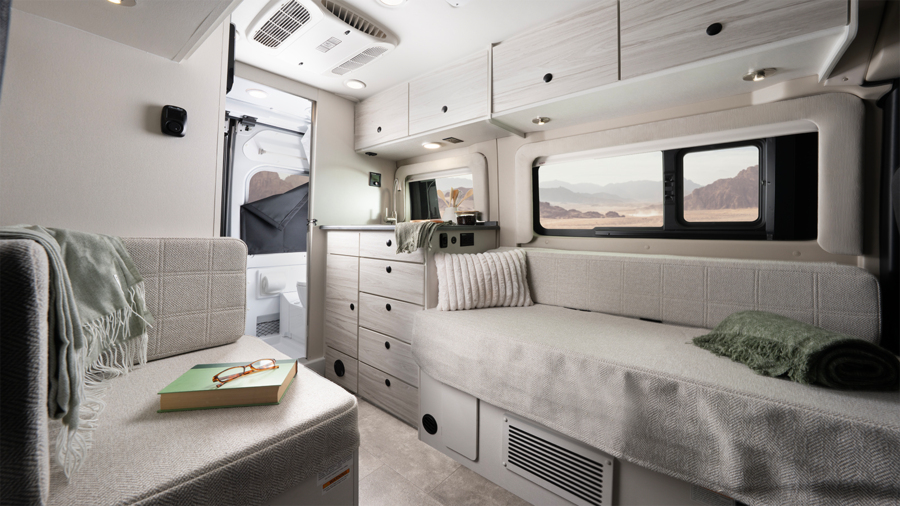

The Arc is thoughtfully designed with configurable spaces to accommodate your travel style. A 54-inch sofa easily converts to a 54-by-72-inch bed to save space when not in use. Ready for dinner or game night? The adjustable table with multiple mounts is easy to set up and move, allowing you to have a table or desk in multiple locations or store it away when not in use to save space.
Compact and feature-loaded, the Arc is everything you need to get your next adventure underway quickly.
