THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2025 Ethos
Configurable and affordable, the Entegra Coach Class B Ethos is a great way to step into #vanlife. The perfect Class B for two, the Ethos has been designed with company in mind with an optional pop-top to add extra sleeping space. The options don’t stop there. An Li package is offered on the Ethos for those who want to ditch the generator for lithium power. It’s quiet and eco-friendly for those who want to stay off-grid longer or have neighbors sensitive to noise.
From the ground up, the Ethos is engineered to go the distance. The Ethos is built on the RAM® ProMaster 3500 window van with some of the same safety features found on a daily driver to keep... Read More
Brochure
Gallery
Product Video
2025 Ethos Walkthrough Video

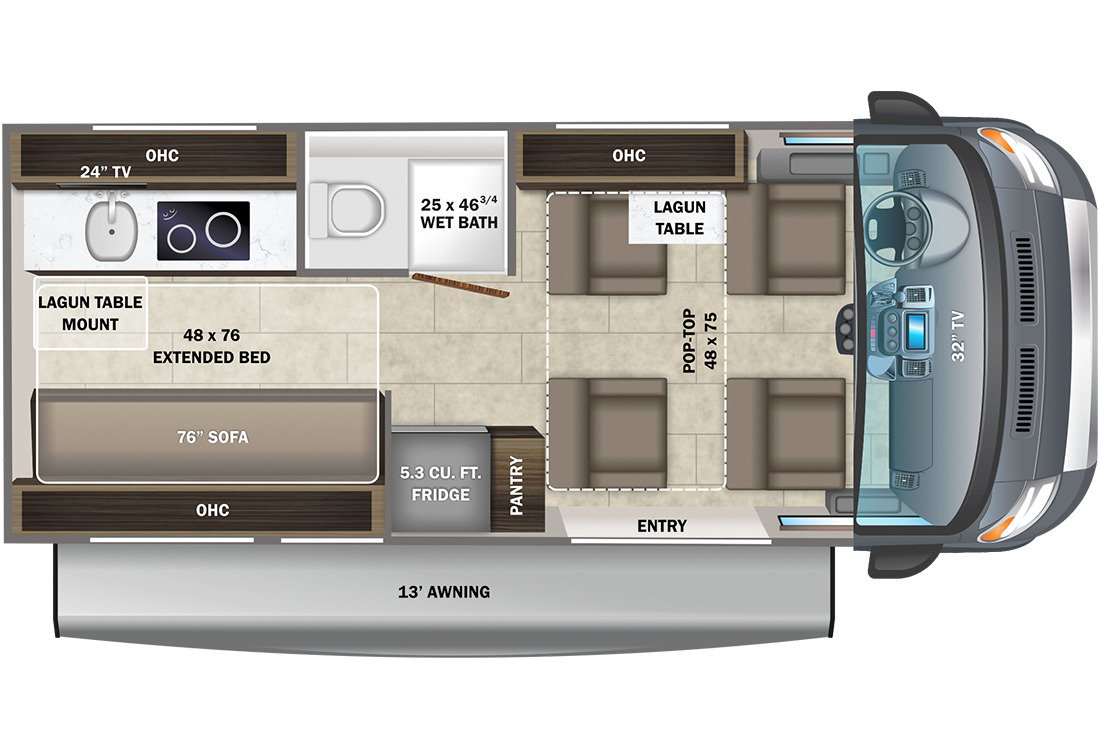

Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2025 Ethos|20A
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 9,350 |
| Gross Combined Weight Rating (lbs) | 12,000 |
| Front Gross Axle Weight Rating (lbs) | 4,629 |
| Rear Gross Axle Weight Rating (lbs) | 5,291 |
| Exterior Length | 20' 11" |
| Exterior Width | 83" |
| Exterior Height with A/C and Satellite | 9' 3" |
| Interior Height | 74" |
| Fresh Water Capacity (gals) | 21 |
| Grey Waste Water Capacity (gals) | 13/14 |
| Black Waste Water (gals) | 10 |
| Fuel Tank Capacity (gals) | 24 |
| Furnace (BTU Output) | 20,000 BTU Truma Combi |
| Wheel Base | 159" |

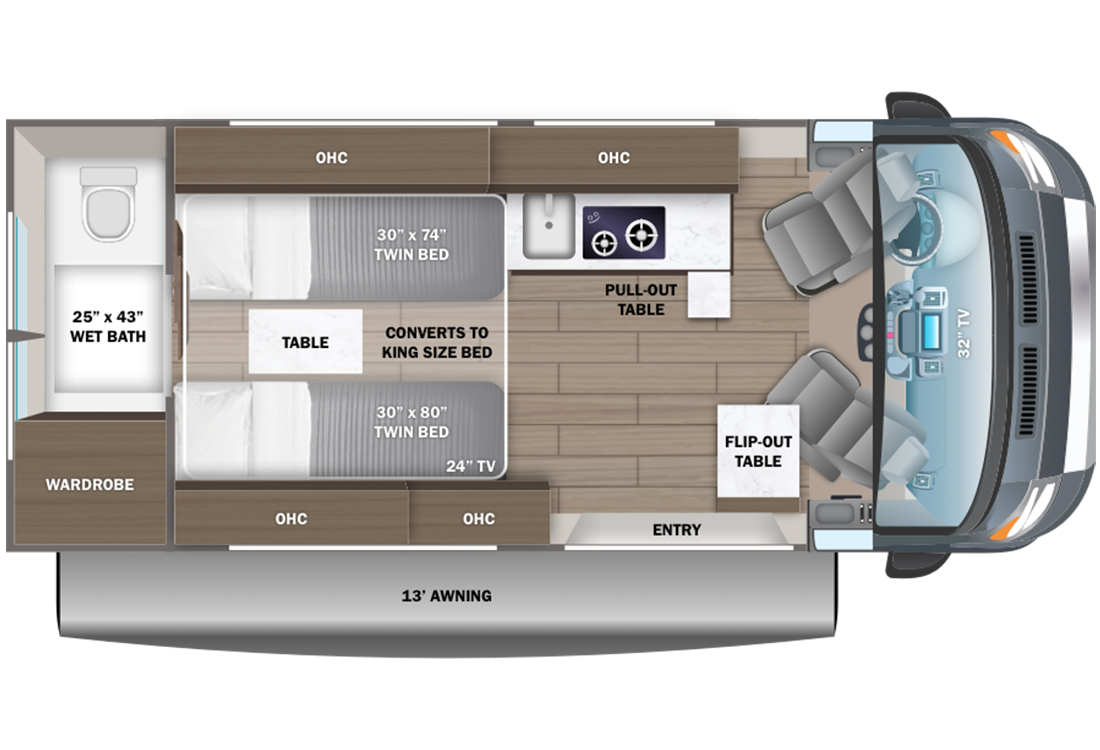

2025 Ethos|20T
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 9,350 |
| Gross Combined Weight Rating (lbs) | 12,000 |
| Front Gross Axle Weight Rating (lbs) | 4,629 |
| Rear Gross Axle Weight Rating (lbs) | 5,291 |
| Exterior Length | 20' 11" |
| Exterior Width | 83" |
| Exterior Height with A/C and Satellite | 9' 3" |
| Interior Height | 74" |
| Fresh Water Capacity (gals) | 24 |
| Grey Waste Water Capacity (gals) | 13 |
| Black Waste Water (gals) | 12 |
| Fuel Tank Capacity (gals) | 24 |
| Furnace (BTU Output) | 20,000 BTU Truma Combi |
| Wheel Base | 159" |

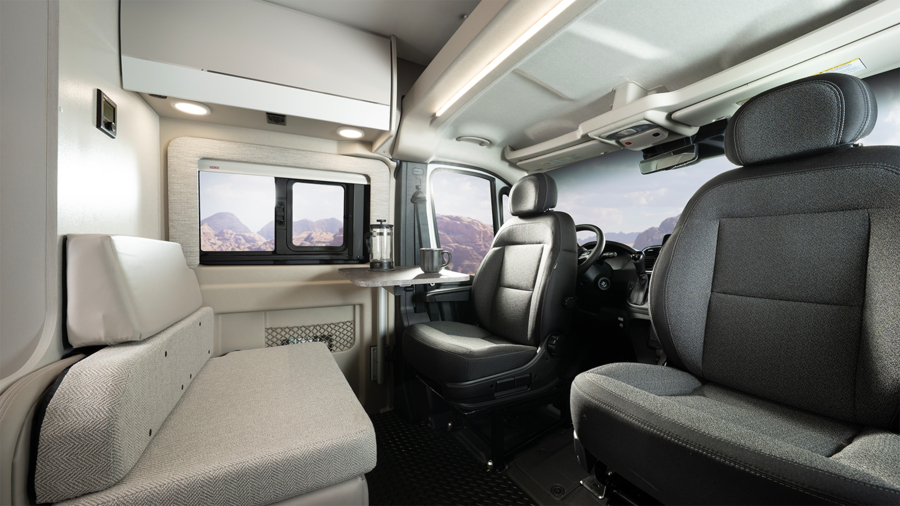

2025 Ethos|20E|NEW
Specs
| Gross Vehicle Weight Rating (lbs) | 9,350 |
| Gross Combined Weight Rating (lbs) | 12,000 |
| Front Gross Axle Weight Rating (lbs) | 4,629 |
| Rear Gross Axle Weight Rating (lbs) | 5,291 |
| Exterior Length | 20' 11" |
| Exterior Width | 83" |
| Exterior Height with A/C and Satellite | 9' 3" |
| Interior Height | 74" |
| Fresh Water Capacity (gals) | 21.00 |
| Grey Waste Water Capacity (gals) | 20.00 |
| Black Waste Water (gals) | 10.00 |
| Fuel Tank Capacity (gals) | 24.00 |
| Furnace (BTU Output) | 20,000 BTU Truma Combi |
| Wheel Base | 159" |
2025 Ethos|20Y|NEW
Specs
| Gross Vehicle Weight Rating (lbs) | 9,350 |
| Gross Combined Weight Rating (lbs) | 12,000 |
| Front Gross Axle Weight Rating (lbs) | 4,629 |
| Rear Gross Axle Weight Rating (lbs) | 5,291 |
| Exterior Length | 20' 11" |
| Exterior Width | 83" |
| Exterior Height with A/C and Satellite | 9' 3" |
| Interior Height | 74" |
| Fresh Water Capacity (gals) | 21.00 |
| Grey Waste Water Capacity (gals) | 20.00 |
| Black Waste Water (gals) | 10.00 |
| Fuel Tank Capacity (gals) | 24.00 |
| Furnace (BTU Output) | 20,000 BTU Truma Combi |
| Wheel Base | 159" |
All Floorplans
2025 Ethos | 20A
2025 Ethos | 20T
2025 Ethos | 20E
NEW
2025 Ethos | 20Y
NEW
360°
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Exterior Graphics
Standards & Options
Chassis
| E-Z Drive | E-Z Drive™: Hellwig helper springs, premium heavy-duty suspension |

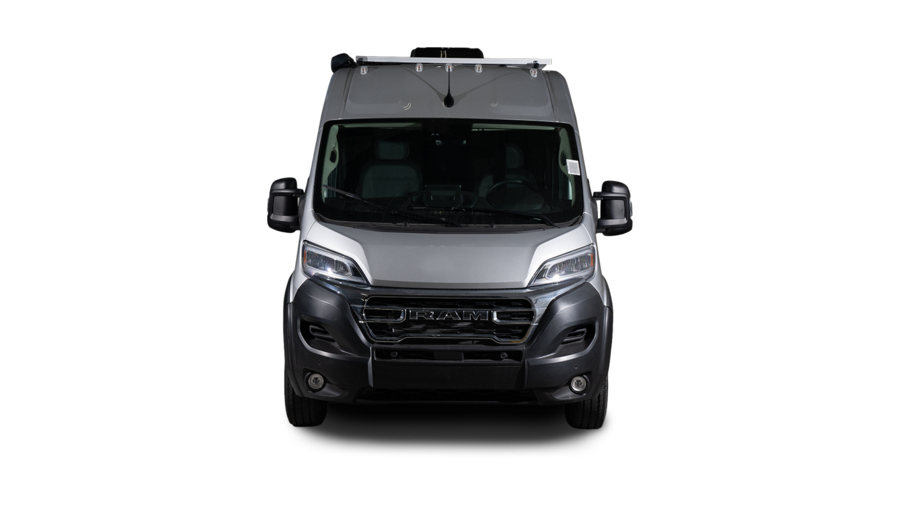

| Chassis | RAM® ProMaster 3500 window van |
| Engine | 3.6L V6 24V VVT 276HP engine with 250 ft.-lb. torque |
| Transmission | 9-speed automatic 948TE transmission |
| Tires | LT225/75R 16E tires with aluminum wheels |
| Hitch | 3,500 lb. rear hitch receiver with dual 4/7 pin connector |
| Chassis Battery | 12V chassis battery |
| Fuel Tank | 24 gal. fuel tank (gas) |
Construction
| Walls | Custom-molded ABS interior wall panels |
Heat, AC, Water & Power
| Water Heater | Truma Combi Eco Plus water heater and furnace |
| Heating System | Truma Combi Eco Plus water heater and furnace |
| Generator | Onan® 2,800W generator with auto-gen start |
| Solar | 200W roof-mounted GoPower® solar panel with integrated control panel |
| Inverter | 1,000W inverter |
| Batteries | (2) 12V AGM house batteries with disconnect switch |
| Electrical Hookup | 30-amp electrical service with detachable power cord |
| Propane | 6 gal. propane tank (20 lb.) with LP quick-connect hookup |
| Heated Tanks | Heated holding tanks (12V pads) with LED-lit holding tank valves |
| Tank Flush | Black tank flush |
| Gravity Fill | Gravity water fill (20T) |
| Winterization Drain System | Winterization drain system |
| Water Pump | 12V demand water pump |
| Water Filtration | Water filtration system |
| Air Conditioning | 120V Coleman®-Mach® 10 13,500 BTU air conditioner |
Exterior
| Patio Awnings | Thule® patio awning with LED light strip |
| Roof rack | Thule® roof rack (N/A with pop-top option) |
| Wi-Fi | Winegard® Connect 2.0 4G/Wi-Fi/digital TV antenna |
| Running Boards | LED-lit running boards for cab and entry doors |
| Chrome Accents | Chrome grille package |
| Outlet | (2) 120V exterior outlets |
| Outside Shower | Outside shower |
| Mirrors | Power folding/heated side-view mirrors |
| Headlights | Automatic high-beam headlights |
| Keyless Fob | Remote keyless entry |
| Entrance Door | Zip-up screen for entrance door |
| Windows | Sliding vented windows |
| Rear Door | Zip-up screen for rear doors (20A) |

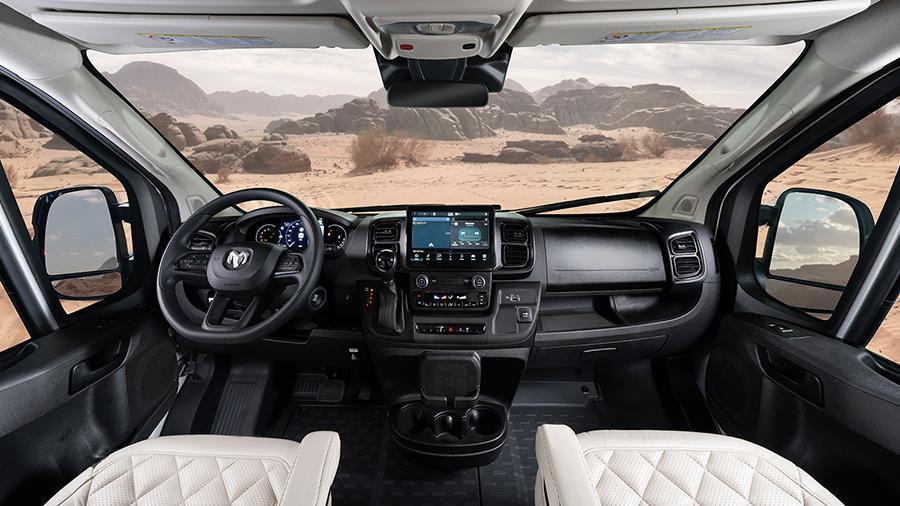

Cockpit
| Driver / Passenger Seats | Swivel driver and passenger seats with 6-way adjustment |
| Infotainment System(s) | Uconnect® 5 NAV infotainment center with Apple CarPlay® and Android Auto™ |
| Start | Push-button start |
| Cameras | ParkView® rear backup camera with dynamic gridlines |
| Blind Spot Monitoring | Blind spot monitoring with rear cross path detection |
| Additional Amenities | LaneSense® lane departure warning with lane keep assist; Crosswind assist; Electronic stability control; Pedestrian/cyclist emergency braking; Traffic sign information; Drowsy driver detection; Cruise control; Driver and passenger airbags; Wireless charging pad |
| Collision Mitigation | Forward collision warning with active braking |
| Windshield | Rain-sensitive windshield wipers |
| Power Features | Power windows and door locks |
| Visors & Privacy Shade | Privacy shades for cab windows |
Interior
| Cable hookup | Cable TV hookup with RG-6 coax |
| Ceiling | Soft-touch vinyl ceiling |
| Lighting | High-intensity LED ceiling lights |
| Cabinetry | Tecnoform® European-style, high-gloss cabinetry |
| Flooring | Residential vinyl flooring |
| Command Center | Firefly Multiplex system - wall-mounted touchscreen and mobile app for total coach control |
| Privacy shades | Rear magnetic privacy shades; Removable privacy shade for sliding door window |
| Window Treatments | Decorative window valances with day/night roller shades |
| Table | Adjustable table with multiple mounts |
| Furniture | (2) cab bucket seats (20A) |
| Television - Living Room | 32 in. front TV on drop-down bracket (20A, 20E, 20Y); 24 in. rear TV on swivel bracket (20T, 20Y) |
| Sound - Living Room | JBL® Flip 6 removable wireless Bluetooth speaker |
| Additional Storage | Under floor storage with pull-out trays (20E) |

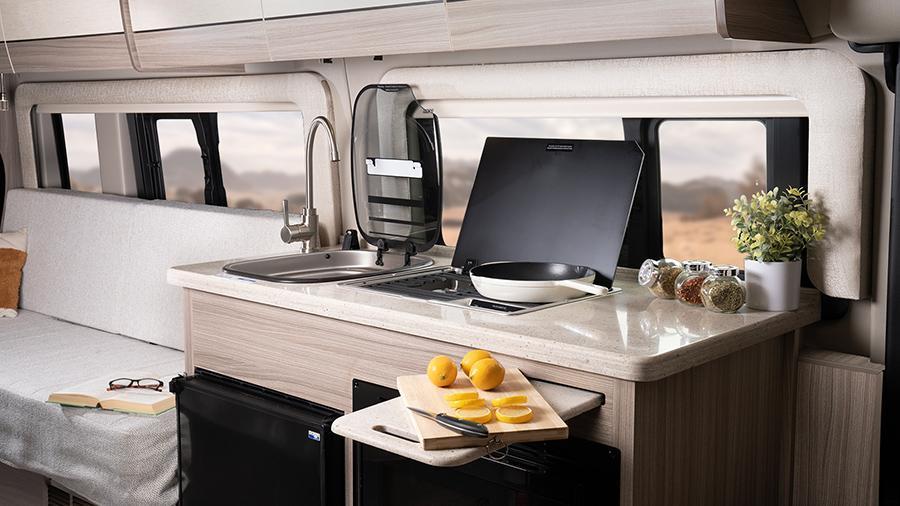

Kitchen
| Drawer Guides | Ball-bearing drawer guides |
| Vent | Powered roof vent in living area |
| Refrigerator | 5.3 cu.ft. DC refrigerator (20A); 3.1 cu.ft. DC refrigerator (20T); 3 cu.ft DC refrigerator (20E, 20Y) |
| Microwave | Convection microwave |
| Cooktop | 2-burner gas cooktop (1-burner induction with pop-top option) |
| Sink | Stainless-steel sink with cover |
| Countertops | Solid-surface kitchen countertop |
| Charging Station | Pop-up 120V/USB outlet in kitchen |
Bedroom

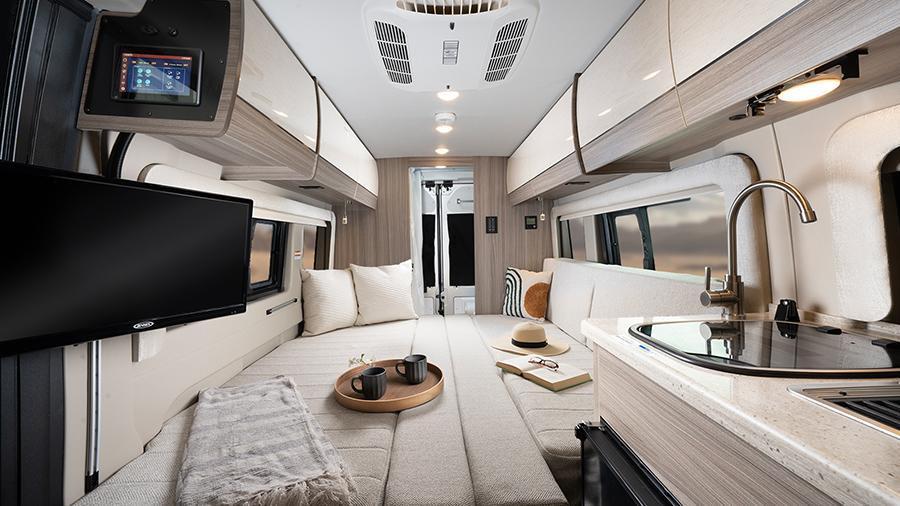

| Bed | (2) twin-size beds with filler cushion converts to king-size bed (20T); 48 in. x 76 in. convertible sofa bed (20A), 59 in. x 73 in. Murphy bed (20E), 59 in. x 73 in. loft bed with floor storage (20Y) |
| Under-bed Storage | Under-bed storage (20T) |

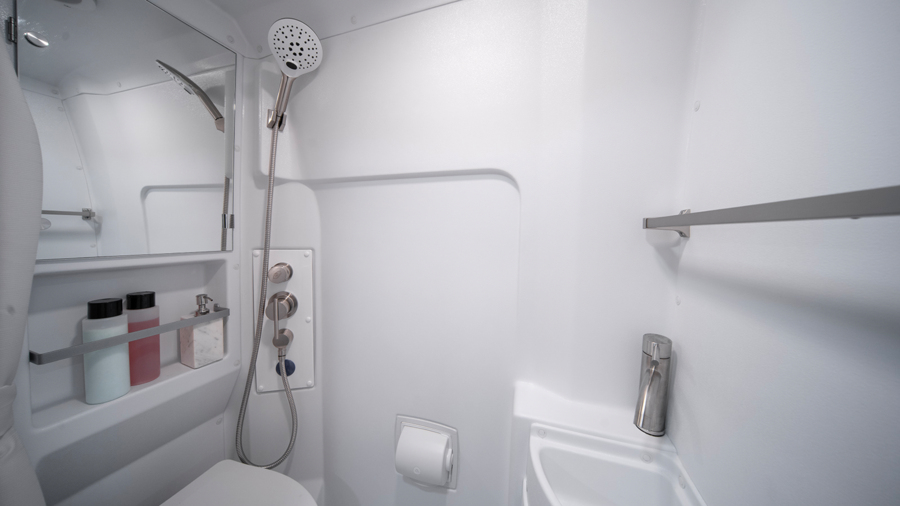

Bathroom
| Wardrobe | Bathroom wardrobe with drawers (20T) |
| Shower | Shower with magnetic curtain surround |
| Water Saving System | Aqua View® SHOWERMI$ER™ water management system |
| Toilet | Toilet with foot flush |
| Storage | Medicine cabinet with mirror |
| Vent | Powered roof vent in bathroom (N/A with pop-top option) |
Safety
| Seat Belts | Seatbelts for driver/passenger seats and select cab locations |
| Smoke Alarm | Smoke alarm |
| Carbon Monoxide Detector | Carbon monoxide detector |
| Safety | Fire extinguisher |
Options
| Lithium Package | Li Package: 48V-165 amp hour smart lithium battery providing 7.9KW hours of power IPO 2,800W generator; Auto engine start with high idle; 3,00W inverter IPO 1,000W inverter; 2nd 48V alternator dedicated to lithium battery; Timberline hydronic heating system IPO Truma Combi Eco Plus water heater and furnace; 48V air conditioner IPO 120V air conditioner; 1 burner induction cooktop IPO 2-burner gas cooktop (20A, 20T); No propane |
| Customer Value Package (Mandatory) | E-Z Drive™: Hellwig helper springs, premium heavy-duty suspension; Thule® patio awning with LED light strip; Thule® roof rack (20A, 20T); Truma Combi Eco Plus water heater and furnace; Swivel driver and passenger seats with 6-way lumbar adjustment; Winegard® Connect 2.0 4G/Wi-Fi/digital TV antenna |

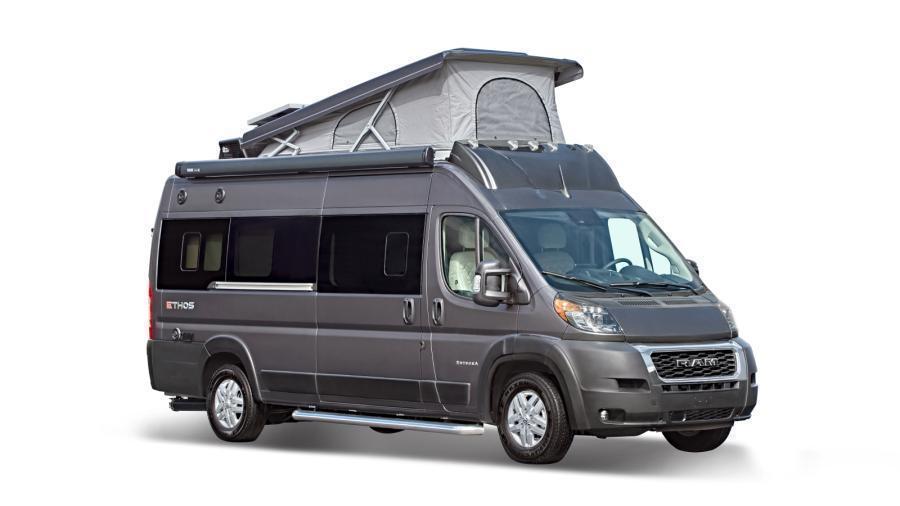

| Pop-Top | 50.5 in. x 79.5 in. pop- top |
| Workstation | Workstation ILO bench seat |
| Rear Seats | (2) rear captain's seats ILO bench (20E, 20Y) |
Décor Options
.jpg)
Entegra Coach peace of mind
2-year warranty
At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year warranty.
Detail
Configurable and affordable, the Entegra Coach Class B Ethos is a great way to step into #vanlife. The perfect Class B for two, the Ethos has been designed with company in mind with an optional pop-top to add extra sleeping space. The options don’t stop there. An Li package is offered on the Ethos for those who want to ditch the generator for lithium power. It’s quiet and eco-friendly for those who want to stay off-grid longer or have neighbors sensitive to noise.
From the ground up, the Ethos is engineered to go the distance. The Ethos is built on the RAM® ProMaster 3500 window van with some of the same safety features found on a daily driver to keep you and your passengers safe. Safety features include ParkView® rear backup camera, blind spot monitoring with rear cross path detection, LaneSense® lane departure warning with lane keep assist, forward collision warning with active braking and more. Not only is driving the Ethos safe, but it’s also enjoyable thanks to the E-Z Drive® ride and handling package. Package components includes Hellwig® Helper Springs and a heavy-duty rear stabilizer bar that reduces body roll, enhances safety and overall provides a more controlled, enjoyable driving experience.
Once you’re parked at camp, unfurl the armless patio awning and roof rack with three cross members–all part of the Thule package. The armless patio awning looks clean and removes “head knockers” when walking under it. On top of the van, the roof rack provides added storage so you can safely, easily stow larger items that don't fit in the coach such as kayaks or storage totes.

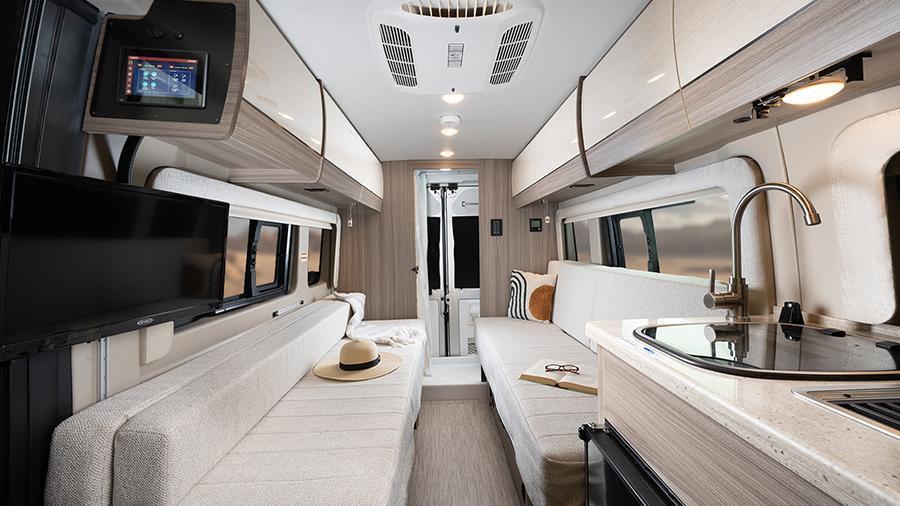

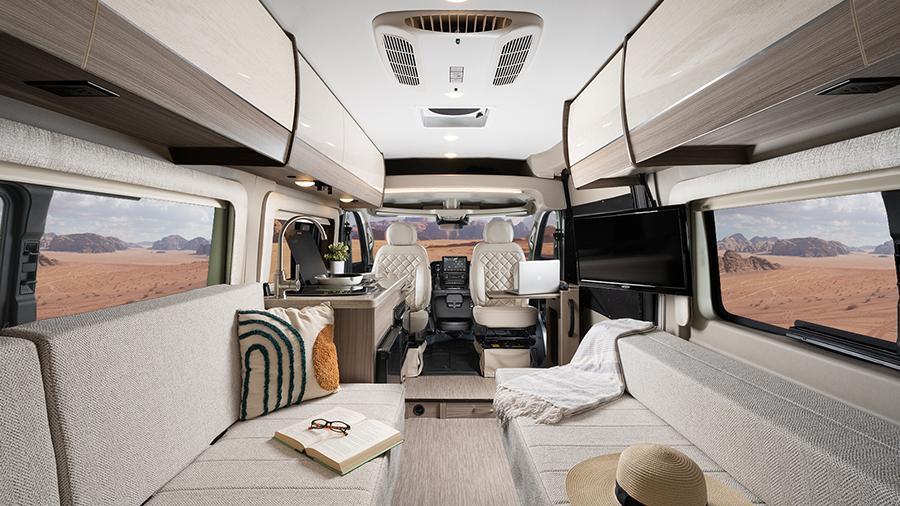

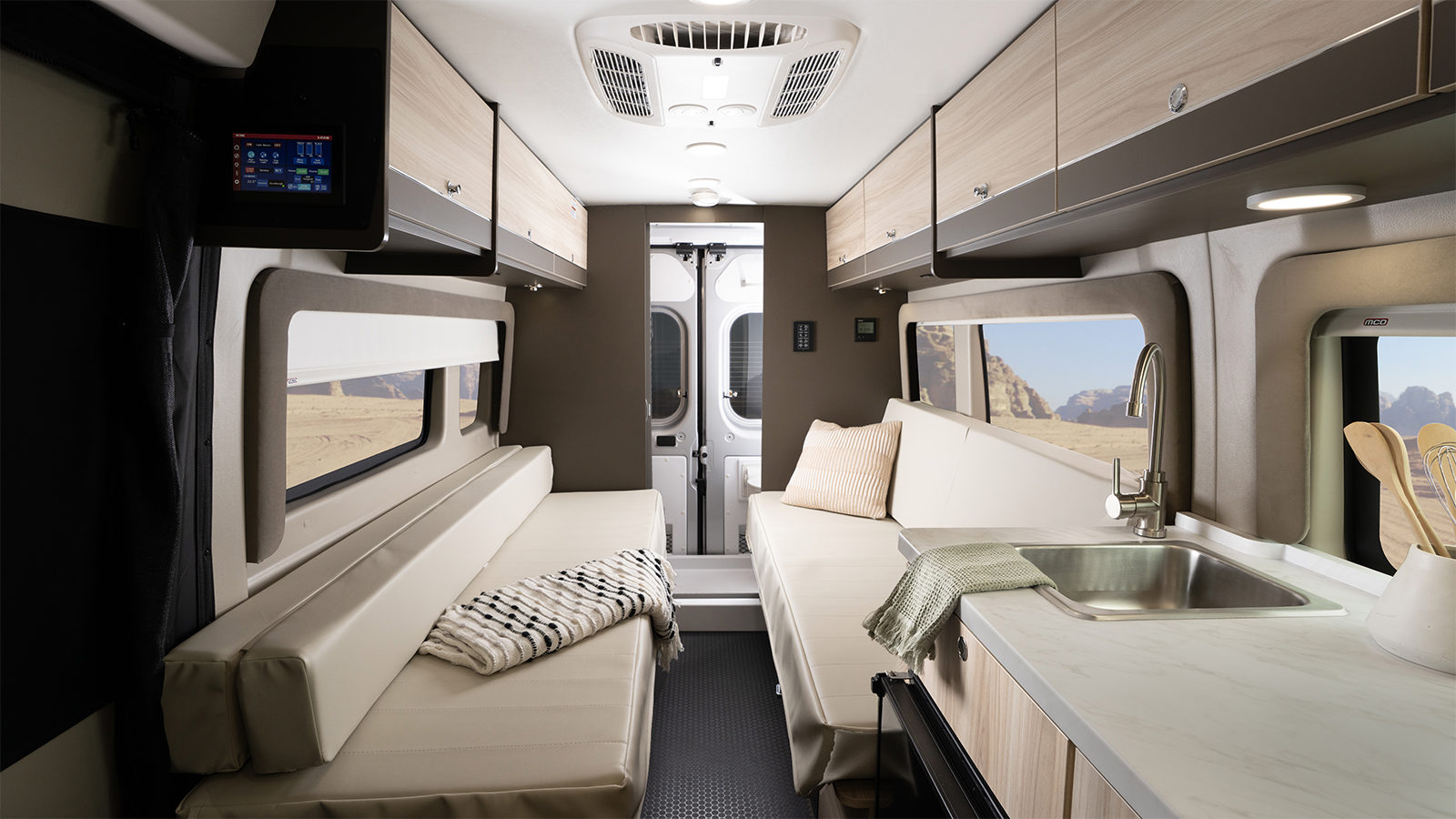

Inside the Ethos, you’ll find Tecnoform® European-style high-gloss cabinetry in a light color to make small spaces feel larger. Hot water is never an issue in the Ethos thanks to the Truma Combi hot water heater/furnace that can be powered by propane, electricity or both. It’s great for those who want to get off-grid and save LP. It’s quieter than a conversation, so there’s no extra noise in your coach. Prolong your time off-grid by saving water with the Aqua View® SHOWERMI$ER™ water management system, which cycles water for the shower on a closed loop until it is warm enough for use. An indicator light changes color when the water is warm to ensure you don’t waste a drop.
At Entegra Coach, safety is a top priority. That’s why we added a third brake light and a rear backup camera to all motorhomes. This feature makes navigation more manageable and convenient. When it comes down to #vanlife, the Ethos Class B takes the win for convenience.
