THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2023 Reatta
Being a smaller Luxury Diesel Motorhome doesn't mean the Reatta lacks any big features, and this is apparent in every inch of this coach. With all the modern technology any RVer could dream of, the 2023 Reatta has beautiful residential touches throughout. This shorter Class A is on a Spartan® K1 chassis with a Cummins® 360HP engine and 800 ft. lbs. of torque. Other impressive features include independent front suspension (IFS) with front air disc brakes and a Vegatouch command center with a 7 inch screen. When looking at the size of this luxury coach, it's hard to believe we were able to pack in so many desired amenities. It's time to hit the road because the Reatta has everything you... Read More
Brochure
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2023 Reatta|37K
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 34,320 |
| Gross Combined Weight Rating (lbs) | 44,320 |
| Front Gross Axle Weight Rating (lbs) | 14,320 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 37' 10" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 10" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 100 |
| Furnace (BTU Output) | 35,000 |
| Wheel Base | 236" |
2023 Reatta|39BH
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 36,320 |
| Gross Combined Weight Rating (lbs) | 46,320 |
| Front Gross Axle Weight Rating (lbs) | 14,320 |
| Rear Gross Axle Weight Rating (lbs) | 22,000 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 39' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 10" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 100 |
| Furnace (BTU Output) | 35,000 |
| Wheel Base | 261" |
2023 Reatta|39T2
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 36,320 |
| Gross Combined Weight Rating (lbs) | 46,320 |
| Front Gross Axle Weight Rating (lbs) | 14,320 |
| Rear Gross Axle Weight Rating (lbs) | 22,000 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 39' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 10" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 100 |
| Furnace (BTU Output) | 35,000 |
| Wheel Base | 261" |
All Floorplans
2023 Reatta | 37K
2023 Reatta | 39BH
2023 Reatta | 39T2
360°
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice

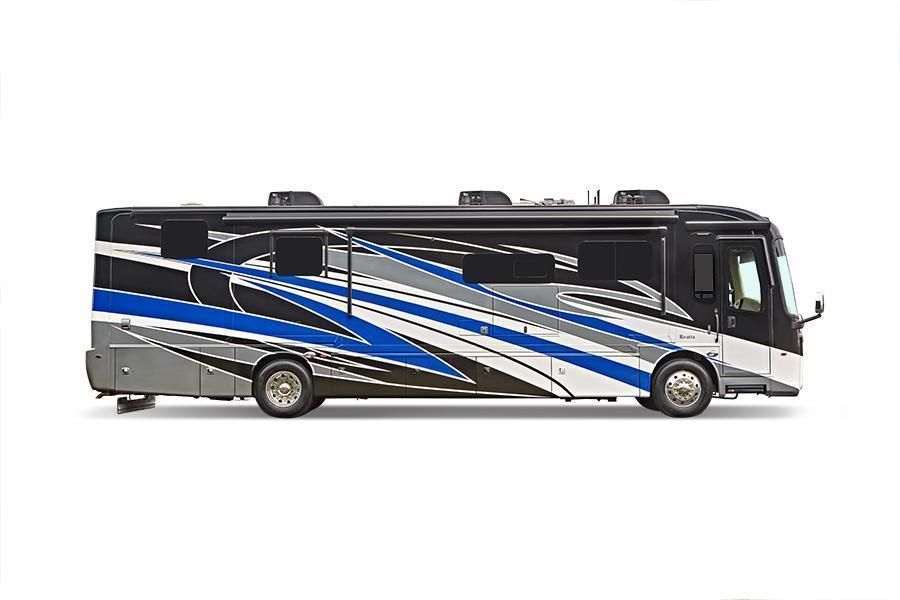

Exterior Graphics
Standards & Options
Chassis
| Chassis | Spartan® K1 raised-rail chassis |
| Engine | Cummins® B6.7 turbocharged 360 HP engine with 800 lb.-ft. torque at 1,800 RPM |
| Transmission | Allison® 3,000 MH 6-speed transmission |
| Radiator | Rear-mounted radiator |
| Alternator | 170 amp alternator |
| Engine Block Heater | 750W engine block heater |
| Engine Brake | Variable geometry turbo (VGT) engine brake |
| Front Suspension | Independent front air suspension (IFS) |
| Front Axle | Front axle- 12,600 lb. (37K) 14,320 lb. (39BH/39T2) |
| Rear Axle | Rear axle - 20,000 lb. (37K) 22,000 lb (39BH/39T2) |
| Rear Axle Ratio | 4.88 rear axle ratio |
| Tires | Michelin® 275/80R 22.5 in. tires |
| Shocks | Bilstein® 46mm shocks |
| Tire Pressure Monitoring | Wireless tire pressure monitoring system (TPMS) with temperature monitoring |
| Leveling System | Equalizer™ hydraulic automatic coach leveling |
| Air Connection | Remote air connection |
| Chassis Battery | (2) 12V chassis batteries |
| Fuel Tank | 100 gal. fuel tank |
| DEF Tank | 10 gal. DEF tank |
| Tow Air Brake System | Spartan® Safe Haul™ tow vehicle air brake system |
| Hitch | 10,000 lb. hitch with 7-pin plug |
Construction
| Roof | One-piece fiberglass with 3/8 in. plywood decking, 4 in. arched aluminum trusses, insulation and reflective Flexfoil® (R-24) |
| Walls | Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation |
| Floor | Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation, 3/8 in. Structurwood® and 1/4 in. plywood |
| Frame | X-Bridge™ bracing welded into chassis frame |
| Slideouts | Electric-powered slideout rooms |
Heat, AC, Water & Power
| Heated Tanks | Heated basement storage |
| Generator | Onan® 8,000W diesel generator, with automatic start, on slide-out tray |
| Inverter | 2,000W pure sine wave inverter with 100 amp battery charger |
| Batteries | (2) L16 AGM batteries (6V/390 amp hrs. ea.) |
| Electrical Hookup | 50 amp power cord |
| Transfer Switch | Automatic transfer switch with surge protection |
| Solar | (2) 200W Go Power!® solar panels |
| Air Conditioning | (3) 15,000 BTU A/C units with heat pumps [(2) 15,000 BTU units with heat pumps on 37K] |
| Heating System | 35,000 BTU furnace (37K) / (1) 20,000 and (1) 30,000 (39BH, 39T2) |
| Water Heater | Tankless gas water heater |
| Propane | 24.5 gal. propane tank |
| Black Tank Management | Sani-Con® macerator holding tank dump system with manual gate valves and manual backup |
| Tank Flush | Black holding tank sprayer |
| Water Filtration | City and tank water filtration system |
Exterior
| Front/Rear Cap | Insulated front and rear caps (R-24) |
| Patio Awnings | Carefree® power patio awning with LED lights |
| Door Awning | Carefree® power entrance door awning with LED lights |
| Slideout Awnings | Carefree® slideout awnings |
| Window Awnings | Carefree® window awnings |
| Windows | Frameless, dual-pane, tinted, safety-glass windows |
| Keypad | Grab handle and keypad system for keyless entry |
| Entertainment | 43 in. Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL® radio and speakers with USB port and receptacle |
| Mirrors | Heated, remote-control, side-view mirrors with integrated cameras |
| Exterior | Diamond Shield™ front protective film mask |
| Headlights | Halogen high and low beam headlights and fog lights |
| Daytime Running Lights | Daytime running lights |
| LED Lights | LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights |
| Lights | Porch light |
| Rear Mudflap | Mudflap with chrome “Entegra” nameplate |
| Satellite Dish - US | Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option |
| Satellite Dish - CA | Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option |
| Wi-Fi | Winegard Connect 2.0 Wi-Fi/4G antenna |
| Utility Center | Exterior utility center |
| Cargo Features | Slideout basement storage tray |
| Paint | Sikkens custom full-body paint |
| Entrance Door | Removable screen on entry door |

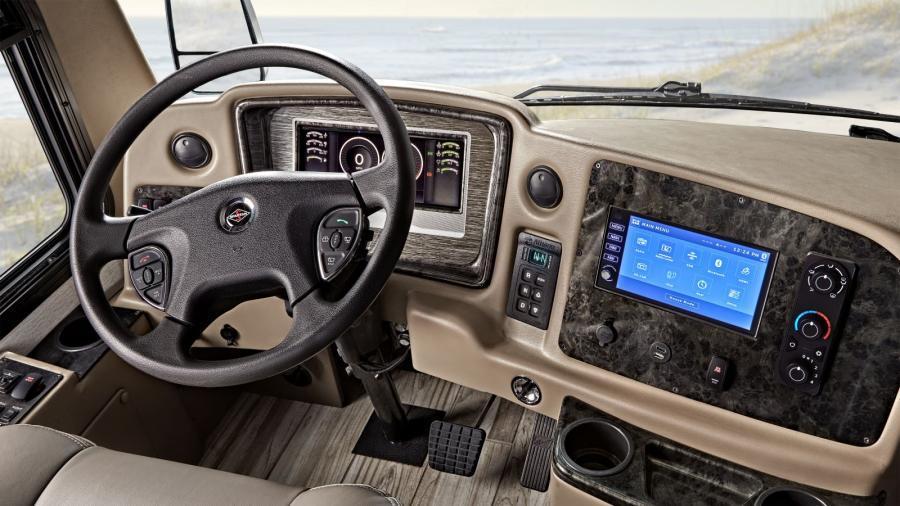

Cockpit
| Dash | Valid™ 12.3 in. digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instrument cluster, 360° camera system or GPS navigation |
| Cameras | Xite™ 360° HD digital camera system |
| Infotainment System(s) | Xite™ XSG4 infotainment system with 9 in. touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution |
| Steering Wheel | Steering wheel with integrated controls for cruise, wipers, radio and Bluetooth® phone functionality |
| Steering Column | Manual tilt and telescoping steering column |
| Windshield | Ultra-Vision® one-piece wrap-around tinted windshield |
| Driver / Passenger Seats | 6-way power adjustable driver and passenger seats with power recline |
| Power Features | Powered flush stepwell cover |
| Pedals | Powered adjustable brake and accelerator pedals |
| Visors & Privacy Shade | Powered front sun visors and privacy shades |

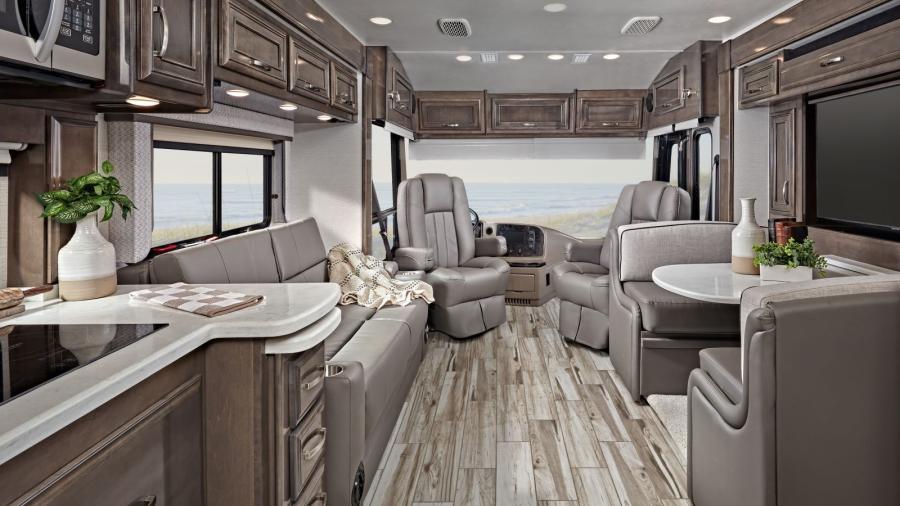

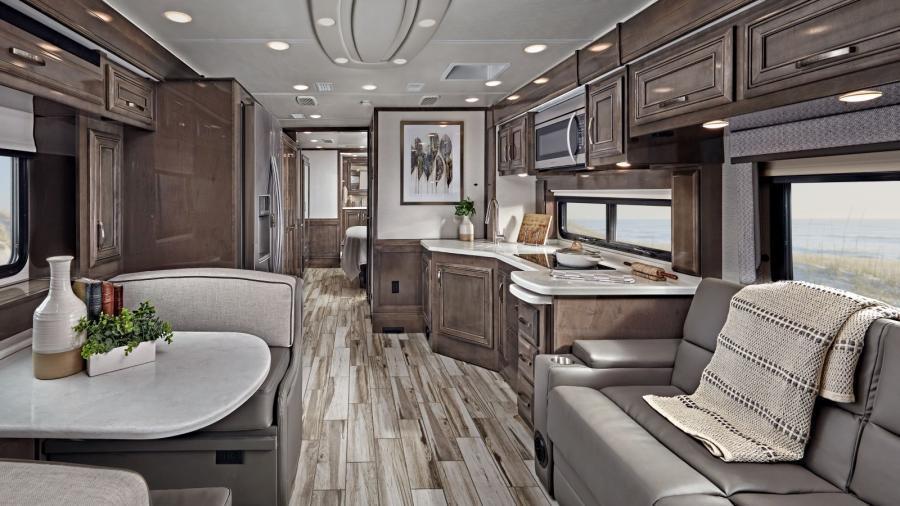

Interior
| Electric Fireplace | LED-lit fireplace with 5,000 BTU heating element (37K only) |
| Command Center | Firefly multiplex system with 7 in. VegaTouch touchscreen for complete integration of coach controls (mobile app available) |
| Television - Living Room | 50 in. Samsung® 4K UHD Smart TV |
| Sound - Living Room | Samsung® sound bar with subwoofer |
| DVD Systems | Sony® Blu-ray™ player |
| Furniture | Premium furniture |
| Flooring | Hand-laid, woodgrain porcelain tiled floors |
| Lighting | LED interior lighting |
| Ceiling | Decorative ceiling feature with integrated accent lighting |
| Window Treatments | Manual solar day shades and blackout night shades |
| Central Vacuuming System | Central vacuum system |
| Washer/Dryer | Separate washer and dryer |

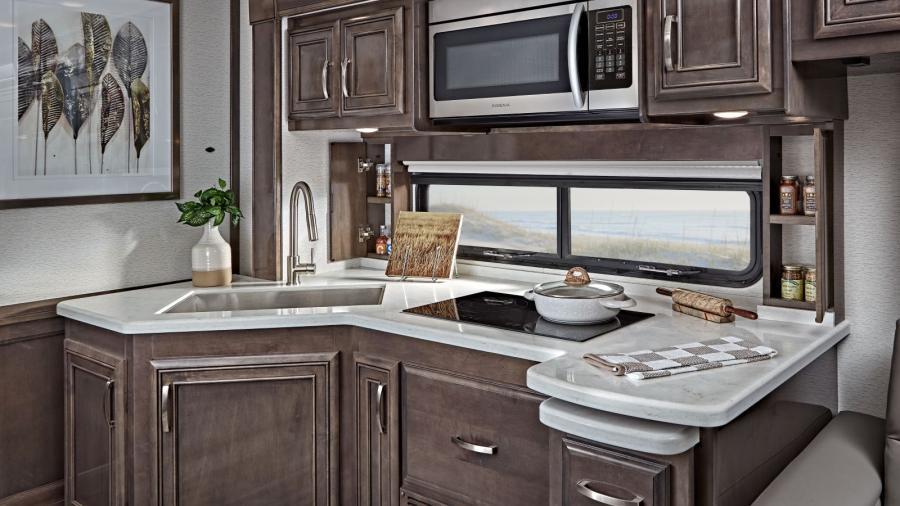

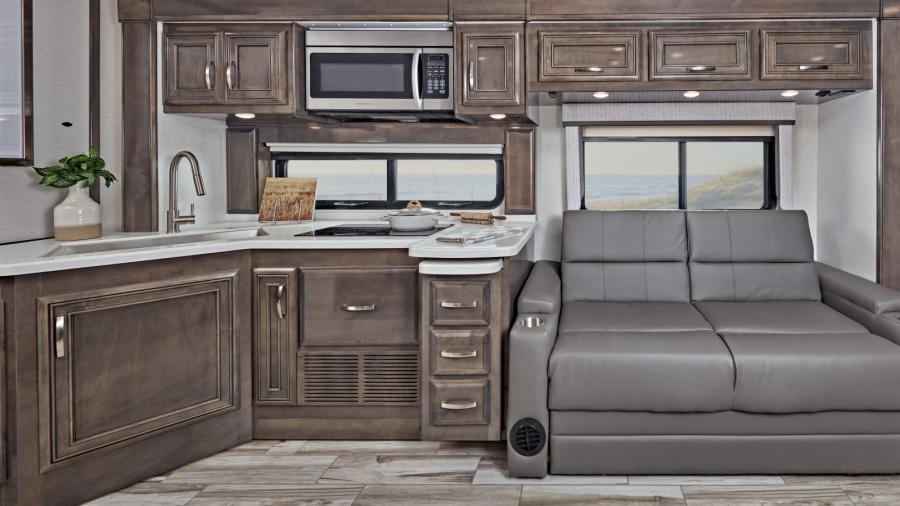

Kitchen
| Backsplash | Window with push-out lever operation and screen |

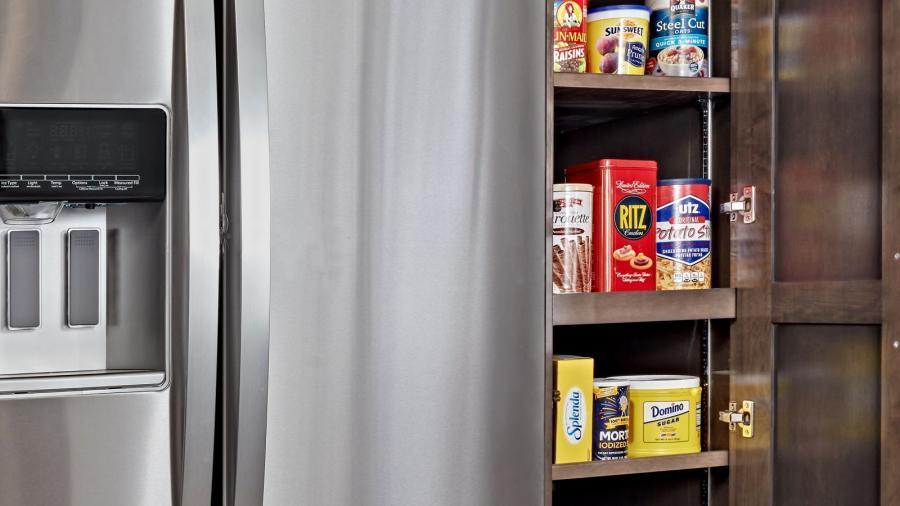

| Refrigerator | Stainless steel residential refrigerator with ice maker and water dispenser |
| Cooktop | Induction cooktop |
| Microwave | 1.5 cu. ft. convection microwave oven |
| Countertops | Solid-surface countertops |
| Sink | Stainless steel sink |
| Vent | Fan-Tastic power exhaust fan with intake |

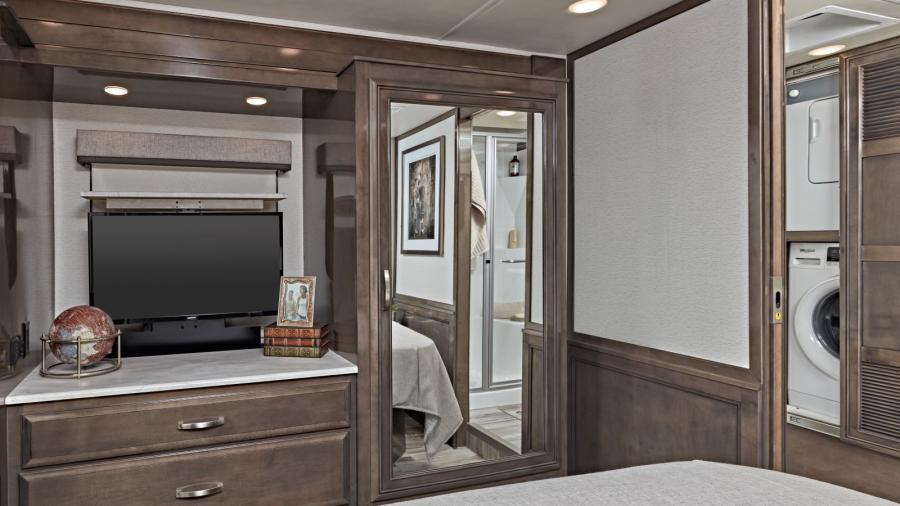

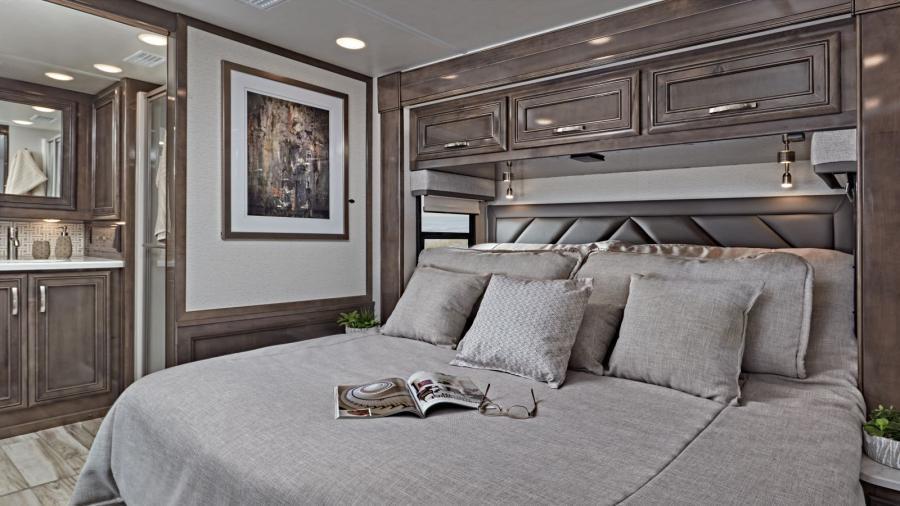

Bedroom
| Bed | King-size pillow-top mattress on tilt bed |
| Television | 32 in. Samsung® LED 1080P Smart TV |
| DVD Systems | Sony® Blu-ray™ player |

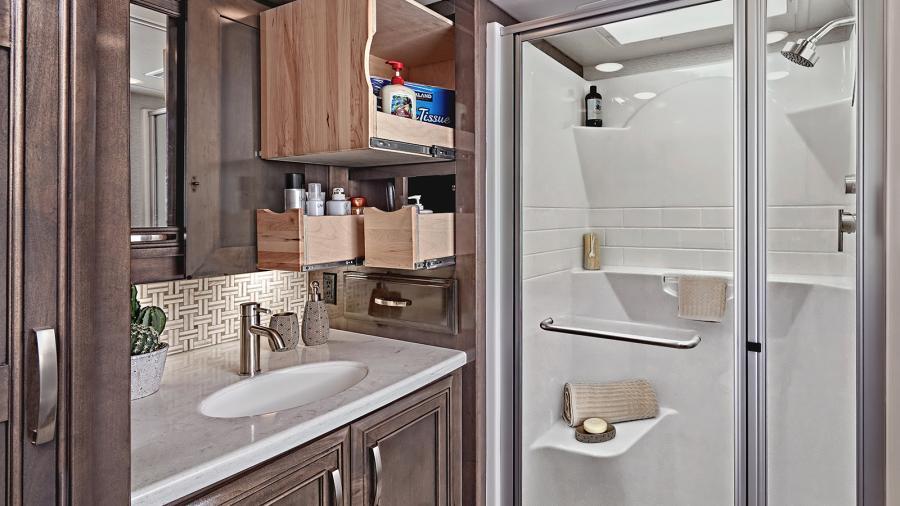

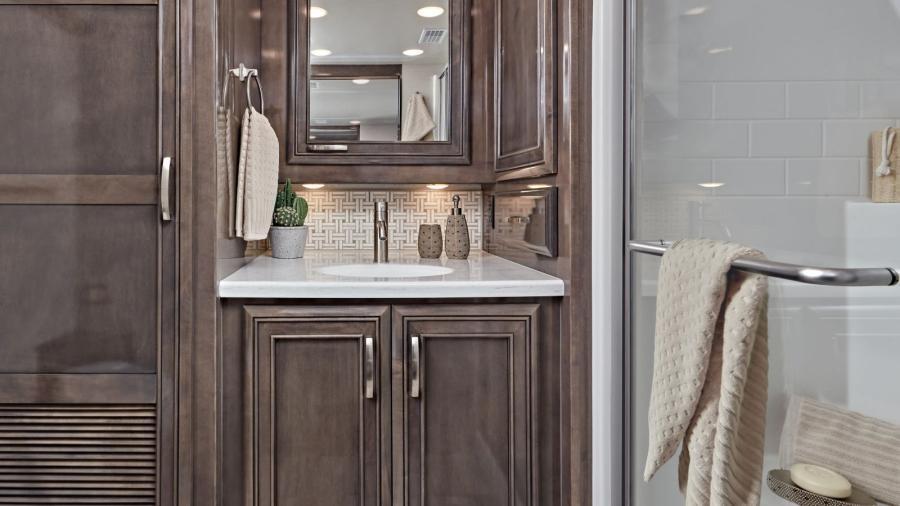

Bathroom
| Countertop(s) | Solid-surface countertops with integrated sink |
| Shower | One-piece fiberglass shower with skylight |
| Water Saving System | Aqua View SHOWERMI$ER™ water saving system |
| Toilet | Thetford® Aqua Magic toilet with foot flush |
| Vent | Fan-Tastic power exhaust fan with intake |
Safety
| Carbon Monoxide Detector | Combination carbon monoxide detector |
| Propane Alarm | LP gas alarm |
| Smoke Alarm | Smoke alarm |
Options
| Canadian Standards | Canadian standards (includes Canadian Shaw satellite) |
| Customer Value Package (Mandatory) | 8 KW diesel generator, 2,000W inverter, (2)15K BTU air conditioners with heat pumps, automatic leveling jacks, backup and sideview cameras, power awning with LED lights, exterior entertainment center with LED TV, solar shades |
| Theater Seating | Power theater seating (39BH only) |
| Hide-a-Bed Sofa | Hide-a-bed sofa ILO power theater seating (37K only) |
| Sofa | Sofa ILO Power Theater Seat (39T2 only) |

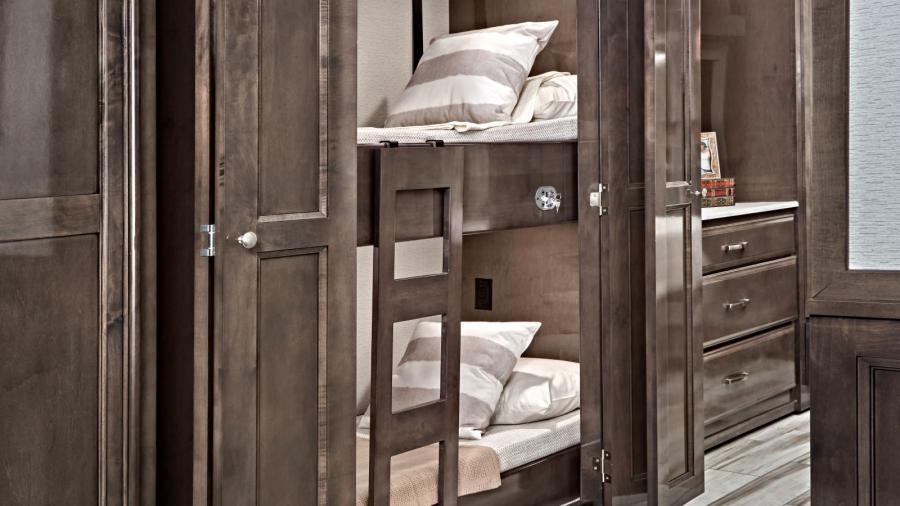

| Overhead Bunk | Power front overhead bunk |
| Satellite Dish | Winegard® In-motion satellite dome |
| Satellite Dish - US | Winegard TRAV'LER satellite dish- Dish Network |
Décor Options
Wood Options
Almond Glazed Maple with Linen Overhead Cabinets with Harvest Wheat Woodgrain Porcelain Tile Floor
Auburn Glazed Maple with Linen Overhead Cabinets with Harvest Wheat Woodgrain Porcelain Tile Floor
High-Gloss Stonewall Grey Cabinets with Tacoma Shadow Woodgrain Porcelain Tile Floor
Linen Glazed Maple Cabinets with Tacoma Shadow Woodgrain Porcelain Tile Floor
The Entegra Coach Advantage
1. SPARTAN® K1 CHASSIS
Every Spartan® chassis comes with a best-in-class 3-year/50,000-mile transferable warranty, with no deductibles.
Spartan® chassis also boasts an industry-best, 20-year transferable warranty on the frame as well as a Cummins®
5-year/100,000-mile engine warranty and an Allison® 5-year/200,000-mile transmission warranty.
Included in the limited warranty is one year of Coach-Net Roadside Assistance.
2. CUMMINS® L9 TURBOCHARGED 360 HP ENGINE
3. EXCLUSIVE X-BRIDGE™ FRAME
Our exclusive X-Bridge™ frame adds even more floor strength and structural rigidity, eliminating chassis flex and twisting;
with it, the suspension—not the chassis—absorbs road shock and vibration.
4. TUFFSHELL™ VACUUM-BOND CONSTRUCTION
Designed to increase strength and durability while simultaneously reducing weight, our TuffShell vacuum-bond
lamination process is a superior construction process. Every sidewall, rear wall and slide room wall is bonded together
for a minimum of 16 minutes under 144 tons of pressure to create the lightest, yet strongest, construction available in
the RV industry.
5. BILSTEIN® MONOTUBE GAS PRESSURE SHOCKS
Designed specifically for luxury motorcoaches by Bilstein®, these shocks have 228% more surface area than twin-tube
shocks for greater sensitivity and control. They virtually eliminate excessive sway and self-adjust.
6. TPMS WITH TEMPERATURE MONITORING
Tire pressure monitoring systems are extremely valuable in monitoring tire health for a safe journey. Reatta goes a step beyond the competition by providing the ability to toggle between tire pressure and temperature monitoring on the
digital dashboard.
7. INDEPENDENT FRONT SUSPENSION (IFS) WITH FRONT DISC BRAKES
Reatta and Reatta XL are the only coaches in their class to feature IFS vs. standard I-beam suspension. This premium
feature, reduces road shock and delivers the best ride in the industry.

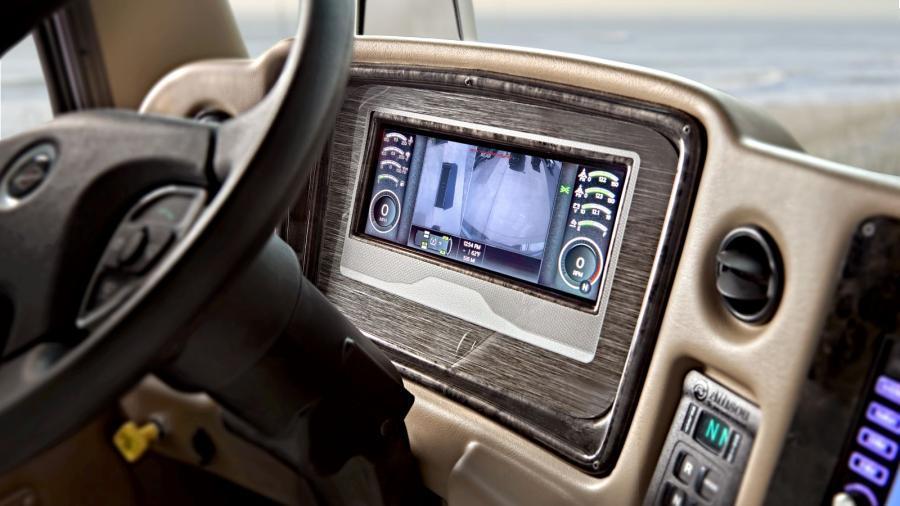

8. VALID™ 12.3 IN. DIGITAL DASH
Integrated into the Reatta's digital dash are a 360° camera and TPMS with temperature monitoring.
9. VEGATOUCH COMMAND CENTER WITH 7 IN. TOUCHSCREEN AND APP INTEGRATION
10. INDUSTRY'S LARGEST WINDSHIELD
At 120 in., the Reatta's windshield is the largest in the industry. Not only does this provide a great view, but it also increases visibility and results in safer travel. Oversized wiper blades add to the safety factor by keeping your view clear in all weather. Fun fact: our windshields are manufactured in Turkey, home of the world's finest sand, to eliminate any distortion in the curved portions of the glass. This windshield delivers the best possible view of the road ahead.
11. CABINETS INSTALLED BEFORE TILE
Every other manufacturer in the motorhome industry tiles their entire floor prior to installing their cabinets and interior walls. This results in driving screws down through the tile, which causes in squeaks and creaks over time. At Entegra Coach, we take a residential approach by installing cabinetry and interior walls directly onto the wood subfloor. We then hand-tile around cabinetry. This takes more time on the production line, but it is an important factor in producing the quietest riding, best handling coach on the market today. Period.
Entegra Coach peace of mind
At Entegra Coach, excellence doesn't end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry's highest level of service.
Entegra Coach's industry leading 2-year limited warranty is double that of any other manufacturer and offers more coverage. On top of this 2 year warranty, Entegra Coach supports our customers with a 3-year limited structural warranty for areas like the roof, walls and floors. This warranty comes directly from us, because we believe in the products we build and care for all owners as members of our Entegra Coach family. Ask your local Entegra Coach dealer for full warranty details.
