2023 Emblem
Luxury residential living in a Class A gas coach. The Emblem features touches often found only in residential spaces, like solid-surface countertops throughout, a wood framed kitchen window with spice cabinets, vinyl plank flooring, and a residential-size refrigerator. The flush-floor slide system with no carpet underneath makes you feel at home. Building on what’s offered in Vision and Vision XL, Emblem offers all the best Entegra has to offer, and then some.
Brochure
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2023 Emblem|36H
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 24,000 |
| Gross Combined Weight Rating (lbs) | 30,000 |
| Front Gross Axle Weight Rating (lbs) | 9,000 |
| Rear Gross Axle Weight Rating (lbs) | 15,500 |
| Exterior Length | 38' 8" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 7" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 40 |
| Black Waste Water (gals) | 40 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 30,000-BTU auto-ignition furnace |
| Wheel Base | 252" |
2023 Emblem|36T
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 24,000 |
| Gross Combined Weight Rating (lbs) | 30,000 |
| Front Gross Axle Weight Rating (lbs) | 9,000 |
| Rear Gross Axle Weight Rating (lbs) | 15,500 |
| Exterior Length | 38' 8" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 10" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 50 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 30,000 BTU auto-ignition furnace |
| Wheel Base | 252" |
2023 Emblem|36U
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 24,000 |
| Gross Combined Weight Rating (lbs) | 30,000 |
| Front Gross Axle Weight Rating (lbs) | 9,000 |
| Rear Gross Axle Weight Rating (lbs) | 15,500 |
| Exterior Length | 38' 2" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 10" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 50 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 30,000 BTU auto-ignition furnace |
| Wheel Base | 252" |
All Floorplans
2023 Emblem | 36H
2023 Emblem | 36T
2023 Emblem | 36U
360°
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Exterior Graphics
Standards & Options
Chassis
| E-Z Drive | E-Z DRIVE™ ELITE: Computer-balanced driveshaft, Bilstein® steering stabilizer, Koni® shocks, variable-rate front and rear jounce bumpers, heavy-duty front and rear stabilizer bars, 22.5 in. Michelin® tires |
| Leveling System | Automatic hydraulic leveling jacks |
| Chassis | Ford® F53 chassis |
| Engine | 7.3L V-8 335 HP engine with 468 ft.-lb. torque |
| Transmission | 6-speed automatic TorqShift® transmission with overdrive and tow haul mode |
| Alternator | 210 amp alternator |
| Tires | G-rated highway tires-255/80R22.5 |
| Braking System | Front and rear disc, 4-wheel anti-lock brakes |
| Hitch | 5,000 lb. rear hitch receiver with dual connector and 7-pin plug |
| Chassis Battery | 12V chassis battery |
| Fuel Tank | 80 gal. fuel tank |
Construction
| Floor | TuffShell™ vacuum-bond laminated floor |
| Insulation | Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls) |
| Roof | One-piece, crowned fiberglass roof |
| Walls | TuffShell™ vacuum-bond laminated sidewalls |
Heat, AC, Water & Power
| Air Conditioning | 15,000 BTU A/C unit with heat pump and second 13,500 BTU A/C unit |
| Generator | Onan® Marquis Gold Genset 5,500W generator with auto-gen start |
| Inverter | 2,000W inverter |
| Electrical Hookup | 50 amp electrical service |
| Water Heater | 10 gal. gas/electric water heater |
| Transfer Switch | Transfer switch with reverse polarity protection |
| Batteries | (2) 6V AGM (220Ah) house batteries on slideout tray |
| Solar | 200W solar panel with dual controller |
| Heating System | 30,000 BTU auto-ignition ducted furnace |
| Propane | 24.5 gal. propane tank (83 lb.) with LP quick-connect hookup |
| Black Tank Management | Thetford® Sani-Con® Turbo macerator system |
| Winterization Drain System | Winterization drain system |
| Tank Flush | Black tank flush |
| Water Pump | 12V demand water pump |
| Water Filtration | Water filtration system |
Exterior
| Windows | Frameless windows |
| Entertainment | Exterior entertainment center with outside speakers and LED HD Smart TV mounted on swivel bracket |
| Patio Awnings | Electric patio awning with LED lights |
| Slideout Awnings | Slideout awning(s) |
| Utility Center | Exterior utility center |
| Outside Shower | Outside shower |
| Exterior Walls | Premium Sikkens full-body paint |
| Front/Rear Cap | One-piece, seamless, fiberglass front and rear caps |
| Entrance Door | Entrance door with industry’s largest travel-view window |
| Entrance Steps | Electric-powered entrance steps |
| Cargo Features | Lockable pass-through storage compartments with metal slam latches |
| Ladder | Roof ladder |
| Third Brake Light | Third brake light |
| Satellite Dish - US | Prep for satellite dish |
| Antenna | Winegard 2.0 Wi-Fi/4G antenna |
Cockpit
| Infotainment System(s) | Pioneer® 8 in. infotainment center with Apple CarPlay® and Android Auto™ |
| Cameras | Backup and side-view cameras |
| Additional Amenities | Removable driver/passenger cockpit table; A/C and cruise control |
| Visors & Privacy Shade | Power front privacy shade with manual side privacy shades |
| Windshield | 120 in. panoramic windshield |
| Driver / Passenger Seats | 6-way power and swivel driver/passenger seats |
| Dash | Soft-touch, vinyl-wrapped automotive dash |
| Steering Wheel | Tilt steering wheel |
| Start | Auxiliary start |
Interior
| Television - Living Room | LED HD Smart TV in living area |
| Window Treatments | Day/night roller shades in living area |

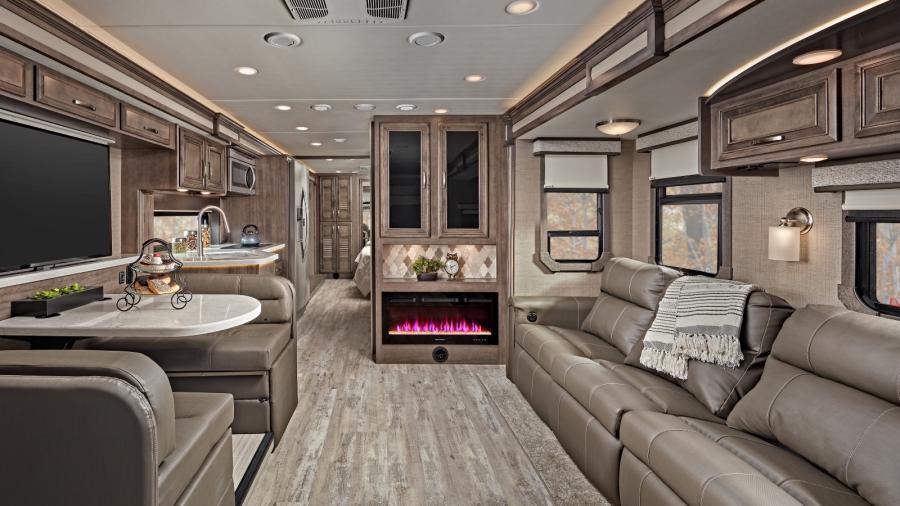

| Electric Fireplace | Electric fireplace |
| Command Center | Firefly Multiplex system |
| Ceiling | 84 in. interior ceiling height with padded vinyl ceiling |
| Lighting | High-intensity recessed LED ceiling lights |
| Flooring | Vinyl plank flooring |
| Fascia | LED-lit hardwood fascia |
| Cabinetry | Hardwood cabinet doors and drawers with deluxe hidden cabinet hinges |
| Cable hookup | Cable TV hookup with RG-6 coax |
| Bunks | Bunks with industry-exclusive, 300 lb. capacity each, with wall-mounted tablet holders(36T) |
Kitchen

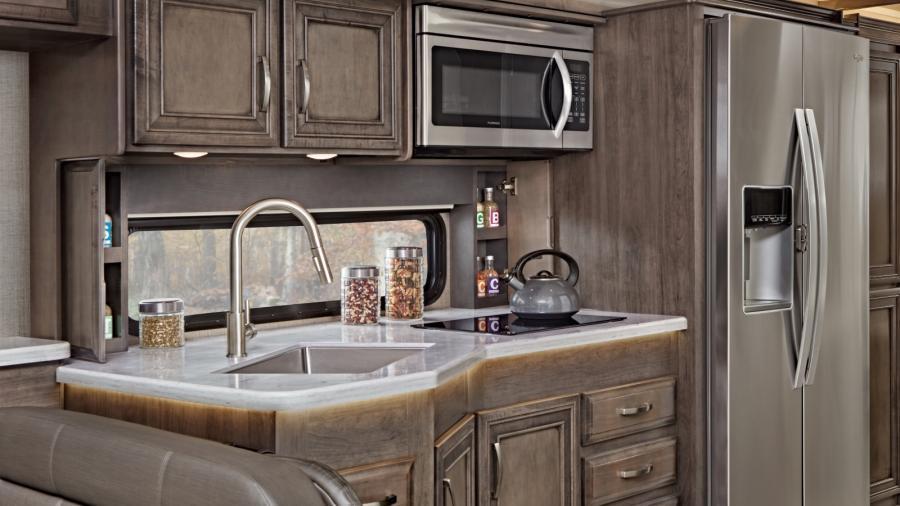

| Countertops | LED-lit, solid-surface kitchen countertops |
| Sink | Recessed stainless steel sink with sink covers |
| Drawer Guides | Ball-bearing drawer guides |
| Dinette | Entegra-exclusive, easy-operation legless dinette table |
| Backsplash | Wood-framed kitchen window with spice cabinets |
| Refrigerator | Residential refrigerator |
| Cooktop | 2-burner induction cooktop |
| Microwave | Residential-size convection microwave oven |
Bedroom

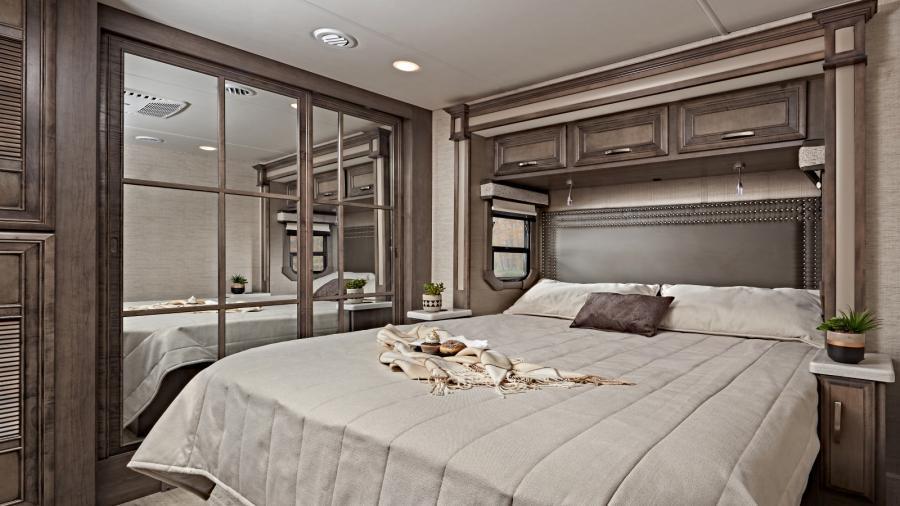

| Bed | Walk-around, king-size bed with bedspread and nightstands |
| Nightstands | USB port and wireless charging in nightstands |
| Under-bed Storage | Under-bed storage (select models) |
| Television | LED HD Smart TV in bedroom |

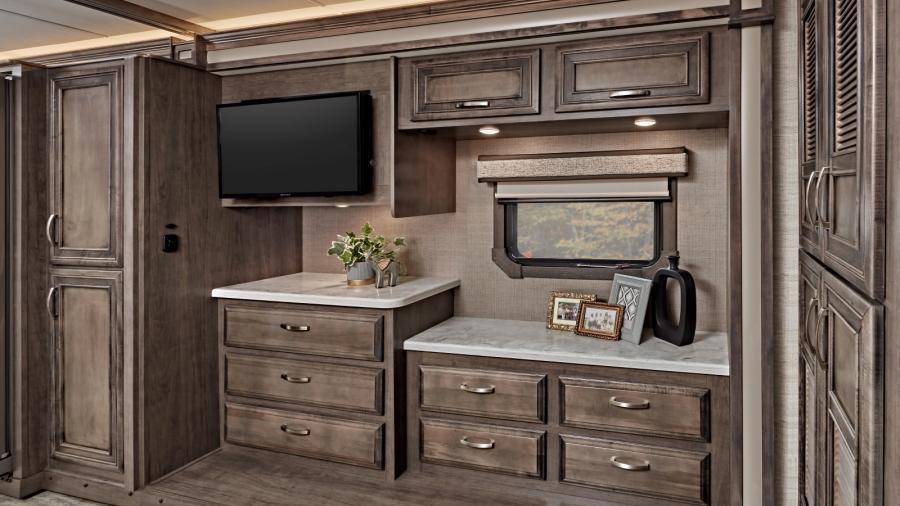

| Wardrobe | Large wardrobes |
Bathroom
| Shower | Shower with decorative surround, glass door, skylight and light |

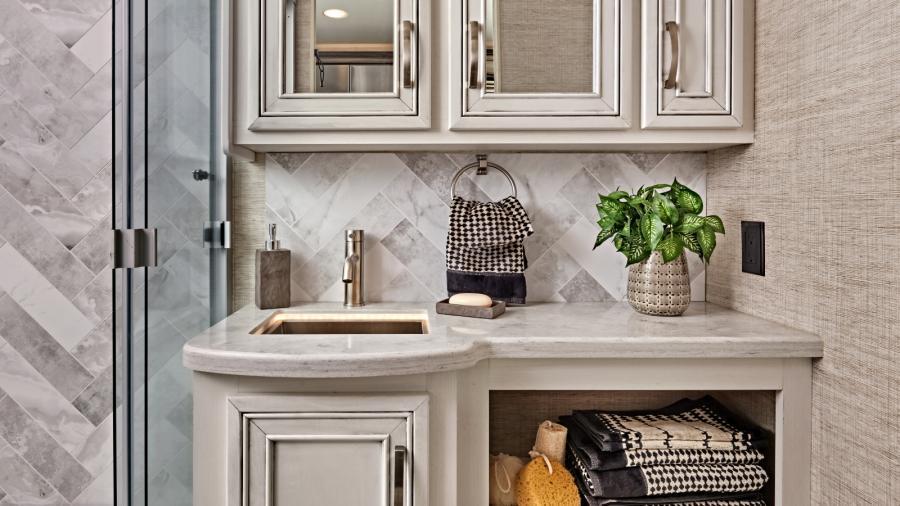

| Sink | Recessed, LED-lit, stainless steel bathroom sink |
| Toilet | Porcelain toilet with foot flush |
| Vent | Powered roof vent in bathroom with wall switch |
Safety
| Seat Belts | 2-point lap safety belts in all designated seating locations |
| Smoke Alarm | Smoke alarm |
| Carbon Monoxide Detector | Carbon monoxide detector |
Options
| Customer Value Package (Mandatory) | E-Z DRIVE ELITE, automatic hydraulic leveling jacks, frameless windows, 15K BTU and 13.5K BTU A/Cs, exterior entertainment center, electric patio awning, slideout awnings, 5,500W generator with auto-gen start, 2,000W inverter, 50 amp electrical service, 10 gal. gas/electric water heater, Pioneer infotainment center, backup and side-view cameras, removable cockpit table, LED-lit solid-surface countertops with stainless steel sink, LED HD Smart TV in living area, day/night roller shades |

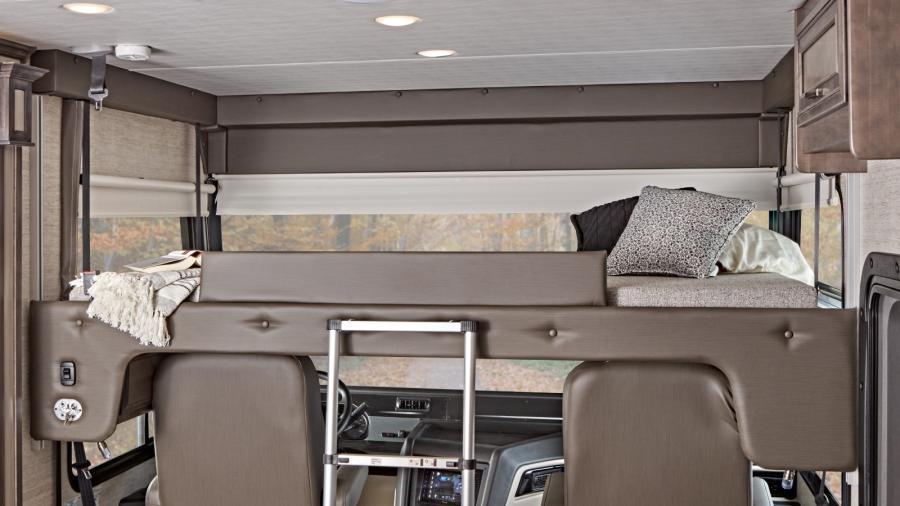

| Overhead Bunk | Drop-down overhead bunk in cab area with 750 lb. capacity |

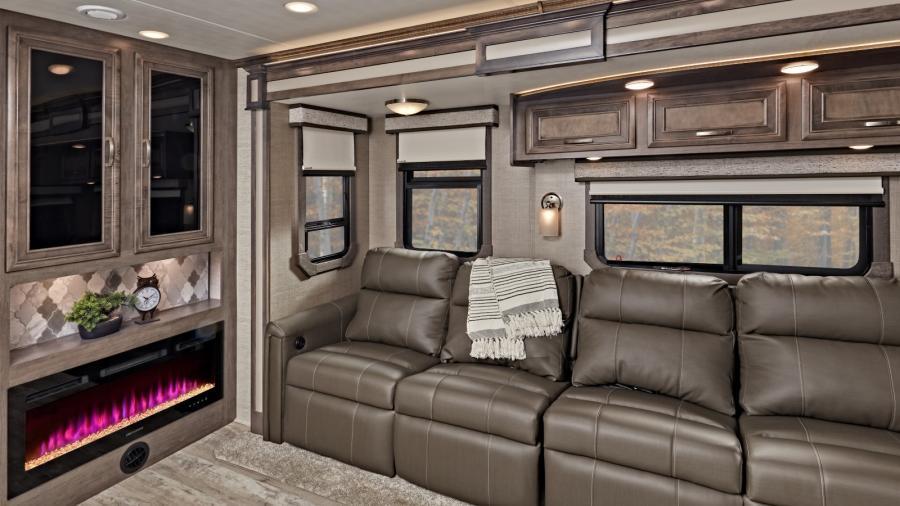

| Theater Seating | Power theater seating (36T, 36H) |

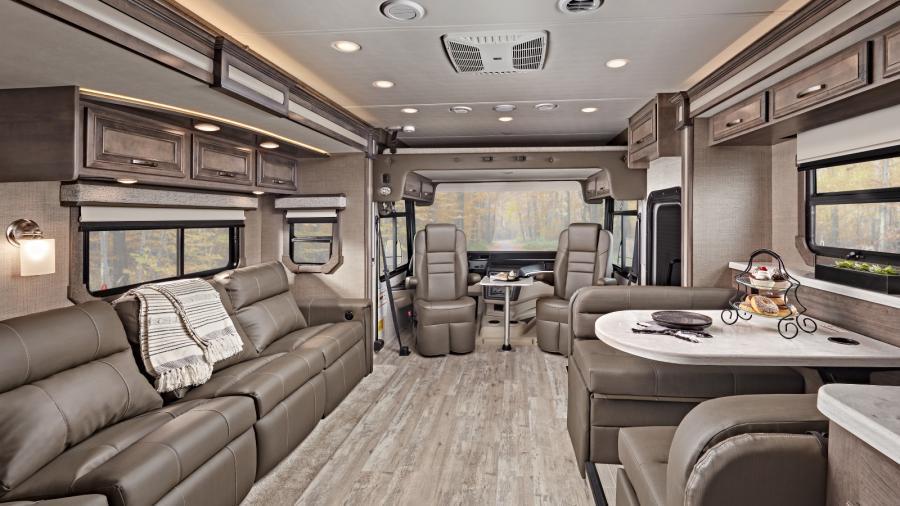

| Reclining Sofa | 120 in. straight reclining sofa (36H) |
| Freestanding Table | Freestanding table with 4 chairs (36U) |
| Refrigerator | 12 cu.ft. gas/electric refigerator |
| Washer/Dryer - Combination | Combination washer/dryer (36T, 36U) |
| Washer/Dryer - Stackable | Stackable washer/dryer (36H) |
| Canadian Standards | Canadian standards |
Décor Options
.jpg)
.jpg)
The Entegra Coach Advantage
1. The E-Z Drive™ Elite Package
Enjoy a quiet and comfortable drive thanks to this powerful blend of ride and handling features. E-Z Drive™ Elite upgrades on the Emblem include:
- Computer-balanced driveshaft
- Bilstein® steering stabilizer
- Koni® shocks,
- Variable-rate front and rear jounce bumpers
- Heavy-duty front and rear stabilizer bars
- 22.5 in. Michelin® tires
2. Tuffshell™ Vacuum-Bonded Laminated Construction
Entegra Coach's Tuffshell™ vacuum-bond process applies 144 tons of pressure to wall components (fiberglass exterior siding, welded aluminum framing, block foam insulation, metal backers and interior wall panels) for 16 to 18 minutes for an incredibly strong and durable product. All sidewalls, floors and roofs are built by Entegra Coach in a temperature and humidity-controlled facility.
3. 120 in. Panoramic Windshield
The largest windshield in the industry is paired with oversized wiper blades to provide maximum visibility and safety on the road.
4. One-Piece Fiberglass Roof
A crowned one-piece fiberglass roof provides unmatched durability.
5. 750 lb. Overhead Bunk Rating
The optional overhead bunk in an Emblem boasts a weight capacity of 750 lbs. This is 300 lbs. more than the industry standard and allows owners to sleep two full-sized adults or store extra gear while traveling.
6. Standard Solar Power
Not only is solar power environmentally friendly, but it also reduces the cost and load of electrical use in your motorhome. A standard 190W solar panel with a dual controller will monitor and charge your house and chassis' batteries simultaneously.
7. Lockable Pass-Through Storage Compartments
Easily access all of your gear with easy-to-use side-hinged, insulated Slam-latch™ doors.
8. Frameless Windows
Emblem's frameless windows make exterior maintenance easier than ever and give the motorhome a sleek, modern look.
9. Seatbelts in All Designated Seating Positions
Entegra Coach installs stress-tested seatbelts in every designated seating position to ensure the safety of your entire family.
Entegra Coach peace of mind
At Entegra Coach, excellence doesn't end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry's highest level of service.
Entegra Coach's industry leading 2-year limited warranty is double that of any other manufacturer and offers more coverage. On top of this 2 year warranty, Entegra Coach supports our customers with a 3-year limited structural warranty for areas like the roof, walls and floors. This warranty comes directly from us, because we believe in the products we build and care for all owners as members of our Entegra Coach family. Ask your local Entegra Coach dealer for full warranty details.
