THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2023 Aspire
Easy driving and enjoyable features are the showstoppers when it comes to the all-new 2023 Aspire Class A Motorhome. This luxury coach rides on a Spartan® K2 chassis with a Cummins® 450HP engine. Thanks to the E-Z Steer™ adjustable power steering assist, drivers are sure to enjoy the ride, while taking in the iconic panoramic view Class A's are known for. The stunning upgrades of this model don't end with the E-Z Steer technology. In fact, they extend to the interior with premium leather Crown Compass furniture in the living area. A 15 inch digital dash with an integrated 360° camera will put your mind at ease, and allow parking and backing up to be a stress point of the... Read More
Brochure
Product Videos
Floorplans

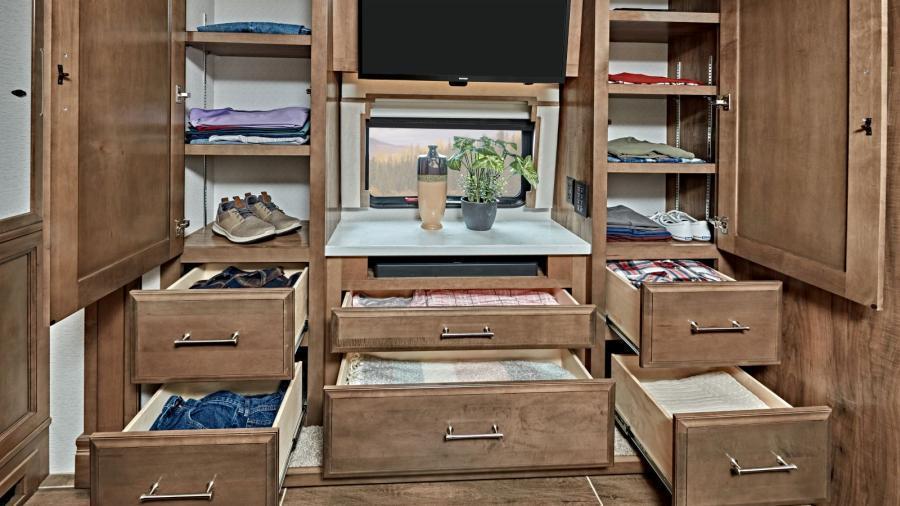

Ward = wardrobe

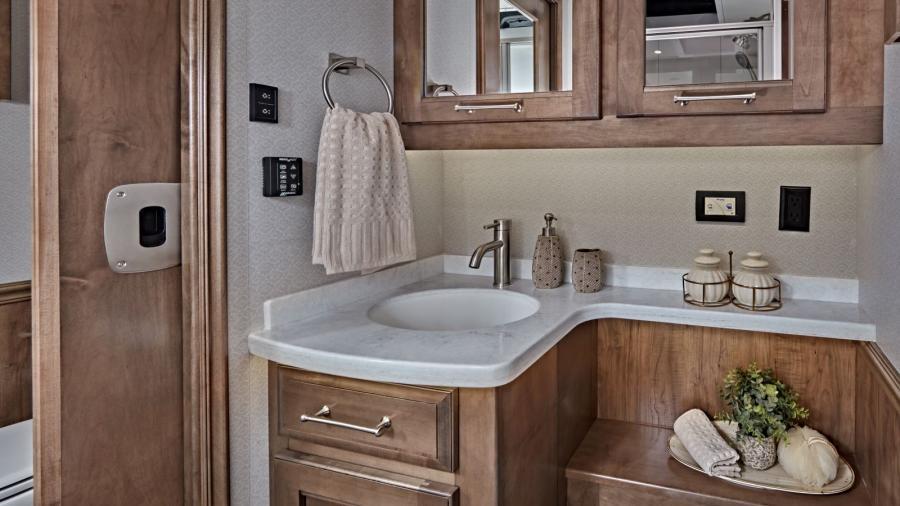

Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2023 Aspire|40P
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 41,000 |
| Gross Combined Weight Rating (lbs) | 51,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 24,000 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 40'11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 100 |
| Furnace (BTU Output) | 65,600 Aqua-Hot |
| Wheel Base | 261" |
2023 Aspire|44B
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 150 |
| Furnace (BTU Output) | 65,600 Aqua-Hot |
| Wheel Base | 320" |
2023 Aspire|44D
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 150 |
| Furnace (BTU Output) | 65,600 Aqua-Hot |
| Wheel Base | 320" |
2023 Aspire|44R|360°
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 150 |
| Furnace (BTU Output) | 65,600 Aqua-Hot |
| Wheel Base | 320" |
2023 Aspire|44W
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 150 |
| Furnace (BTU Output) | 65,600 Aqua-Hot |
| Wheel Base | 320" |
2023 Aspire|44Z
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 150 |
| Furnace (BTU Output) | 65,600 Aqua-Hot |
| Wheel Base | 320" |
All Floorplans
2023 Aspire | 40P
2023 Aspire | 44B
2023 Aspire | 44D
2023 Aspire | 44R
360°
2023 Aspire | 44W
2023 Aspire | 44Z
360°
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Exterior Graphics
.png)
.png)
Standards & Options
Chassis
| Chassis | Spartan® K2 raised-rail chassis |
| Engine | Cummins® L9 turbocharged 450 HP engine with 1,250 lb.-ft. torque at 1,400 RPM |
| Transmission | Allison® 3,000 MH 6-speed transmission |
| Radiator | Side-mounted, parallel-airflow radiator |
| Alternator | 170 amp alternator |
| Engine Block Heater | 1,000W engine block heater |
| Engine Brake | Three-stage engine brake |
| Front Suspension | Independent front suspension (IFS) |
| Front Axle | Reyco® Granning® front axle - 17,000 lb. rating |
| Rear Axle | Meritor rear axle - 20,000 lb. rating (Dana® rear axle- 24,000 lb. rating on 40P) |
| Tag Axle | Tag axle with one-touch manual air dump - 12,000 lb. rating (N/A 40P) |
| Braking System | ABS disc brakes on front axle, drum brakes on drive and tag axle (ABS disc brakes on front and rear axle on 40P) |
| Rear Axle Ratio | 4.88 rear axle ratio (4.78 on 40P) |
| Tires | Michelin® X Coach Z 295/80R22.5 tires |
| Shocks | Bilstein® 46mm shocks |
| Tire Pressure Monitoring | Tire pressure monitoring system (TPMS) with temperature monitoring |
| Leveling System | Equalizer™ hydraulic automatic coach leveling |
| Air Connection | Remote air connection |
| Chassis Battery | (2) 12V chassis batteries |
| Fuel Tank | 150 gal. fuel tank with dual fills (100 gal. on 40P) |
| DEF Tank | 15 gal. DEF tank with dual fills (single fill on 40P, 44D, 44R) |
| Tow Air Brake System | Spartan® Safe Haul™ tow vehicle air brake system |
| Hitch | 15,000 lb. hitch with 7-pin plug (10,000 lb. hitch on 40P) |
Construction
| Roof | 4 in. arched aluminum trusses filled with batt insulation and reflective Flexfoil® topped with 3/8 in. plywood decking then one-piece fiberglass |
| Walls | 2-1/2 in. exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16 in. centers or less, filled with batt and Flexfoil® insulation, then covered with high-gloss gelcoat fiberglass (R-16) |
| Floor | 2 in. x 4 in. wood trusses on 16 in. centers or less filled with batt and Flexfoil® insulation then topped with 3/4 in. 7-ply plywood decking (R-33) |
| Frame | X-Bridge™ bracing welded into chassis frame |
| Slideouts | Entegra-exclusive Relia-Torque flush-mounted 12V slideout system |
Heat, AC, Water & Power
| Heating System | Aqua-Hot® 400D hydronic water and heating system with in-floor heat throughout |
| Generator | Onan® 10,000W diesel generator, with automatic start, on slide-out tray |
| Inverter | 3,000W pure sine wave inverter |
| Batteries | (2) L16 AGM batteries (6V/390 amp hrs. ea.) |
| Solar | (2) 200W solar panels |
| Electrical Hookup | 50 amp power cord on electric powered reel |
| Transfer Switch | Smart automatic transfer switch with surge protection |
| Air Conditioning | (3) 15,000 BTU A/C units with heat pumps and condensation drain system |
| Heated Tanks | Aqua-Hot® heated basement storage |
| Black Tank Management | Sani-Con® macerator holding tank dump system with manual gate valves and manual backup |
| Tank Flush | Black holding tank sprayer |
| Water Filtration | City and tank water filtration system |
| Water Hose w/ Electric Reel | Water hose with electric reel |
Exterior
| Front/Rear Cap | Insulated front and rear caps (R-24) |
| Engine Door | Power rear engine door with manual override |
| Patio Awnings | Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights |
| Door Awning | Girard® power entrance door awning with LED lights |
| Slideout Awnings | Girard® Ultra slideout awnings |
| Window Awnings | Girard® window awnings |
| Windows | Frameless, dual-pane, tinted, safety-glass windows |
| Keypad | Lit grab handle with doorbell and keypad system for keyless entry |
| Entertainment | 43 in. Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL® radio and speakers with USB port and receptacle |
| Mirrors | Chrome, heated, remote-control, side-view mirrors with two-position memory settings |
| Exterior | Diamond Shield™ front protective film mask |
| Headlights | Automatic LED low beam headlights, halogen high beam headlights and fog lights |
| Daytime Running Lights | Daytime running lights |
| LED Lights | LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights |
| Accent Lights | LED accent lights under passenger slideout rooms |
| Lights | Porch light and motion sensor security lights |
| Rear Mudflap | Mudflap with chrome “Aspire” nameplate |
| Satellite Dish - US | Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option |
| Satellite Dish - CA | Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option |
| TV Antenna | Winegard® Rayzar Z1 TV antenna |
| Wi-Fi | Winegard® WiFiRanger™ Wi-Fi extender |
| Utility Center | Heated exterior utility center with 5 in. LED SeeLeveL™ tank monitoring panel |
| Cargo Features | Push-button, power-unlatching baggage doors with LED indicator light; Slideout basement storage tray |
| Paint | Sikkens custom full-body paint |
| Entrance Door | Removable screen on entry door |
Cockpit
| Additional Amenities | Bergstrom dual-zone HVAC system; Dual USB port and one 12V socket for charging |
| Dash | Valid™ 15 in. digital dash with quad core graphics processor, on-board diagnostics and ability to display traditional instrument cluster, 360° camera system or GPS navigation |
| Cameras | Ramco 360° HD digital camera system |
| Infotainment System(s) | Valid™ infotainment system with 15 in. touchscreen, Sygic navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution |
| Side Consoles | 4.3 in. infotainment control touchscreen in passenger console |
| Driving Features | E-Z Steer™ adjustable power steering assist |
| Steering Wheel | Steering wheel with integrated controls for screen selection, instrument cluster navigation, media source slection, cruise, wipers and Bluetooth® phone functionality |
| Steering Column | Manual tilt and telescoping steering column |
| Sound System | JBL® premium audio 5-speaker sound system with amplifier, speakers and DVC subwoofer |
| Antenna | All-in-one automotive antenna for AM/FM/Sirius/GPS dash radio system |
| Windshield | Ultra-Vision® one-piece wrap-around tinted windshield; Rain-sensing windshield wipers |
| Driver / Passenger Seats | Leather driver and passenger seats with powered 6-way adjustment, lumbar and footrest functions |
| Power Features | Powered flush stepwell cover |
| Pedals | Powered adjustable brake and accelerator pedals |
| Visors & Privacy Shade | Powered front sun visors and privacy shades |

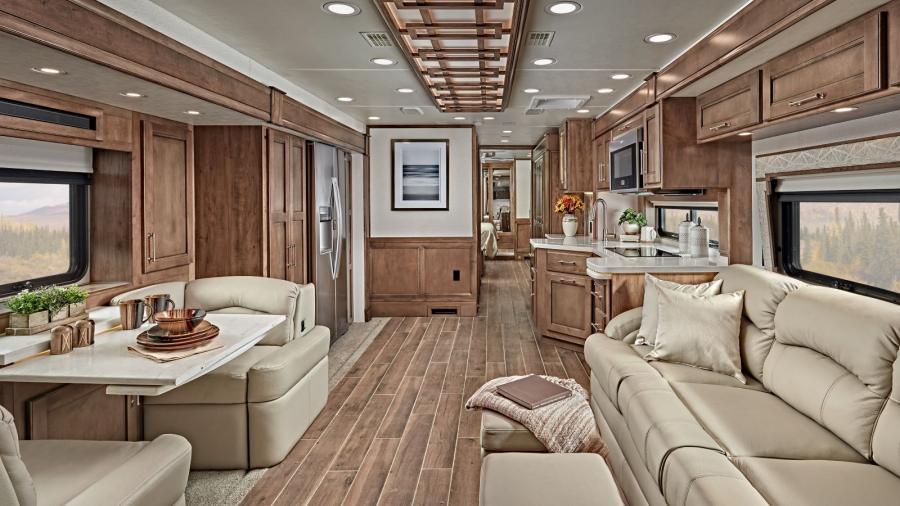

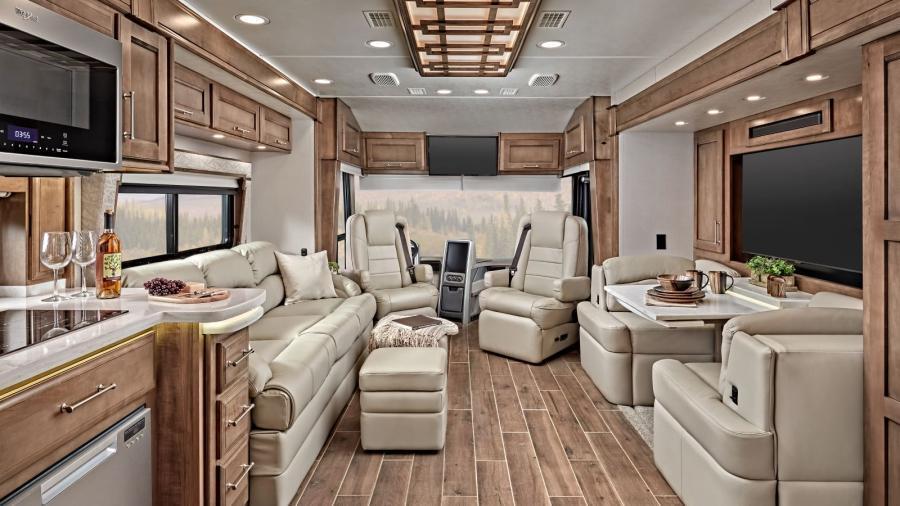

Interior
| Television - Front Overhead | 32 in. Samsung® LED 1080P Smart TV in front overhead |
| Command Center | Firefly multiplex system with 10 in. VegaTouch touchscreen for complete integration of coach controls (mobile app available) |
| Television - Living Room | 50 in. Samsung® 4K UHD Smart TV |
| Sound - Living Room | Bose® sound bar with subwoofer and universal remote control |
| DVD Systems | Sony® Blu-ray™ player |
| Furniture | Premium leather Crown Compass furniture |
| Flooring | Hand-laid porcelain tiled floors |
| Lighting | LED interior lighting |
| Ceiling | Decorative ceiling feature with integrated accent lighting |
| Window Treatments | Manual solar day shades and blackout night shades |
| Central Vacuuming System | Central vacuum system |
| Interior Doors | Aire-Secure™ travel locks for all pocket doors |
| Bar | Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (44R only) |
| Washer/Dryer | Separate washer and dryer |

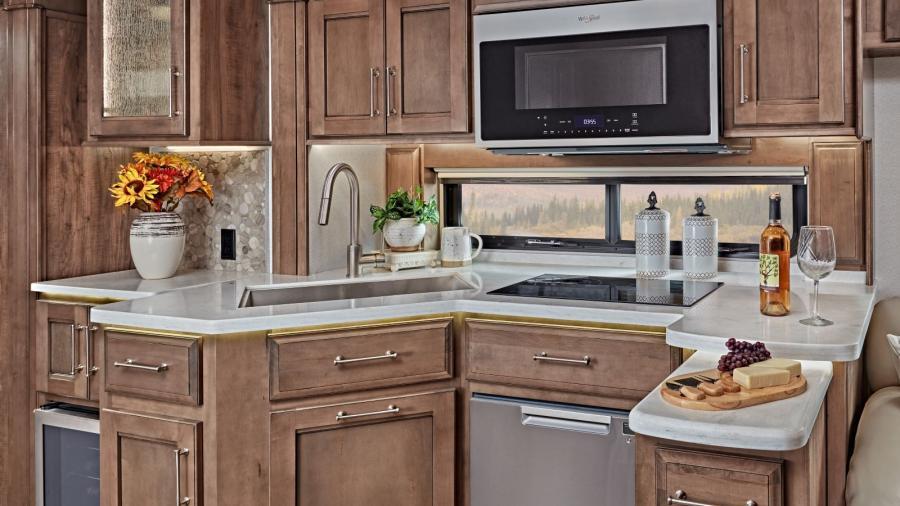

Kitchen
| Backsplash | Window with push out lever operation and screen |

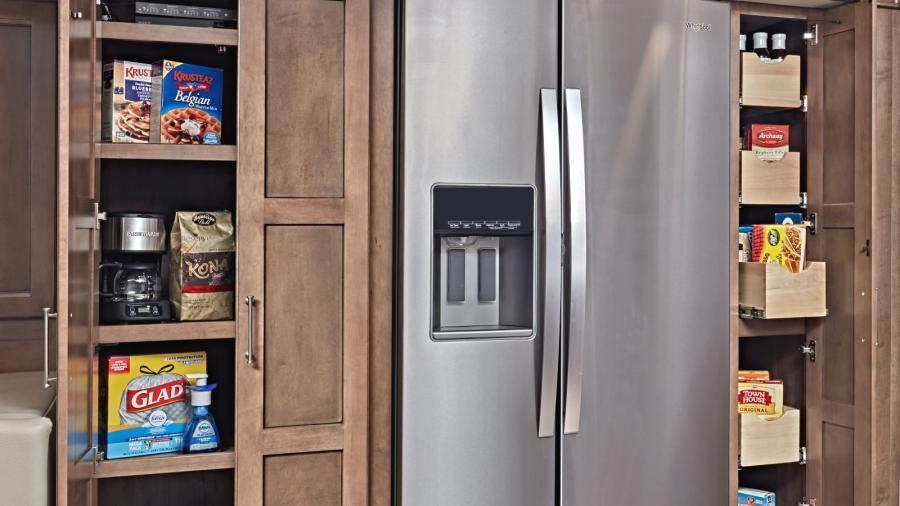

| Refrigerator | Stainless steel residential refrigerator with ice maker and water dispenser |
| Cooktop | Induction cooktop with matching wood cover |
| Microwave | 1.9 cu. ft. convection microwave oven |
| Dishwasher | Fisher & Paykel dishwasher |
| Countertops | Solid-surface countertops with dimmable LED accent lighting |
| Sink | Stainless steel sink |
| Vent | Maxxair® power vent exhaust fan with intake and touch screen control |
| Waste Basket | Large, deep drawer for waste basket with easy access trash chute (trash chute not available on 40P, 44D, 44R) |
| Storage | Slide-out storage tray(s) in overhead cabinet |

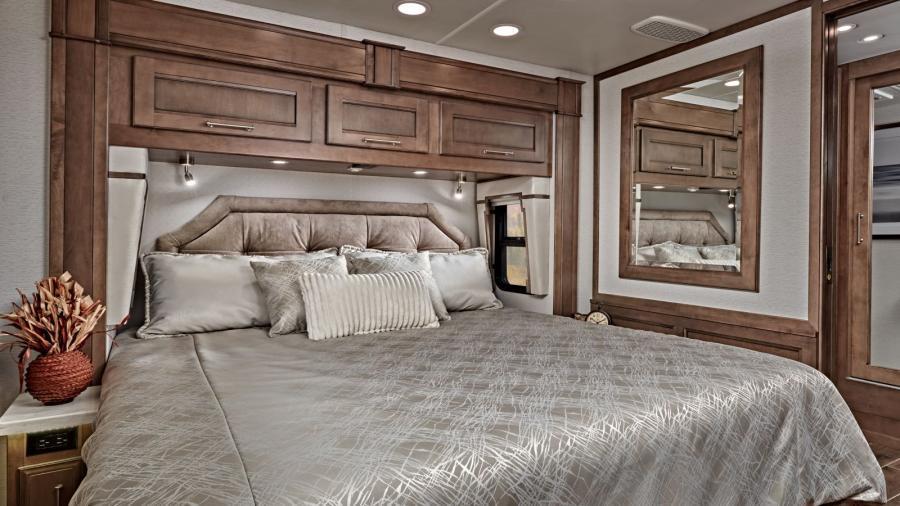

Bedroom
| Bed | King-size gel memory-foam mattress |
| Television | 32 in. Samsung® LED 1080P Smart TV |
| Sound | Bose® sound bar with universal remote control |
| DVD Systems | Sony® Blu-ray™ player |
| Ceiling Fan | Ceiling fan |
| Nightstands | Nightstands with solid-surface tops |

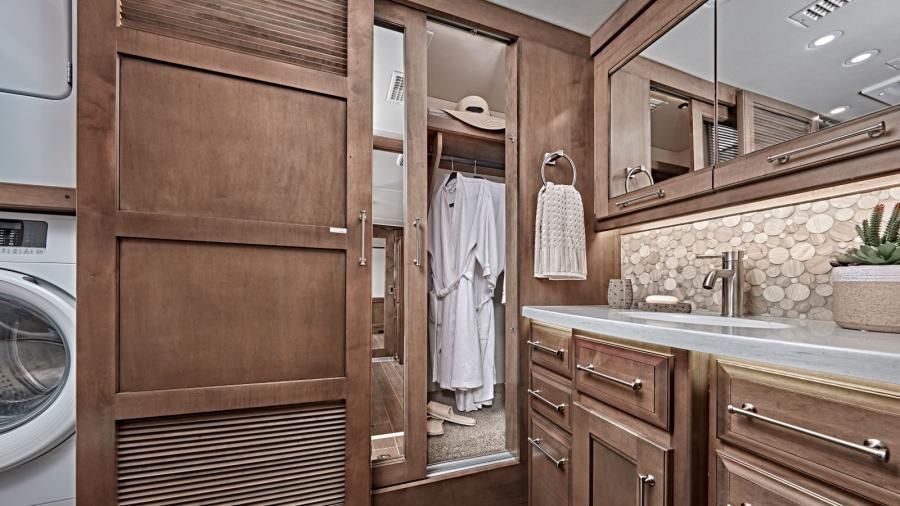

Bathroom
| Countertop(s) | Solid-surface countertops with dimmable LED accent lighting |
| Sink | Integrated bathroom sink |

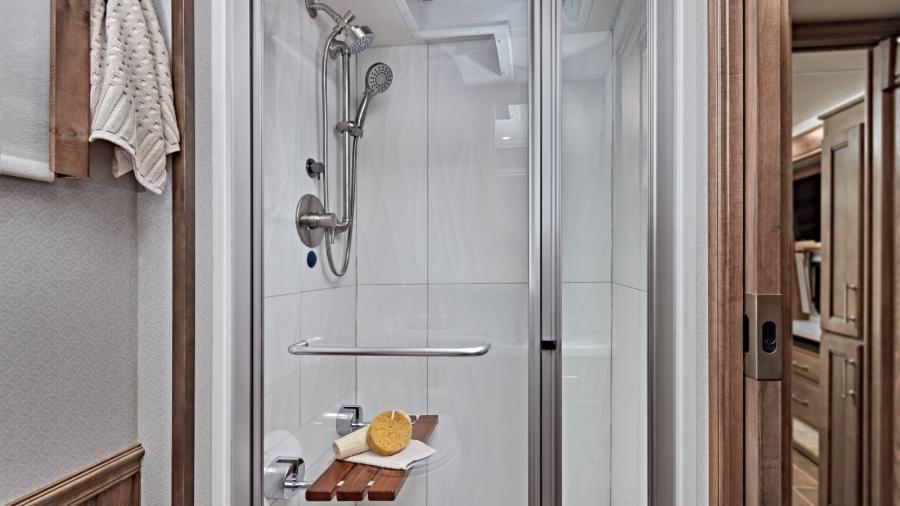

| Shower | Textured porcelain tile shower with skylight and clear glass shower door |
| Shower Seat | Teakwood shower seat |
| Shower Head | Fixed shower head and separate hand-held spray wand |
| Water Saving System | Aqua View SHOWERMI$ER™ water saving system |
| Toilet | Thetford® macerator toilet in main bath (N/A 44Z); Thetford® Aqua-Magic toilet with foot flush in mid bath (44B, 40P) |
| Vent | Maxxair® power exhaust fan with intake |
Safety
| Carbon Monoxide Detector | Carbon monoxide detector |
| Security System | Security system with glass shatter sensors |
| Smoke Alarm | Smoke alarm |
| Security Safe | Storage safe |
Options
| Canadian Standards | Canadian standards (includes Canadian Shaw satellite) |
| Sofa | Sofa ILO power theater seating (40P, 44D, 44W only) |
| Theater Seating | Power theater seating ILO hide-a-bed (44R only) |
| Hide-a-Bed Sofa | 100 in. hide-a-bed sofa ILO 100 in. power reclining sofa (44B, 44Z only) |
| Fireplace/TV/entertainment center and work station ILO sofa | Fireplace/entertainment center/work station ILO sofa (44D, 44W only) |
| Batteries | (2) additional AGM batteries (N/A 40P) |
| Satellite Dish | Winegard® In-motion satellite dome |
| Satellite Dish - US | Winegard TRAV'LER satellite dish- Dish Network |

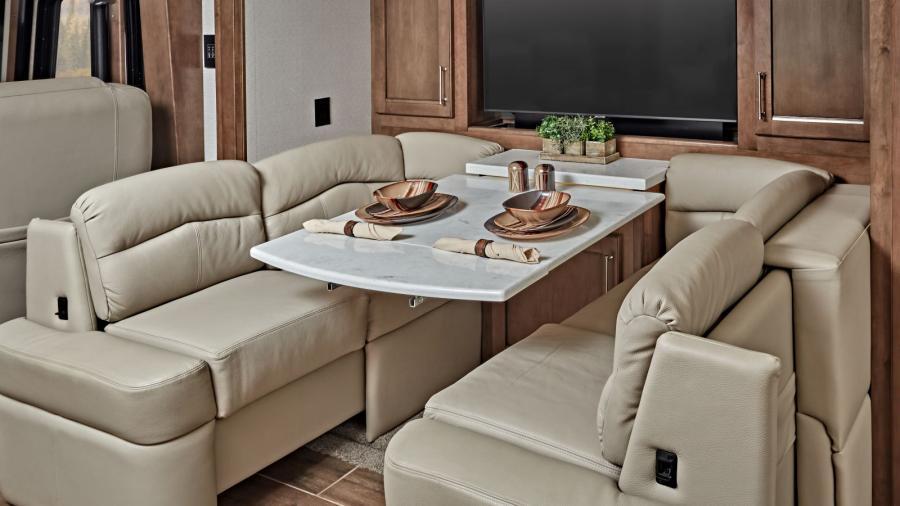

| Dinette | Booth Dinette |
Décor Options
.jpg)
Wood Options
Almond Glazed Maple with Linen Overhead Cabinets and Harvest Wheat Woodgrain Porcelain Tile Floor
Auburn Glazed Maple with Linen Overhead Cabinets and Harvest Wheat Woodgrain Porcelain Tile Floor
.jpg)
High-Gloss Stonewall Grey Cabinets with Tacoma Shadow Woodgrain Porcelain Tile Floor
Linen Glazed Maple Cabinets with Tacoma Shadow Woodgrain Porcelain Tile Floor
The Entegra Coach Advantage
1. SPARTAN® K2 CHASSIS
Every Spartan® chassis comes with a best-in-class 3-year/50,000-mile transferable warranty, with no deductibles.
Spartan® chassis also boasts an industry-best, 20-year transferable warranty on the frame as well as a Cummins®
5-year/100,000-mile engine warranty and an Allison® 5-year/200,000-mile transmission warranty.
Included in the limited warranty is roadside assistance provided by Coach-Net®, which offers service/towing through
40,000 service and repair facilities in the U.S. and Canada.
2. EXCLUSIVE X-BRIDGE™ FRAME
Our exclusive X-Bridge™ frame adds even more floor strength and structural rigidity, eliminating chassis flex and twisting;
with it, the suspension—not the chassis—absorbs road shock and vibration.
3. FIVE-INCH-THICK FLOORS
The industry’s thickest floor starts with a 3⁄4" 7-ply plywood for dramatic reductions in energy transmission, noise and
vibration. Cabinets are screwed directly to the wood and tile is laid precisely around them; other manufacturers place
cabinets on top of the tile, causing squeaks or cracking.
4. RESIDENTIAL-STYLE WALLS AND ROOF
Our roof combines crowned aluminum truss rafters on 16" centers with Flexfoil®, fiberglass insulation and 3⁄8" plywood
decking. Our sidewalls and rear cap are the ONLY triple-insulated walls on the market. Featuring Styrofoam™, Flexfoil®
and glued batt insulation, our triple-insulated walls keep the coach quiet, and you comfortable, on the inside.
5. BILSTEIN® MONOTUBE GAS PRESSURE SHOCKS
Designed specifically for luxury motorcoaches by Bilstein®, these shocks have 228% more surface area than twin-tube
shocks for greater sensitivity and control. They virtually eliminate excessive sway and self-adjust.
6. VALID™ 15 IN. DIGITAL DASH
Integrated into the Aspire's digital dash are a 360° camera and wireless TPMS.
7. BAGGAGE DOORS
Push-button, power-unlatching baggage doors with LED indicator light
8. CROWN COMPASS PREMIUM LEATHER FURNITURE
9. CUMMINS® 450HP ENGINE
10. INDUSTRY'S LARGEST WINDSHIELD
At 120 in., the Aspire's windshield is the largest in the industry. Not only does this provide a great view, but it also increases visibility and results in safer travel. Oversized wiper blades add to the safety factor by keeping your view clear in all weather. Fun fact: our windshields are manufactured in Turkey, home of the world's finest sand, to eliminate any distortion in the curved portions of the glass. This windshield delivers the best possible view of the road ahead.
11. CABINETS INSTALLED BEFORE TILE
Every other manufacturer in the motorhome industry tiles their entire floor prior to installing their cabinets and interior walls. This results in driving screws down through the tile, which causes in squeaks and creaks over time. At Entegra Coach, we take a residential approach by installing cabinetry and interior walls directly onto the wood subfloor. We then hand-tile around cabinetry. This takes more time on the production line, but it is an important factor in producing the quietest riding, best handling coach on the market today. Period.
Entegra Coach peace of mind
2-year warranty and 5-year structural warranty
At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year limited warranty and a 5-year structural limited warranty.
Detail
Easy driving and enjoyable features are the showstoppers when it comes to the all-new 2023 Aspire Class A Motorhome. This luxury coach rides on a Spartan® K2 chassis with a Cummins® 450HP engine. Thanks to the E-Z Steer™ adjustable power steering assist, drivers are sure to enjoy the ride, while taking in the iconic panoramic view Class A's are known for. The stunning upgrades of this model don't end with the E-Z Steer technology. In fact, they extend to the interior with premium leather Crown Compass furniture in the living area. A 15 inch digital dash with an integrated 360° camera will put your mind at ease, and allow parking and backing up to be a stress point of the past. It's time for you to enjoy the journey as much as the destination.
