THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2022 Emblem
If you’re looking to give a highly livable gas coach a try, the Emblem is equipped to keep you comfortable every step of the way, no matter how long the adventure. Experience class-leading features, exquisite finishes and even more technology in 2022, including upgraded WiFi, solar power, Insignia Fire Smart TVs and more. Plus, Emblem is equipped with the E-Z Drive™ Elite package that transforms time on the road from a chore to a highlight.
Brochure
Product Videos
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2022 Emblem|36H
.jpg)
Specs
| Gross Vehicle Weight Rating (lbs) | 24,000 |
| Gross Combined Weight Rating (lbs) | 30,000 |
| Front Gross Axle Weight Rating (lbs) | 9,000 |
| Rear Gross Axle Weight Rating (lbs) | 15,500 |
| Exterior Length | 38' 8" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 7" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 40 |
| Black Waste Water (gals) | 40 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 35,000 |
| Wheel Base | 252" |
2022 Emblem|36T
.jpg)
Specs
| Gross Vehicle Weight Rating (lbs) | 24,000 |
| Gross Combined Weight Rating (lbs) | 30,000 |
| Front Gross Axle Weight Rating (lbs) | 9,000 |
| Rear Gross Axle Weight Rating (lbs) | 15,500 |
| Exterior Length | 38' 8" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 10" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 50 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 35,000 |
| Wheel Base | 252" |
2022 Emblem|36U
.jpg)
Specs
| Gross Vehicle Weight Rating (lbs) | 24,000 |
| Gross Combined Weight Rating (lbs) | 30,000 |
| Front Gross Axle Weight Rating (lbs) | 9,000 |
| Rear Gross Axle Weight Rating (lbs) | 15,500 |
| Exterior Length | 38' 2" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 10" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 50 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 35,000 |
| Wheel Base | 252" |
All Floorplans
2022 Emblem | 36H
2022 Emblem | 36T
2022 Emblem | 36U
360°
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Exterior Graphics
Standards & Options
Chassis
| E-Z Drive | E-Z Drive™ Elite: Computer-balanced driveshaft, variable-rate front and rear jounce bumpers, heavy-duty front and rear stabilizer bars, SACHS shocks, 22.5" Michelin® tires |
| Leveling System | Automatic hydraulic leveling jacks |
| Chassis | Ford® F53 chassis |
| Engine | 7.3L V-8 350 HP engine with 468 ft.-lb. torque |
| Transmission | 6-speed automatic TorqShift® transmission with overdrive and tow haul mode |
| Alternator | 210-amp alternator |
| Tires | G-rated highway tires-245/70R19.5 |
| Braking System | Front and rear disc, 4-wheel anti-lock brakes |
| Hitch | 5,000-lb. rear hitch receiver with dual connector and 7-pin plug |
| Chassis Battery | 12V chassis battery |
| Fuel Tank | 80-gal. fuel tank |
Construction
| Floor | TuffShell™ vacuum-bond laminated floor |
| Insulation | Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls) |
| Roof | One-piece, crowned fiberglass roof |
| Walls | TuffShell™ vacuum-bond laminated sidewalls |
Heat, AC, Water & Power
| Air Conditioning | 15,000-BTU A/C unit with heat pump and second 13,500-BTU A/C unit |
| Generator | Onan® Marquis Gold Genset 5,500-watt gas generator with auto-gen start |
| Inverter | 2,000-watt inverter |
| Electrical Hookup | 50-amp electrical service |
| Water Heater | Girard® tankless LP water heater |
| Transfer Switch | Transfer switch with reverse polarity protection |
| Batteries | (2) 6V AGM (220Ah) house batteries on slideout tray |
| Solar | 190W solar panel with dual controller |
| Heating System | 35,000-BTU auto-ignition ducted furnace |
| Propane | 24.5-gal. propane tank (83-lb.) with LP quick-connect hookup |
| Black Tank Management | Thetford® Sani-Con® Turbo Macerator system |
| Winterization Drain System | Winterization drain system |
| Tank Flush | Black tank flush |
| Water Pump | 12V demand water pump |
| Water Filtration | Water filtration system |
Exterior
| Windows | Frameless windows |
| Entertainment | Exterior entertainment center with outside speakers, LED TV mounted on swivel bracket and single-disc DVD/FM radio |
| Patio Awnings | Electric patio awning with LED lights |
| Slideout Awnings | Slideout cover awnings |
| Utility Center | Exterior utility center |
| Outside Shower | Outside shower |
| Exterior Walls | Premium Sikkens full-body paint |
| Front/Rear Cap | One-piece, seamless, fiberglass front and rear caps |
| Entrance Door | Entrance door with industry’s largest travel-view window |
| Entrance Steps | Electric-powered entrance step |
| Cargo Features | Lockable pass-through storage compartments with metal slam latches |
| Ladder | Roof ladder |
| Satellite Dish - US | Prep for satellite dish |
| Antenna | Winegard 2.0 Wifi/4G antenna |
| Third Brake Light | Third brake light |

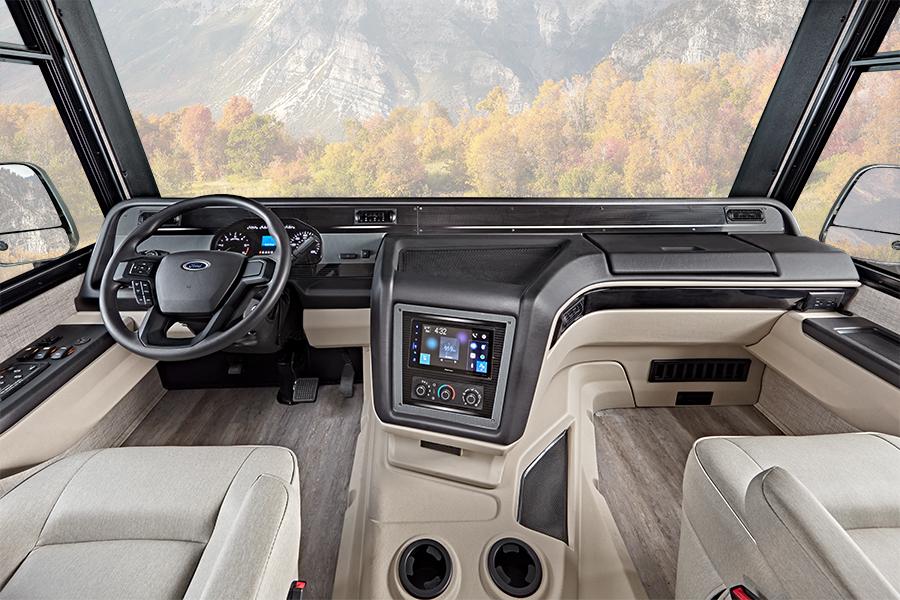

Cockpit
| Infotainment System(s) | Pioneer® 8" infotainment center with Apple CarPlay® and Android Auto™ |
| Cameras | Backup and side-view cameras |
| Additional Amenities | Removable driver/passenger cockpit table |
| Visors & Privacy Shade | Power front privacy shade with manual side privacy shades |
| Windshield | 120-in. panoramic windshield |
| Driver / Passenger Seats | 6-way power and swivel driver/passenger seats |
| Dash | Soft-touch, vinyl-wrapped automotive dash |
| Driving Features | A/C and cruise control |
| Steering Wheel | Tilt steering wheel |
| Start | Auxiliary start |

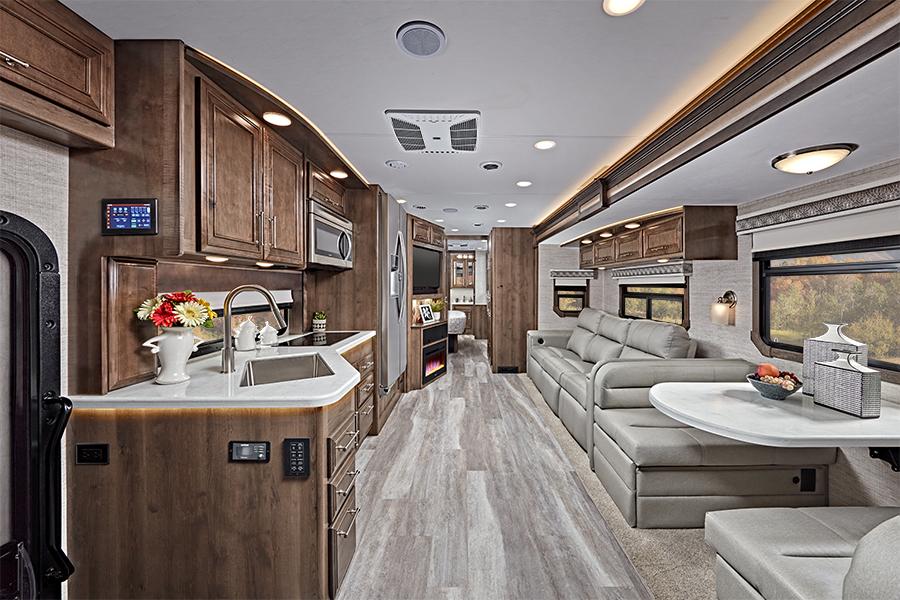

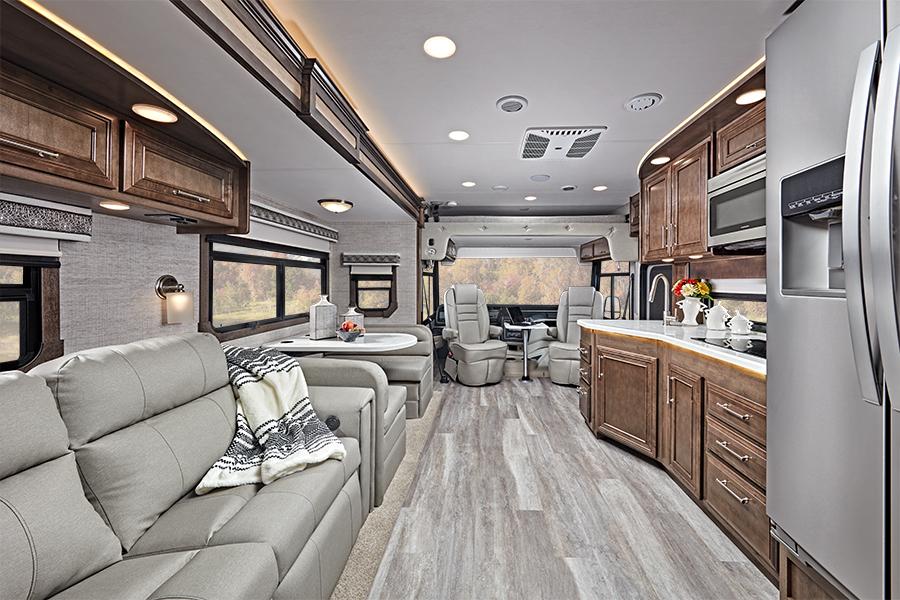

Interior
| Television - Living Room | LED HD Smart Fire TV in living area |
| Window Treatments | Day/night roller shades in living area |

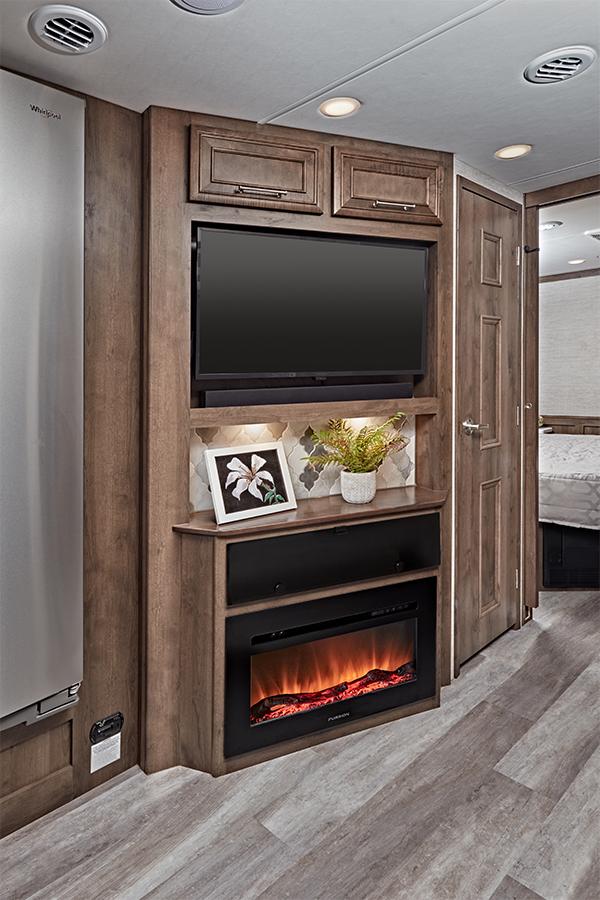

| Electric Fireplace | Furrion® electric fireplace |
| Command Center | Firefly Multiplex system |
| Ceiling | 84-in. interior ceiling height with padded vinyl ceiling |
| Lighting | High-intensity recessed LED ceiling lights |
| Flooring | Vinyl plank flooring |
| Fascia | LED-lit hardwood fascia |
| Cabinetry | Hardwood cabinet doors and drawers with deluxe hidden cabinet hinges |
| Cable hookup | Cable TV hookup with RG-6 coax |
| Bunks | Bunks with industry-exclusive, 300-lb. capacity each (36T) |

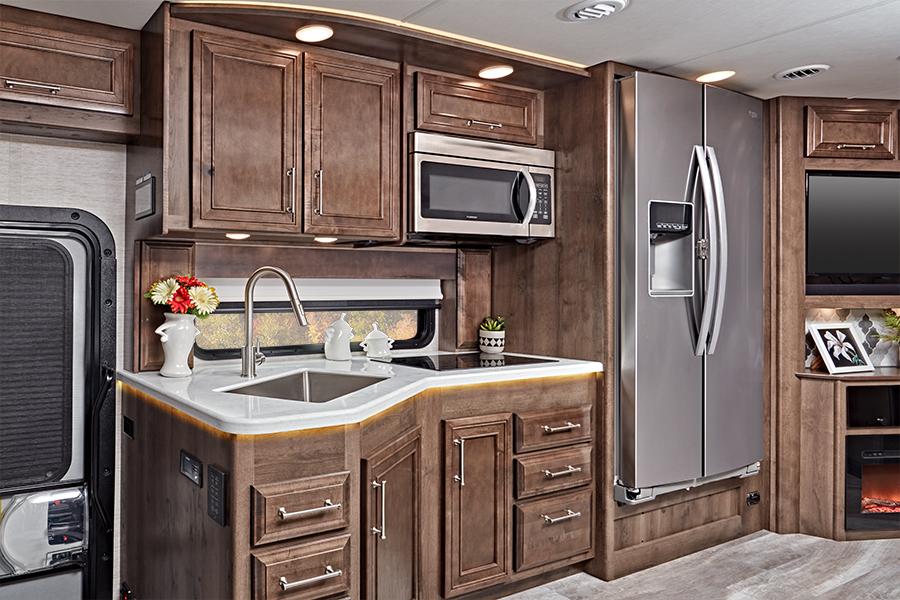

Kitchen
| Countertops | LED-lit, solid-surface kitchen countertops |
| Sink | Recessed stainless steel sink and sink covers |
| Drawer Guides | Ball-bearing drawer guides |
| Dinette | Entegra-exclusive, easy-operation legless dinette table |
| Backsplash | Wood-framed kitchen window with spice cabinets |
| Refrigerator | Residential refrigerator |
| Cooktop | 2-burner induction cooktop |
| Microwave | Residential-size convection microwave oven |

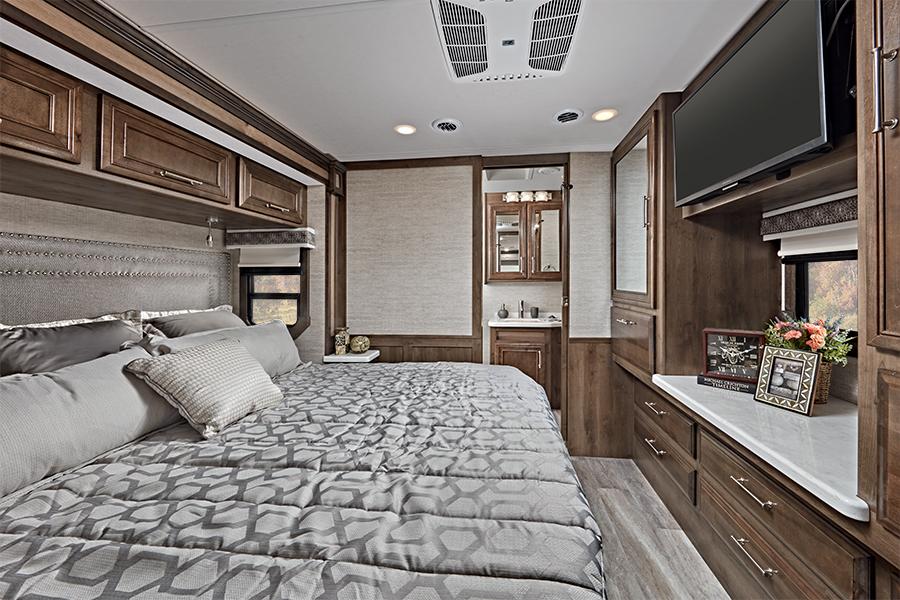

Bedroom
| Bed | Walk-around, King-size bed with bedspread and nightstands |
| Under-bed Storage | Under-bed storage (select models) |
| Television | LED TV in bedroom |
| Wardrobe | Large wardrobes |

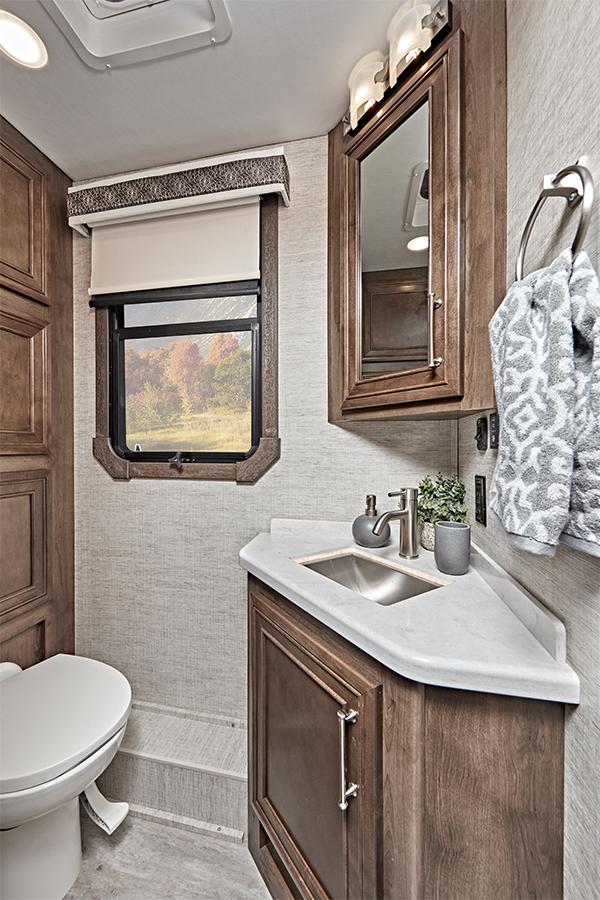

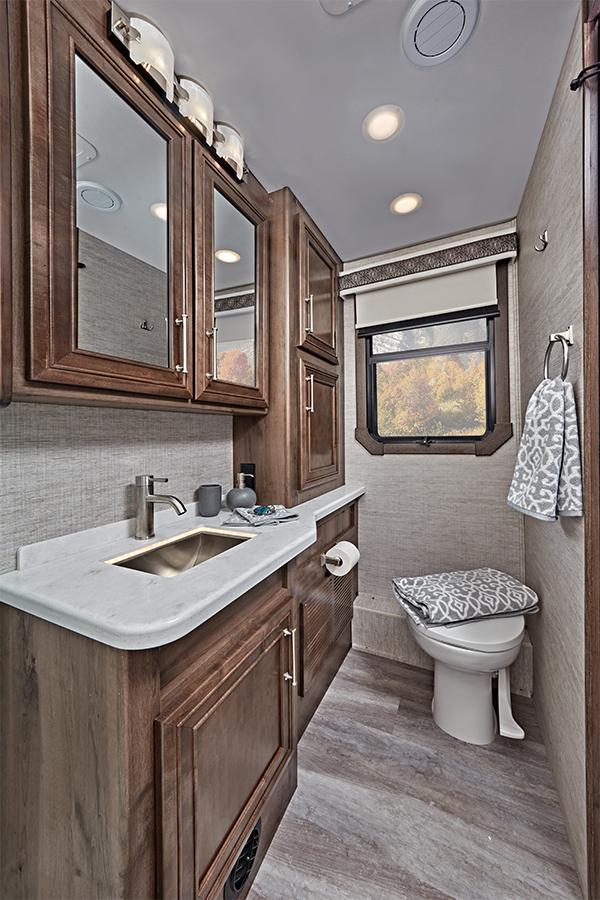

Bathroom

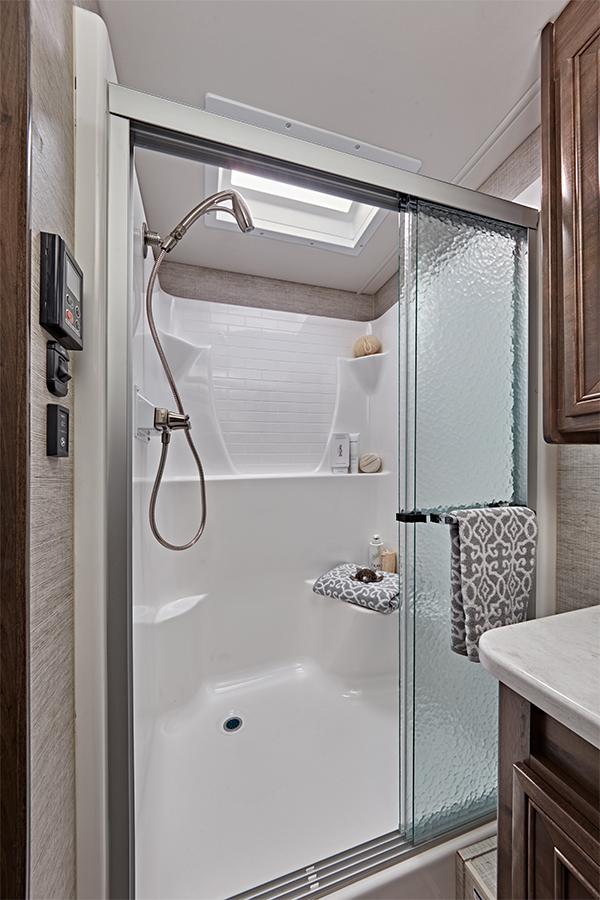

| Shower | One-piece, fiberglass shower with glass door, skylight and light |
| Sink | Recessed, LED-lit, stainless steel bathroom sink |
| Toilet | Porcelain toilet with foot flush |
| Vent | Powered roof vent in bathroom with wall switch |
Safety
| Seat Belts | 2-point lap safety belts in all designated seating locations |
| Smoke Alarm | Smoke alarm |
| Carbon Monoxide Detector | Carbon monoxide detector |
Options
| Overhead Bunk | Drop-down overhead bunk in cab area with 750-lb. capacity |
| Washer/Dryer - Combination | Combination washer/dryer (36T,36U) |
| Washer/Dryer - Stackable | Stackable washer/dryer (36H) |
| Theater Seating | Power theater seating (36H, 36T) |
| Refrigerator | 12-cu. ft. gas/electric refrigerator |
| Freestanding Table | Freestanding table with 4 chairs (36U, must be selected with reclining sofa option) |

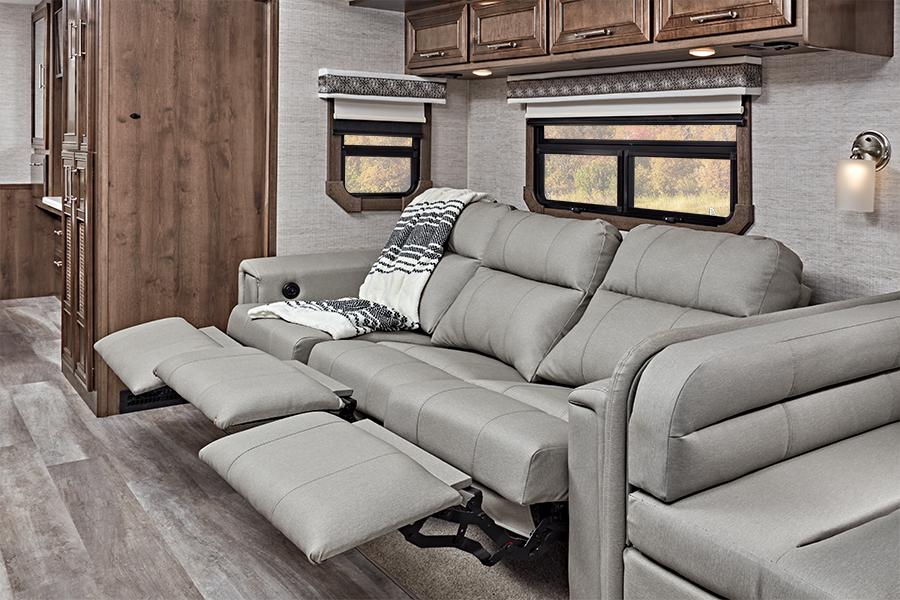

| Reclining Sofa | 93-in. straight reclining sofa (36U) |
| Reclining Sofa | 120-in. straight reclining sofa (36H) |
| Customer Value Package (Mandatory) | EZ-Drive Elite, automatic leveling jacks, frameless windows, 15K AC with heat pump and 13.5K AC, exterior entertainment center with outside speakers, LED TV mounted on swivel bracket and single-disc DVD/FM radio, electric patio awning with LED lights, slideout cover awnings, Onan® Marquis Gold Genset 5,500-watt generator with auto-gen start, 2,000-watt inverter, 50-amp electrical service, 10-gal. gas/electric water heater, Pioneer® 8" infotainment center with Apple CarPlay® and Andriod Auto™ |
| Canadian Standards | Canadian standards |
Décor Options
The Entegra Coach Advantage
1. The E-Z Drive™ Elite Package
This powerful blend of ride and handling features keeps the drive quiet and comfortable. E-Z Drive™ Elite upgrades on the Emblem include:
- A computer-balanced driveshaft ensures smooth and efficient power transfer from the engine to the wheels.
- Heavy-duty front and rear stabilizer bars made with a larger bar and polyurethane bushings, instead of rubber, transfer power faster for extra support, more stability and easier handling.
- SACHS shock absorber's large-diameter tube design pairs gas and hydraulics to resist heat and pressure while independently adjusting to changing road conditions.
- Variable-rate front and rear jounce bumpers continuously work to absorb impact and dampen excess road noise on all road conditions.
- Commercial grade 22.5-in. Michelin tires are built for long hauls and heavy loads.
2. Tuffshell™ Vacuum-Bonded Laminated Construction
Entegra Coach's Tuffshell™ vacuum-bond process applies 144 tons of pressure to wall components (fiberglass exterior siding, welded aluminum framing, block foam insulation, metal backers and interior wall panels) for 16 to 18 minutes for an incredibly strong and durable product. All sidewalls, floors and roofs are built by Entegra Coach in a temperature and humidity-controlled facility.
3. 120-in. Panoramic Windshield
The largest windshield in the industry is paired with oversized wiper blades to provide maximum visibility and safety on the road.
4. One-Piece Fiberglass Roof
A crowned one-piece fiberglass roof provides unmatched durability.

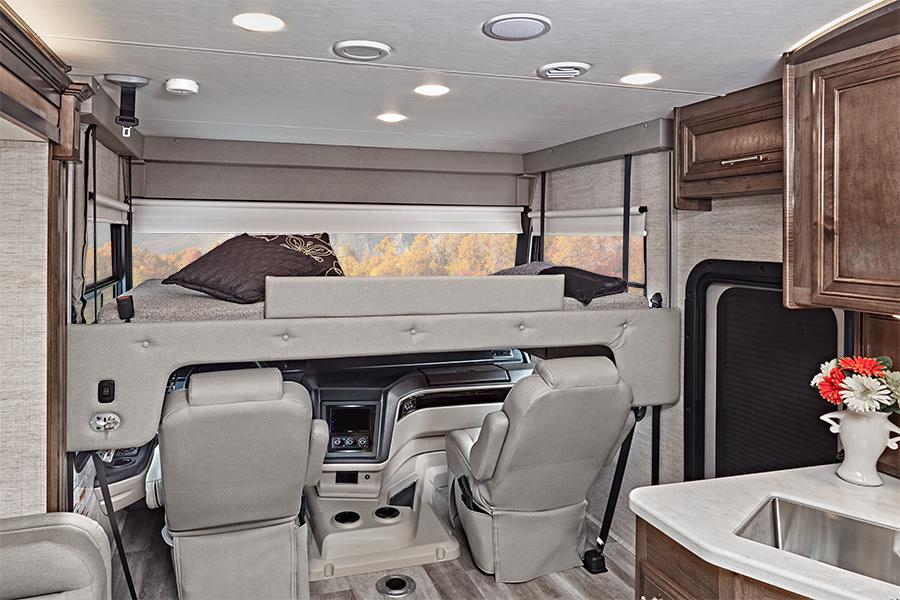

5. 750-lb. Overhead Bunk Rating
The optional overhead bunk in an Emblem boasts a weight capacity of 750-lbs. This is 300-lbs. more than the industry standard and allows owners to sleep two full-sized adults or store extra gear while traveling.
6. Standard Solar Power
Not only is solar power environmentally friendly, but it also reduces the cost and load of electrical use in your motorhome. A standard 190W solar panel with a dual controller will monitor and charge your house and chassis' batteries simultaneously.
7. Lockable Pass-Through Storage Compartments
Easily access all of your gear with easy-to-use side-hinged, insulated Slam-latch™ doors.
8. Frameless Windows
Emblem's frameless windows make exterior maintenance easier than ever and give the motorhome a sleek, modern look.
9. Seatbelts in All Designated Seating Positions
Entegra Coach installs stress-tested seatbelts in every designated seating position to ensure the safety of your entire family.
Entegra Coach peace of mind
At Entegra Coach, excellence doesn't end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry's highest level of service.
Entegra Coach's industry leading 2-year limited warranty is double that of any other manufacturer and offers more coverage. On top of this 2 year warranty, Entegra Coach supports our customers with a 3-year limited structural warranty for areas like the roof, walls and floors. This warranty comes directly from us, because we believe in the products we build and care for all owners as members of our Entegra Coach family. Ask your local Entegra Coach dealer for full warranty details.
