THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2021 Odyssey
The Odyssey has the classic Class C body, but there’s nothing old fashioned about it. While it’s our most approachable Class C, we’ve taken ideas, designs and styles you’ve come to expect from Entegra Coach and built them into the Odyssey—a one-piece seamless front cap with automotive-bonded panoramic front window, rear back-up camera and monitor and frameless windows, just to name a few. Odyssey is built on the rugged Ford® E-450 chassis and is equipped with E-Z™ Drive for an especially stabilized, comfortable ride.
Brochure
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2021 Odyssey|24B
.jpg)
Specs
| Gross Vehicle Weight Rating (lbs) | 14,500 |
| Gross Combined Weight Rating (lbs) | 22,000 |
| Front Gross Axle Weight Rating (lbs) | 5,000 |
| Rear Gross Axle Weight Rating (lbs) | 9,600 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 26' 8" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 42.5 |
| Grey Waste Water Capacity (gals) | 40 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 181" |
2021 Odyssey|25R
.jpg)
Specs
| Gross Vehicle Weight Rating (lbs) | 14,500 |
| Gross Combined Weight Rating (lbs) | 22,000 |
| Front Gross Axle Weight Rating (lbs) | 5,000 |
| Rear Gross Axle Weight Rating (lbs) | 9,600 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 28' 8" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 47 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 32 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 181" |
2021 Odyssey|26D
.jpg)
Specs
| Gross Vehicle Weight Rating (lbs) | 14,500 |
| Gross Combined Weight Rating (lbs) | 22,000 |
| Front Gross Axle Weight Rating (lbs) | 5,000 |
| Rear Gross Axle Weight Rating (lbs) | 9,600 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 28' 8" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 42.5 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 32 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 181" |
2021 Odyssey|26M
Specs
| Gross Vehicle Weight Rating (lbs) | 14,500 |
| Gross Combined Weight Rating (lbs) | 22,000 |
| Front Gross Axle Weight Rating (lbs) | 5,000 |
| Rear Gross Axle Weight Rating (lbs) | 9,600 |
| Exterior Length | 28' 8" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 43.5 |
| Grey Waste Water Capacity (gals) | 40 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30,000 BTU auto-ignition furnace |
| Wheel Base | 181" |
2021 Odyssey|27U
.jpg)
Specs
| Gross Vehicle Weight Rating (lbs) | 14,500 |
| Gross Combined Weight Rating (lbs) | 22,000 |
| Front Gross Axle Weight Rating (lbs) | 5,000 |
| Rear Gross Axle Weight Rating (lbs) | 9,600 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 29' 11" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 42.50 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30,000 BTU auto-ignition furnace |
| Wheel Base | 195" |
2021 Odyssey|29K
.jpg)
Specs
| Gross Vehicle Weight Rating (lbs) | 14,500 |
| Gross Combined Weight Rating (lbs) | 22,000 |
| Front Gross Axle Weight Rating (lbs) | 5,000 |
| Rear Gross Axle Weight Rating (lbs) | 9,600 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 32' 6" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 43.5 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 32 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 223" |
2021 Odyssey|29V
.jpg)
Specs
| Gross Vehicle Weight Rating (lbs) | 14,500 |
| Gross Combined Weight Rating (lbs) | 22,000 |
| Front Gross Axle Weight Rating (lbs) | 5,000 |
| Rear Gross Axle Weight Rating (lbs) | 9,600 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 32' 6" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 47 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 32 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 223" |
2021 Odyssey|30Z
.jpg)
Specs
| Gross Vehicle Weight Rating (lbs) | 14,500 |
| Gross Combined Weight Rating (lbs) | 22,000 |
| Front Gross Axle Weight Rating (lbs) | 5,000 |
| Rear Gross Axle Weight Rating (lbs) | 9,600 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 32' 6" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 43.5 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 223" |
2021 Odyssey|31F
.jpg)
Specs
| Gross Vehicle Weight Rating (lbs) | 14,500 |
| Gross Combined Weight Rating (lbs) | 22,000 |
| Front Gross Axle Weight Rating (lbs) | 5,000 |
| Rear Gross Axle Weight Rating (lbs) | 9,600 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 32' 6" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 47 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 223" |
All Floorplans
2021 Odyssey | 24B
2021 Odyssey | 25R
2021 Odyssey | 26D
2021 Odyssey | 26M
2021 Odyssey | 27U
2021 Odyssey | 29K
2021 Odyssey | 29V
2021 Odyssey | 30Z
2021 Odyssey | 31F
360°
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Exterior Graphics
Standards & Options
Chassis
| E-Z Drive | E-Z Drive: Computer-balanced driveshaft, standard front and rear stabilizer bars, Hellwig® helper springs, rubber isolation body mounts |
| Chassis | Ford® E-450 chassis |
| Engine | 7.3L V-8 350 HP engine with 468 ft.-lb. torque |
| Transmission | 6-speed TorqShift® series transmission with overdrive |
| Alternator | 210-amp alternator |
| Tires | E-rated highway tires- LT225/75R16 |
| Braking System | Power anti-lock brakes |
| Hitch | 7,500-lb. hitch with 750-lb. tongue capacity and 7-pin plug |
| Chassis Battery | 12V chassis battery |
| Fuel Tank | 55-gal. fuel tank |
| Leveling System | Leveling jack prep |
| Tire Pressure Monitoring | Tire pressure monitoring system (TPMS) |
Construction
| Floor | TuffShell™ vacuum-bond laminated floor |
| Walls | TuffShell™ vacuum-bond laminated sidewalls |
| Insulation | Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls) |
| Roof | One-piece, seamless, fiberglass roof |
Heat, AC, Water & Power
| Heated Tanks | Heated holding tanks (12V pads) |
| Tank Flush | Black tank flush |
| Generator | Onan® 4,000-watt MicroQuiet™ generator |
| Electrical Hookup | 30-amp electrical service |
| Batteries | 12V house battery |
| Solar | Solar prep |
| Air Conditioning | 15,000-BTU ducted A/C |
| Heating System | 30,000-BTU auto-ignition furnace |
| Water Heater | 6-gal. gas/electric DSI auto-ignition water heater |
| Propane | 12.2-gal.propane tank (41 lb.) with LP quick-connect hookup |
| Winterization Drain System | Winterization drain system |
| Water Pump | 12V demand water pump |
| Water Filtration | Water filtration system |
Exterior
| Front/Rear Cap | One-piece, seamless, fiberglass front cap |

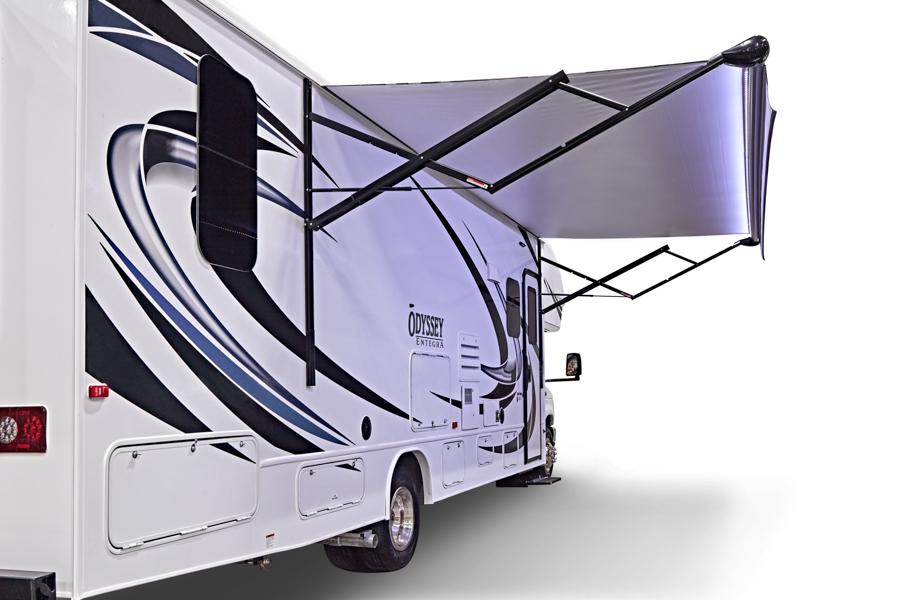

| Patio Awnings | Electric patio awning with LED lights |
| Utility Center | Exterior utility center |
| Outside Shower | Outside shower |
| Running Boards | Aluminum running boards |
| Exterior Walls | Fiberglass exterior walls with vinyl graphics |
| Windows | Frameless windows |
| Mirrors | Remote-controlled side-view mirrors |
| Entrance Door | Entrance door with industry’s largest travel-view window |
| Entrance Steps | Electric-powered entrance step with integrated house battery compartment |
| Slideout Awnings | Slideout cover awnings |
| Cargo Features | Pass-through storage compartment with light (select models) |
| Entertainment | Exterior LED TV with (2) high-output, marine-grade exterior speakers |
| Ladder | Roof ladder (N/A 30Z) |
| Bumper | 4-in. bumper tube with sewer hose storage |
| Satellite Dish | Prep for satellite dish |
| Antenna | Digital antenna with signal booster |
| Third Brake Light | Third brake light |
| Lights | Porch light |
| Keyless Fob | Remote keyless entry |
Cockpit
| Windshield | Automotive-bonded panoramic window in front cap with power shade |
| Infotainment System(s) | Sony® infotainment center with Apple CarPlay® and Android Auto™ |
| Cameras | Backup and side-view cameras |
| Power Features | Power steering, windows and door locks |
| Driver / Passenger Seats | Swivel driver and passenger seats with boosters (N/A 25R) |
| Driving Features | A/C and cruise control |
| Steering Wheel | Tilt steering wheel |
| Start | Auxiliary start switch |
| Visors & Privacy Shade | Privacy curtains for cab area |

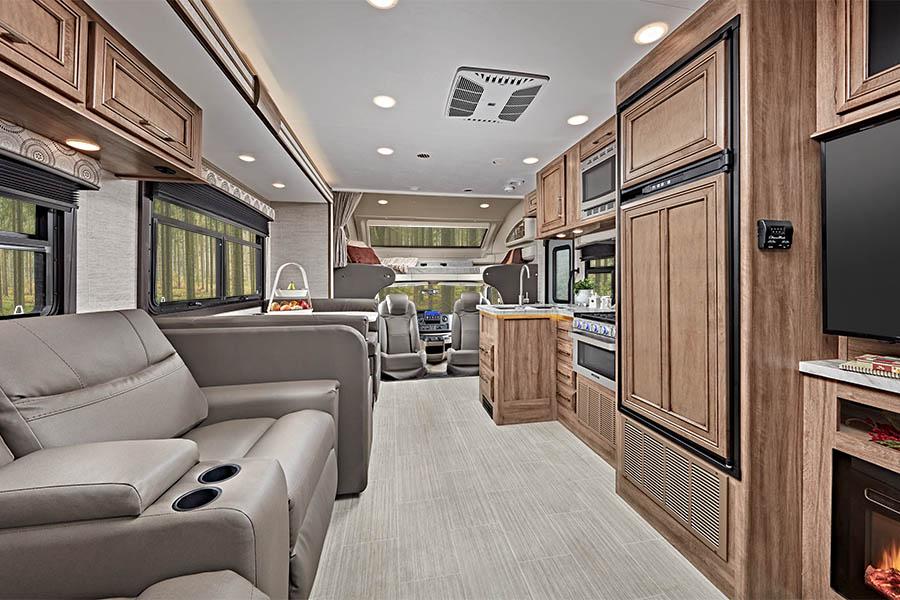

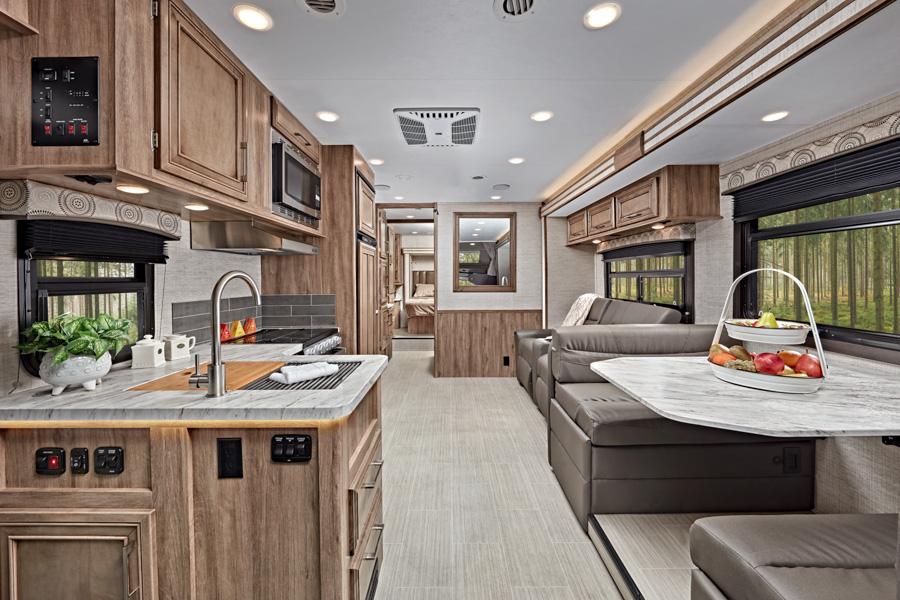

Interior

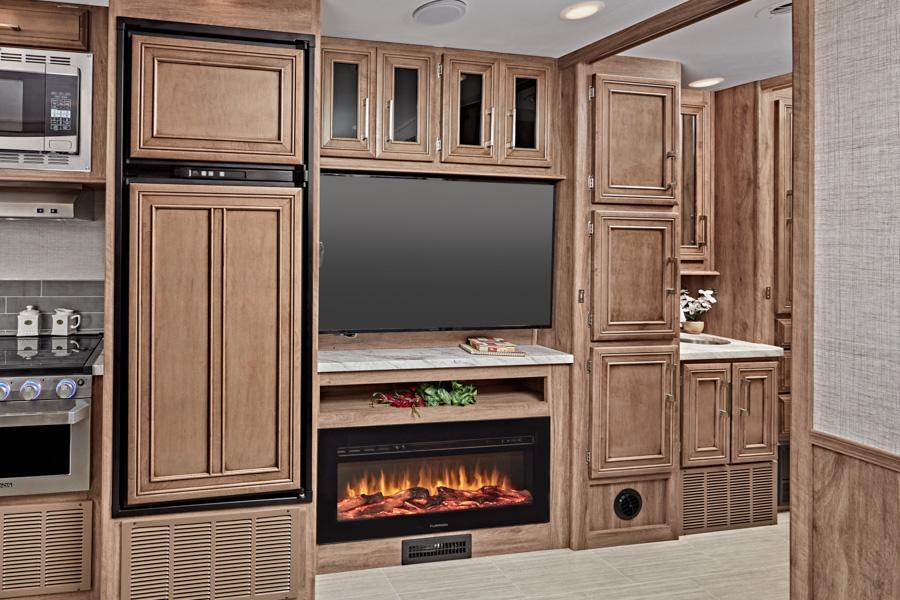

| Television - Living Room | LED HDTV in living area |
| Ceiling | 84-in. ceiling height |
| Lighting | High-intensity, recessed LED ceiling lights |
| Cabinetry | Ball-bearing drawer guides |
| Window Treatments | Pleated blackout shades |
| Command Center | Interior command center |
| Cable hookup | Cable TV hookup with RG-6 coax |

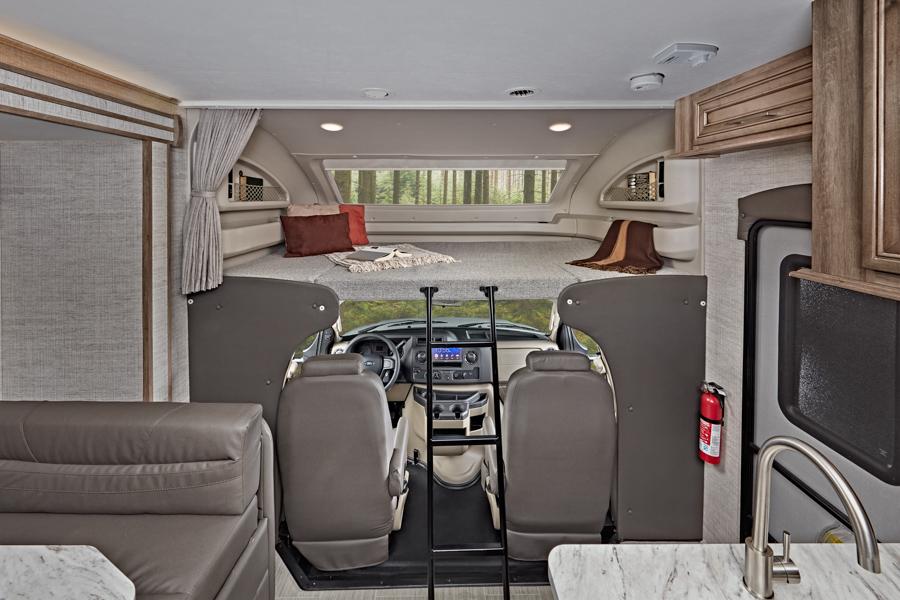

| Cab-Over Bunks | Custom-molded ABS surround in cab-over area with overhead bunk (750-lb. capacity) |
| Bunks | Bunks with industry-exclusive 300-lb. capacity each (31F) |
| Fascia | LED-lit slideout fascia |

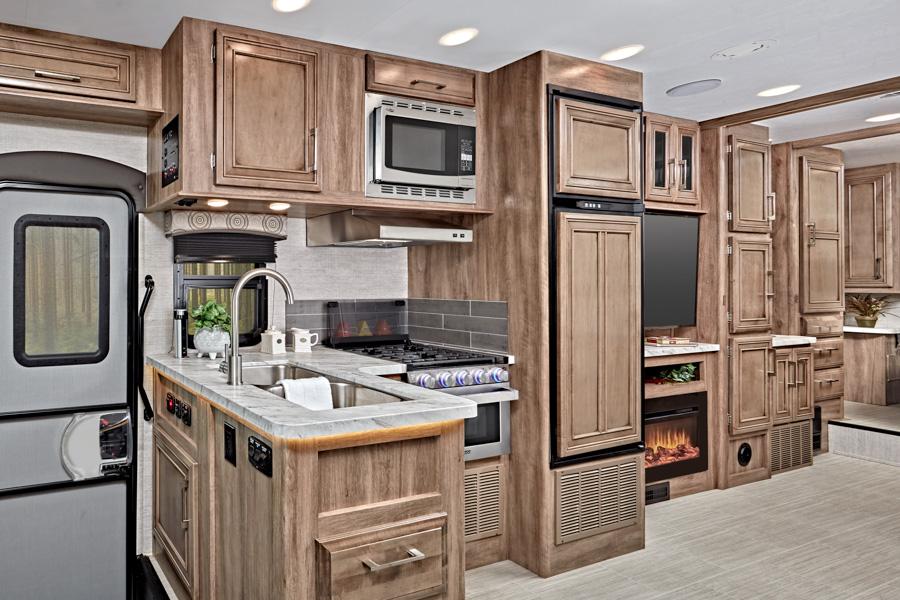

Kitchen
| Refrigerator | 8-cu. ft. gas/electric refrigerator |
| Dinette | Entegra-exclusive easy-operation legless dinette table |
| Cooktop | Furrion® all-in-one cooktop and oven |
| Microwave | Convection microwave |
| Sink | Recessed stainless-steel kitchen sink with cutting board sink cover |
| Backsplash | Decorative kitchen backsplash |
| Charging Station | Pop-up charging station with 110 outlet and USB plugs |
| Countertops | LED-lit pressed countertops |

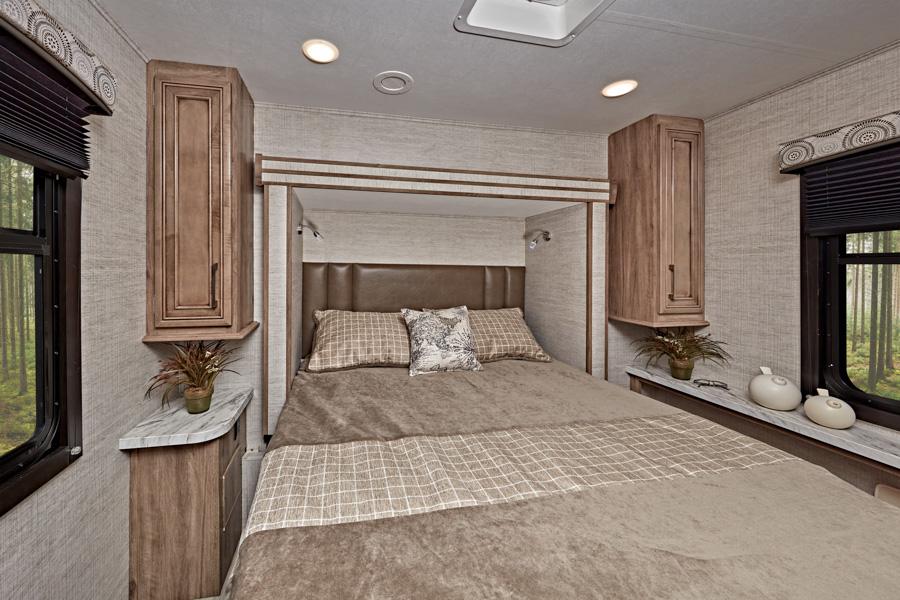

Bedroom
| Bed | Queen-sized bed with bedspread (King-sized in 27U) |
| Television | Bedroom TV prep |
| Wardrobe | Large wardrobes |

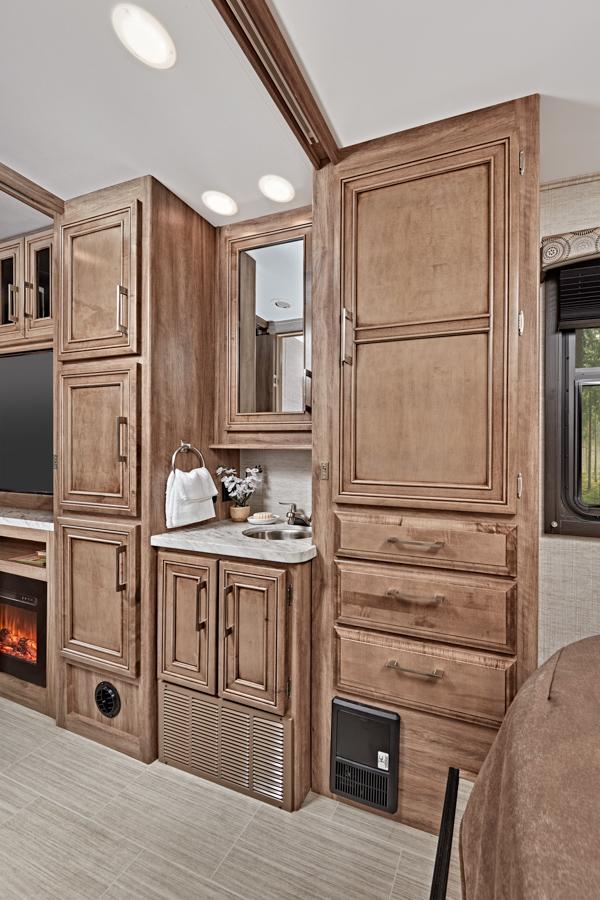

Bathroom

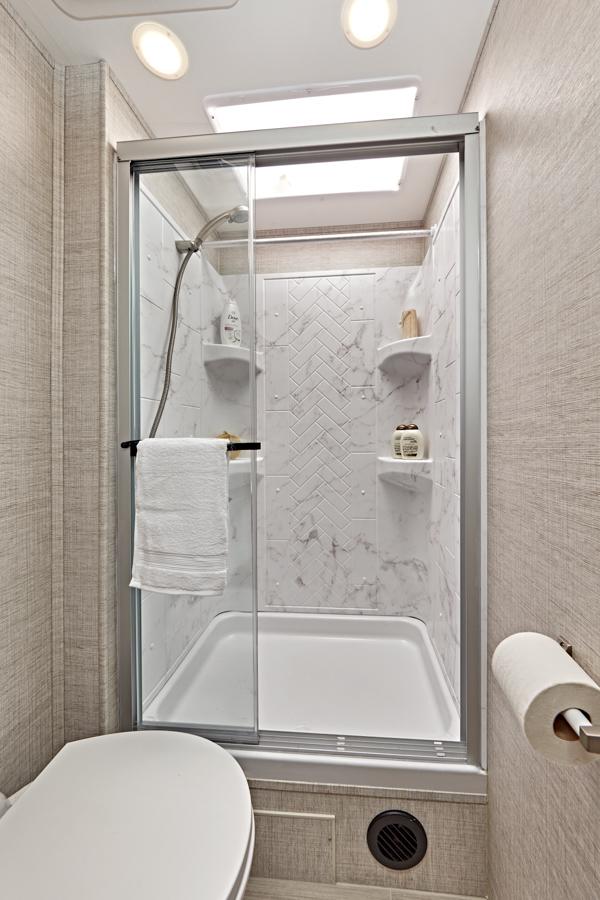

| Shower | Shower with decorative surround, skylight and light |
| Shower Door | Glass shower door |
| Sink | Recessed stainless-steel bathroom sink |
| Toilet | Porcelain toilet with foot flush |
| Vent | Powered roof vent in bathroom with wall switch |
Safety
| Seat Belts | 2-point lap safety belts in all designated seating locations (N/A 26M) |
| Safety | Driver and passenger airbags |
| Smoke Alarm | Smoke alarm |
| Carbon Monoxide Detector | Carbon monoxide detector |
Options
| Automatic Hydraulic Leveling Jacks | Automatic hydraulic leveling jacks |
| Bedroom TV | Bedroom TV |

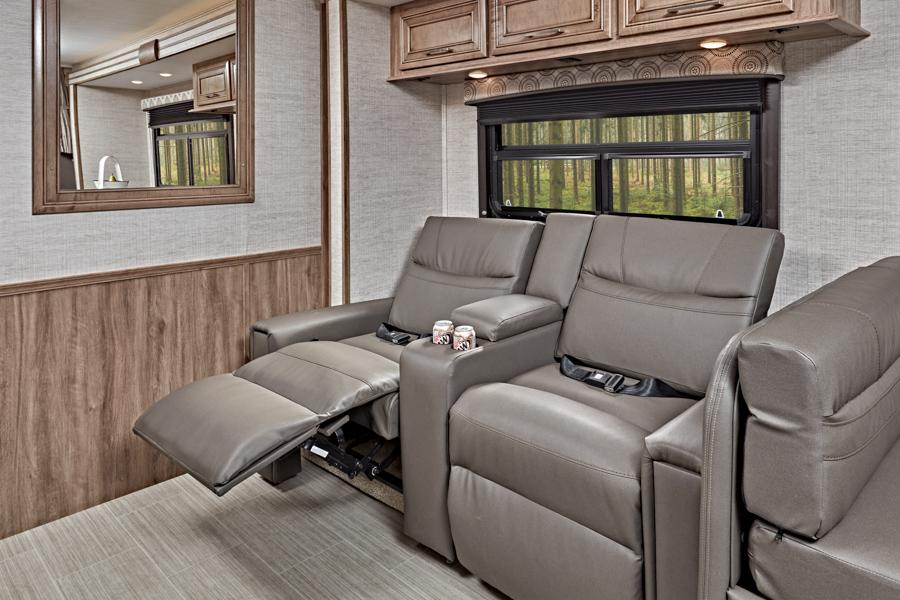

| Theater Seating | Theater seating (N/A 27U, 31F) |
| Bunk TVs | (2) 24 in. LED TV's in bunk area (31F) |
| Customer Value Package (Mandatory) | EZ-Drive, one-piece seamless fiberglass front cap, automotive-bonded panoramic window in front cap with power shade, heated holding tanks, electric patio awning with LED lights, black holding tank sprayer, Sony infotainment center with Apple CarPlay and Android Auto, backup and side-view cameras, 8 cu. ft. flush-mount refrigerator, LED TV in living area |
| Canadian Standards | Canadian standards |
| Theater Seating Option 2 | Theater seating ILO dinette (24B) |
| Shade | Folding windshield sun shade |
Décor Options
Entegra Coach peace of mind
At Entegra Coach, excellence doesn't end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry's highest level of service.
Entegra Coach's industry leading 2-year limited warranty is double that of any other manufacturer and offers more coverage. On top of this 2 year warranty, Entegra Coach supports our customers with a 3-year limited structural warranty for areas like the roof, walls and floors. This warranty comes directly from us, because we believe in the products we build and care for all owners as members of our Entegra Coach family. Ask your local Entegra Coach dealer for full warranty details.
Detail
The Odyssey has the classic Class C body, but there’s nothing old fashioned about it. While it’s our most approachable Class C, we’ve taken ideas, designs and styles you’ve come to expect from Entegra Coach and built them into the Odyssey—a one-piece seamless front cap with automotive-bonded panoramic front window, rear back-up camera and monitor and frameless windows, just to name a few. Odyssey is built on the rugged Ford® E-450 chassis and is equipped with E-Z™ Drive for an especially stabilized, comfortable ride.
