THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.

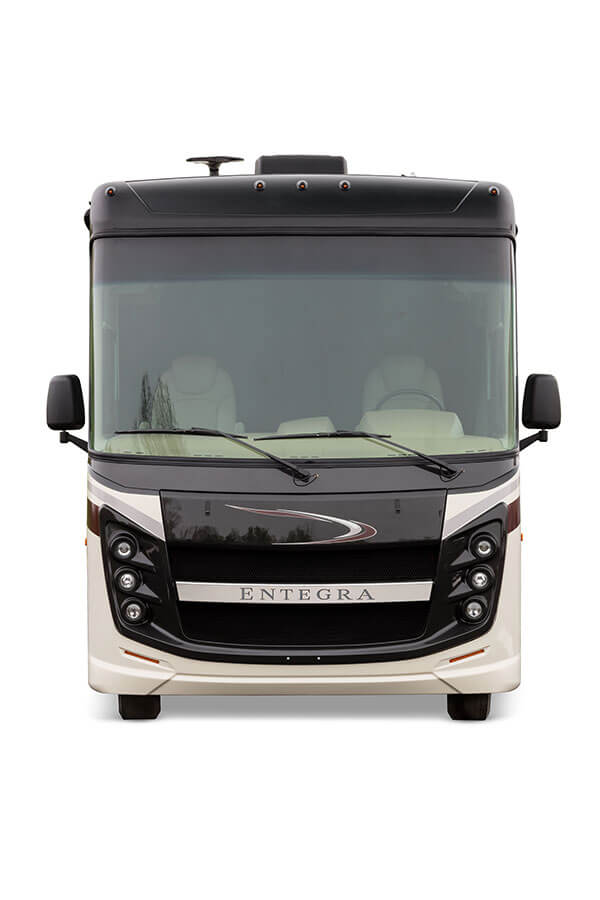

2020 Vision

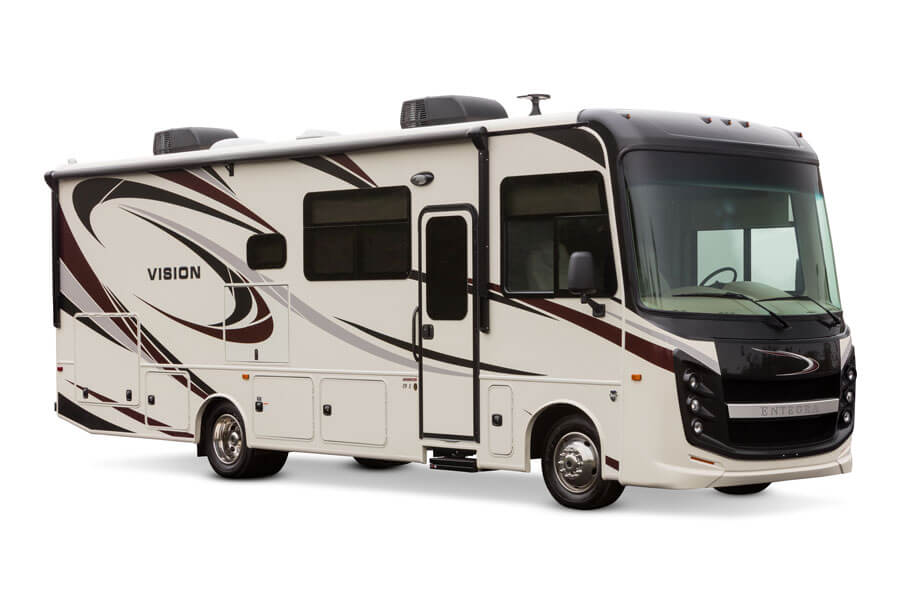

This Class A motorhome provides many of the luxurious features of our diesel lineup in a gas coach-- standard. The 2020 Vision offers an updated exterior graphics package with eye popping attention to detail and bold lines. Vision is built using timeless techniques, high-end materials, and smart design. The E-Z Drive Elite package on the Vision includes a computer-balanced driveshaft, jounce bumpers, heavy-duty front and rear stabilizer bars, and SACHS shocks for precise handling and renowned stability.
Brochure

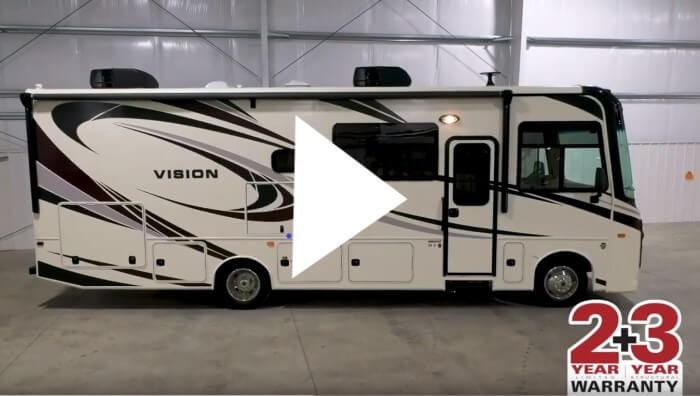

Product Video
.JPG)
2020 Vision

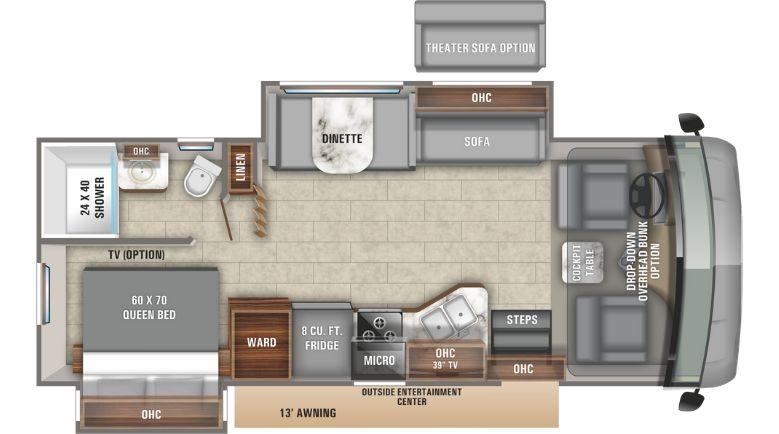

Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2020 Vision|26X
Specs
| Gross Vehicle Weight Rating (lbs) | 16,000 |
| Gross Combined Weight Rating (lbs) | 23,000 |
| Front Gross Axle Weight Rating (lbs) | 6,500 |
| Rear Gross Axle Weight Rating (lbs) | 11,000 |
| Tag Axle Gross Weight Rating (lbs) | N/a |
| Exterior Length | 28' 5" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 5" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 53 |
| Grey Waste Water Capacity (gals) | 40 |
| Black Waste Water (gals) | 32 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 178" |

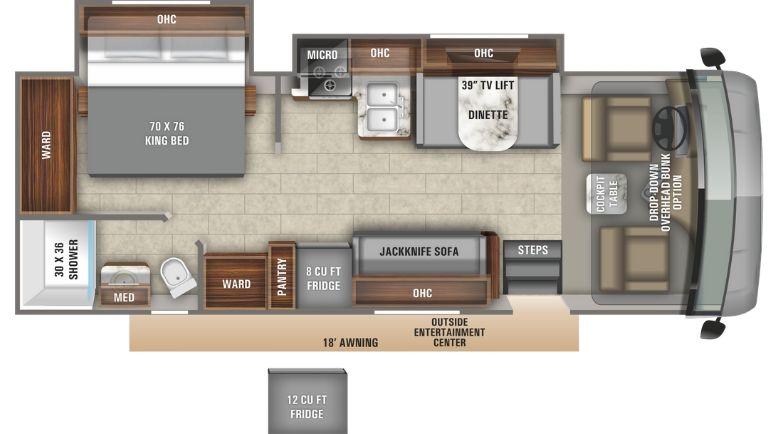

2020 Vision|27A
Specs
| Gross Vehicle Weight Rating (lbs) | 18,000 |
| Gross Combined Weight Rating (lbs) | 23,000 |
| Front Gross Axle Weight Rating (lbs) | 7,000 |
| Rear Gross Axle Weight Rating (lbs) | 12,000 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 29' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 5" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 50 |
| Black Waste Water (gals) | 49 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 190" |
2020 Vision|29F
Specs
| Gross Vehicle Weight Rating (lbs) | 18,000 |
| Gross Combined Weight Rating (lbs) | 23,000 |
| Front Gross Axle Weight Rating (lbs) | 7,000 |
| Rear Gross Axle Weight Rating (lbs) | 12,000 |
| Tag Axle Gross Weight Rating (lbs) | N/a |
| Exterior Length | 32' 2" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 5" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 40 |
| Black Waste Water (gals) | 49 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 190" |

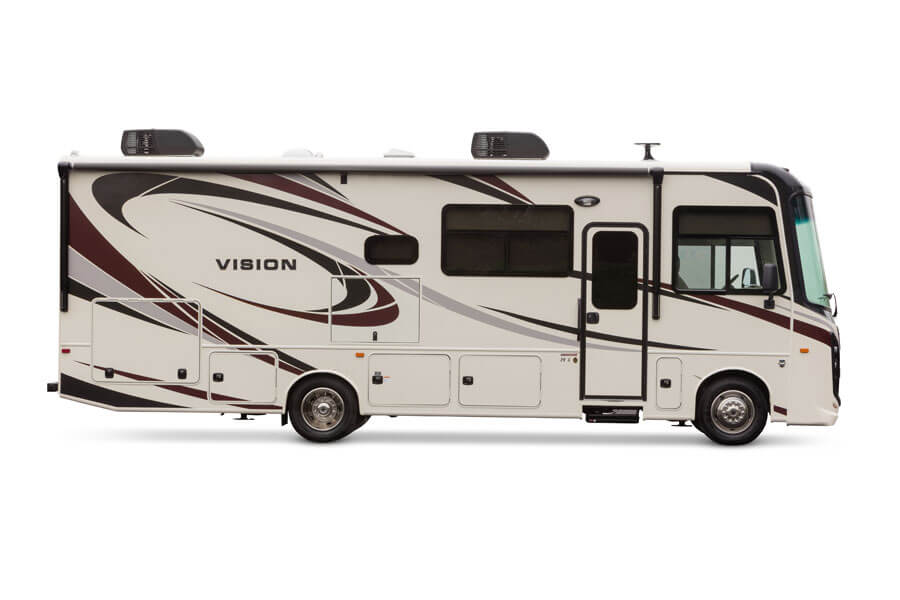

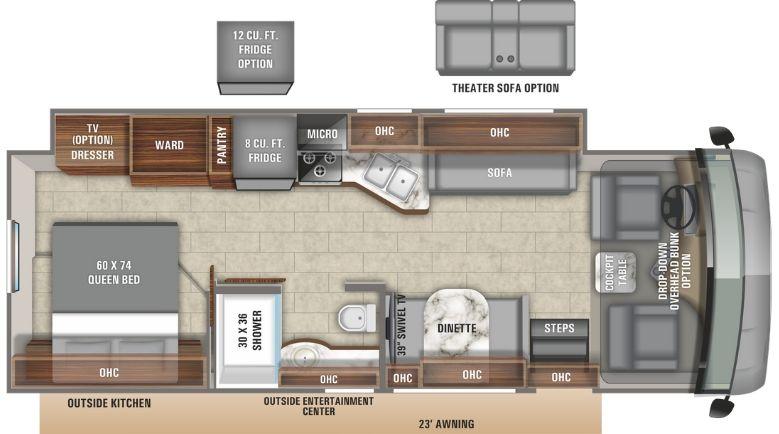

2020 Vision|29S
Specs
| Gross Vehicle Weight Rating (lbs) | 18,000 |
| Gross Combined Weight Rating (lbs) | 23,000 |
| Front Gross Axle Weight Rating (lbs) | 7,000 |
| Rear Gross Axle Weight Rating (lbs) | 12,000 |
| Tag Axle Gross Weight Rating (lbs) | N/a |
| Exterior Length | 31' 4" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 5" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 40 |
| Black Waste Water (gals) | 50 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 190" |

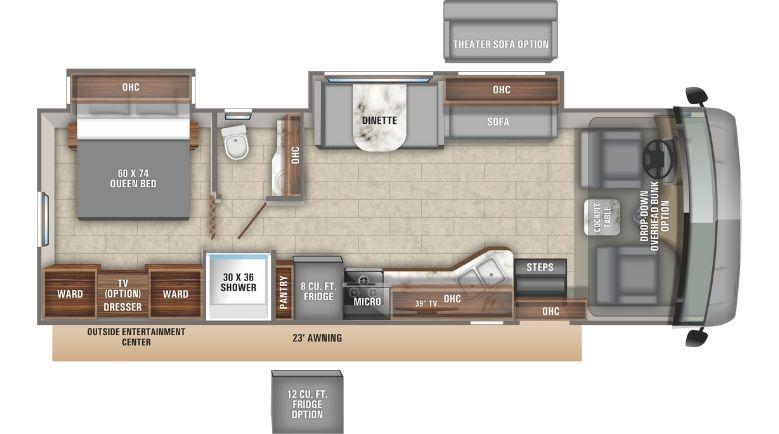

2020 Vision|31V
Specs
| Gross Vehicle Weight Rating (lbs) | 18,000 |
| Gross Combined Weight Rating (lbs) | 23,000 |
| Front Gross Axle Weight Rating (lbs) | 7,000 |
| Rear Gross Axle Weight Rating (lbs) | 12,000 |
| Tag Axle Gross Weight Rating (lbs) | N/a |
| Exterior Length | 32' 2" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 5" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 40 |
| Black Waste Water (gals) | 50 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 190" |
All Floorplans
2020 Vision | 26X
2020 Vision | 27A
2020 Vision | 29F
2020 Vision | 29S
2020 Vision | 31V
360°

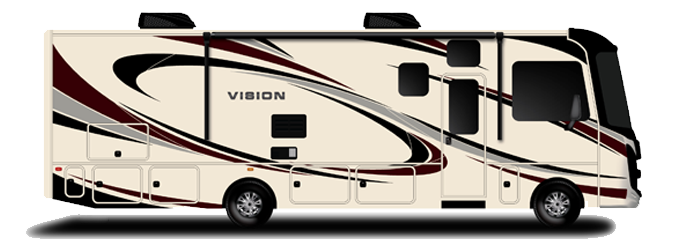

Exterior Graphics
Standards & Options
Chassis
| Alternator | 2019 chassis-175 amp alternator; 2020 chassis- 210 amp alternator |
| Braking System | Front and rear disc, four-wheel anti-lock brakes |
| Chassis | Ford F53 16,000-lb (26X)/18,000-lb (29S, 31V)/20,500-lb (31R) GVWR chassis |
| Chassis Battery | 12V chassis battery |
| Engine | 2019 chassis- 6.8L Triton V-10 320 HP gas engine with electronic fuel injection and 460 ft.-lb torque; 2020 chassis- 7.3L V-8 350HP engine with 468 ft.-lb torque |
| Hitch | 5,000-lb. rear hitch receiver with dual connector and Seven-pin plug |
| Tires | 19.5-inch Michelin radial tires |
| Transmission | 6-speed automatic TorqShift transmission with overdrive and tow haul mode |
| E-Z Drive | Computer-balanced driveshaft, jounce bumpers, heavy duty front and rear stabilizer bars, SACHS shocks |
Construction
| Insulation | Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls) |
| Roof | Seamless crowned fiberglass roof |
Heat, AC, Water & Power
| Air Conditioning | 15,000-BTU A/C w/ heat pump & 13,500-BTU A/C (NA 26X). 15,000-BTU A/C (1) (26X only) |
| Batteries | 12V house battery |
| Heating System | Auto-ignition, 31,000-BTU ducted furnace |
| Inverter | 1,000-watt inverter |
| Propane | 56-lb., 16.5-gallon propane tank |
| Water Filtration | Water filtration system |
| Water Heater | 6-gallon gas/electric water heater |
| Water Pump | 12V demand water pump |
| Generator | Onan® Marquis Gold Genset 5,500-watt generator with auto-gen start (4,000-watt on 26X) |
Exterior
| Exterior Walls | Cream, high-gloss gel coat fiberglass walls |
| Front/Rear Cap | Seamless, one-piece front cap w/partial paint |

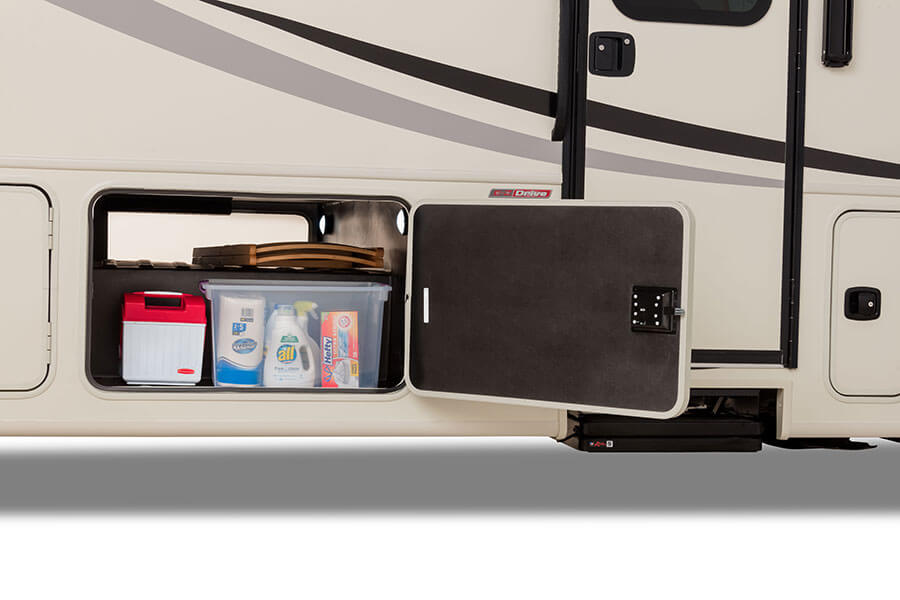

| Cargo Features | Lockable pass-through storage compartments with side hinged slam-latch doors |
| Entrance Door | Entrance door with industry’s largest travel view window and shade |
| Entrance Steps | Electric-powered, double-step entry |
| Exterior | Vinyl graphics |
| Entertainment | Exterior entertainment center w/LED TV mounted on swivel bracket & DVD/AM/FM radio & speakers |
| LED Lights | LED marker lights |
| Outside Shower | Outside shower |
| Patio Awnings | Electric patio awning with LED lights |
| Power Cord | 50-amp electrical service cord (NA 26X)/ 30-amp electrical service cord (26X only) |
| Satellite Dish | Prep for satellite dish |
| Slideout Awnings | Slideout topper awnings |
| Third Brake Light | Third brake light |
| Windows | Frameless windows |

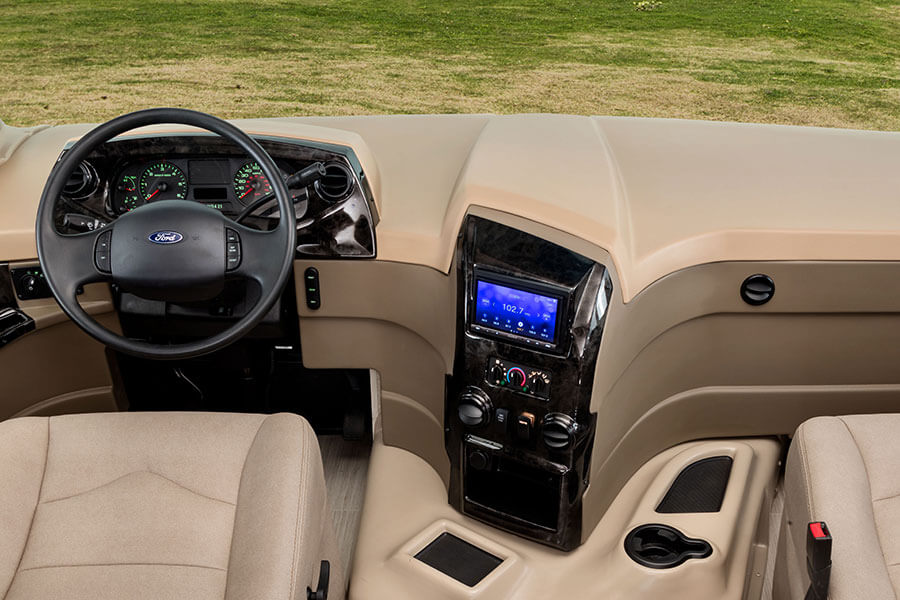

Cockpit
| Cameras | Backup and side-view cameras with monitor |
| Driver / Passenger Seats | Six-way power driver seat |
| Flooring | Linoleum flooring |
| Infotainment System(s) | Sony Infotainment Dash Radio w/GPS |
| Leveling System | Automatic hydraulic leveling jacks |
| Side Consoles | Driver/passenger cockpit table |
| Visors & Privacy Shade | Power sun shade on front windshield |
| Windshield | 120" Panoramic windshield |
Interior
| Lighting System | High-intensity recessed LED ceiling lights |
| Window Treatments | Black out night roller shades/ decorative window valance |
| Television - Living Room | LED living room TV |
| Cabinetry | Hardwood cabinetry |
| Fascia | Hardwood fascia |

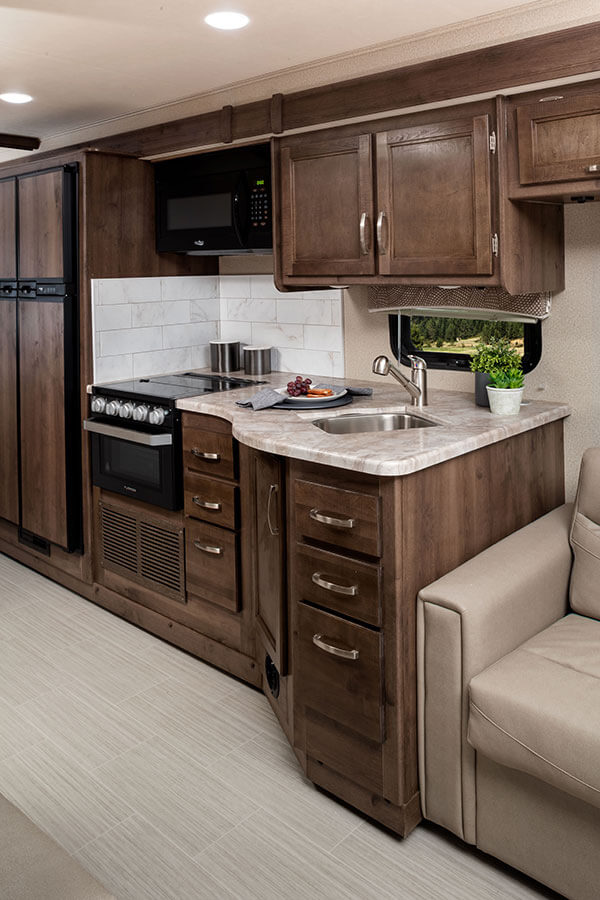

Kitchen
| Dinette | Entegra-exclusive easy operation legless dinette table |
| Drawer Guides | Ball-bearing drawer guides |
| Countertops | Pressed Kitchen countertops with large double bowl stainless sink |
| Microwave | Residential microwave |
| Refrigerator | 8 cu. ft. gas/electric refrigerator |
| Cooktop | Furrion all-in-one cooktop and oven |
| Backsplash | Decorative tile kitchen backsplash |
Bedroom

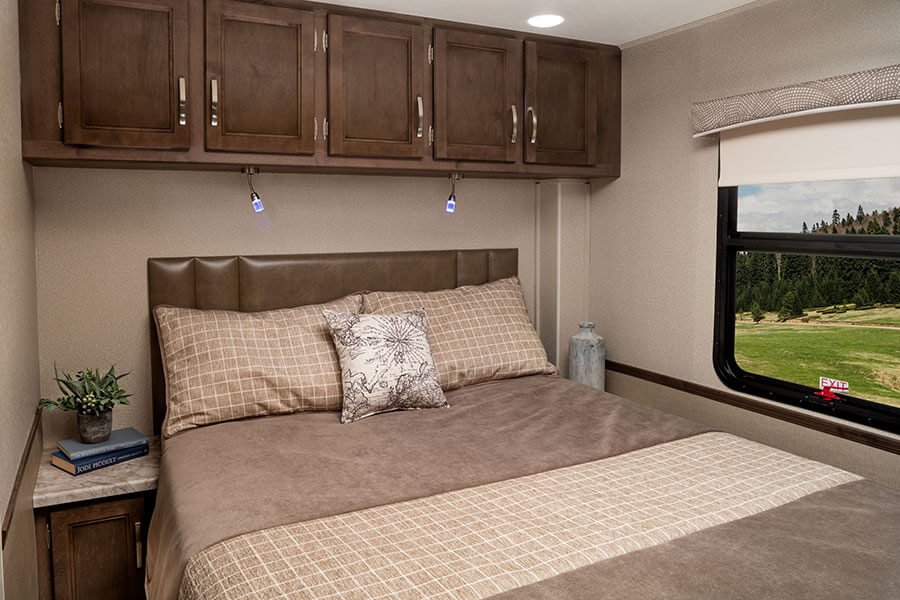

| Bed | Queen-sized bed with bedspread |
Bathroom

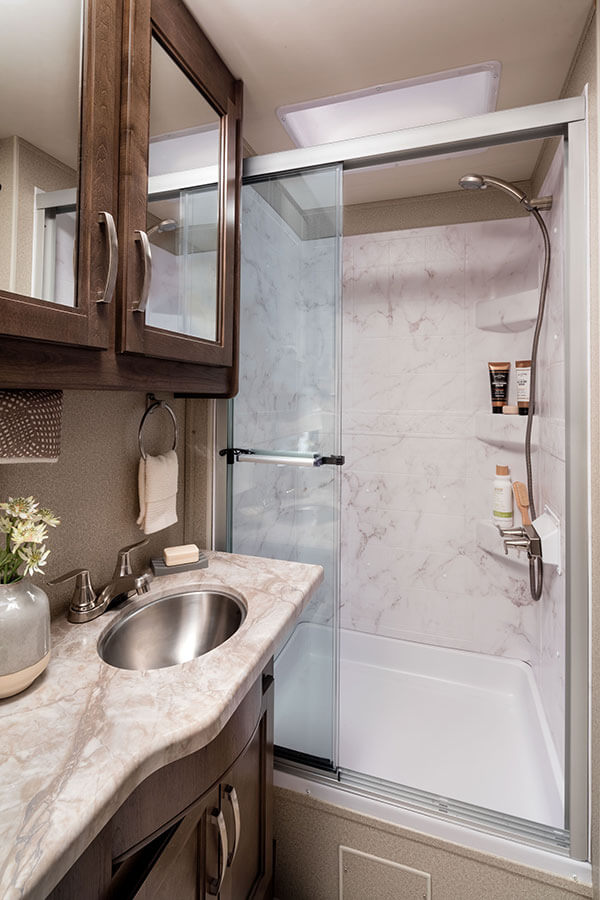

| Shower | Shower with glass door, skylight and light |
| Vent | Bathroom powered roof vent with wall switch |
| Toilet | Toilet with foot flush |
Safety
| Seat Belts | Seat belts in every designated seating position |
Options
| Canadian Standards | Canadian Standards - CSA |
| Customer Value Package (Mandatory) | 1000 Watt Inverter, Backup & Sideview cameras & Monitor, Electric Awning a/ LED Lights, Exterior Entertainment Center w/ TV & Single Disc DVD/FM Radio Speakers, Infotainment System, LED TV in Living Room, Roller Shades, Seamless Crowned Fiberglass Roof, Slideout Cover Awnings |

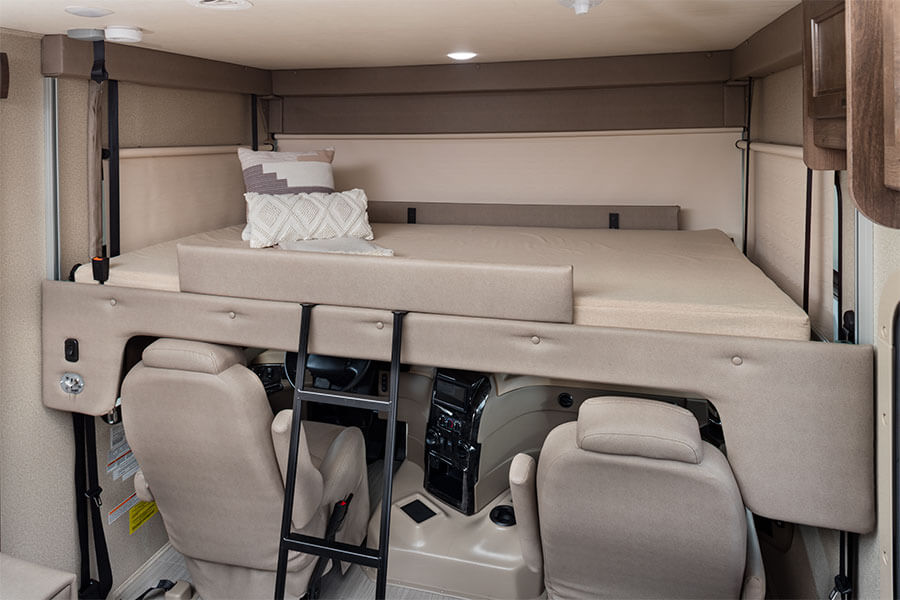

| Overhead Bunk | Front Overhead Bunk |
| Theater Seating | Sofa Theater Seating |
| Refrigerator | 12 Cu. Ft. 4-Door Refrigerator |
| Bedroom TV | Bedroom TV |
Décor Options
Entegra Coach peace of mind
At Entegra Coach, excellence doesn't end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry's highest level of service.
Entegra Coach's industry leading 2-year limited warranty is double that of any other manufacturer and offers more coverage. On top of this 2 year warranty, Entegra Coach supports our customers with a 3-year limited structural warranty for areas like the roof, walls and floors. This warranty comes directly from us, because we believe in the products we build and care for all owners as members of our Entegra Coach family. Ask your local Entegra Coach dealer for full warranty details.
Detail
This Class A motorhome provides many of the luxurious features of our diesel lineup in a gas coach-- standard. The 2020 Vision offers an updated exterior graphics package with eye popping attention to detail and bold lines. Vision is built using timeless techniques, high-end materials, and smart design. The E-Z Drive Elite package on the Vision includes a computer-balanced driveshaft, jounce bumpers, heavy-duty front and rear stabilizer bars, and SACHS shocks for precise handling and renowned stability.
