THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.

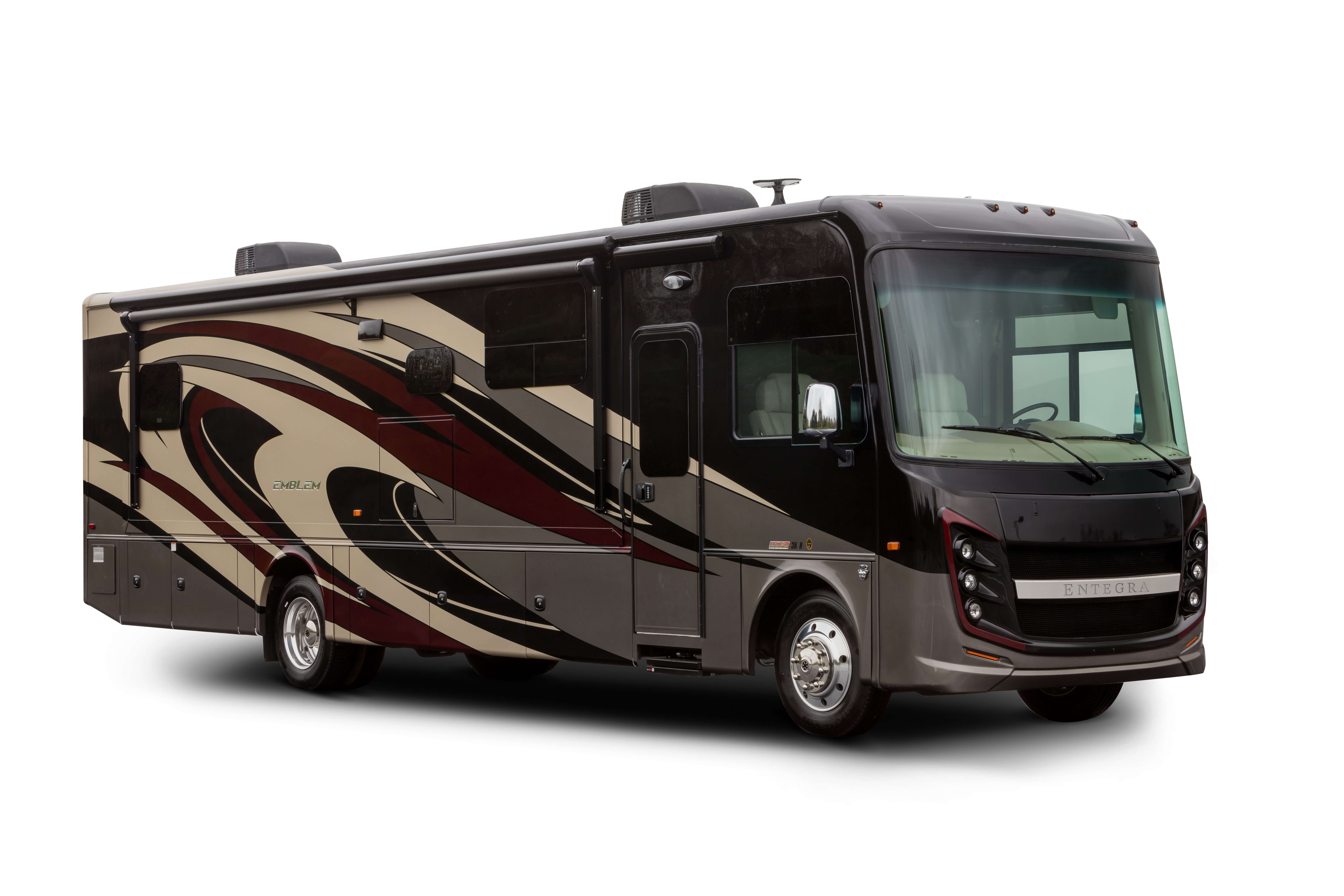

2020 Emblem
Balance and symmetry are the ruling characteristics of the formal design of the Emblem. Built on the Ford F53 chassis, the Emblem features the E-Z drive Elite ride and handling package. This standard package includes heavy-duty front and rear stabilizer bars, a computer-balanced driveshaft, jounce bumpers and SACHS shocks for an exceptional ride, even on rugged terrain. In 2020, LED lighting throughout the coach illuminates the exquisite finishes, bringing light to your journey and comfort always ahead.
Brochure

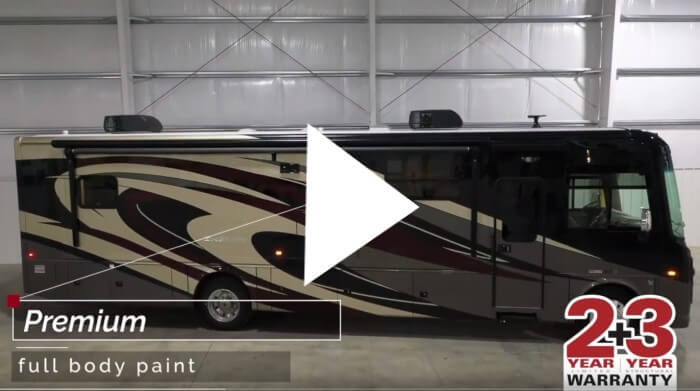

Product Video
.jpg)
2020 Emblem
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2020 Emblem|36H
Specs
| Gross Vehicle Weight Rating (lbs) | 24,000 |
| Gross Combined Weight Rating (lbs) | 30,000 |
| Front Gross Axle Weight Rating (lbs) | 9,000 |
| Tag Axle Gross Weight Rating (lbs) | N/a |
| Exterior Length | 38' 8" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 7" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 40 |
| Black Waste Water (gals) | 40 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 35,000 |
| Wheel Base | 252" |
| Rear Gross Axle Weight Rating (lbs) | 15,500 |
2020 Emblem|36T
Specs
| Gross Vehicle Weight Rating (lbs) | 24,000 |
| Gross Combined Weight Rating (lbs) | 30,000 |
| Tag Axle Gross Weight Rating (lbs) | N/a |
| Front Gross Axle Weight Rating (lbs) | 9,000 |
| Rear Gross Axle Weight Rating (lbs) | 15,500 |
| Exterior Length | 38' 8" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 10" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 50 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 35,000 |
| Wheel Base | 252" |

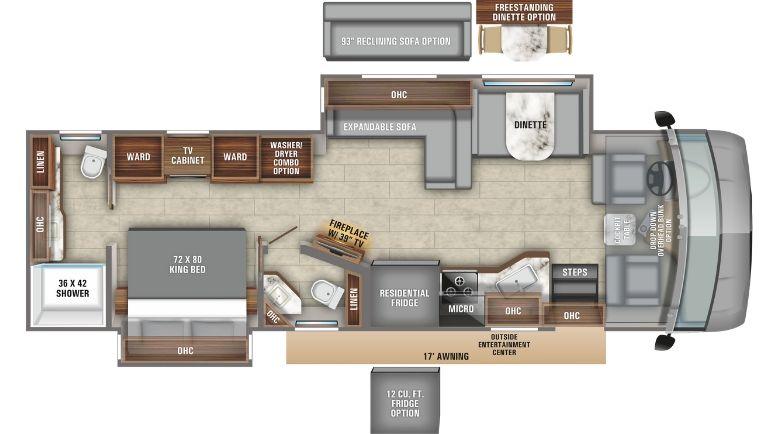

2020 Emblem|36U
Specs
| Gross Vehicle Weight Rating (lbs) | 24,000 |
| Gross Combined Weight Rating (lbs) | 30,000 |
| Front Gross Axle Weight Rating (lbs) | 9,000 |
| Rear Gross Axle Weight Rating (lbs) | 15,500 |
| Tag Axle Gross Weight Rating (lbs) | N/a |
| Exterior Length | 38' 2" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 10" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 50 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 35,000 |
| Wheel Base | 252" |
All Floorplans
2020 Emblem | 36H
2020 Emblem | 36T
2020 Emblem | 36U
360°
Exterior Graphics
Standards & Options
Chassis
| Alternator | 2019 chassis- 175 amp alternator; 2020 chassis- 210 amp alternator |
| Braking System | Front and rear disc, 4-wheel anti-lock brakes |
| Chassis | Ford F53 chassis |
| Chassis Battery | 12V chassis battery |
| Engine | 2019 chassis- 6.8L Triton V-10 320 HP gas engine with electronic fuel injection and 460 ft.-lb torque; 2020 chassis- 7.3L V-8 350HP engine with 468 ft.-lb torque |
| E-Z Drive Elite | Computer-balanced driveshaft, Variable rate front and rear jounce bumpers, heavy-duty front and rear stabilizer bars, SACHS shocks, 22.5" Michelin tires |
| Hitch | 5,000-pound rear hitch receiver with dual connector and 7-pin plug |
| Transmission | 6-speed automatic TorqShift® transmission with overdrive and tow-haul mode |
Construction
| Insulation | Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls) |
| Roof | Seamless, crowned fiberglass roof |
Heat, AC, Water & Power
| Batteries | (2) 6V AGM Coach batteries |
| Generator | Onan® Marquis Gold Genset 5,500-watt generator with auto-gen start |
| Heating System | 35,000-BTU auto-ignition ducted furnace |
| Inverter | 2000W Pure sine wave inverter |
| Propane | 56-pound, 16.5-gallon propane tank |
| Water Filtration | Water filtration system |
| Water Heater | 10 gal gas/electric water heater |
| Water Pump | 12V demand water pump |
| Air Conditioning | 15,000-BTU A/C with heat pump & 13,500-BTU A/C |
Exterior
| Exterior Walls | High-gloss gel coat fiberglass walls |
| Front/Rear Cap | One-piece fiberglass front and rear cap |

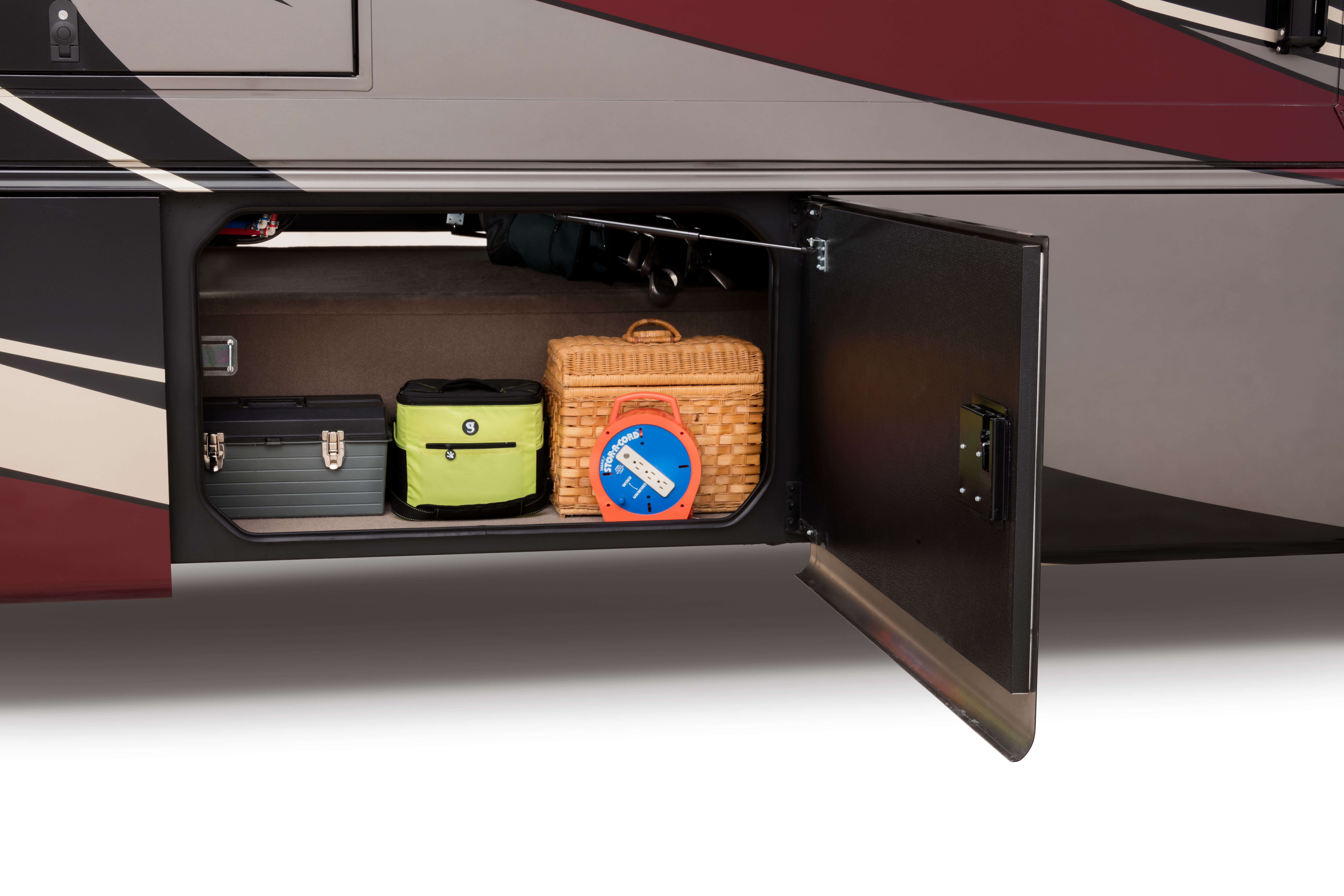

| Cargo Features | Lockable pass-through storage compartments with slam latches |
| Entrance Door | Entrance door with industry’s largest travel view window and shade/ Entrance door with large frameless window and keyless entry |
| Entrance Steps | Electric-powered entrance step |

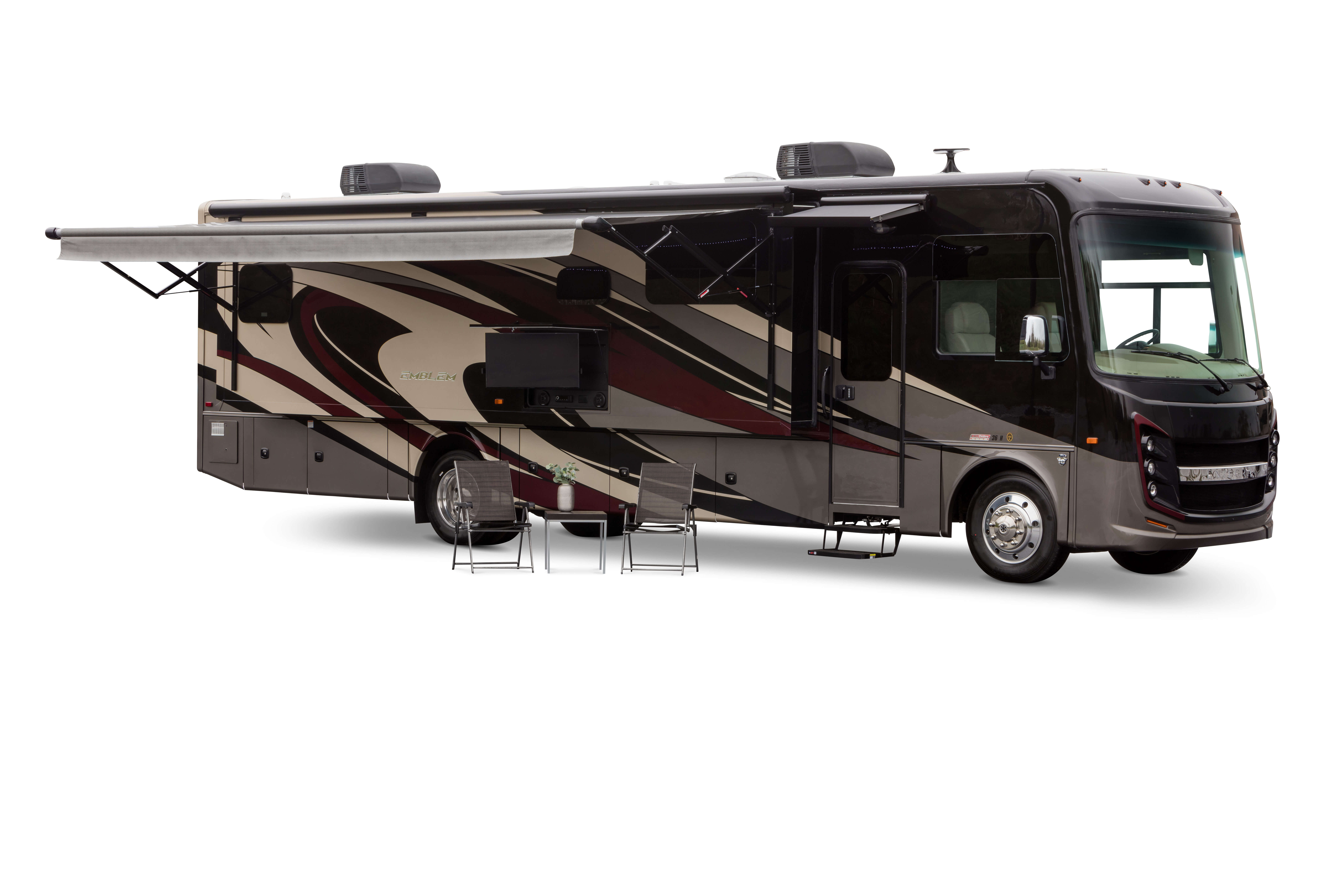

| Entertainment | Exterior entertainment center with LED TV mounted on swivel bracket and single-disc DVD/FM radio |
| Patio Awnings | Electric patio awning with LED lights |
| Power Cord | 50-amp electrical service |
| Satellite Dish | Prep for satellite dish |
| Slideout Awnings | Slideout topper awnings |
| Third Brake Light | Third brake light |
| TV Antenna | Digital antenna with signal booster |
| Windows | Frameless windows |
| Exterior | Full-body paint |
| LED Lights | LED marker lightss |
| Outside Shower | Outside shower |
Cockpit
| Cameras | Backup and side-view cameras with monitor |
| Dash | Soft-touch vinyl dash |
| Driver / Passenger Seats | 6-way power, swivel driver and passenger seats |
| Infotainment System(s) | Sony in-dash radio w/GPS |
| Leveling System | Automatic hydraulic leveling jacks |
| Side Consoles | Driver/Passenger cockpit table |
| Visors & Privacy Shade | Power sun shade on front windshield |
| Windshield | 120" Panoramic windshield |
| Flooring | Linoleum flooring |

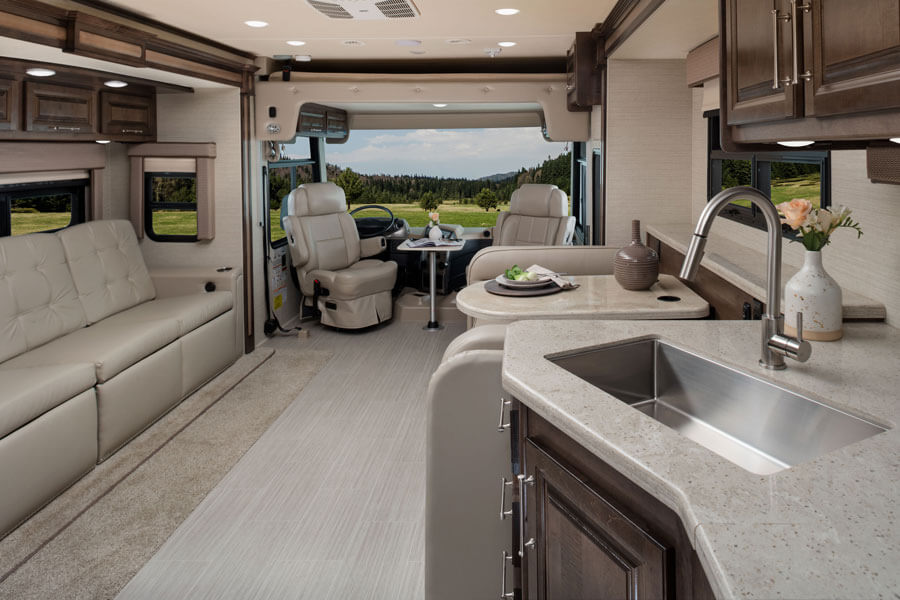

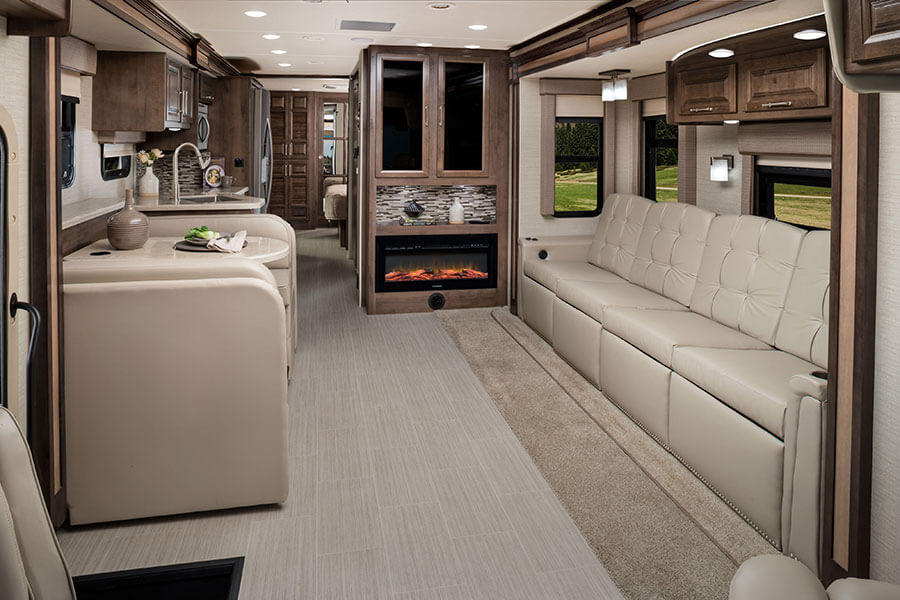

Interior
| Bunks | Bunks—300-pound rating (36T) |
| Ceiling | 84-inch interior ceiling height with padded vinyl ceiling |
| DVD Systems | (2) Blu-ray players |
| Electric Fireplace | Furrion electric fireplace |
| Fascia | LED lit hardwood fascia |
| Window Treatments | Day/night roller shades and decorative window valance |
| Television - Living Room | LED living room TV with cable TV hookup with RG-6 coax & video selector switch |
| Cabinetry | Raised-panel hardwood cabinet doors |
| Lighting System | High-intensity recessed LED ceiling lights |

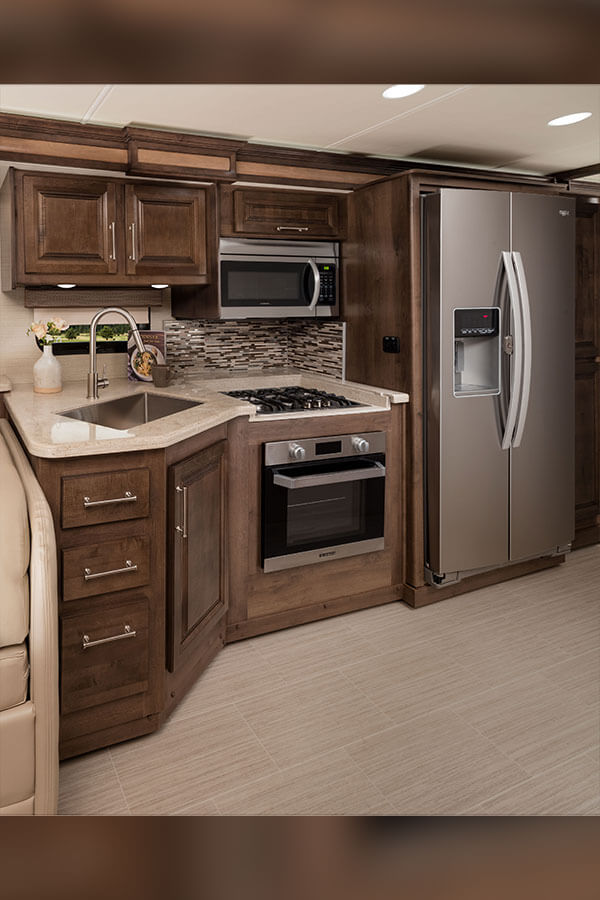

Kitchen
| Cooktop | Furrion® gas cooktop with cast iron grill |
| Dinette | Entegra-exclusive easy operation legless dinette table |
| Drawer Guides | Ball-bearing drawer guides |
| Countertops | LED lit Solid-surface kitchen countertops with integrated stainless steel sink and covers |
| Backsplash | Decorative tile kitchen backsplash |
| Microwave | Furrion convection microwave oven |
| Refrigerator | 21 cu.ft. Residential Refrigerator w/ice and water in the door |

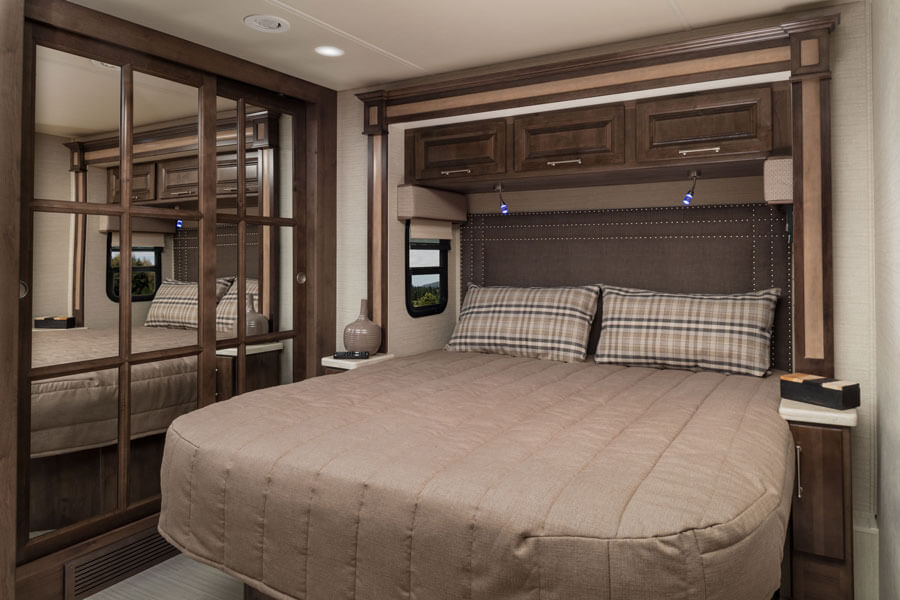

Bedroom
| Television | Bedroom 32" LED TV |
| Bed | King- sized bed with bedspread |

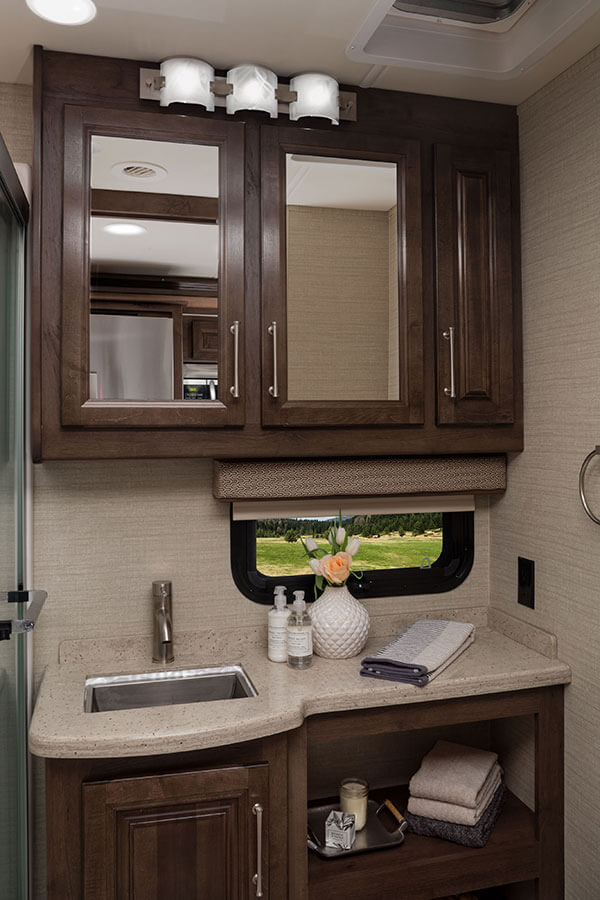

Bathroom
| Sink | Stainless steel & LED lit lavatory sink |

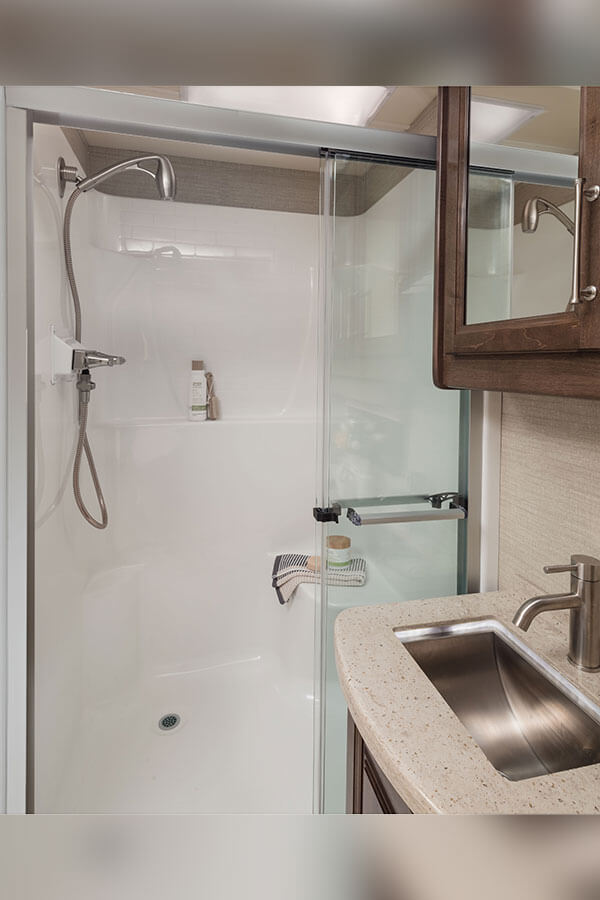

| Shower | Shower with surround, glass door, skylight and light |
| Vent | Powered roof vent in bathroom with wall switch |
| Toilet | Porcelain toilet |
Safety
| Seat Belts | Seat belts in every designated seating position |
Options
| Canadian Standards | Canadian Standards |
| Customer Value Package (Mandatory) | EZ-Drive Elite: heavy duty front stabilizer bar, rear stabilizer bar, computer-balanced driveshaft, jounce bumpers, SACHS Shocks. Automatic hydraulic leveling jacks, Sony in-dash radio w/GPS. Backup and side-view cameras with monitor. Frameless windows. Eletric patio awning with LED lights. Slideout topper awnings. Exterior entertainment center with LED TV mounted on swivel bracket and single-disc DVD/FM radio. Onan Marquis Gold Genset 5,500-watt generator with auto-gen start. 2000W pure sine w |
| Exterior Color | 3 Premium Sikkens Paint Packages: Bethpage, Spyglass, Pebble Beach |
| Freestanding Table | Freestanding table w/4 chairs (36T, 36U) |
| Oven | Stainless built-in oven |
| Overhead Bunk | Drop-down Euro-loft overhead bunk in cab area with 750 lb. capacity |
| Reclining Sofa | 120" 4 person reclining sofa (36H) |
| Reclining Sofa | 93" 3 person reclining sofa (36U) |
| Refrigerator | 12 cu.ft gas/elec refrigerator |
| Solar | Solar Prep |
| Theater Seating | Power Sofa Theater Seating |
| Washer/Dryer - Combination | Combination Washer/Dryer |
| Washer/Dryer - Stackable | Stackable Washer/Dryer (36H) |
Décor Options
Entegra Coach peace of mind
At Entegra Coach, excellence doesn't end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry's highest level of service.
Entegra Coach's industry leading 2-year limited warranty is double that of any other manufacturer and offers more coverage. On top of this 2 year warranty, Entegra Coach supports our customers with a 3-year limited structural warranty for areas like the roof, walls and floors. This warranty comes directly from us, because we believe in the products we build and care for all owners as members of our Entegra Coach family. Ask your local Entegra Coach dealer for full warranty details.
Detail
Balance and symmetry are the ruling characteristics of the formal design of the Emblem. Built on the Ford F53 chassis, the Emblem features the E-Z drive Elite ride and handling package. This standard package includes heavy-duty front and rear stabilizer bars, a computer-balanced driveshaft, jounce bumpers and SACHS shocks for an exceptional ride, even on rugged terrain. In 2020, LED lighting throughout the coach illuminates the exquisite finishes, bringing light to your journey and comfort always ahead.
