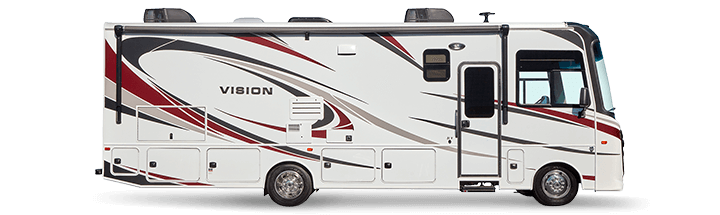

2019 Vision

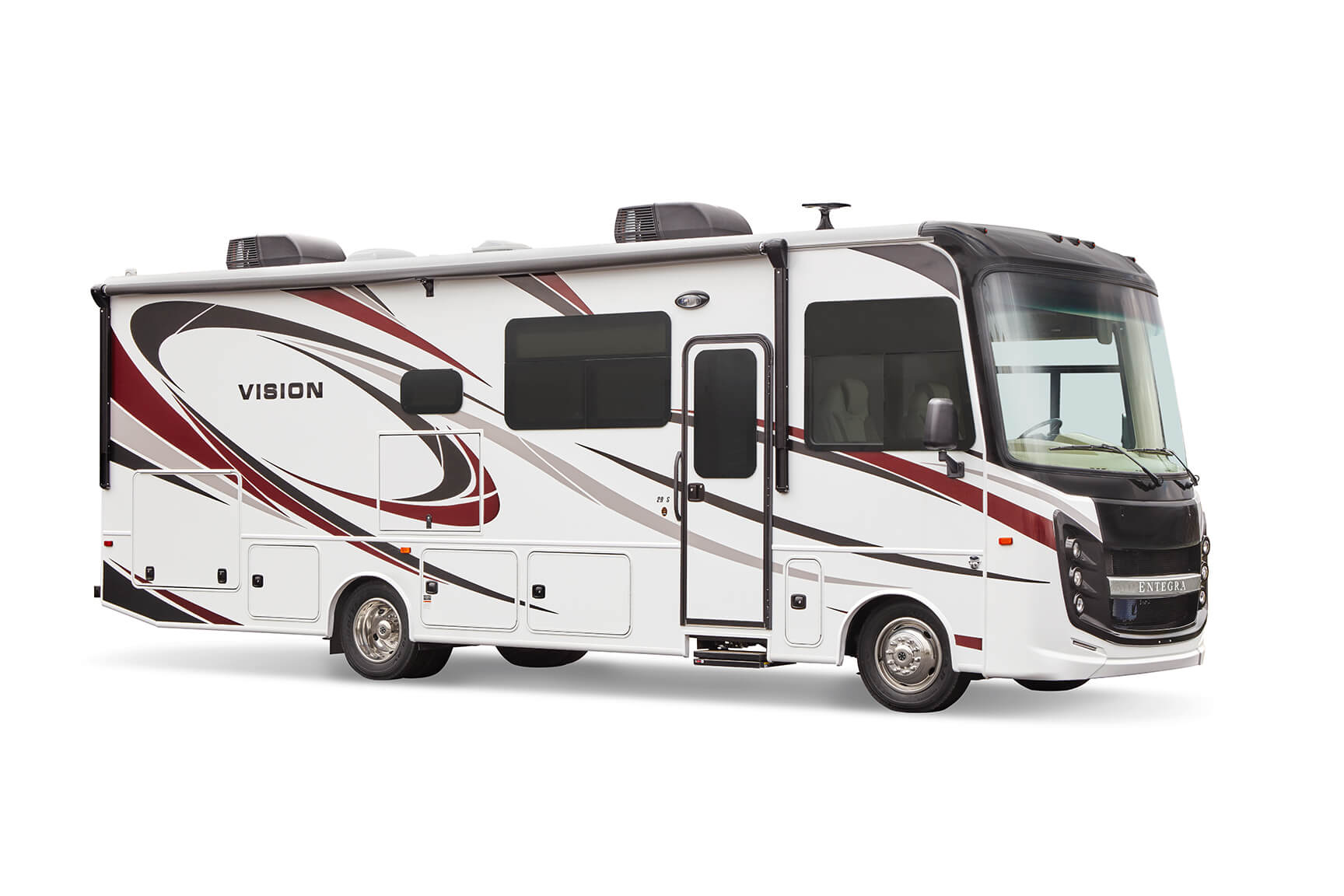

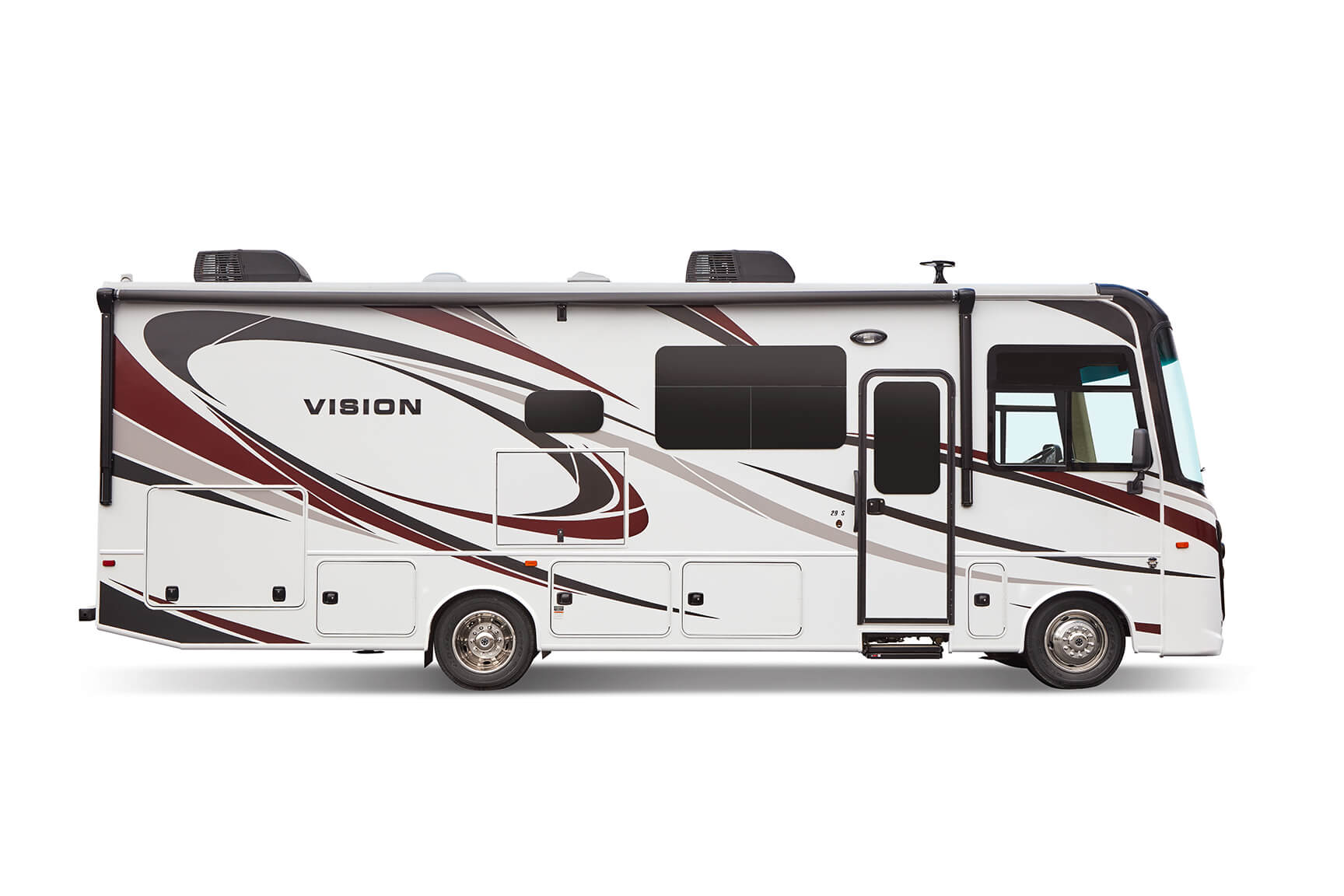

An exciting addition to the Entegra Coach lineup, this Class A motorhome is an opportunity to experience many of the luxurious features of our diesel lineup in a gas coach—standard. No corners cut here, Vision is built using the timeless techniques, high-end materials and smart design that discerning RVers have come to expect from Entegra Coach.
Brochure
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave

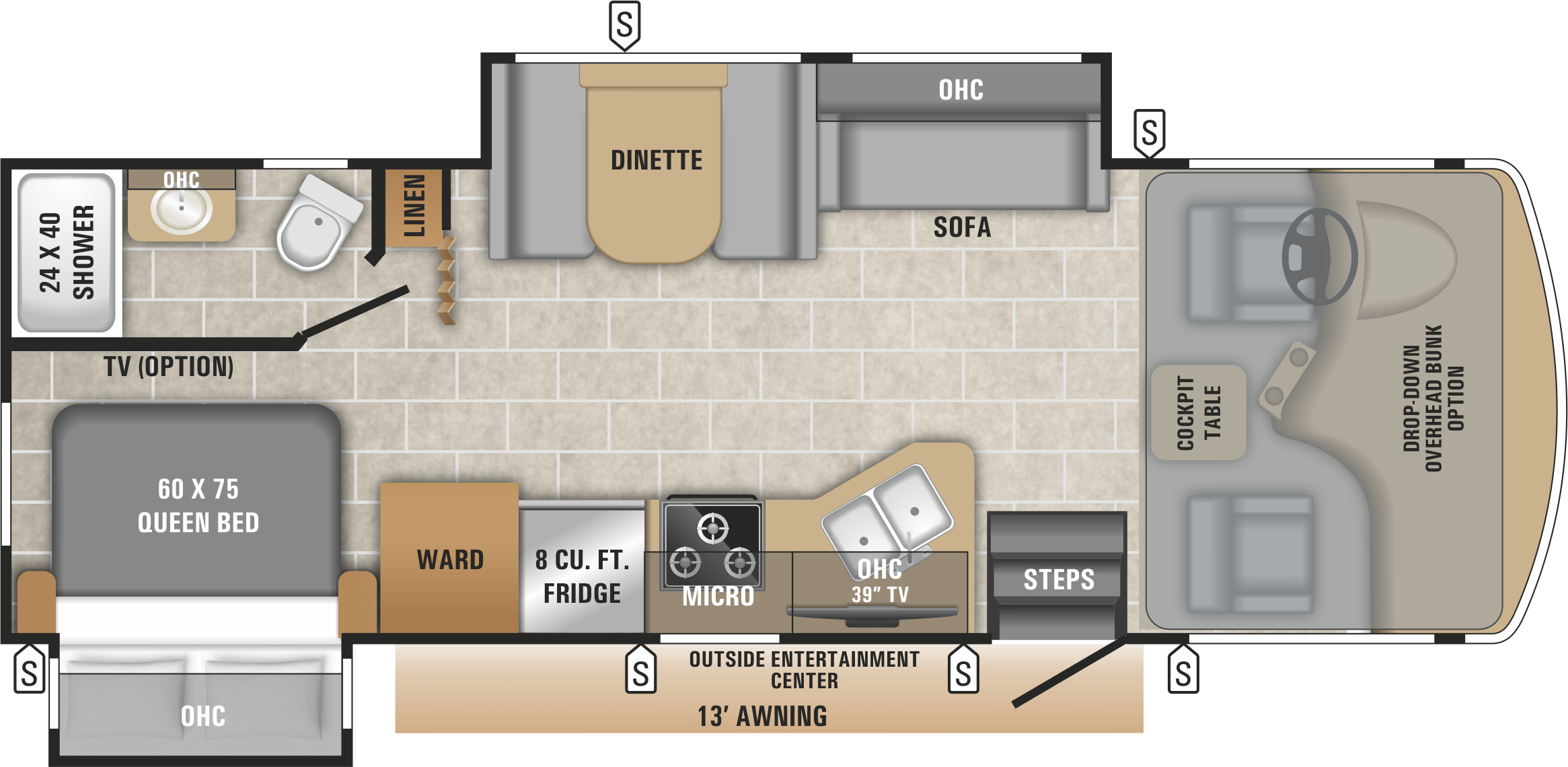

2019 Vision|26X
Specs
Exterior Length | 28' |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 12' 5" |
Interior Height | 84" |
Wheel Base | 178 |
Fresh Water Capacity (gals) | 53 |
Grey Waste Water Capacity (gals) | 22 |
Black Waste Water (gals) | 32 |
Gross Vehicle Weight Rating (lbs) | 16000 |
Gross Combined Weight Rating (lbs) | 23000 |
Front Gross Axle Weight Rating (lbs) | 6500 |
Rear Gross Axle Weight Rating (lbs) | 11000 |
Fuel Tank Capacity (gals) | 80 |
Furnace (BTU Output) | 30000 |

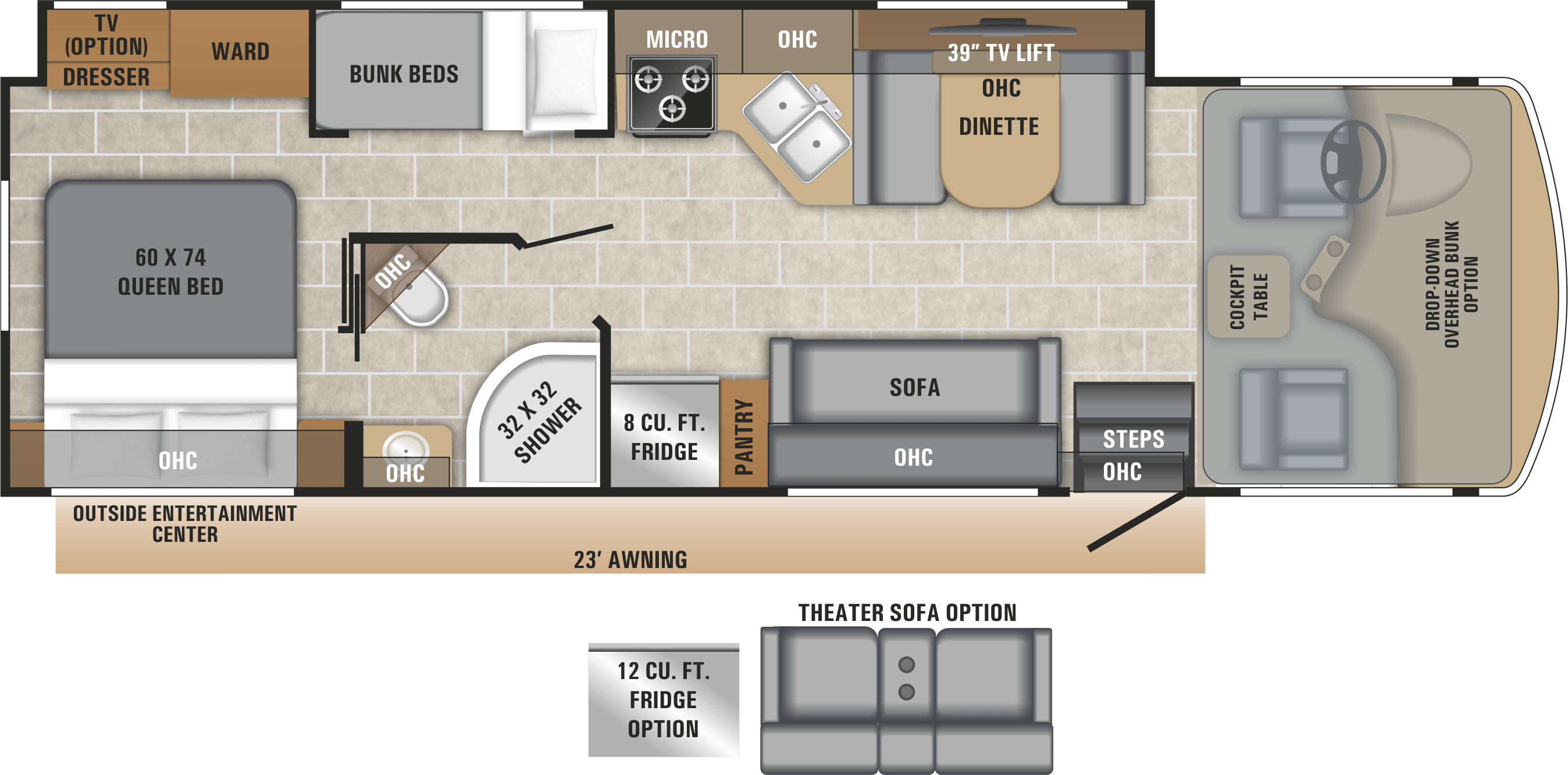

2019 Vision|29F
Specs
Gross Vehicle Weight Rating (lbs) | 18000 |
Gross Combined Weight Rating (lbs) | 23000 |
Front Gross Axle Weight Rating (lbs) | 7000 |
Rear Gross Axle Weight Rating (lbs) | 12000 |
Exterior Length | 32' 3" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 12' 5" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 101 |
Grey Waste Water Capacity (gals) | 40 |
Black Waste Water (gals) | 49 |
Fuel Tank Capacity (gals) | 80 |
Furnace (BTU Output) | 30000 |
Wheel Base | 190 |

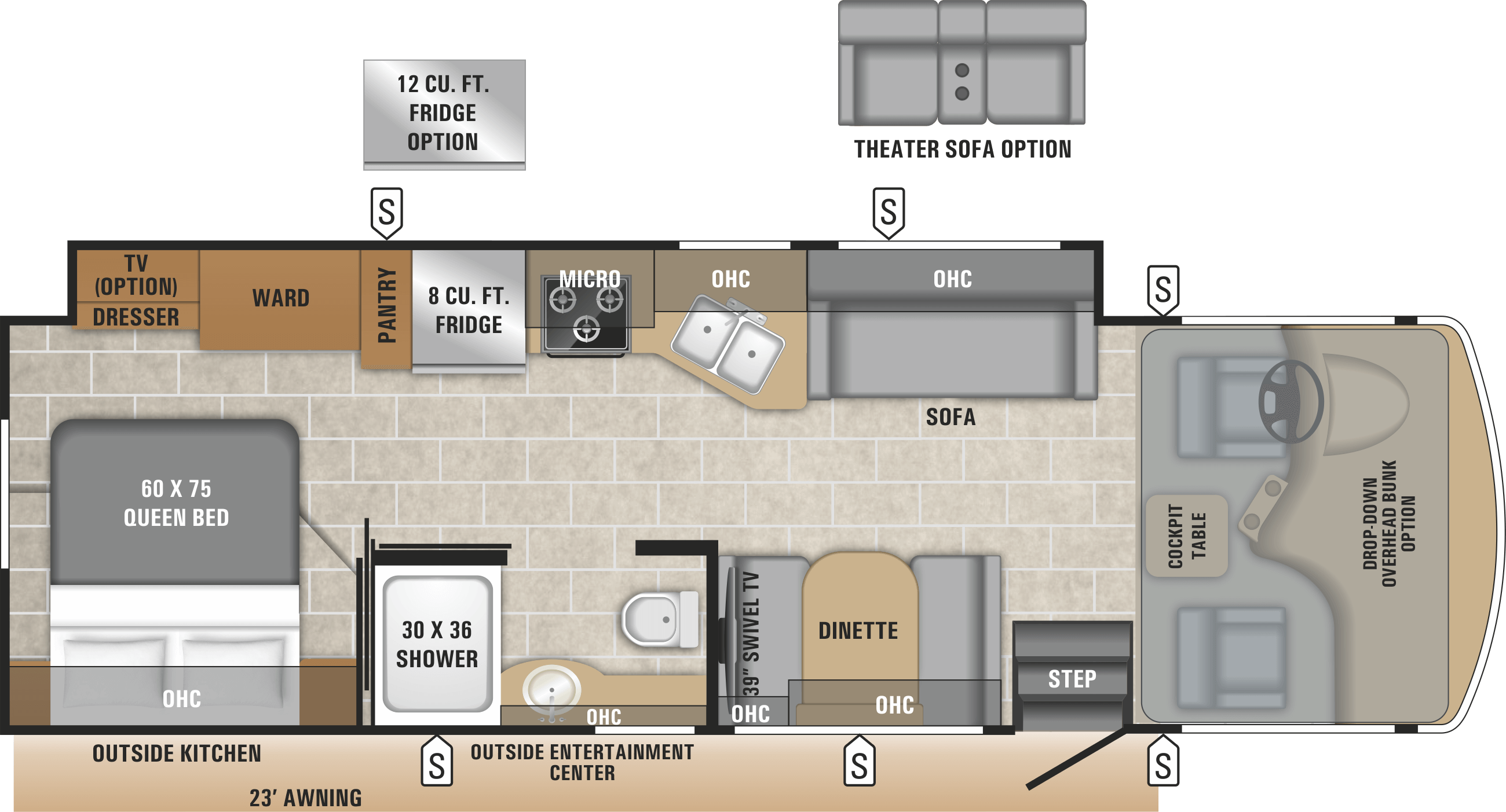

2019 Vision|29S
Specs
Exterior Length | 31' 4" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 12' 5" |
Interior Height | 84" |
Wheel Base | 190 |
Fresh Water Capacity (gals) | 72 |
Grey Waste Water Capacity (gals) | 49 |
Black Waste Water (gals) | 50 |
Gross Vehicle Weight Rating (lbs) | 18000 |
Gross Combined Weight Rating (lbs) | 23000 |
Front Gross Axle Weight Rating (lbs) | 7000 |
Rear Gross Axle Weight Rating (lbs) | 12000 |
Fuel Tank Capacity (gals) | 80 |
Furnace (BTU Output) | 30000 |

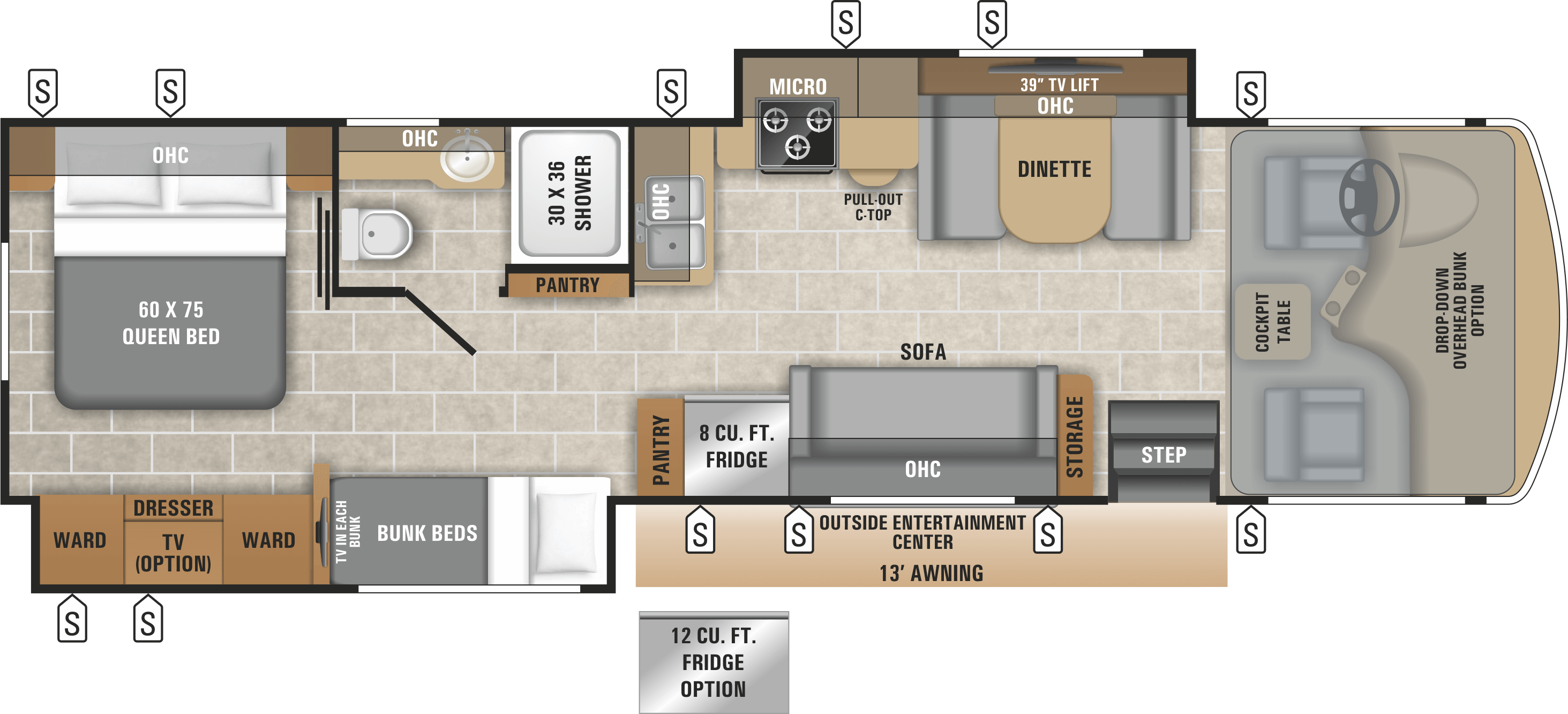

2019 Vision|31R
Specs
Exterior Length | 34' 5" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 12' 5" |
Interior Height | 84" |
Wheel Base | 228 |
Fresh Water Capacity (gals) | 72 |
Grey Waste Water Capacity (gals) | 40 |
Black Waste Water (gals) | 50 |
Gross Vehicle Weight Rating (lbs) | 20500 |
Gross Combined Weight Rating (lbs) | 26000 |
Front Gross Axle Weight Rating (lbs) | 7000 |
Rear Gross Axle Weight Rating (lbs) | 13500 |
Fuel Tank Capacity (gals) | 80 |
Furnace (BTU Output) | 30000 |

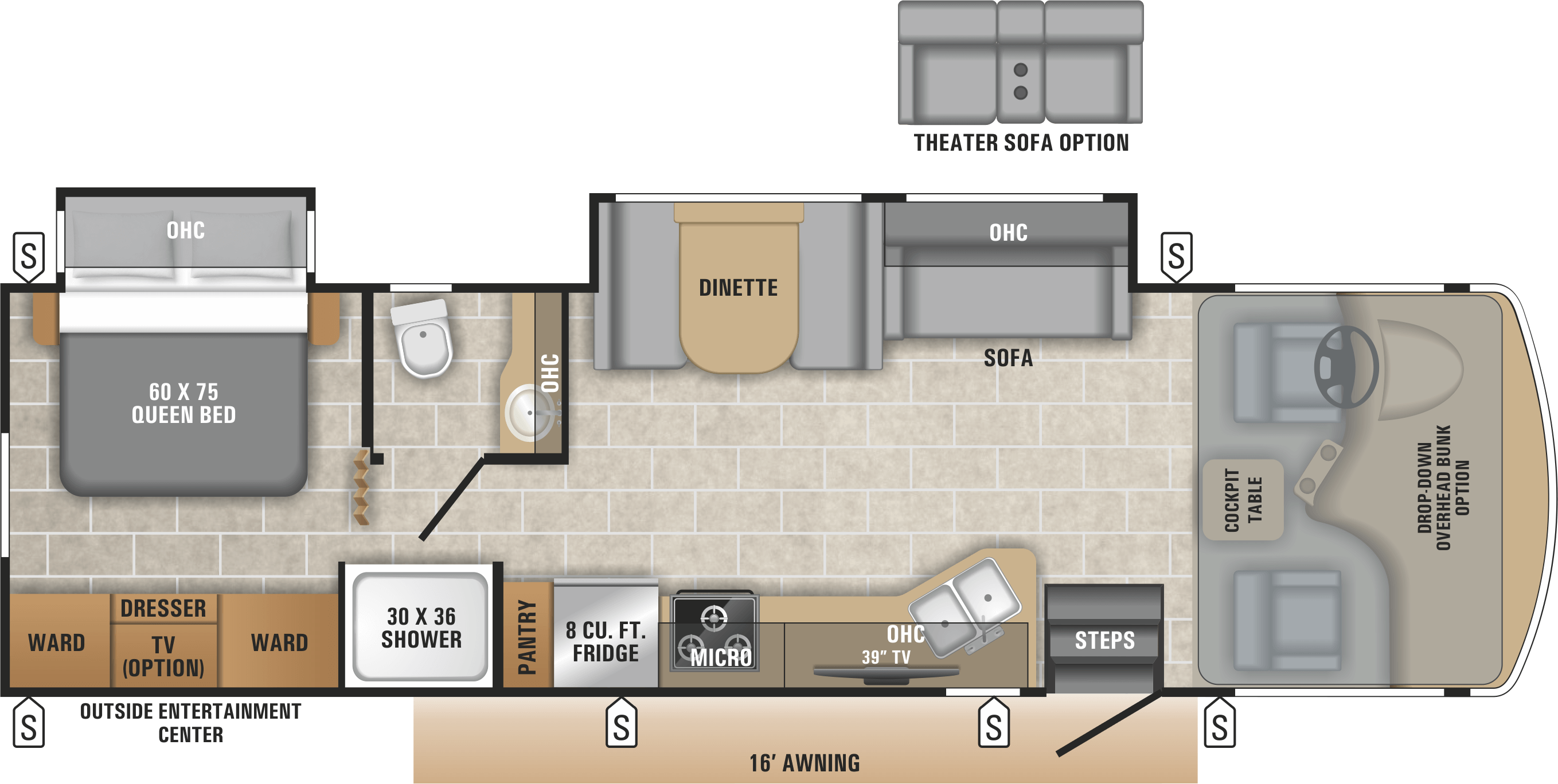

2019 Vision|31V
Specs
Exterior Length | 32' 1" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 12' 5" |
Interior Height | 84" |
Wheel Base | 190 |
Fresh Water Capacity (gals) | 72 |
Grey Waste Water Capacity (gals) | 40 |
Black Waste Water (gals) | 50 |
Gross Vehicle Weight Rating (lbs) | 18000 |
Gross Combined Weight Rating (lbs) | 23000 |
Front Gross Axle Weight Rating (lbs) | 7000 |
Rear Gross Axle Weight Rating (lbs) | 12000 |
Fuel Tank Capacity (gals) | 80 |
Furnace (BTU Output) | 30000 |
All Floorplans
2019 Vision | 26X
2019 Vision | 29F
2019 Vision | 29S
2019 Vision | 31R
2019 Vision | 31V
360°
Exterior Graphics
Standards & Options
Chassis
Chassis | Ford F53 16,000-lb (26X)/18,000-lb (29S, 31V)/ 20,500-lb (31R) GVWR chassis |
Engine | 6.8L Triton V-10 320 HP gas engine with electronic fuel injection and 460 LB-FT torque |
Transmission | 6-speed automatic TorqShift transmission with overdrive and tow haul mode |
Alternator | 175-amp alternator |
Chassis Battery | 12V Chassis Battery |
Tires | 19.5-inch Michelin radial tires |
Hitch | 5,000-lb. rear hitch receiver with dual connector & seven-pin plug |
Braking System | Front and rear disc, four-wheel anti-lock brakes |
Ride & Handling Package | Standard front & rear stabilizer bars. Computer-balanced driveshaft. Jounce bumpers. |
Construction
Insulation | Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls) |
Walls | White, high-gloss gel coat fiberglass walls |
Heat, AC, Water & Power
Water Pump | 12V demand water pump |
Water Filtration | Water filtration system |
Propane | 56-lb., 16.5-gallon propane tank |
Generator | Onan Marquis Gold Genset 4,000-watt generator |
Air Conditioning | (2) 11,000-BTU A/C (N/A 26X), 15,000-BTU A/C in 26X |
Water Heater | 6-gallon gas/electric water heater |
Electrical Hookup | 30-amp electrical service cord |
Batteries | 12V house battery |
Power Management | Energy management system |
Heating System | Auto-ignition, 30,000-BTU ducted furnace |
Inverter | 1,000-watt inverter powers main TV, rear bedroom TV, exterior TV, entertainment center |
Exterior
Outside Shower | Outside shower |
Third Brake Light | Third brake light |
Windows | Frameless windows |
Entrance Door | Entrance door with industry’s largest travel view window and shade |
Entrance Steps | Electric-powered, double-step entry |
Front/Rear Cap | Seamless, one-piece front cap w/ partial paint |
Exterior Walls | White, high-gloss, fiberglass walls |
Satellite Dish | Prep for satellite dish |
TV Antenna | Digital antenna with powered amplifier |
LED Lights | LED marker lights |
Power Cord | 30-amp electrical service cord |
Exterior | Vinyl graphics |
Slideout Awnings | Slideout awning toppers |
Cockpit
Driver / Passenger Seats | Six- way power driver seat |
Leveling System | Automatic hydraulic leveling jacks |
Visors & Privacy Shade | Power sun shade on front windshield |
Flooring | Linoleum flooring |
Interior
Additional Storage | Lockable pass-through storage compartments with side hinged slam-latch doors |
Cab-Over Bunks | Euro-loft power Front Overhead bunk |
Window Treatments | Decorative window valance |
Lighting System | High-intensity recessed LED ceiling lights |
Television - Living Room | Cable TV hookup with RG6 coax & video selector switch |
Kitchen
Countertops | Pressed Kitchen countertops with large double bowl stainless sink |
Drawer Guides | Ball-bearing drawer guides |
Microwave | 1.6 cu. ft. microwave |
Refrigerator | 8 cu. ft. gas/ electric refrigerator |
Oven | Three-burner range with oven, 9,000-BTU SuperBurner and piezo igniter |
Dinette | Entegra-exclusive easy operation legless dinette table |
Bedroom
Bed | Queen-sized bed with bedspread |
Ceiling Fan | Powered vent in bedroom |
Bathroom
Toilet | Toilet with foot flush |
Vent | Bathroom powered roof vent with wall switch |
Shower | Shower with glass door, skylight and light |
Shower Door | Shower with glass door |
Safety
Safety | Seatbelts in every seating position |
Options

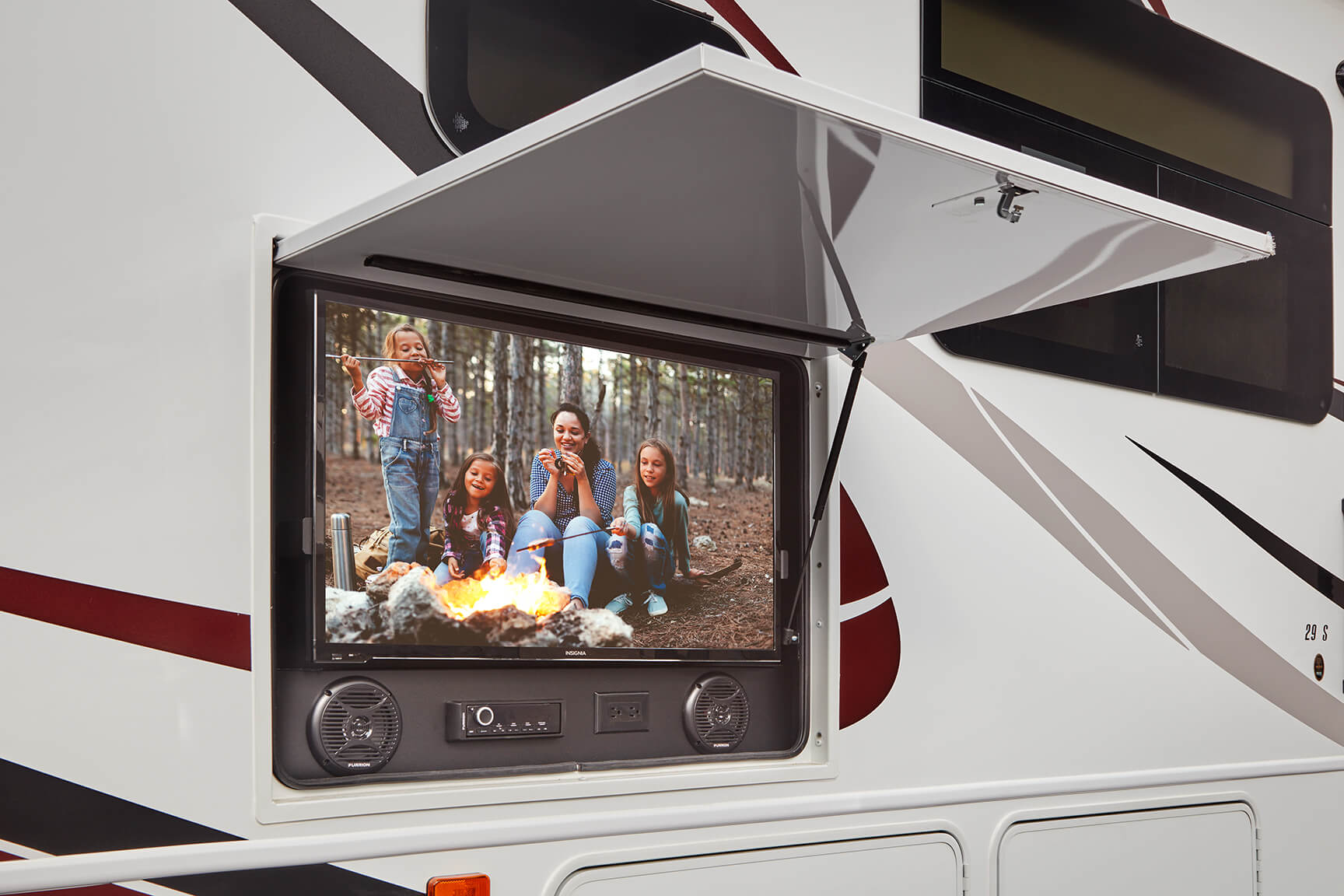

Customer Value Package (Mandatory) | Computer-balanced driveshaft, Jounce bumpers, Front and rear stabilizer bars. Sony Infotainment Dash Radio. Backup and side-view cameras with monitor. Electric patio awning with LED lights. Slideout topper awnings. LED living room TV. Black out night roller shades. Seamless crowned fiberglass roof. Exterior entertainment center w/LED TV mounted on swivel bracket & DVD/AM/FM radio & speakers. 1,000-watt inverter. Driver/passenger cockpit table. |
Refrigerator | 12 cu. ft. gas/electric refrigerator (29S, 31R, 31V) |
Overhead Bunk | Power front overhead bunk |
Bedroom TV | Bedroom LED TV |
Theater Seating | Theater seats |
Canadian Standards | Canadian Standards |
Customer Value Package (Mandatory) Cont. | EZ-Drive: Computer-balanced driveshaft, Jounce bumpers, Front and rear sway bars, SACHS shocks |
Solar | Solar Prep |
Décor Options
Entegra Coach peace of mind
2-year warranty
At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year warranty.
Detail
An exciting addition to the Entegra Coach lineup, this Class A motorhome is an opportunity to experience many of the luxurious features of our diesel lineup in a gas coach—standard. No corners cut here, Vision is built using the timeless techniques, high-end materials and smart design that discerning RVers have come to expect from Entegra Coach.
