2016 Aspire
Class-A indulgences never felt so smart
Meet the unmatched value of the all-new Aspire luxury coach. Featuring JBL premium audio, Samsung appliances and a king-sized Denver Mattress, it’s the perfect place to start your next journey.
Download brochure
Compare luxury coach models
Brochure
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2016 Aspire|42DEQ|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
Gross Combined Weight Rating (lbs) | 62,660 |
Front Gross Axle Weight Rating (lbs) | 15,660 |
Rear Gross Axle Weight Rating (lbs) | 20,000 |
Tag Axle Gross Weight Rating (lbs) | 12,000 |
Exterior Length | 43' 2" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 152" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 100 |
Grey Waste Water Capacity (gals) | 62 |
Black Waste Water (gals) | 41 |
Fuel Tank Capacity (gals) | 100 |
Furnace (BTU Output) | 65,600 Aqua-Hot |
Wheel Base | 296" |
Gross Vehicle Weight Rating (lbs) | 47,660 |
2016 Aspire|42RBQ|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
Gross Vehicle Weight Rating (lbs) | 47,660 |
Gross Combined Weight Rating (lbs) | 62,660 |
Front Gross Axle Weight Rating (lbs) | 15,660 |
Rear Gross Axle Weight Rating (lbs) | 20,000 |
Tag Axle Gross Weight Rating (lbs) | 12,000 |
Exterior Length | 43' 2" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 152" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 100 |
Grey Waste Water Capacity (gals) | 62 |
Black Waste Water (gals) | 41 |
Fuel Tank Capacity (gals) | 100 |
Furnace (BTU Output) | 65,600 Aqua-Hot |
Wheel Base | 296" |
2016 Aspire|44B|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
Gross Vehicle Weight Rating (lbs) | 47,660 |
Gross Combined Weight Rating (lbs) | 62,660 |
Front Gross Axle Weight Rating (lbs) | 15,660 |
Rear Gross Axle Weight Rating (lbs) | 20,000 |
Tag Axle Gross Weight Rating (lbs) | 12,000 |
Exterior Length | 44' 11" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 152" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 100 |
Grey Waste Water Capacity (gals) | 62 |
Black Waste Water (gals) | 41 |
Fuel Tank Capacity (gals) | 100 |
Furnace (BTU Output) | 65,600 Aqua-Hot |
Wheel Base | 320" |

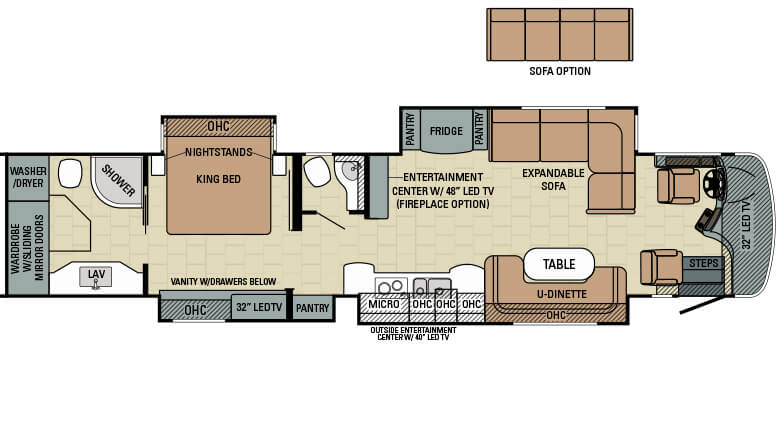

2016 Aspire|44U|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
Gross Vehicle Weight Rating (lbs) | 47,660 |
Gross Combined Weight Rating (lbs) | 62,660 |
Front Gross Axle Weight Rating (lbs) | 15,660 |
Rear Gross Axle Weight Rating (lbs) | 20,000 |
Tag Axle Gross Weight Rating (lbs) | 12,000 |
Exterior Length | 44' 11" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 152" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 100 |
Grey Waste Water Capacity (gals) | 62 |
Black Waste Water (gals) | 41 |
Fuel Tank Capacity (gals) | 100 |
Furnace (BTU Output) | 65,600 Aqua-Hot |
Wheel Base | 320" |
2016 Aspire|38M|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
Gross Vehicle Weight Rating (lbs) | 38,700 |
Gross Combined Weight Rating (lbs) | 48,700 |
Front Gross Axle Weight Rating (lbs) | 14,700 |
Rear Gross Axle Weight Rating (lbs) | 24000 |
Tag Axle Gross Weight Rating (lbs) | N/A |
Exterior Length | 40' 6" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 152" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 100 |
Grey Waste Water Capacity (gals) | 62 |
Black Waste Water (gals) | 41 |
Fuel Tank Capacity (gals) | 100 |
Furnace (BTU Output) | 65,600 Aqua-Hot |
Wheel Base | 264" |
2016 Aspire|44R|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
Gross Vehicle Weight Rating (lbs) | 38,700 |
Gross Combined Weight Rating (lbs) | 48,700 |
Front Gross Axle Weight Rating (lbs) | 14,700 |
Rear Gross Axle Weight Rating (lbs) | 24,000 |
Tag Axle Gross Weight Rating (lbs) | N/A |
Exterior Length | 44' 11" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 152" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 100 |
Grey Waste Water Capacity (gals) | 62 |
Black Waste Water (gals) | 41 |
Fuel Tank Capacity (gals) | 100 |
Furnace (BTU Output) | 65,600 Aqua-Hot |
Wheel Base | 320" |
2016 Aspire|40P|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
Gross Vehicle Weight Rating (lbs) | 38,600 |
Gross Combined Weight Rating (lbs) | 53,600 |
Front Gross Axle Weight Rating (lbs) | 14,600 |
Rear Gross Axle Weight Rating (lbs) | 24,000 |
Tag Axle Gross Weight Rating (lbs) | N/A |
Exterior Length | 40' 6" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 152" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 100 |
Grey Waste Water Capacity (gals) | 62 |
Black Waste Water (gals) | 41 |
Fuel Tank Capacity (gals) | 100 Gal |
Furnace (BTU Output) | 65,600 Aqua-Hot |
Wheel Base | 261" |
All Floorplans

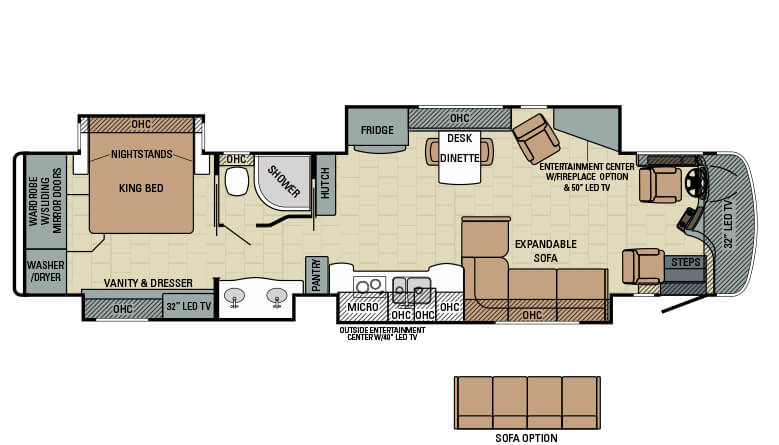

2016 Aspire | 42DEQ
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
2016 Aspire | 42RBQ
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel

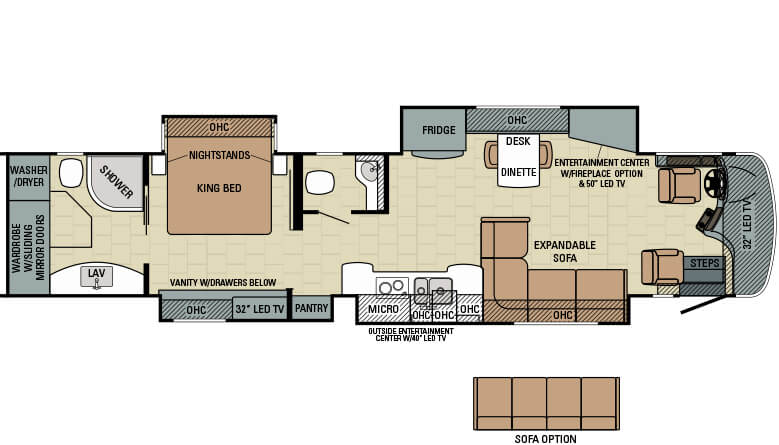

2016 Aspire | 44B
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
2016 Aspire | 44U
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel

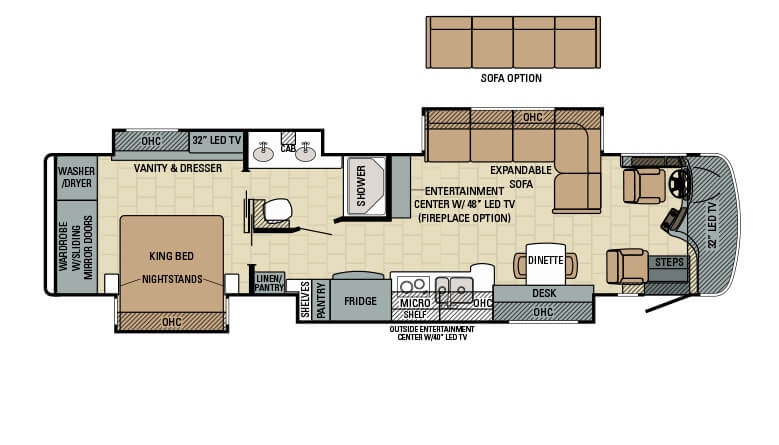

2016 Aspire | 38M
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel

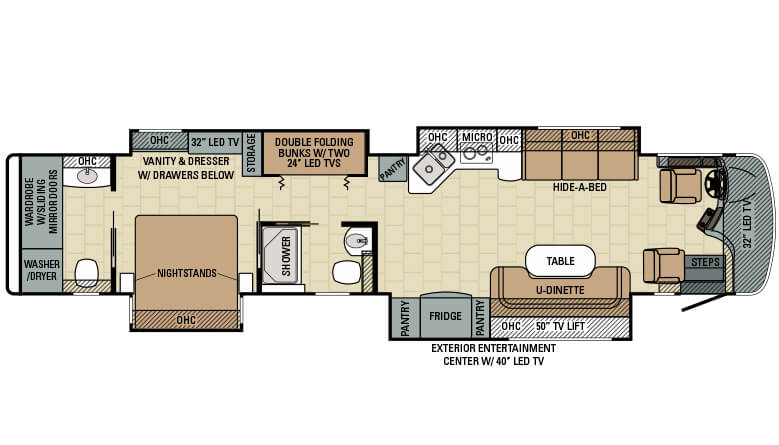

2016 Aspire | 44R
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel

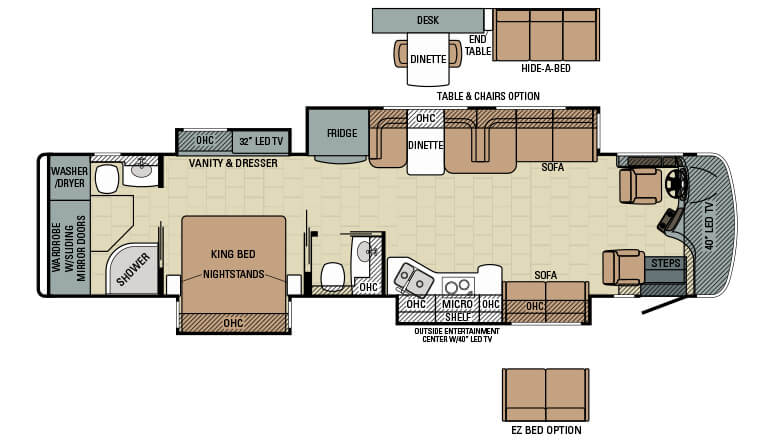

2016 Aspire | 40P
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
360°

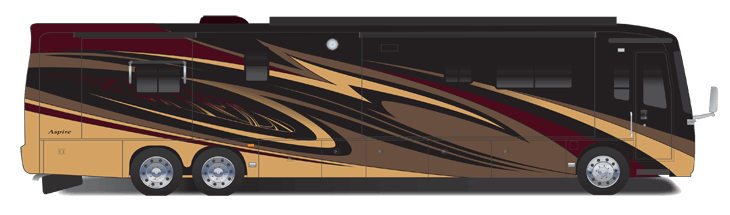

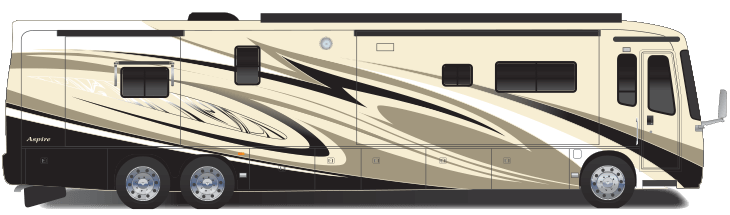

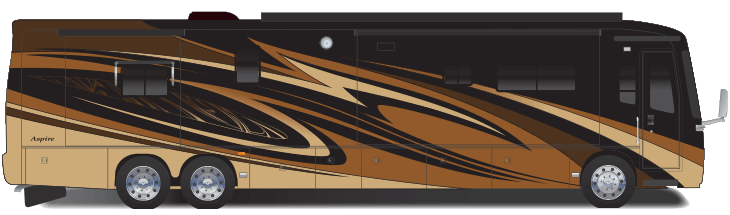

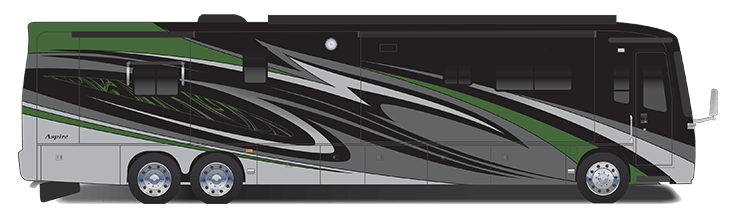

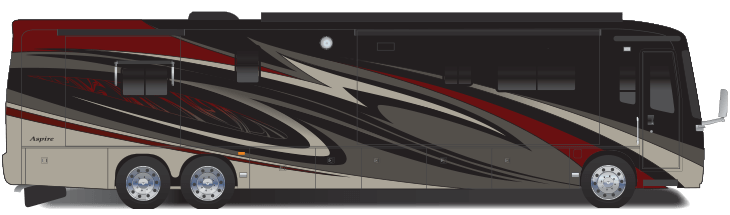

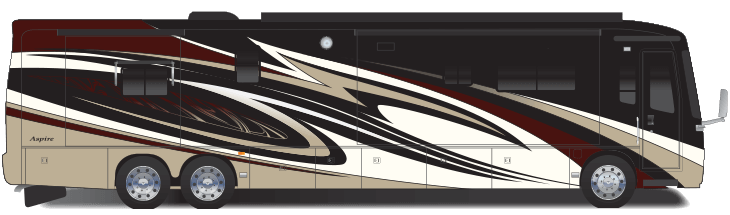

Exterior Graphics
Standards & Options
Chassis
Chassis | Spartan Mountain Master raised rail chassis |
Chassis Battery | (2) chassis batteries |
Hitch | 15,000-lb. hitch with 7/4-pin plug |
Engine | Cummins ISL turbocharged 450 HP engine 1,250 lb. ft. torque at 1,400 RPM |
Engine Block Heater | 1,000 watt engine block heater |
Fuel Tank | 100-gal. fuel tank (dual fill) |
DEF Tank | 15-gallon DEF tank with easy fill door |
Transmission | Allison 3000 MH 6-speed transmission |
Alternator | 170-amp alternator |
Radiator | Side-mounted radiator |
Front Axle | Front axle I-beam 15,660-lb. wide track |
Rear Axle | Rear axle 20,000-lb., tag axle 12,000-lb. |
Rear Axle Ratio | 4.88 "Quiet Gear" rear axle ratio |
Tag Axle | Tag axle air dump |
Tires | Goodyear G670 295/80R 22.5" Tires (Front) + G670 275/80 R 22.5" Tires (Rear) |
Braking System | ABS brakes on front and drive axle/drum brakes on tag axle; Two-stage engine brake |
Traction Control | |
Shocks | Bilstein shocks |
Air Connection | Remote air connection |
Construction
Frame | X-Bridge frames welded into chassis frame |
Underbelly | Enclosed, insulated and heated floor and thermostat controlled heating in storage area |
Floor | 2" x 4" floor truss construction |
Walls | Aluma-Tru Superstructure construction on 12"-16" centers |
Insulation | Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22) |

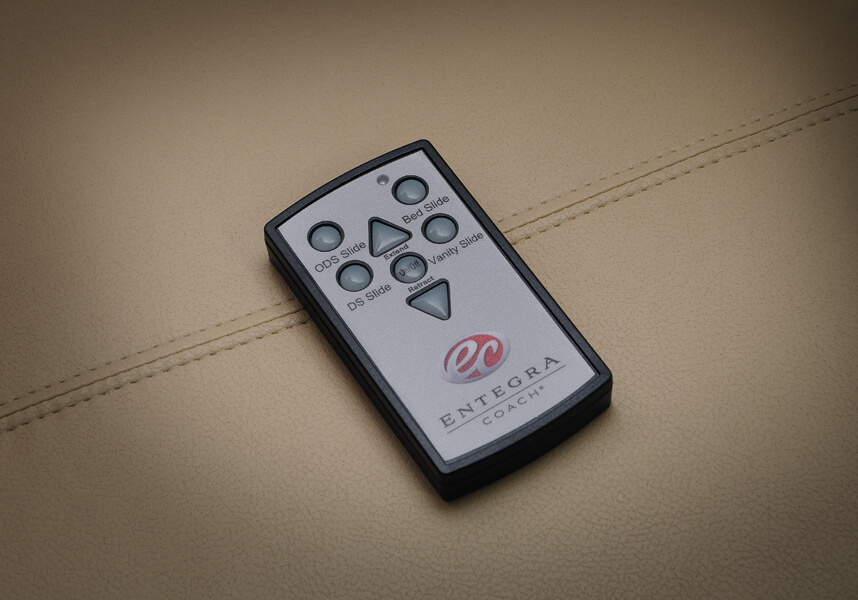

Slideouts | Flush-mounted electric-powered slideout rooms w/ remote control |
Roof | One-piece fiberglass roof w/ 3/8" plywood decking and 4" arched aluminum roof truss |
Floor Decking | 3/4" 7-ply plywood main floor decking |
Heat, AC, Water & Power
Water Monitoring | SeeLevel tank monitoring system |
Air Conditioning | 15,000-BTU low profile A/Cs with heat pump, digital thermostat, and roof to ground condensation drain tubes |
Electrical Hookup | 50-amp power cord with electric reel |

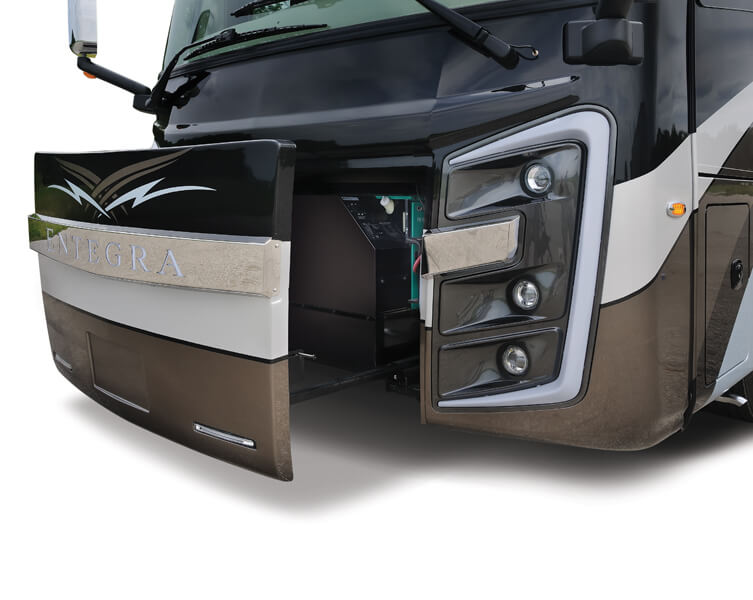

Generator | Onan 10,000-watt diesel generator with auto gen start on slide-out tray |

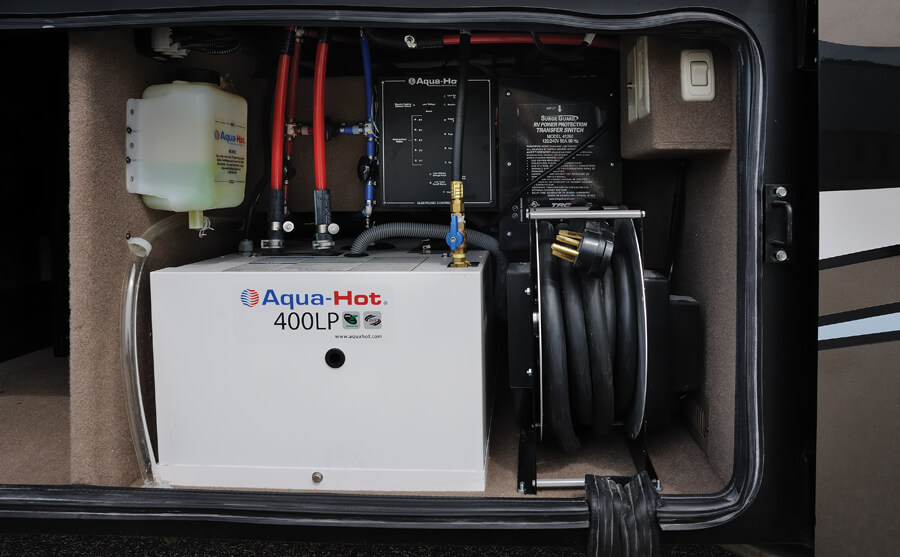

Heating System | Aqua-Hot 400-LP hydronic water and heating system with in-floor heat throughout |
Batteries | 6V batteries on sliding tray (4) |
Power Management | Solar power prep |
Water Hose w/ Electric Reel | Water hose w/ electric reel |
Tank Flush | Black holding tank sprayer |
Black Tank Management | Macerator holding tank dump system w/ electric gate valves |
Water Filtration | City and tank water filtration system |
Propane | 50-gal. propane gas tank |
Inverter | 2,800-watt pure sine wave inverter |
Winterization Drain System | Winterizing drain system |

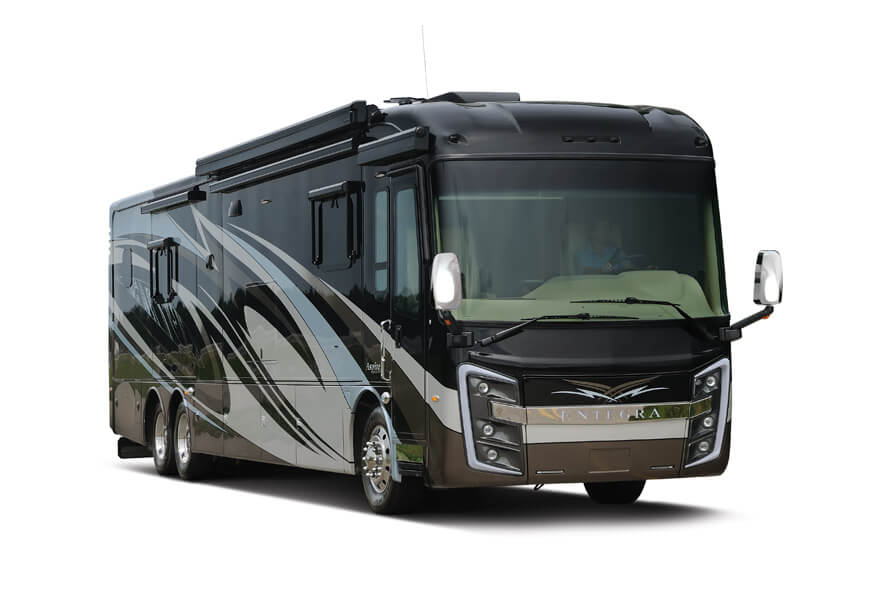

Exterior

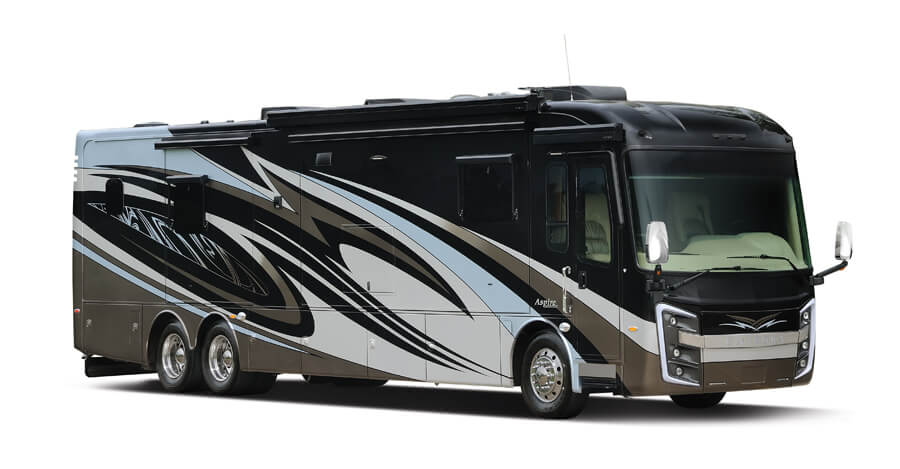

Mirrors | Chrome, heated, remote control, side-view mirrors w/ integrated cameras |
Exterior | 3M front protective film mask |
Entrance Door | Aire-Secure travel locks for all pocket doors |
Windows | Frameless, dual-pane, tinted, safety-glass windows |
Door Awning | Girard power entrance door awning with LED lights |
Satellite Dish | Winegard in-motion satellite dome w/ prep for Trav'ler satellite dish |
TV Antenna | TV Antenna |
Rear Mudflap | Full-width rear mudflap |
Entertainment | Exterior 40" Samsung LED HDTV on TV bracket w/ extend and swivel arm and JBL multimedia stereo receiver with Bluetooth audio streaming |
Exterior Walls | 2-1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass |

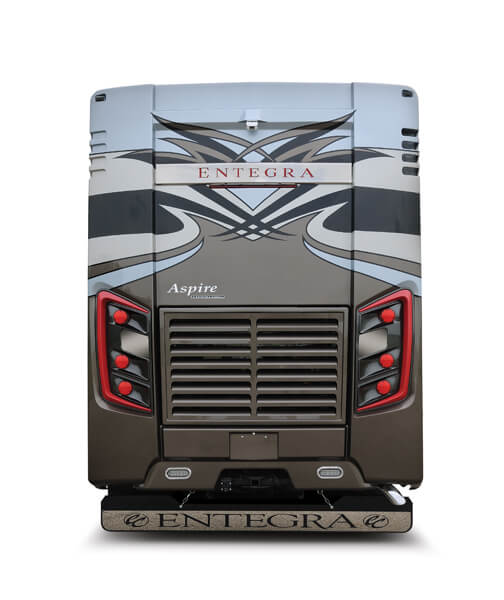

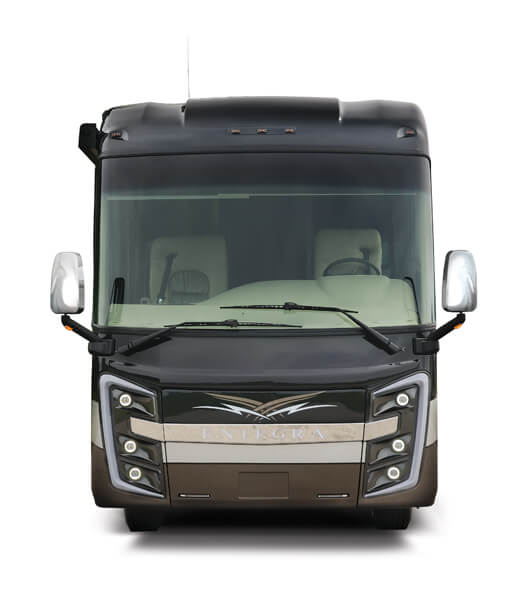

Front/Rear Cap | Steel-reinforced front cap and windshield frame |
Headlights | LED high beam headlights and Xenon low beam headlights |
Fog Lights | LED fog lights |
Daytime Running Lights | Daytime running lights |
LED Lights | LED marker and turn lights the full length of the coach |
Docking Lights | LED docking lights |
Accent Lights | LED accent lights on underside of slideout rooms curbside |
Keypad | Lighted grab handle with keypad system |
Keyless Fob | Keyless entry with key fob |
Window Awnings | Girard Ultra window shade awning and Ultra slide-out awnings |
Patio Awnings | Girard power patio awning with LED lights |

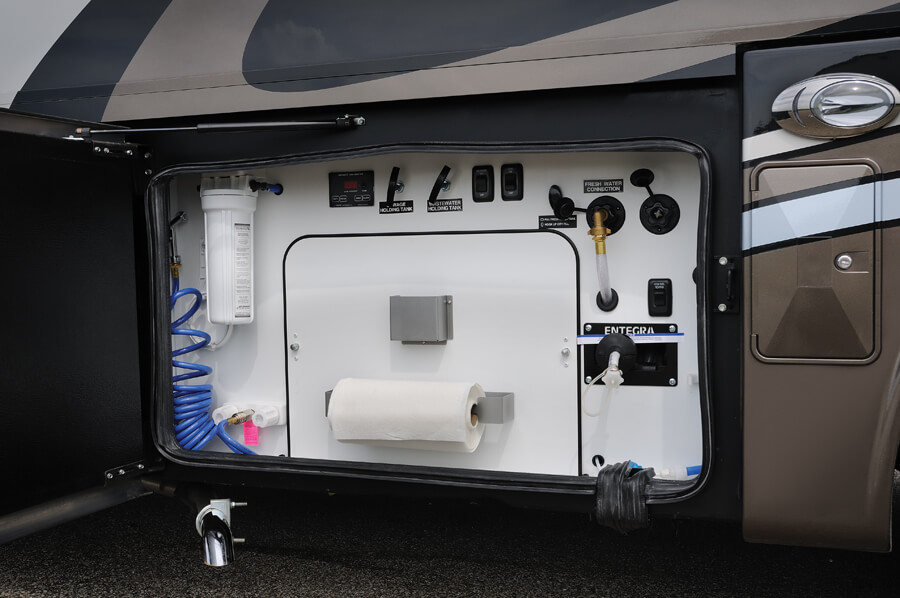

Utility Center | Exterior utility center, heated and enclosed with system monitor panel |
Engine Door | Power rear engine door |
Lights | Motion sensor security lights (2) |

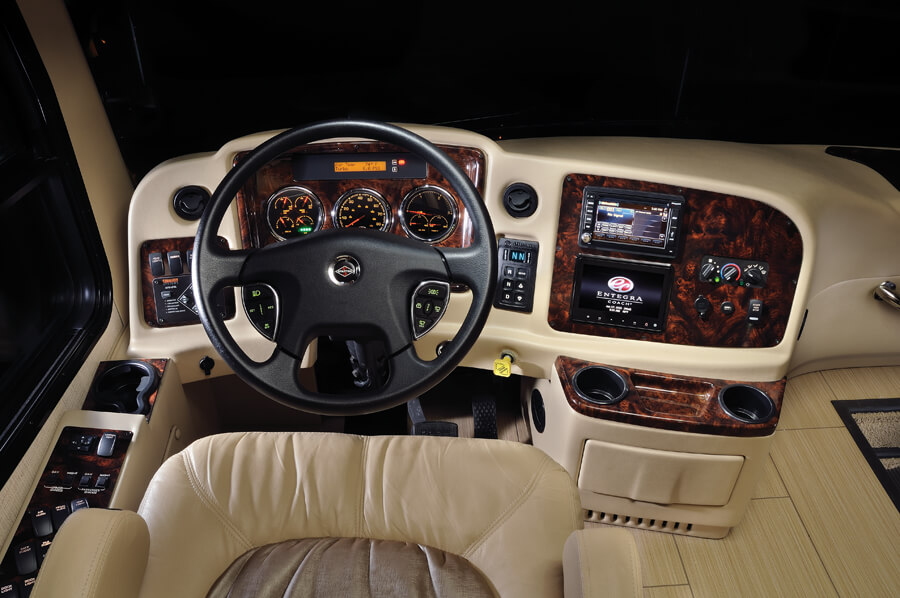

Cockpit
Driver / Passenger Seats | Ultraleather, power adjustable driver and passenger seats with integrated 3-point lap and shoulder safety belts |
Steering Wheel | VIP leather-wrapped, tilt and telescoping steering wheel w/ integrated controls for cruise and wipers |
Infotainment System(s) | Infotainment center with touch screen, Rand-McNally GPS navigation, Bluetooth, Sirius radio and tuner |
Windshield | Ultra-Vision one-piece wrap-around tinted windshield |

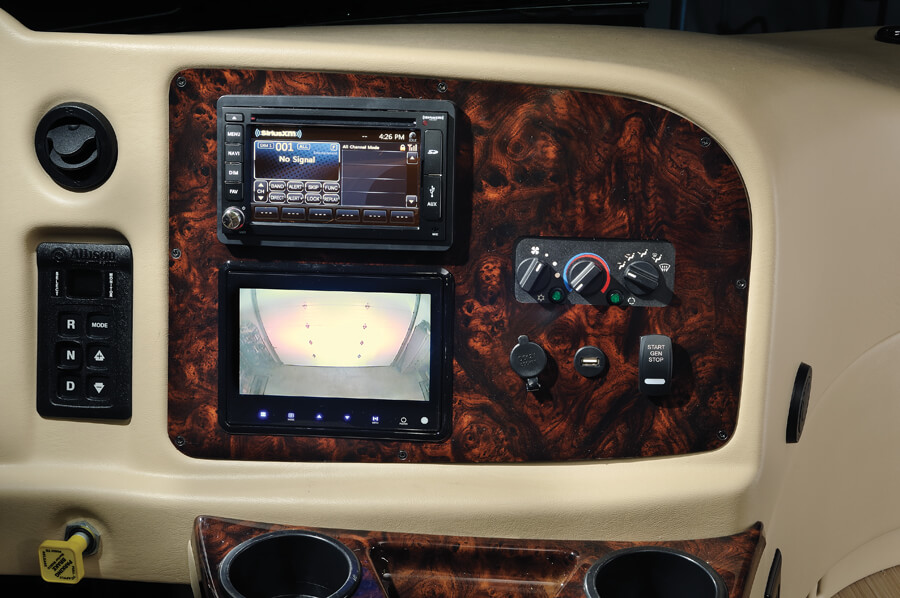

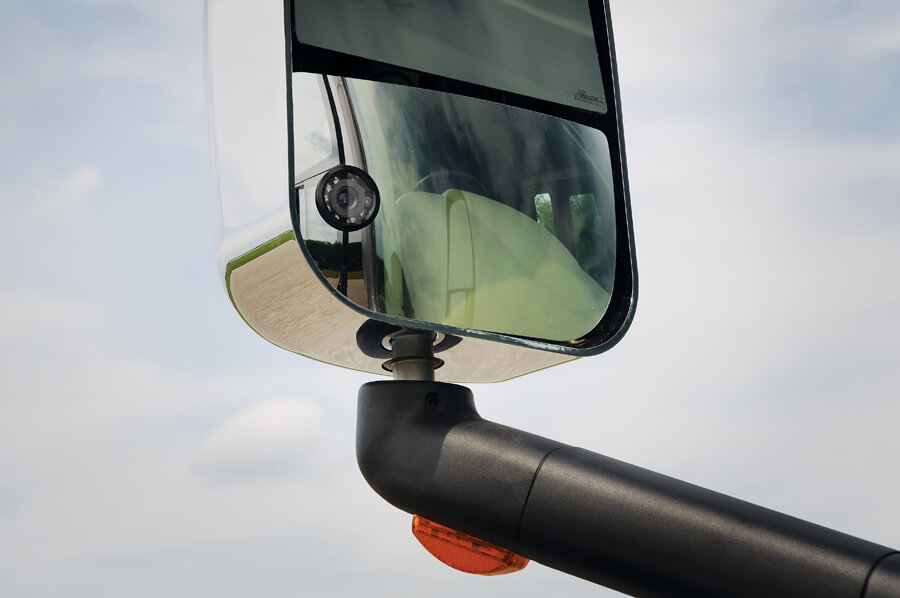

Cameras | Color back-up camera and monitor system w/ side and rear view cameras |
Visors & Privacy Shade | MCD powered front sun visors and privacy shade |
Power Features | Battery boost system |
Monitoring System(s) | Spartan Message Center with LCD display featuring: odometer, tachometer, fuel economy, fuel remaining, outside air temp., coolant temp., engine oil temp. and pressure, transmission temp., turbo boost pressure, air pressure, trip meter, speed and voltage |
Flooring | Powered flush stepwell cover |
Sound System | JBL premium audio tuned 180-watt DSP amplifier and five (5) speakers including subwoofer |
Leveling System | Hydraulic automatic leveling jack system |
Pedals | Powered adjustable foot pedals |
Interior
Furniture | Ultraleather hide-a-bed sofa(s) |
Lighting | LED recessed 12V lighting |

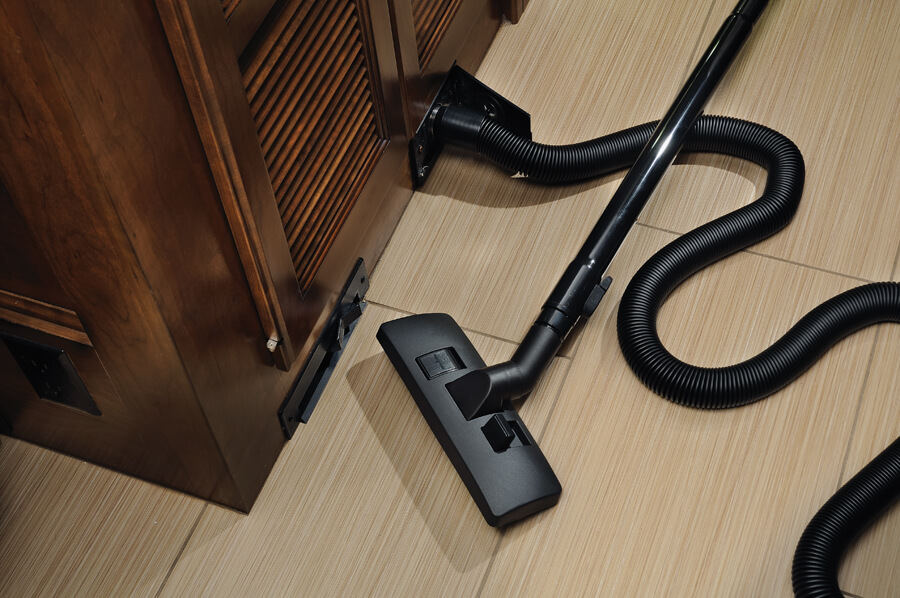

Central Vacuuming System | Central vacuum system |

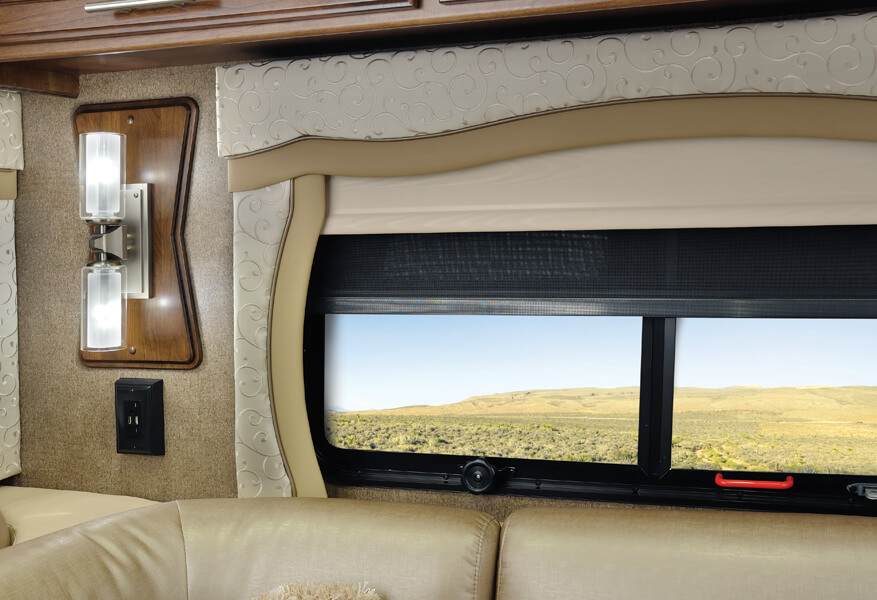

Window Treatments | Manual MCD solar day and black out night shades |
Flooring | 12" x 24" porcelain tile floor |
Washer/Dryer | Stackable washer and dryer |

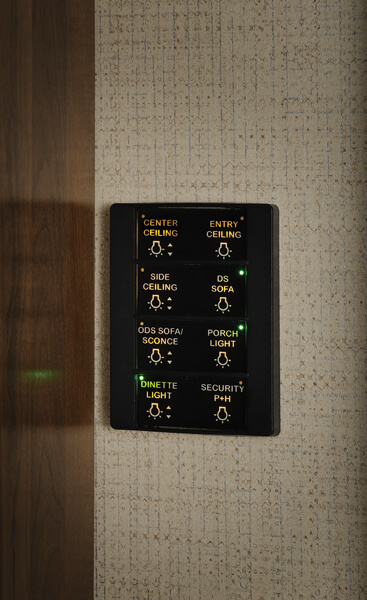

Lighting System | Multiplex controlled lighting system |
Television - Living Room | Samsung 50" LED HDTV (44B, 42DEQ); Samsung 48" LED HDTV (42RBQ, 44R, 44U) |
Television - Front Overhead | Samsung 40" LED HDTV in front overhead (40P, 39S); Samsung 32" LED HD TV in front overhead |
Sound - Living Room | Samsung sound bars (2) |

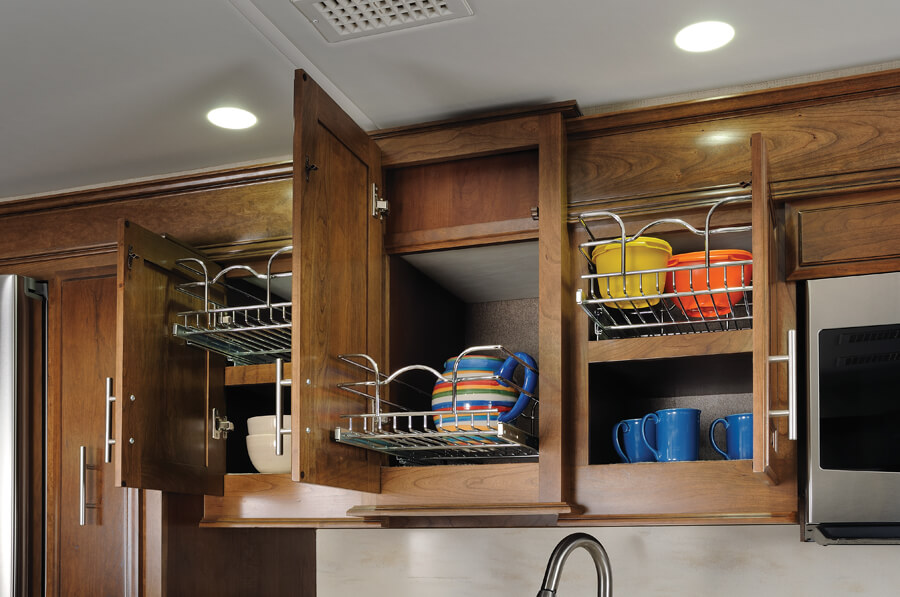

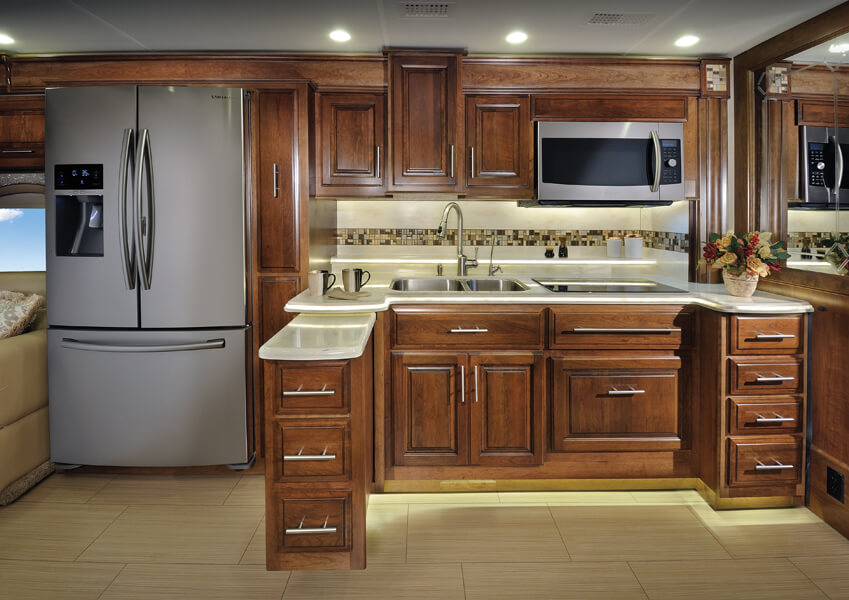

Kitchen
Refrigerator | Samsung residential 23 cu. ft. refrigerator with ice maker and water dispenser |
Microwave | Samsung 1.7 cu. ft. convection microwave oven |
Cooktop | Flush mounted induction cooktop |
Dishwasher | |

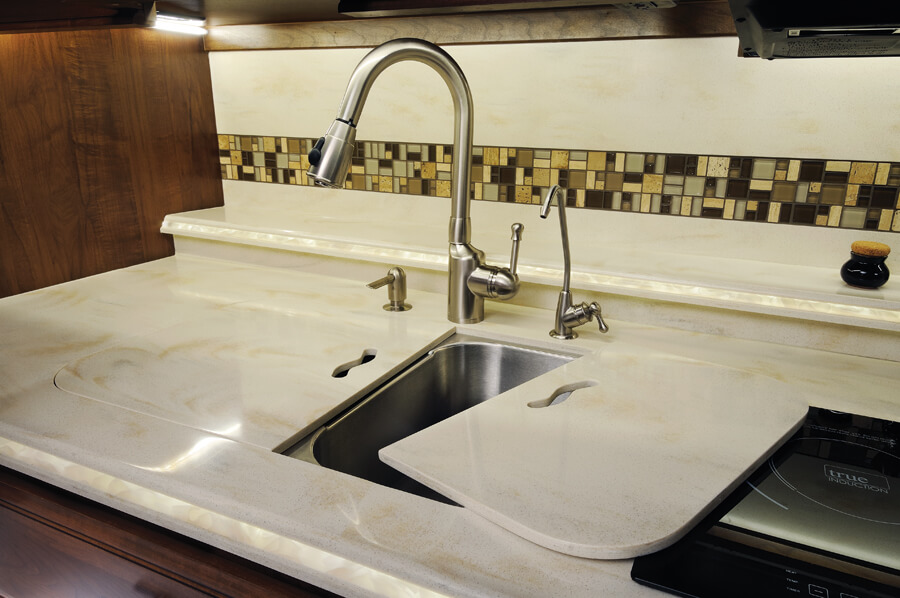

Countertops | LED lit solid surface countertops with stainless steel sink |
Cabinet Extension | Pullout cabinet extension countertop |

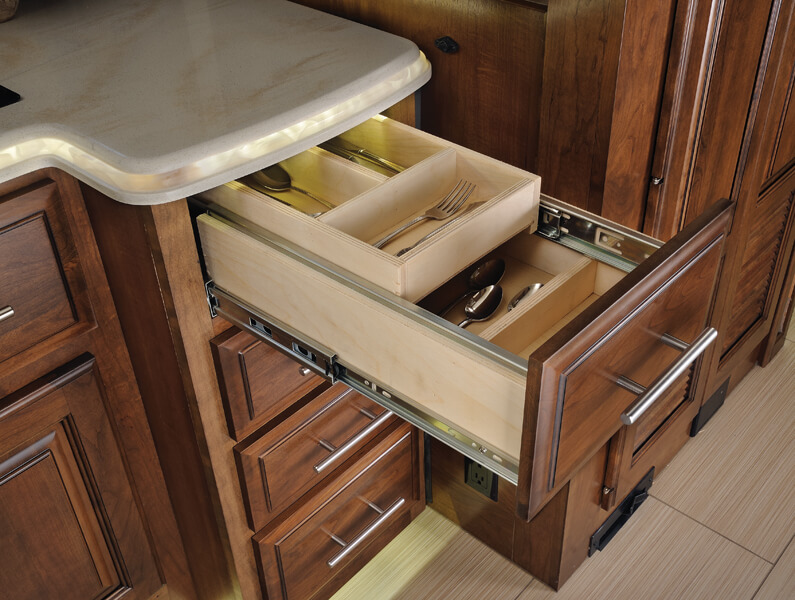

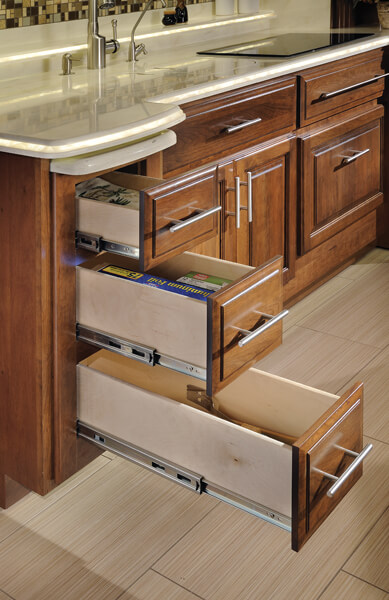

Silverware Drawer | Silverware drawer |

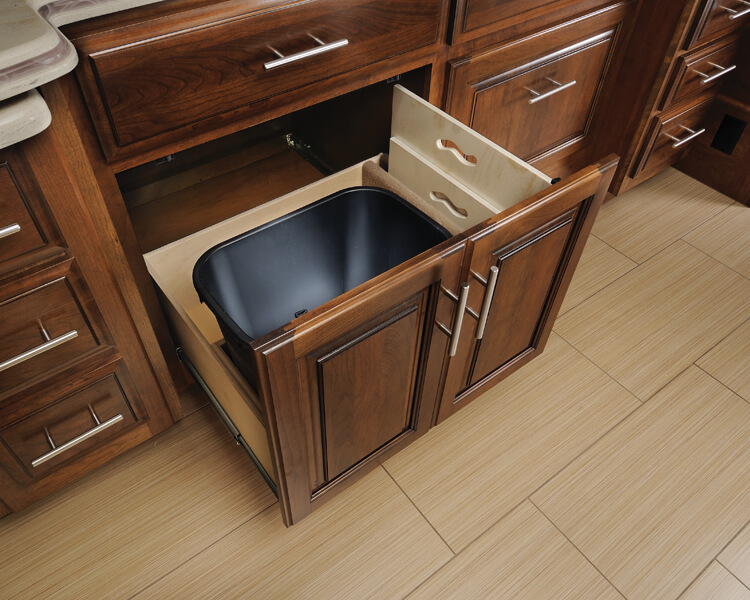

Waste Basket | Large deep drawer with waste basket |
Bedroom

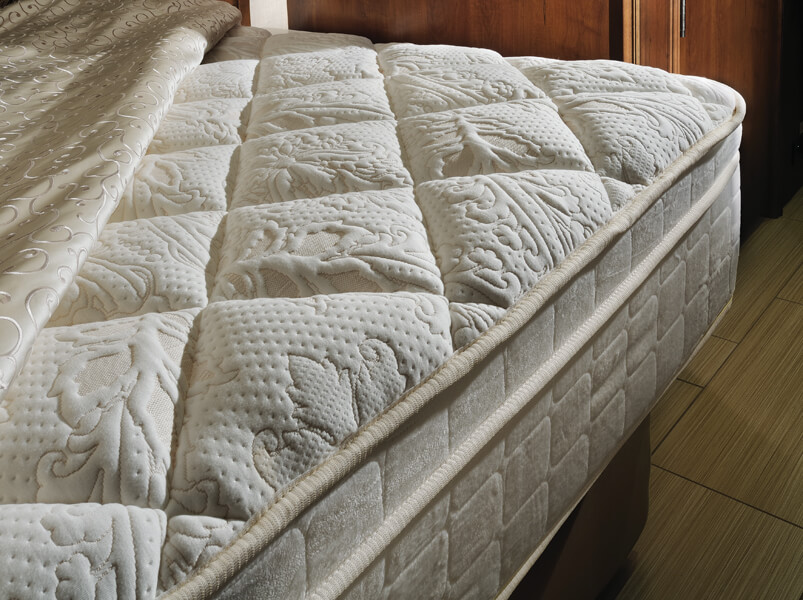

Bed | Denver King Mattress |
Television | Samsung 32" LED HDTV in bedroom |
Sound | |
Ceiling Fan | Ceiling fan |

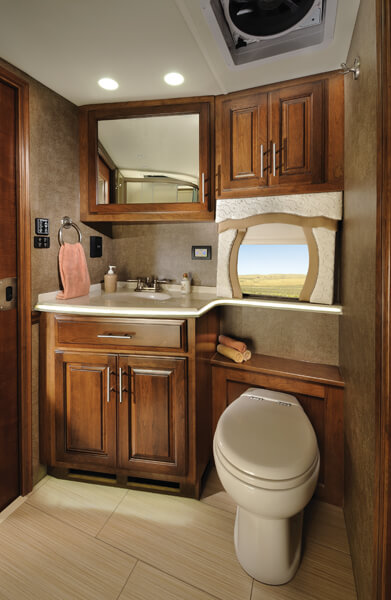

Bathroom
Countertop(s) | LED lit solid surface countertop(s) with integrated sink |
Vent | Power vent |
Toilet | Porcelain toilet |
Shower | One-piece fiberglass shower w/ skylight |
Safety
Smoke Alarm | Smoke alarm |
Propane Alarm | Propane alarm |
Carbon Monoxide Detector | Carbon monoxide detector |
Security System | Security system with glass shatter sensors |
Security Safe | Security safe |
Options
Canadian Standards | Optional |
Satellite Dish - US | Winegard Trav'ler satellite dish - DIRECTV |
Satellite Dish - CA | Winegard Trav'ler satellite dish - Shaw Direct |
Décor Options
Experience GRAMMY® and Oscar-winning audio technology that transforms your favorite music into award winning performances. The Aspire features a JBL premium audio tuned 180-watt DSP amplifier and five (5) speakers in 3 locations, including the subwoofer. Custom-tuned to each individual model, Entegra is proud to be the first luxury motorhome manufacturer to offer this deluxe system.
Entegra Coach peace of mind
2-year warranty and 3-year roadside assistance
At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year warranty and 3-year roadside assistance.
Detail
Class-A indulgences never felt so smart
Meet the unmatched value of the all-new Aspire luxury coach. Featuring JBL premium audio, Samsung appliances and a king-sized Denver Mattress, it’s the perfect place to start your next journey.
