2015 Aspire
A dream unveiled
Great design starts with great priorities. At Entegra Coach, your ride tops our list. That's why the 2015 Aspire features touch-screen entertainment, complete with independent speakers, rear-view monitor and one-way audio. Hand-laid porcelain tile steps give you a grand entrance into a stunning residential interior.
Download brochure
Brochure

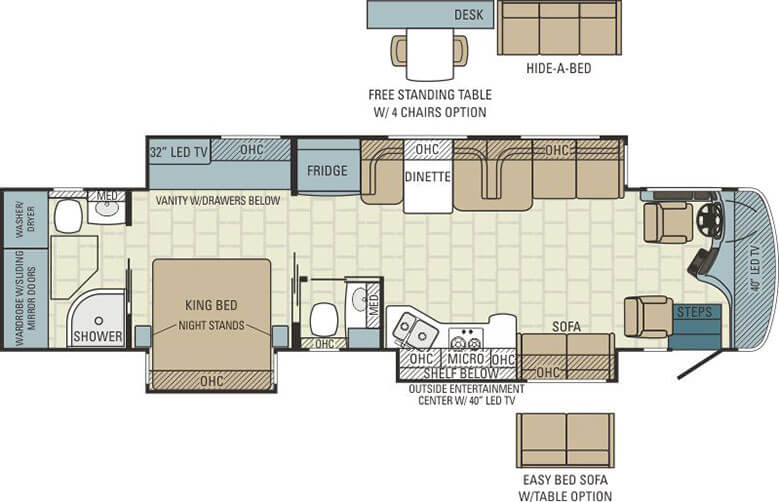

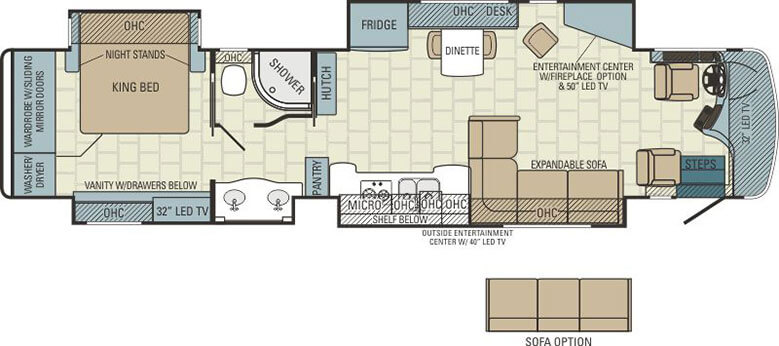

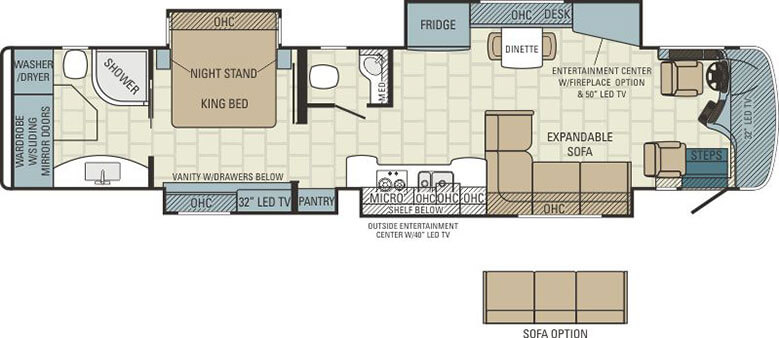

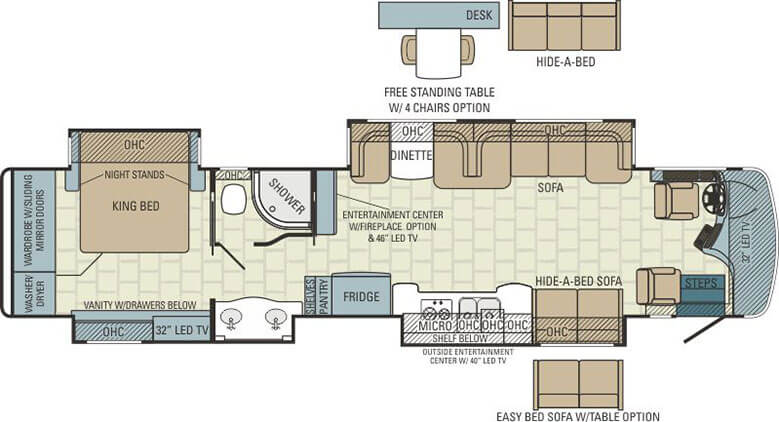

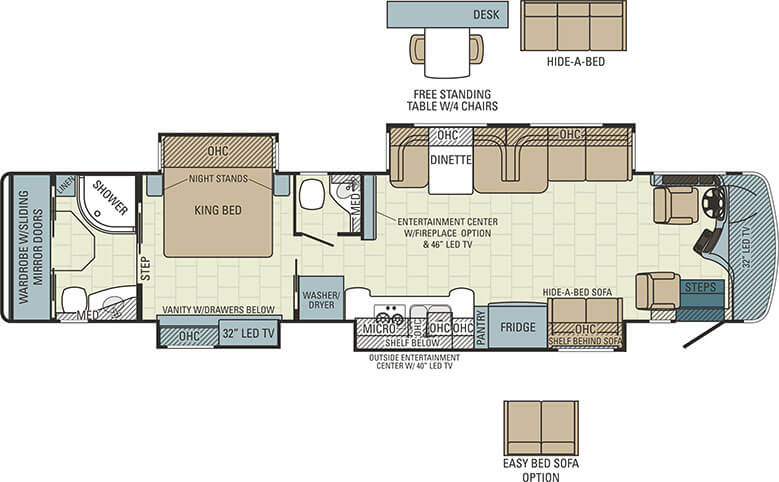

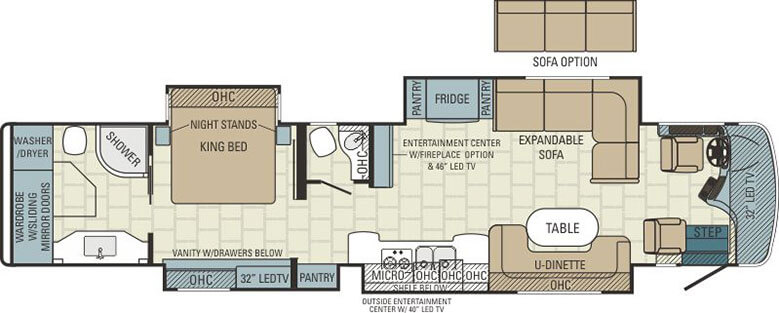

Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2015 Aspire|39E|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
Gross Vehicle Weight Rating (lbs) | 38,600 |
Gross Combined Weight Rating (lbs) | 53,600 |
Front Gross Axle Weight Rating (lbs) | 14,600 |
Rear Gross Axle Weight Rating (lbs) | 24,000 |
Tag Axle Gross Weight Rating (lbs) | N/A |
Exterior Length | 40' 6" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 153" |
Fresh Water Capacity (gals) | 80 |
Grey Waste Water Capacity (gals) | 49.75 |
Black Waste Water (gals) | 49.75 |
Fuel Tank Capacity (gals) | 100 |
Furnace (BTU Output) | 65,600 AQUA-HOT |
Wheel Base | 296" |
Interior Height | 84" |
2015 Aspire|42DEQ|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
Gross Vehicle Weight Rating (lbs) | 47,660 |
Gross Combined Weight Rating (lbs) | 62,660 |
Front Gross Axle Weight Rating (lbs) | 15,660 |
Rear Gross Axle Weight Rating (lbs) | 20,000 |
Tag Axle Gross Weight Rating (lbs) | 12,000 |
Exterior Length | 43' 2" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 153" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 80 |
Grey Waste Water Capacity (gals) | 49.75 |
Black Waste Water (gals) | 49.75 |
Fuel Tank Capacity (gals) | 100 |
Furnace (BTU Output) | 65,600 AQUA-HOT |
Wheel Base | 296" |
2015 Aspire|42DLQ|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
Gross Vehicle Weight Rating (lbs) | 47,660 |
Gross Combined Weight Rating (lbs) | 62,660 |
Front Gross Axle Weight Rating (lbs) | 15,660 |
Rear Gross Axle Weight Rating (lbs) | 20,000 |
Tag Axle Gross Weight Rating (lbs) | 12,000 |
Exterior Length | 43' 1" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 153" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 80 |
Grey Waste Water Capacity (gals) | 49.75 |
Black Waste Water (gals) | 49.75 |
Fuel Tank Capacity (gals) | 100 |
Furnace (BTU Output) | 65,600 AQUA-HOT |
Wheel Base | 296" |
2015 Aspire|42RBQ|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
Gross Vehicle Weight Rating (lbs) | 47,660 |
Gross Combined Weight Rating (lbs) | 62,660 |
Front Gross Axle Weight Rating (lbs) | 15,660 |
Rear Gross Axle Weight Rating (lbs) | 20,000 |
Tag Axle Gross Weight Rating (lbs) | 12,000 |
Exterior Length | 43' 2" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 153" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 80 |
Grey Waste Water Capacity (gals) | 49.75 |
Black Waste Water (gals) | 49.75 |
Fuel Tank Capacity (gals) | 100 |
Furnace (BTU Output) | 65,600 AQUA-HOT |
Wheel Base | 296" |
2015 Aspire|44B|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
Gross Vehicle Weight Rating (lbs) | 47,660 |
Gross Combined Weight Rating (lbs) | 62,660 |
Front Gross Axle Weight Rating (lbs) | 15,660 |
Rear Gross Axle Weight Rating (lbs) | 20,000 |
Tag Axle Gross Weight Rating (lbs) | 12,000 |
Exterior Length | 44' 11" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 153" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 80 |
Grey Waste Water Capacity (gals) | 49.75 |
Black Waste Water (gals) | 49.75 |
Fuel Tank Capacity (gals) | 100 |
Furnace (BTU Output) | 65,600 AQUA-HOT |
Wheel Base | 296" |
2015 Aspire|44U|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
Gross Vehicle Weight Rating (lbs) | 47,660 |
Gross Combined Weight Rating (lbs) | 62,660 |
Front Gross Axle Weight Rating (lbs) | 15,660 |
Rear Gross Axle Weight Rating (lbs) | 20,000 |
Tag Axle Gross Weight Rating (lbs) | 12,000 |
Exterior Length | 44' 11" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 153" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 80 |
Grey Waste Water Capacity (gals) | 49.75 |
Black Waste Water (gals) | 49.75 |
Fuel Tank Capacity (gals) | 100 |
Furnace (BTU Output) | 65,600 AQUA-HOT |
Wheel Base | 320" |
All Floorplans
2015 Aspire | 39E
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
2015 Aspire | 42DEQ
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
2015 Aspire | 42DLQ
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
2015 Aspire | 42RBQ
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
2015 Aspire | 44B
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
2015 Aspire | 44U
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
360°

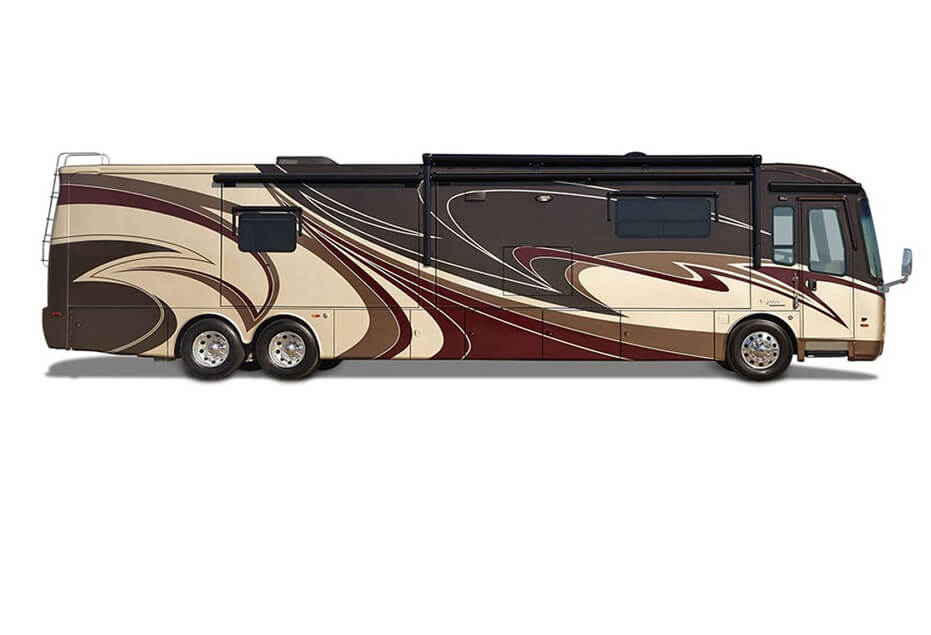

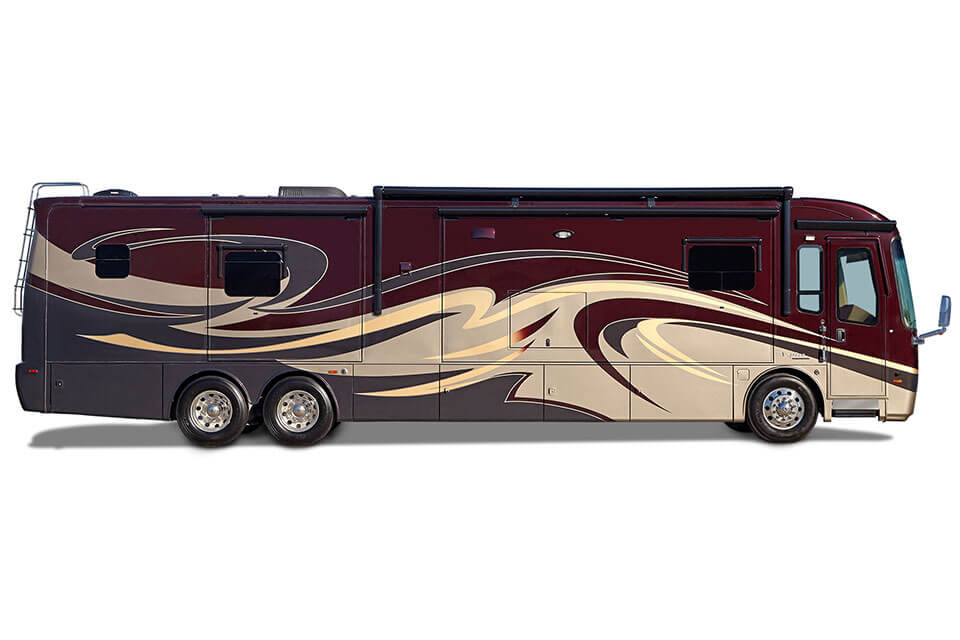

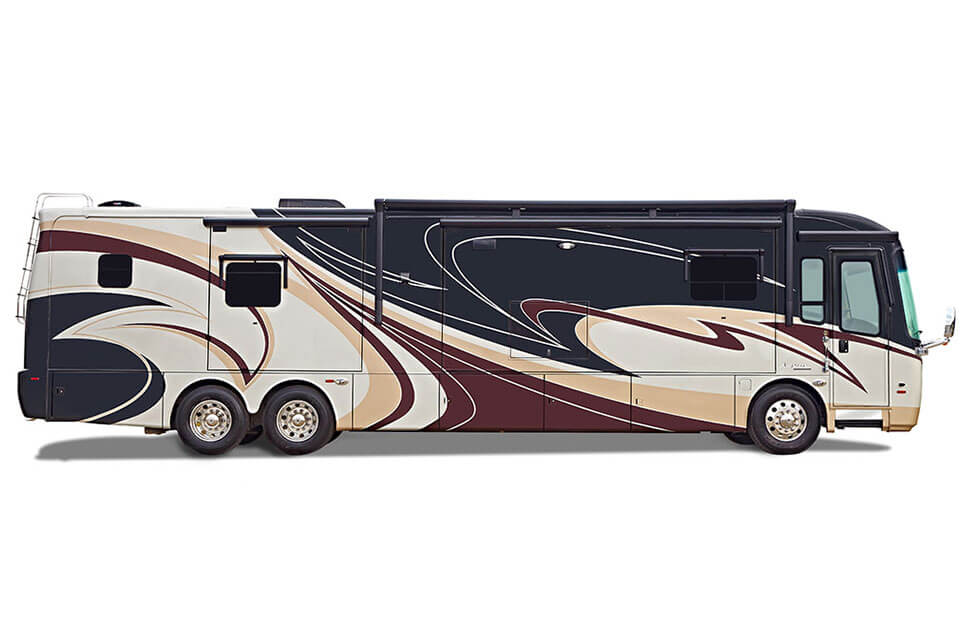

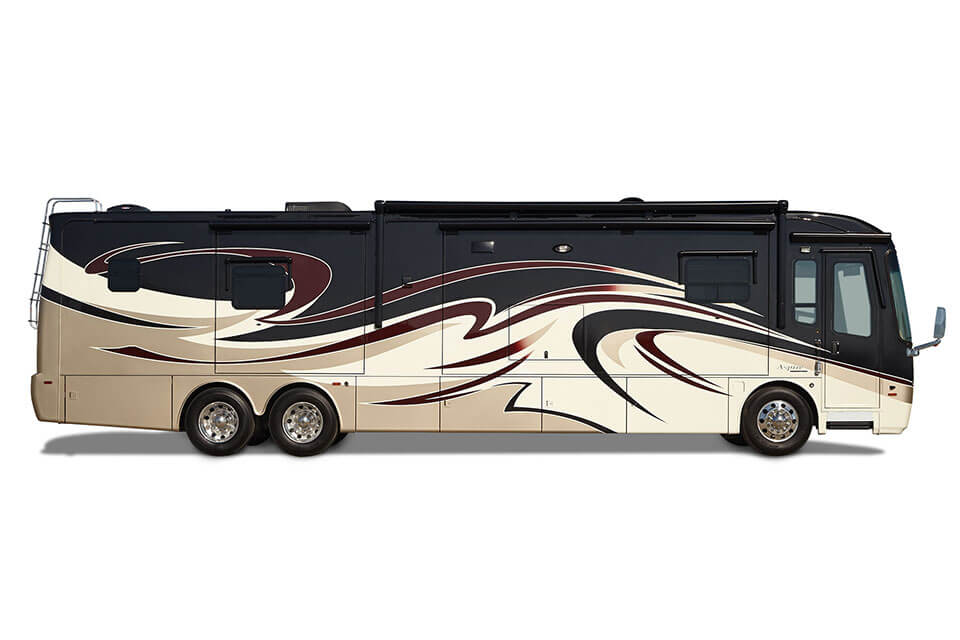

Exterior Graphics
Standards & Options
Chassis
Chassis | Spartan Mountain Master chassis |
Chassis Battery | (2) chassis batteries |
Hitch | 15,000-lb. hitch with 7-pin plug |
Engine | Cummins ISL turbocharged 450 HP engine 1,250 lb-ft torque at 1,400 RPM |
Engine Block Heater | Yes |
Fuel Tank | 100-gal. fuel tank (dual fill) |
DEF Tank | 10-gallon DEF tank |
Transmission | Allison 3000 MH 6-speed transmission |
Alternator | 170-amp alternator |
Radiator | Side-mounted radiator |
Front Axle | Front axle I-beam 15,660-lb. wide track |
Rear Axle | 20,000-lb |
Rear Axle Ratio | 4.88 "Quiet Gear" rear axle ratio |
Tag Axle | 12,000-lb: auto weight release |
Tires | Goodyear G670 295/80R 22.5 tires (Front) + G670 275/80R 22.5 tires (Rear) |
Turning Radius | 52-degree wheel cut |
Braking System | All-wheel ABS brakes; Pre-wired for electric brake controller: Two-stage Jake brake |
Shocks | Front/Rear |
Front Suspension | Reyco Granning 240 AR trailing arm air suspension |
Air Connection | Remote air connection |
Construction
Frame | X-Bridge frames welded into chassis frame; Steel-reinforced front cap and windshield frame |
Underbelly | Enclosed, insulated and heated floor, and thermostat controlled heating in storage area |
Floor | 2" x 4" floor truss construction; 3/4" (7) plywood main floor decking |
Walls | Aluma-Tru Superstructure construction on 12"-16" centers; 2-1/2" wall with welded tubular construction; Sidewalls bolted to chassis frame structure; Smooth high-gloss, gel-coat fiberglass exterior walls |
Insulation | Polar Pack insulation with reflective Flexfoil floor (R-26), roof (R-29), sidewalls (R-13), front and end caps (R-28) |
Slideouts | Frameless, flush-mounted slideout rooms; Electric-powered slideouts |
Roof | One-piece, fiberglass, 4-1/2" arched aluminum truss roof; fully decked roof with 3/8" plywood |

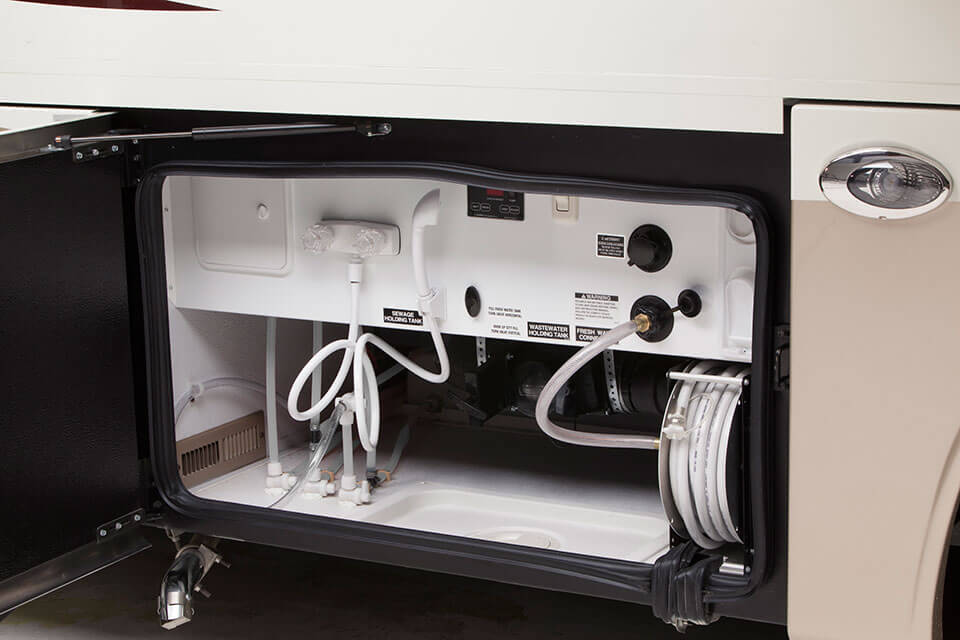

Heat, AC, Water & Power
Water Monitoring | Yes |
Air Conditioning | 15,000-BTU low profile central A/Cs (3) with heat pump, digital thermostat and drain tubes (2 A/Cs 39E); Dual insulated ceiling air ducts with adjustable air vents |
Electrical Hookup | 2,800-watt Pure Sine wave inverter with (4) 6V batteries; 50-amp electric service; 50-amp quick-connect power cord with power reel; Surge protector transfer switch; Energy Management System |

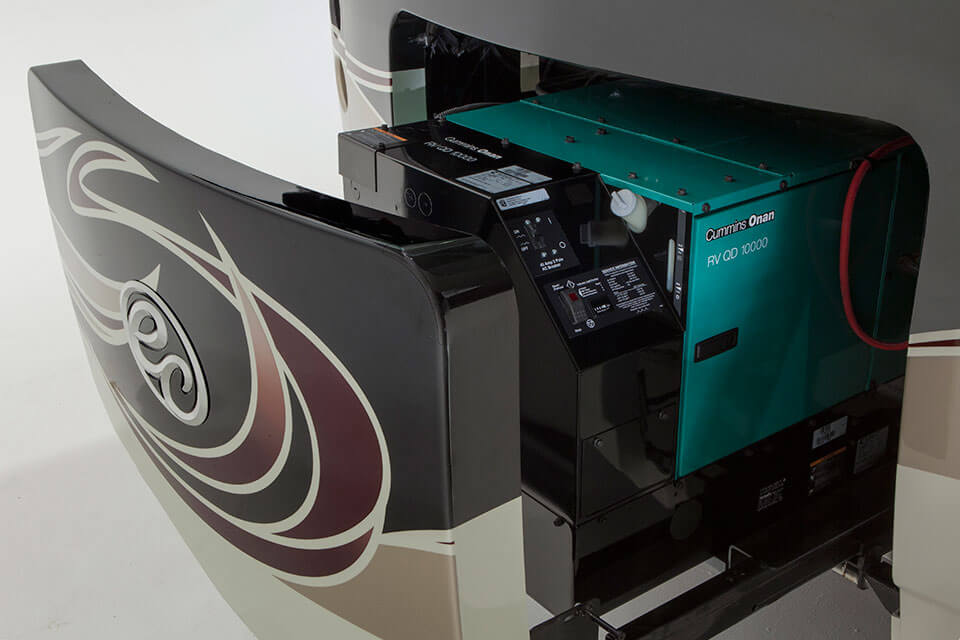

Generator | Onan 10,000-watt diesel generator with auto gen start on slide-out tray |

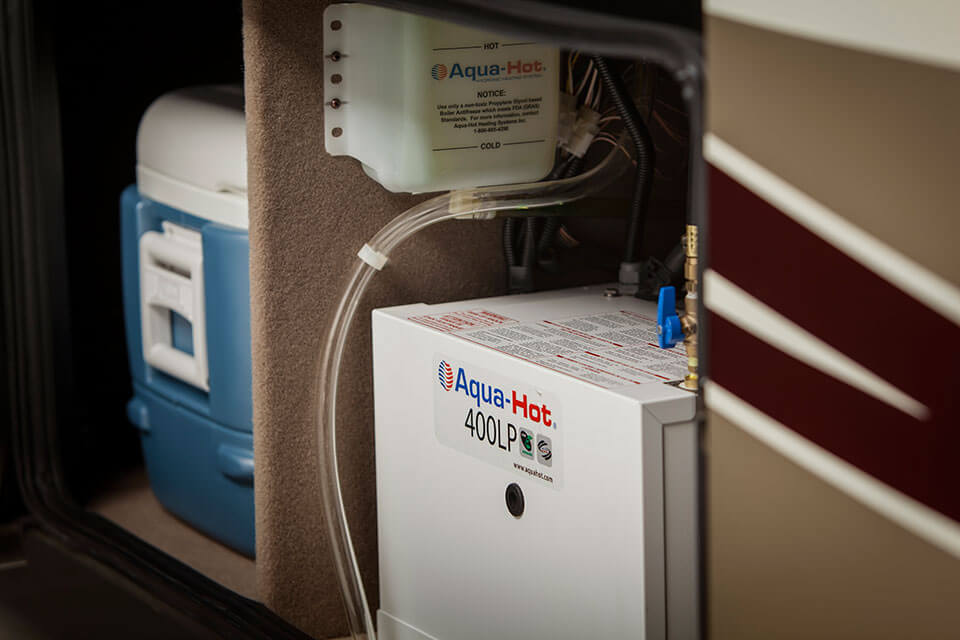

Heating System | Aqua-Hot 400-LP hydronic water and heating system with in-floor heat throughout |
Batteries | Holding and fresh water tanks, radiant-heat; Black holding tank sprayer |
Power Management | Hookup for city water |
Water Hose w/ Electric Reel | 12V on-demand water pump with two switch locations; Power auto rewind water hose |
Tank Flush | Total coach dual system water filter |
Black Tank Management | SeeLeveL tank monitoring system; Systems monitor panel |
Water Filtration | Yes |
Exterior
Mirrors | Chrome heated, remote control, side-view mirrors |
Exterior | Full-body premium paint package; 3M front protective film |

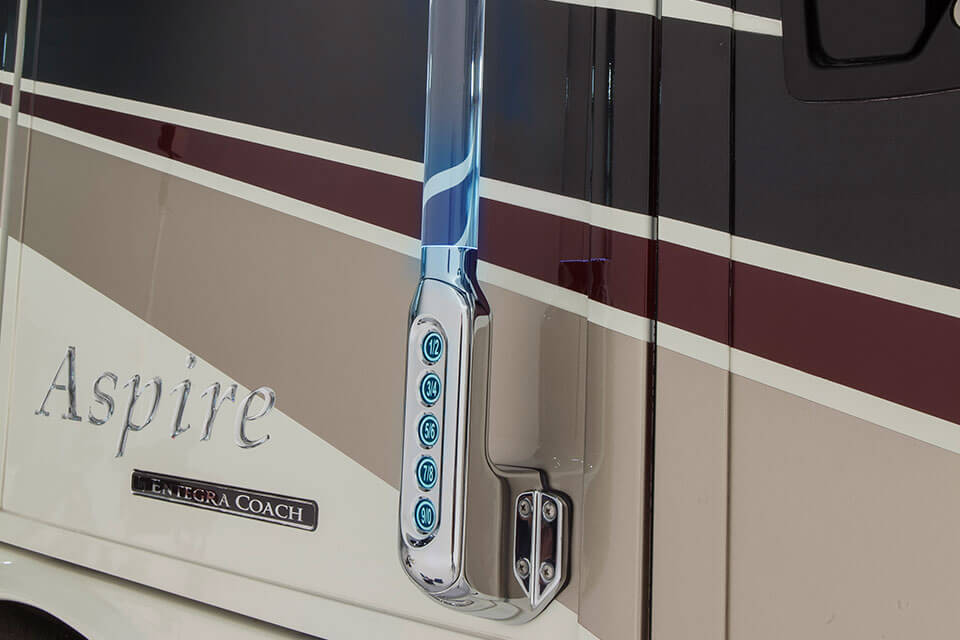

Entrance Door | Aire-Secure travel locks for all passage doors; Lighted heavy-duty grab handle with keypad system; Keyless entry with key fob |
Entrance Steps | Electric-powered, double-step entrance |
Windows | Frameless, tinted, dual-pane, safety-glass windows |

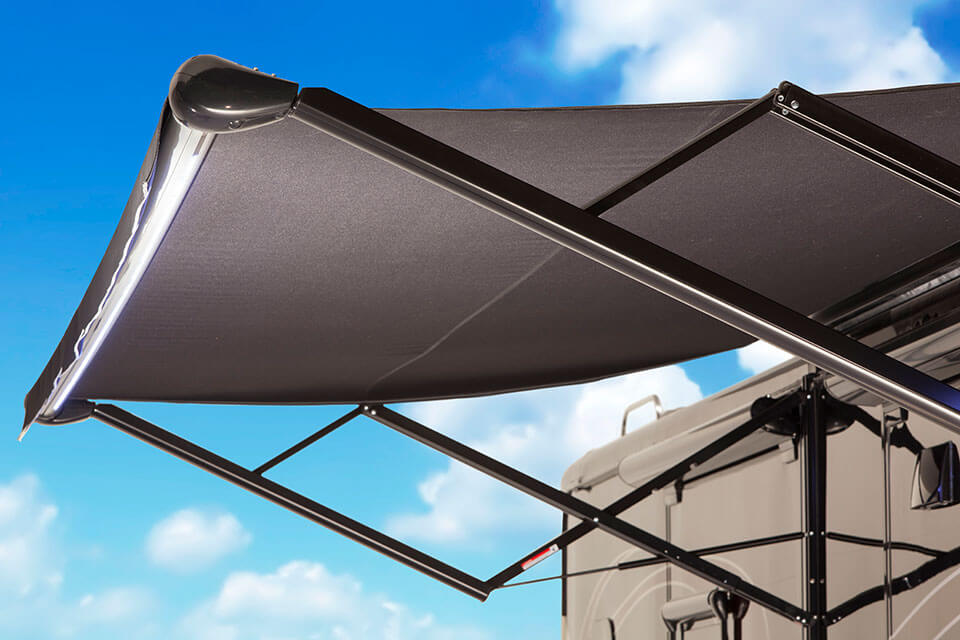

Door Awning | Carefree power patio awning with LED lights; Carefree power entrance door awning with LED lights; Carefree slideout and window awning |

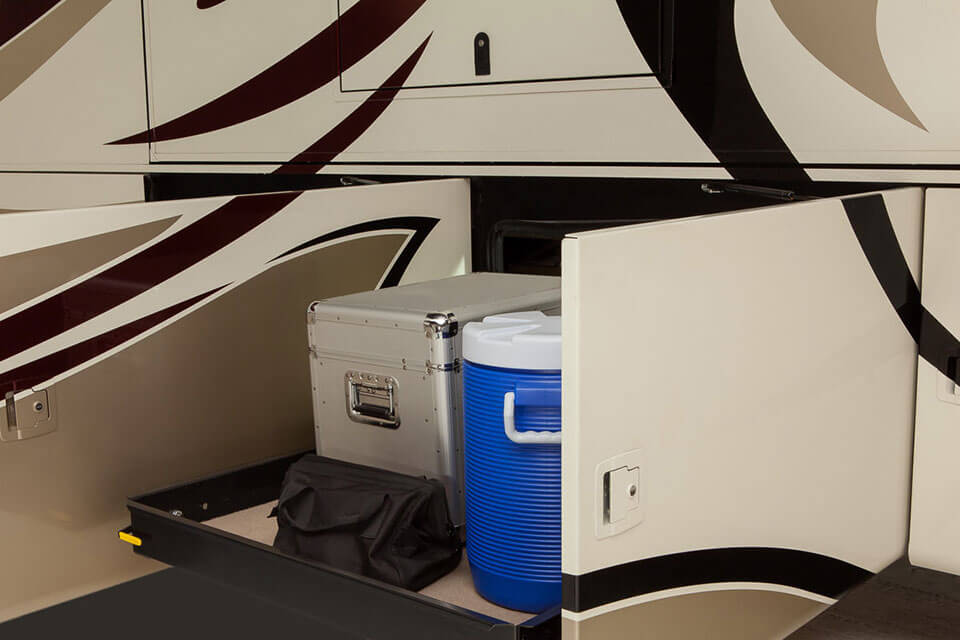

Cargo Features | Pass-through storage compartment(s); Side-hinged baggage doors; Slideout cargo tray: Sliding battery tray: Carpet trunk liner in cargo bays |
Satellite Dish | Winegard in-motion dome satellite dish |
TV Antenna | Yes |
Rear Mudflap | Full-width rear mudflap |

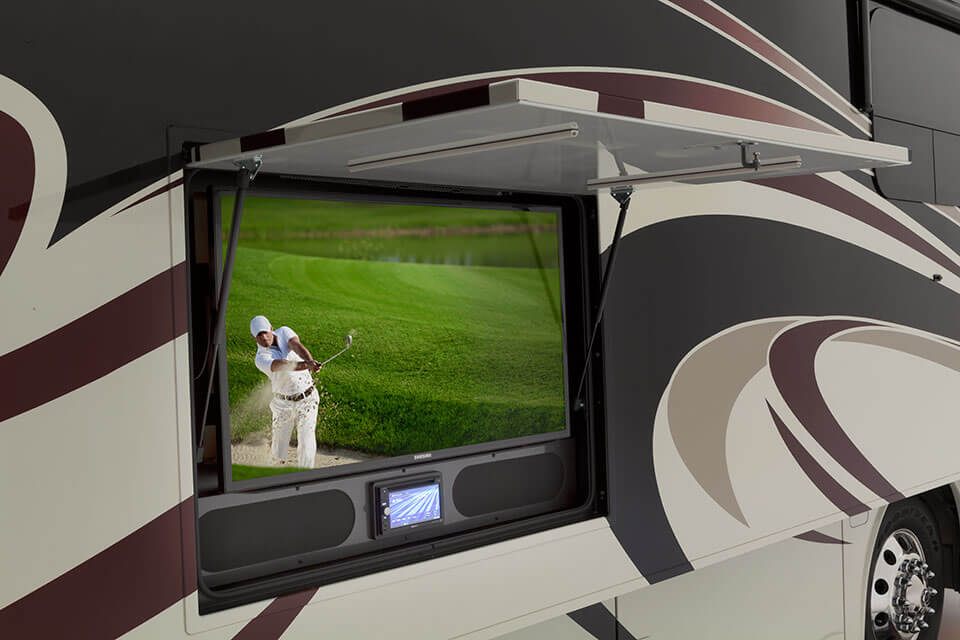

Entertainment | Samsung 40" LED HDTV with Sony Dual DIN CD/DVD player and 4 speakers |
Lights | Motion sensor security lights (2) |

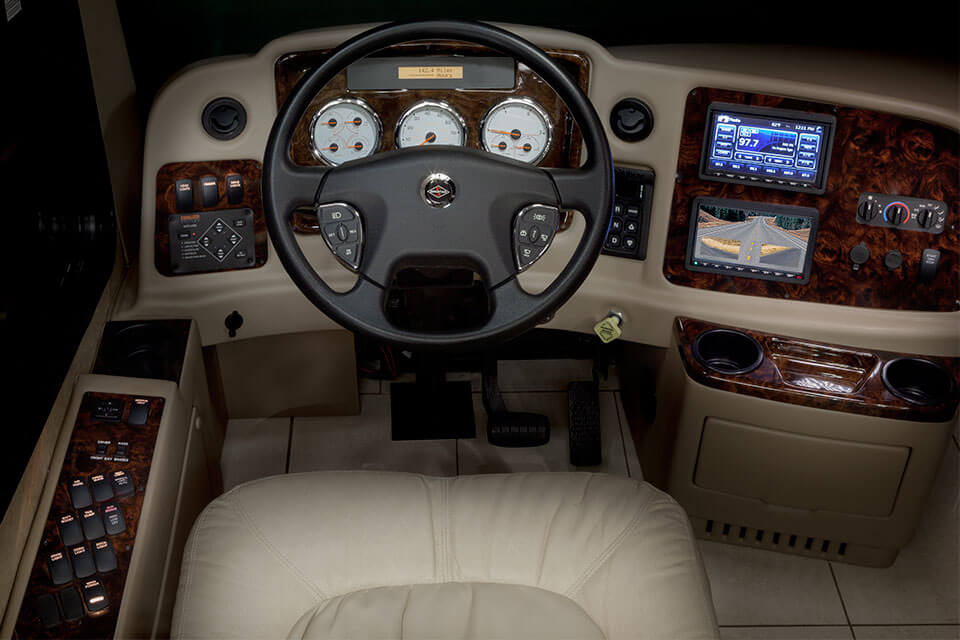

Cockpit
Driver / Passenger Seats | Ultraleather, power adjustable driver and passenger seats with integrated 3-point lap and shoulder safety belts |
Steering Wheel | VIP SmartWheel steering wheel with integrated controls for cruise and wipers; VIP soft-touch steering wheel with tilt and telescoping steering column; Adjustable foot pedals |
Infotainment System(s) | Touch-screen AM/FM/CD/DVD with Rand McNally GPS navigation, Bluetooth and 4 speakers; Sirius ready radio and tuner; CB prep with antenna; Samsung 32" LED HDTV |
Windshield | Ultra-Vision one-piece wrap-around tinted windshield |
Cameras | Color back-up camera and monitor; Side cameras with turn signals |
Visors & Privacy Shade | Powered front sun visors and privacy shade; Roller side sun visors and privacy shades |
Power Features | 12V auxiliary in-dash receptacle (1) in center, (1) at driver's area, (1) at passenger's area; Battery boost switch; Chassis battery disconnect; Hydraulic automatic leveling jack system; Powered flush stepwell cover |
Monitoring System(s) | Spartan Message Center with LCD display featuring: odometer, tachometer, instantaneous fuel economy, fuel remaining, outside air temp., coolant temp., engine oil temp. and pressure, transmission temp., turbo boost pressure, air pressure, diagnostic functions, fault codes, service reminders, percentage of engine load, trip meter, speed and voltage |
Flooring | High Gloss 12" x 24" porcelain tile with glass inlay; Color-coordinated carpeted floor mat between driver and passenger seat |

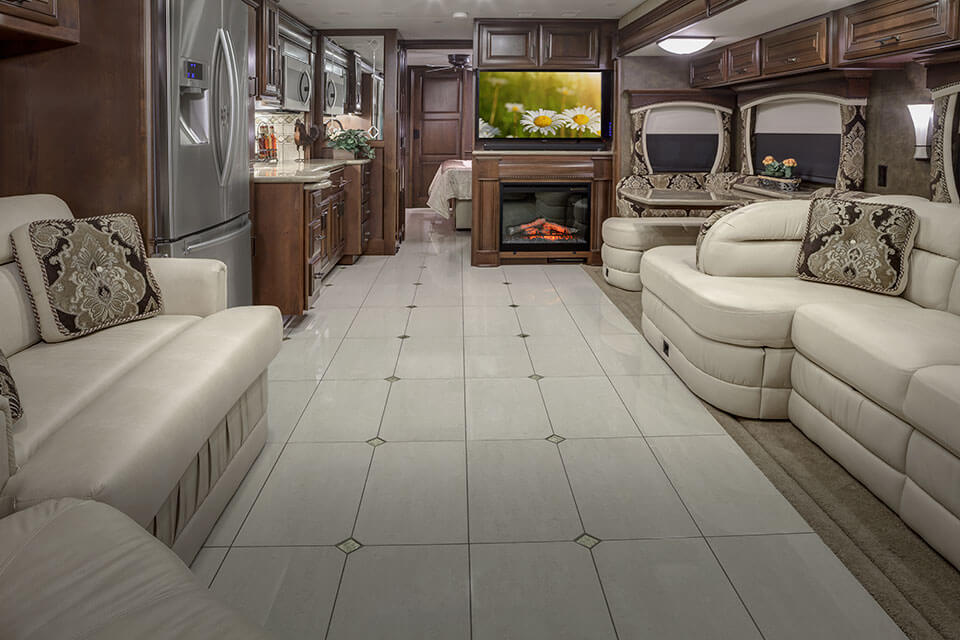

Interior
Furniture | Ultraleather furniture package; Ultraleather hide-a-bed sofa |
Lighting | Decorative oil rubbed bronze lighting throughout; LED recessed 12V lighting package; Multiplex lighting; Lights at entrance steps |
Central Vacuuming System | 2-panel residential-style solid hardwood passage doors throughout |
Window Treatments | Fabric and wood-covered box valances with lambrequin legs; Day/night solar shades throughout |
Flooring | High gloss 12" x 24" porcelain tile floor with glass inserts |

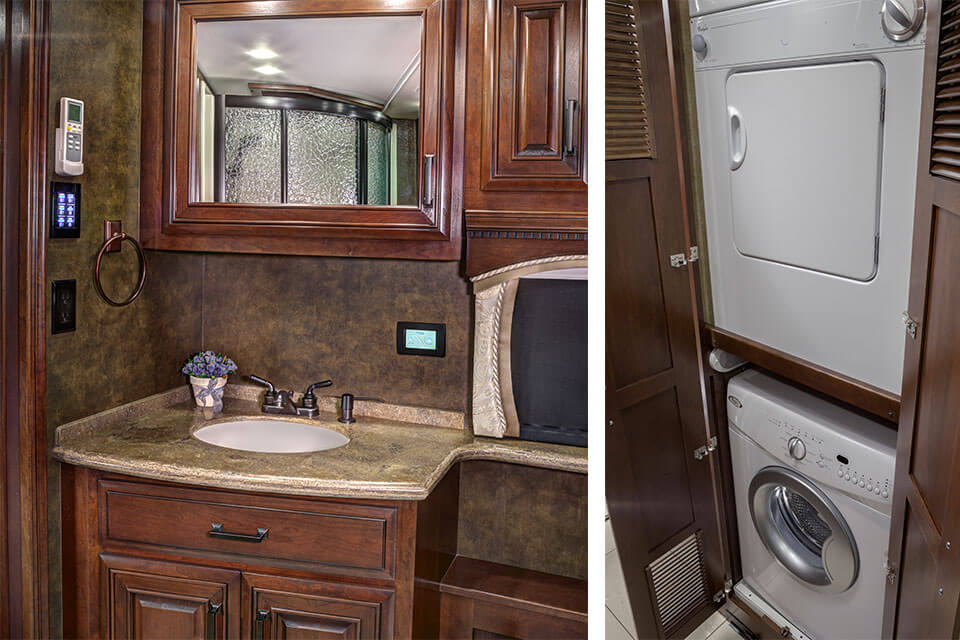

Washer/Dryer | Yes |

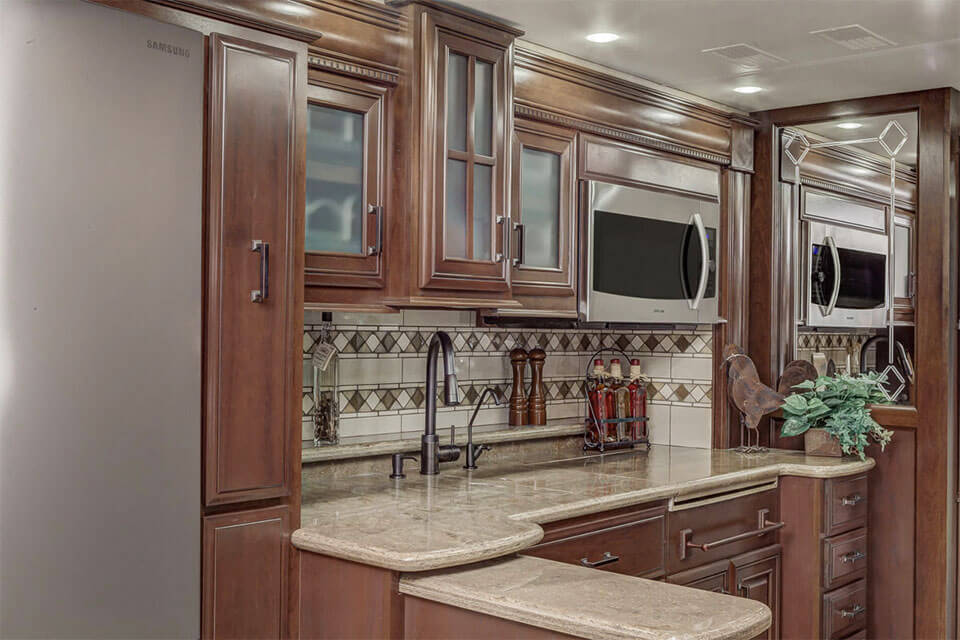

Kitchen
Refrigerator | Samsung residential 23 cu. ft. refrigerator with ice maker and water dispenser |
Microwave | Samsung 1.7 cu. ft. convection microwave oven |
Cooktop | Recessed, glass top gas range |

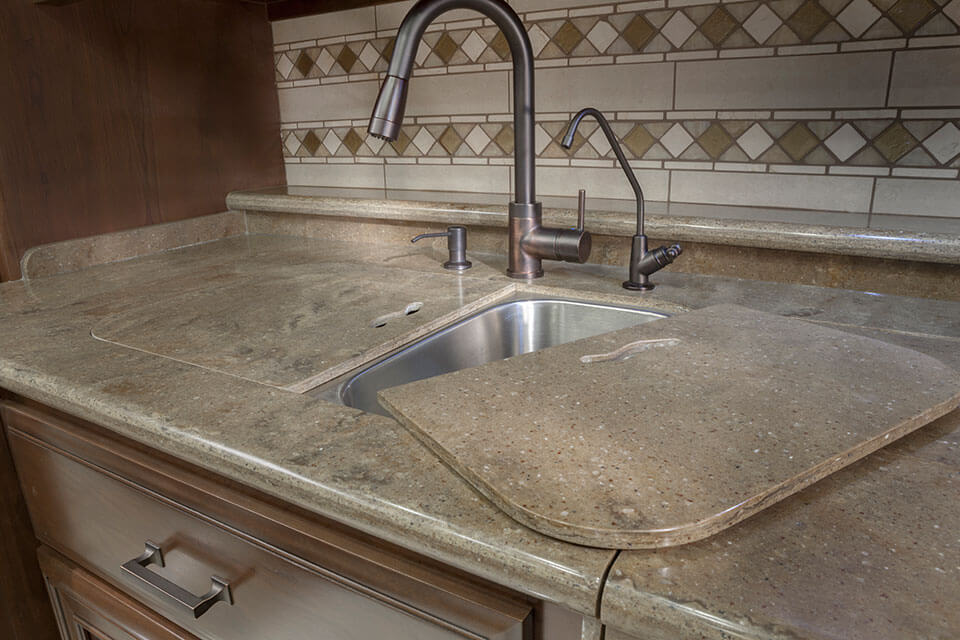

Countertops | Solid surface countertops with stainless steel sink; Pullout cabinet extension with countertop |
Backsplash | Porcelain tile backsplash with glass design inlays |
Waste Basket | Large deep drawer with waste basket |
Silverware Drawer | Silverware drawer, divided for utensils |

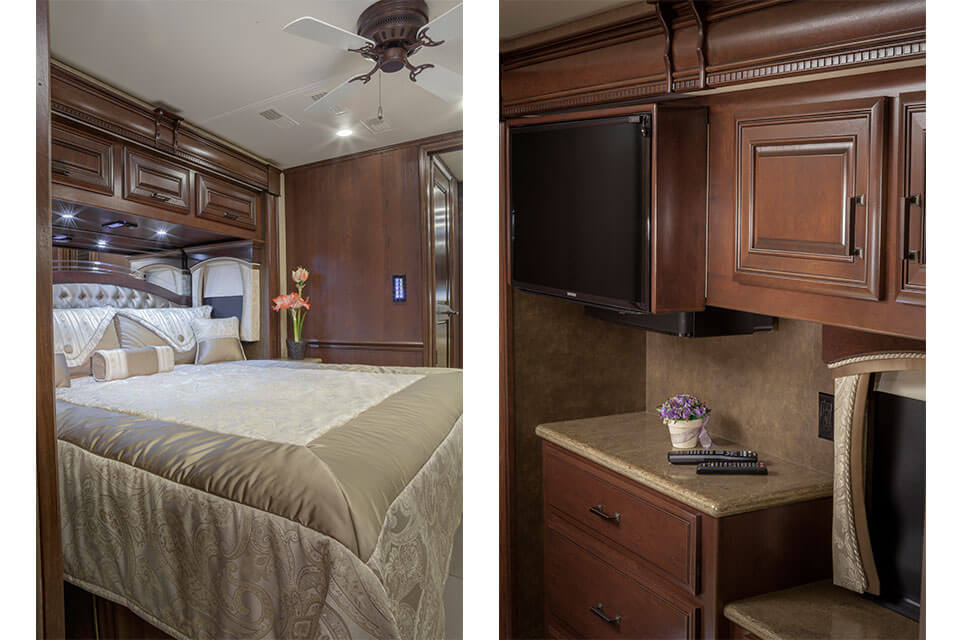

Bedroom
Bed | King Sleep Number air mattress; Quilted bedspread |
Wardrobe | Hardwood wardrobe doors with mirrors |
Bathroom
Countertop(s) | Solid-surface countertop(s) with integrated sink |

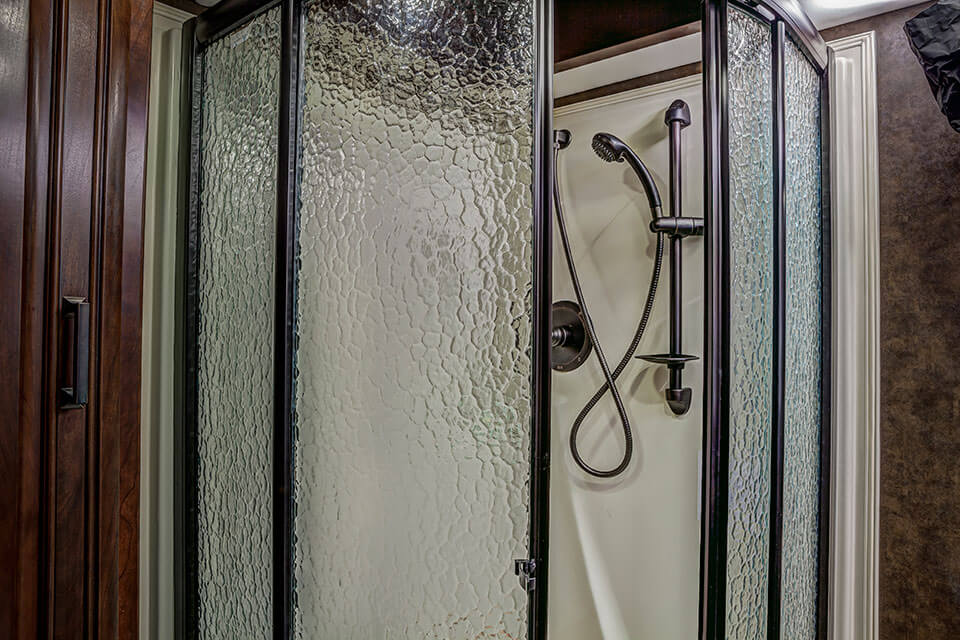

Shower Door | One-piece fiberglass shower with skylight |
Vent | Power vent |
Safety
Smoke Alarm | Yes |
Propane Alarm | Yes |
Carbon Monoxide Detector | Yes |
Security System | Yes |
Options
Canadian Standards | Yes |
Satellite Dish - US | Winegard Trav'ler satellite dish with DIRECTV. Shaw Direct Canada Satellite TV |
Décor Options
Entegra Coach peace of mind
2-year warranty and 3-year roadside assistance
At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year warranty and 3-year roadside assistance.
