THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2015 Aspire TK
Upgrade the journey
Built on a Freightliner XCR chassis with a Cummins 400HP engine, the Aspire TK is the perfect first step up into Class A luxury. Featuring Ultraleather furniture, Samsung appliances and a king-sized Denver Mattress, luxury starts here.
Download brochure
Brochure
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2015 Aspire TK|39E
Specs
| Gross Vehicle Weight Rating (lbs) | 38,700 |
| Gross Combined Weight Rating (lbs) | 48,700 |
| Front Gross Axle Weight Rating (lbs) | 14,700 |
| Rear Gross Axle Weight Rating (lbs) | 24,000 |
| Wheel Base | 264" |
| Exterior Length | 40' 6" |
| Interior Height | 84" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 10" |
| Fresh Water Capacity (gals) | 80 |
| Grey Waste Water Capacity (gals) | 52 |
| Black Waste Water (gals) | 52 |
2015 Aspire TK|38M
Specs
| Gross Vehicle Weight Rating (lbs) | 38,700 |
| Gross Combined Weight Rating (lbs) | 48,700 |
| Front Gross Axle Weight Rating (lbs) | 14,700 |
| Rear Gross Axle Weight Rating (lbs) | 24,000 |
| Wheel Base | 264" |
| Exterior Length | 40' 6" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 10" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 80 |
| Grey Waste Water Capacity (gals) | 52 |
| Black Waste Water (gals) | 52 |
All Floorplans

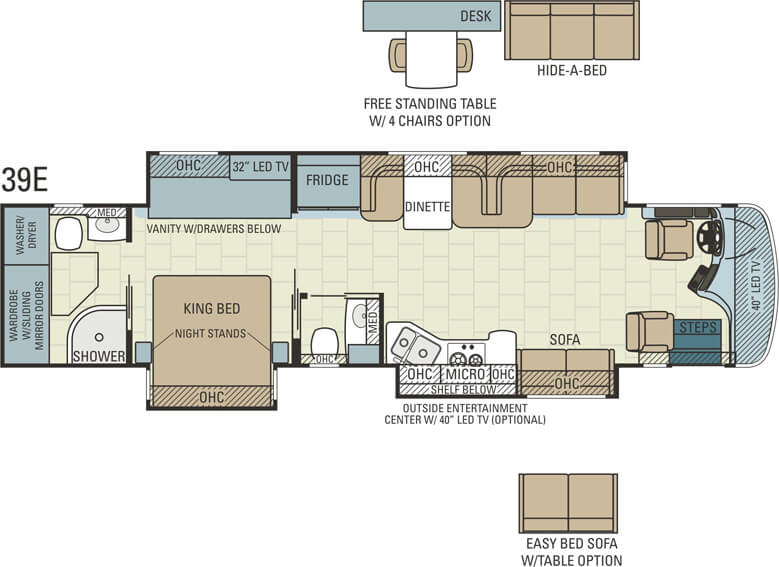

2015 Aspire TK | 39E

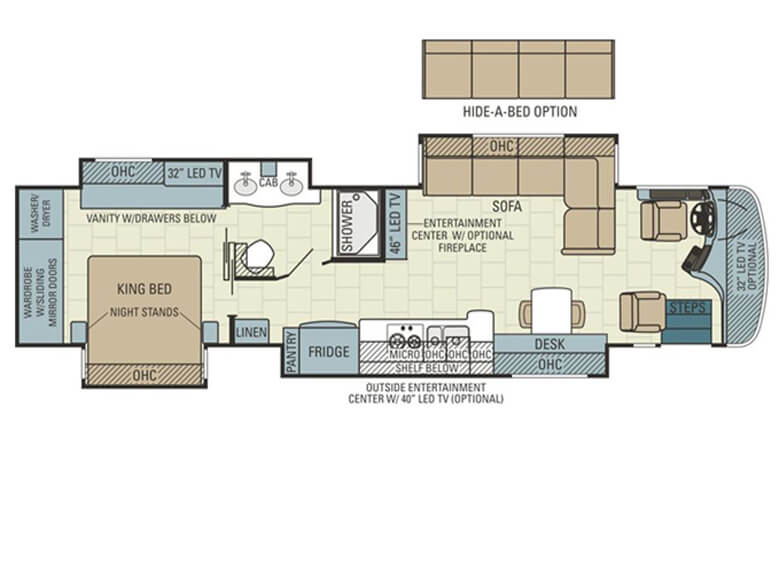

2015 Aspire TK | 38M
360°

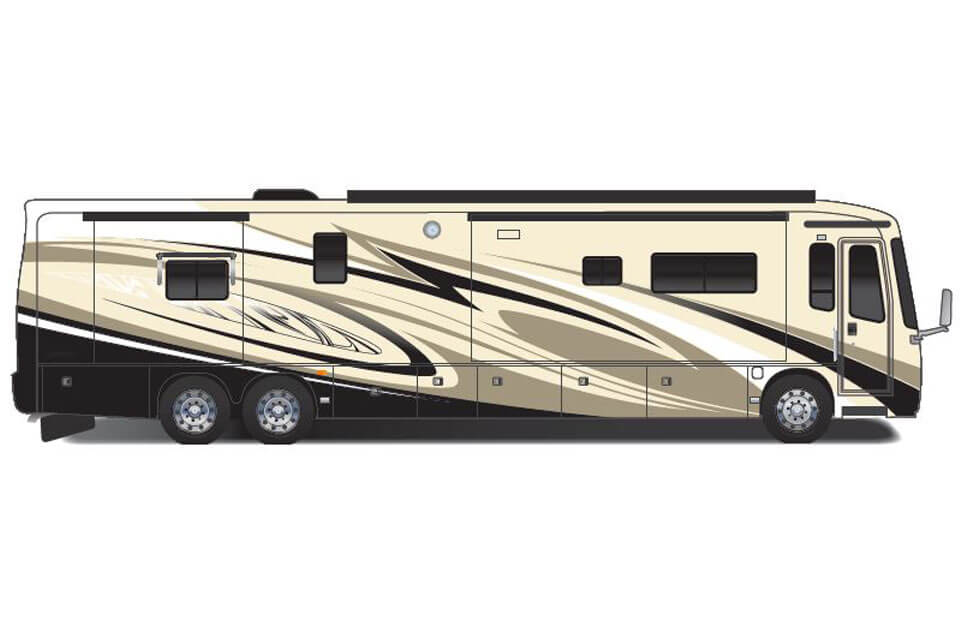

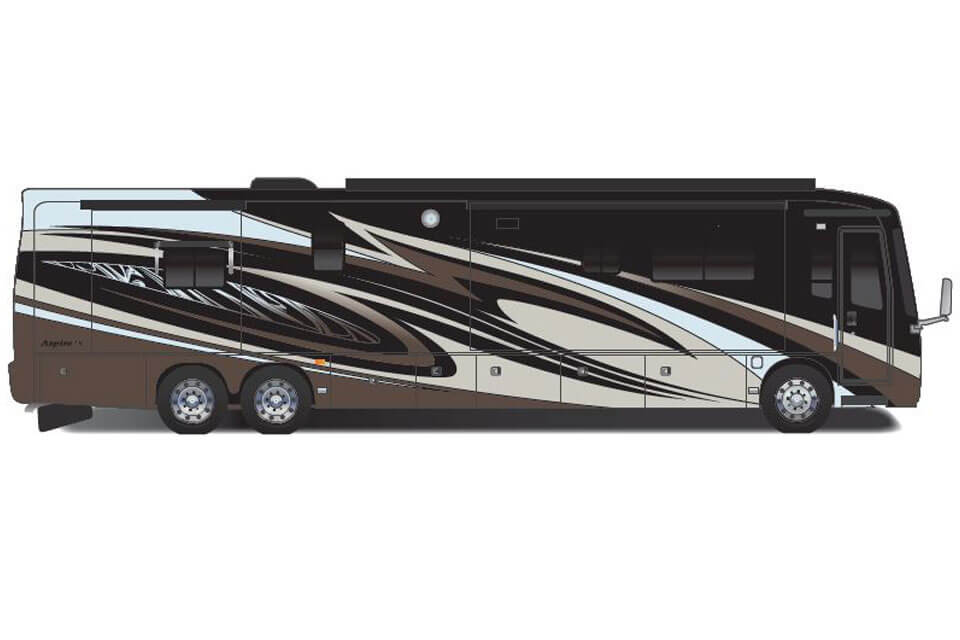

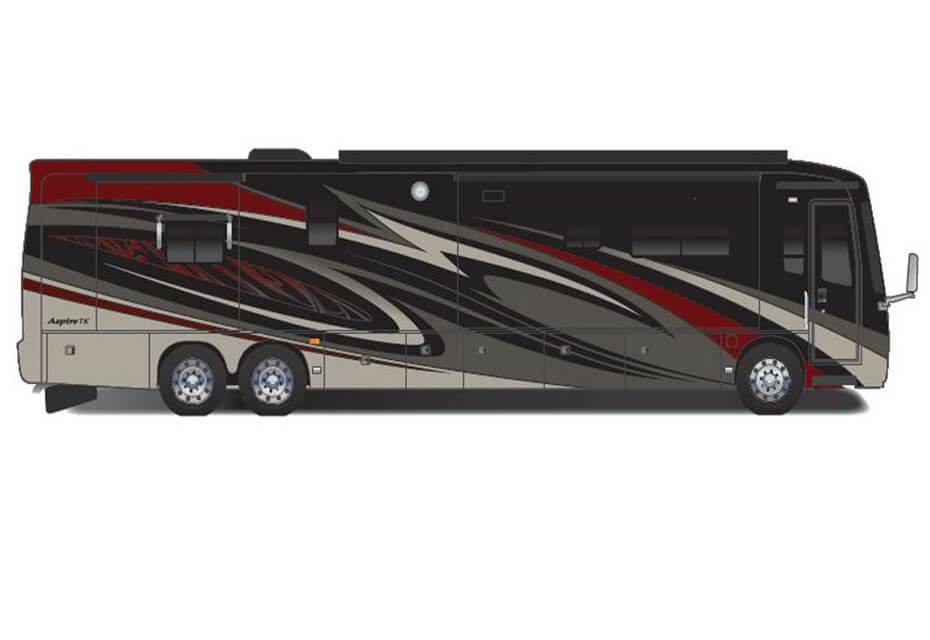

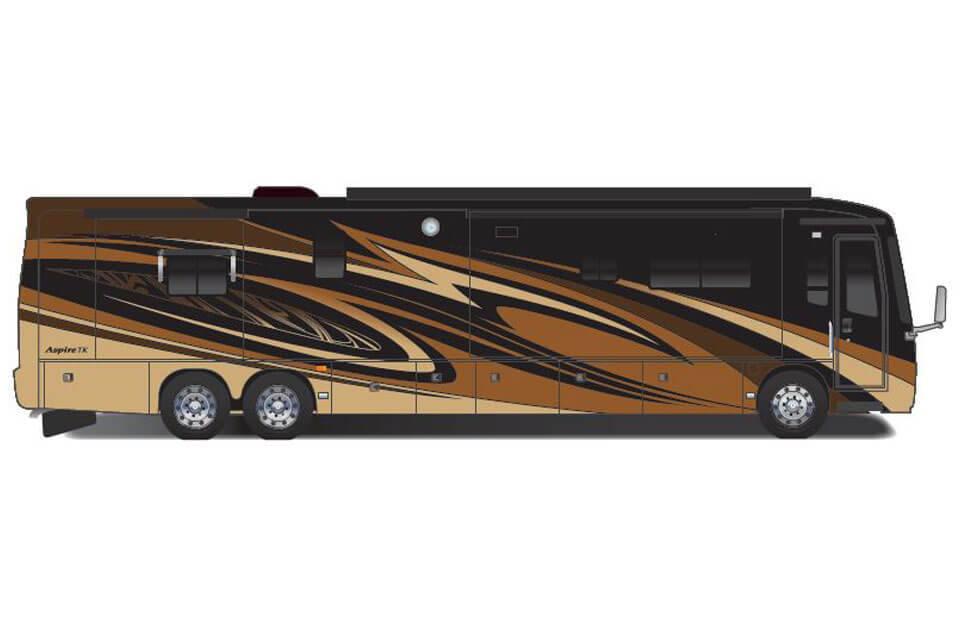

Exterior Graphics
Standards & Options
Chassis
| Chassis | Freightliner XCR chassis |
| Chassis Battery | (2) chassis batteries |
| DEF Tank | 13-gallon DEF tank |
| Fuel Tank | 125-gal. (dual fill) fuel tank |
| Hitch | 10,000-lb. hitch with 7-pin plug |
| Alternator | 160-amp alternator |
| Turning Radius | 55-degree wheel cut |
| Braking System | All-wheel ABS brakes; Air disc front/rear brakes; Pre-wired for supplemental braking system; Variable geometry turbo exhaust brake |
| Transmission | Allison 3,000 MH 6-speed transmission |
| Shocks | Yes |
| Front Axle | Front axle I-beam 14,700 lb. |
| Rear Axle | Rear axle 24,000 lb |
| Radiator | Rear-mounted radiator |
| Tires | Goodyear G670 295/80R 22.5 Tires (Front) + G670 275/80 R 22.5 Tires (Rear) |
| Rear Axle Ratio | 4.78 "Quiet Gear" rear axle ratio |
| Front Suspension | Front I-beam suspension |
| Engine Block Heater | Yes |
| Air Connection | Remote air connection |
| Engine | Cummins ISL 400 HP engine 1,250 lb. ft. torque at 1,400 RPM |
Construction
| Floor | 2" x 4" truss construction; 3/4" (7) plywood main floor decking |
| Walls | Smooth high-gloss, gel-coat fiberglass exterior walls; 2 1/2" wall welded with tubular construction; Sidewalls bolted to chassis frame structure |
| Roof | One-piece fiberglass, 4 1/2" arched aluminum truss roof; Aluma-Tru Superstructure construction on 12"-16" centers |
| Slideouts | Electric-powered slideouts; Frameless flush-mounted slideout rooms |
| Insulation | Polar Pack insulation with reflective Flexfoil floor (R-26), roof (R-29), sidewalls (R-13), front and end caps(R-28); Ducted heating in storage area |
| Frame | X-Bridge frames welded into chassis frame; Steel-reinforced front cap and windshield frame |
Heat, AC, Water & Power
| Air Conditioning | 15,000-BTU low profile central A/Cs (2) with heat pump, digital thermostat, Chill grille and drain tubes; Dual insulated ceiling air ducts with adjustable air vents |
| Water Filtration | Yes |
| Black Tank Management | Yes |
| Generator | Onan 8,000-watt diesel generator with auto-gen start on slide-out tray |
| Heating System | Aqua-Hot 400-LP hydronic water and heating system with in-floor heat throughout |
| Water Hose w/ Electric Reel | 12V on-demand water pump with two switch locations; Expandable water hose |
| Batteries | Black holding tank sprayer; Holding and fresh water tanks, ducted-heat |
| Electrical Hookup | 50-amp electric service with quick connect power cord with power reel; 2,800-watt Pure sine wave inverter with (4) 6V batteries; Surge protector transfer switch; Systems monitor panel |
| Tank Flush | Total coach system water filter; SeeLevel tank monitoring system |
| Power Management | Hookup for city water |
| Water Monitoring | Yes |
Exterior
| Mirrors | Heated, remote control, side-view mirrors |
| Entrance Door | Aire-Secure travel locks for all passage doors; Lighted heavy-duty grab handle with keypad system; Keyless entry with key fob |
| Exterior | Full-body premium paint package |
| Entrance Steps | Electric-powered, double step entrance |
| Windows | Frameless, tinted, dual-pane, safety-glass windows |
| Door Awning | Carefree Latitude power patio awning and power entrance door awning with LED lights; Carefree slideout and window awnings |
| Rear Mudflap | Full-width rear mudflap |
| Cargo Features | Truck liner in cargo trays; Sliding battery tray; Side-hinged baggage doors with radius latches |
| Satellite Dish | Winegard in-motion, dome, roof-mounted satellite dish |
Cockpit
| Steering Wheel | Adjustable foot pedals; VIP SmartWheel steering wheel with integrated controls for cruise and wipers |
| Cameras | Color back-up camera and monitor. Side cameras with turn signals |
| Windshield | Ultra-Vision one-piece wrap-around tinted windshield |
| Flooring | Rubber entry step; Floor mat between driver and passenger seat |
| Power Features | Powered input flush step well cover; 12V auxillary in-dash receptacle; Battery boost switch; CB prep with antenna |
| Infotainment System(s) | Freightliner Message Center with LCD display; USB port in dash, touch-screen AM/FM/CD/DVD with GPS navigation; Bluetooth and 4 speakers; Sirius ready radio and tuner |
| Driver / Passenger Seats | Ultraleather, power adjustable driver and passenger seats with integrated 3-point lap and shoulder safety belts |
| Visors & Privacy Shade | Powered front sun visors and privacy shade |
| Monitoring System(s) | Freightliner Message Center with LCD display featuring: odometer, tachometer, instantaneous fuel economy, fuel remaining, outside air temp., coolant temp., engine oil temp. and pressure, transmission temp., turbo boost pressure, air pressure, percentage of engine load, trip meter, speed and voltage; 5" dash black-faced gauges |
Interior
| Washer/Dryer | Yes |
| Lighting | LED recessed 12V lighting package, entrance step lights and multiplex lighting |
| Window Treatments | Day/night solar shades throughout |
| Furniture | Ultraleather sofa; Hide-a-bed sofa; Fabric and wood-covered box valances with lambrequin legs |
| Flooring |
Kitchen
| Backsplash | Tile backsplash |
| Countertops | Pullout cabinet extension with countertop; Solid surface countertops with stainless steel sink and lighted edge |
| Refrigerator | Samsung residential 23 cu.ft. refrigerator with ice maker and water dispenser |
| Microwave | Samsung 1.7 cu. ft. convection microwave oven |
| Cooktop | Induction range |
Bedroom
| Bed | King-sized Denver mattress; Quilted bedspread |
| Wardrobe | Hardwood wardrobe doors with mirrors |
Bathroom
| Shower Door | One-piece fiberglass shower with skylight and Mistlite glass shower door |
| Vent | Yes |
| Countertop(s) | Solid-surface countertop(s) with integrated sink (LG Twister with Hazelnut Edge) and lighted edge |
| Shower | Medicine cabinet with mirror; Raised-panel passage doors |
Safety
| Carbon Monoxide Detector | Yes |
| Propane Alarm | Yes |
| Security System | Yes |
| Smoke Alarm | Yes |
Options
| Canadian Standards | Yes |
| Satellite Dish - US | Winegard Trav'ler satellite dish with DIRECTV and Canadian Shaw satellite dish with DIRECTV |
Décor Options
Entegra Coach peace of mind
2-year warranty and 3-year roadside assistance
At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year warranty and 3-year roadside assistance.
Detail
Upgrade the journey
Built on a Freightliner XCR chassis with a Cummins 400HP engine, the Aspire TK is the perfect first step up into Class A luxury. Featuring Ultraleather furniture, Samsung appliances and a king-sized Denver Mattress, luxury starts here.
